Generator Control System Test: 2.3CL
- Disconnect generator 4-pin connector. Start engine. Turn on headlights (high beam). Use DVOM to measure voltage between generator 4-pin connector terminal No. 1 (White/Green wire) and battery positive terminal. See Figure. If one volt or less exists, go to step 3). If greater than one volt exists, go to next step.

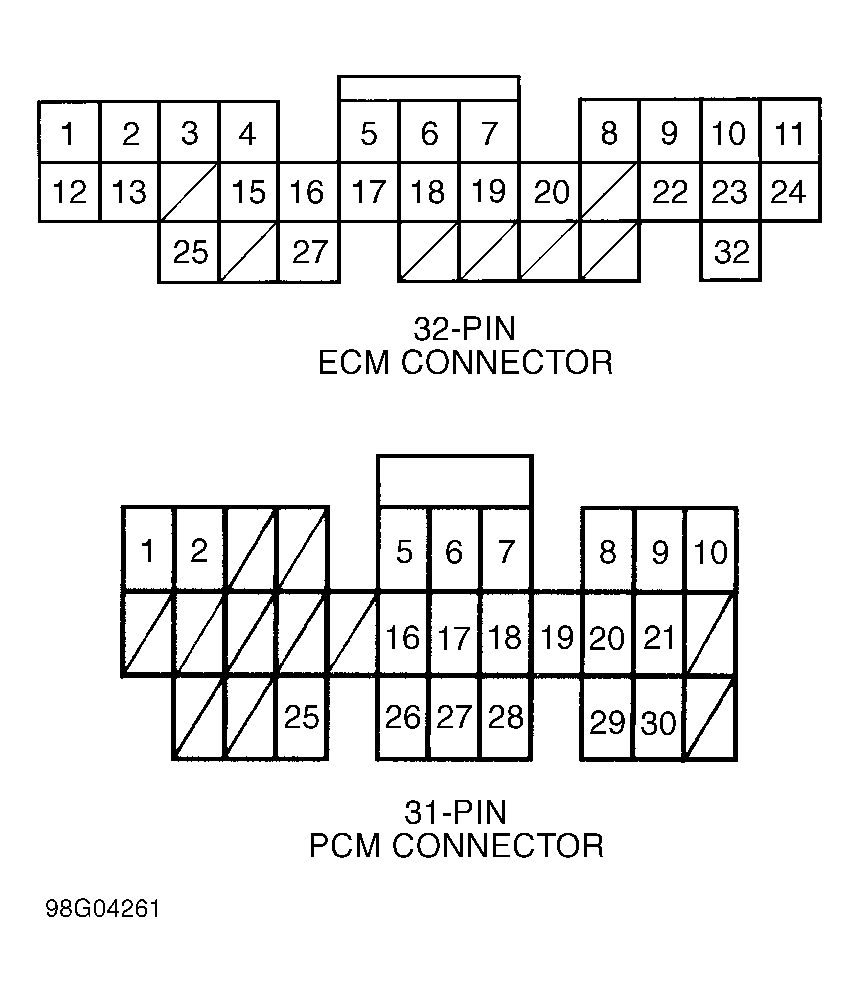

- Turn headlight and ignition switch to OFF positions. Disconnect 32-pin connector from Electronic Control Module/Powertrain Control Module (ECM/PCM), located behind right kick panel. Use DVOM to measure continuity of White/Green wire between ECM/PCM connector terminal No. 19 and ground. See Figure. If continuity exists, repair short to ground in White/Green wire. If continuity does not exist, install known good ECM/PCM and recheck system. Replace ECM/PCM if necessary.
