Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
A/C Diode Taped to harness, above left kick panel.
Auxiliary Fuse Holder On left side of underdash fuse/relay box.
Foglight In-Line Fuse On battery bracket.

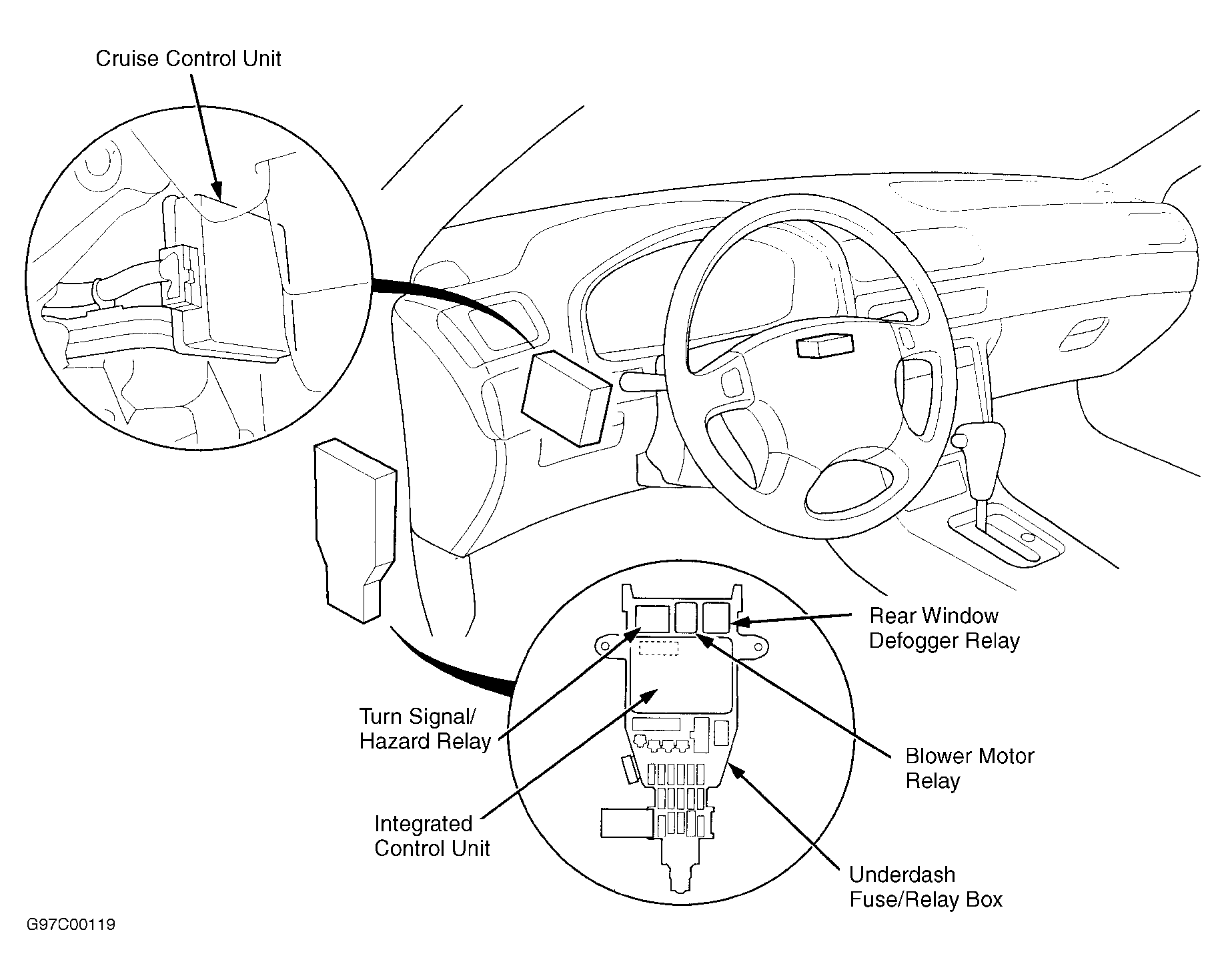

Underdash Fuse/Relay Box On left kick panel. See Figure.

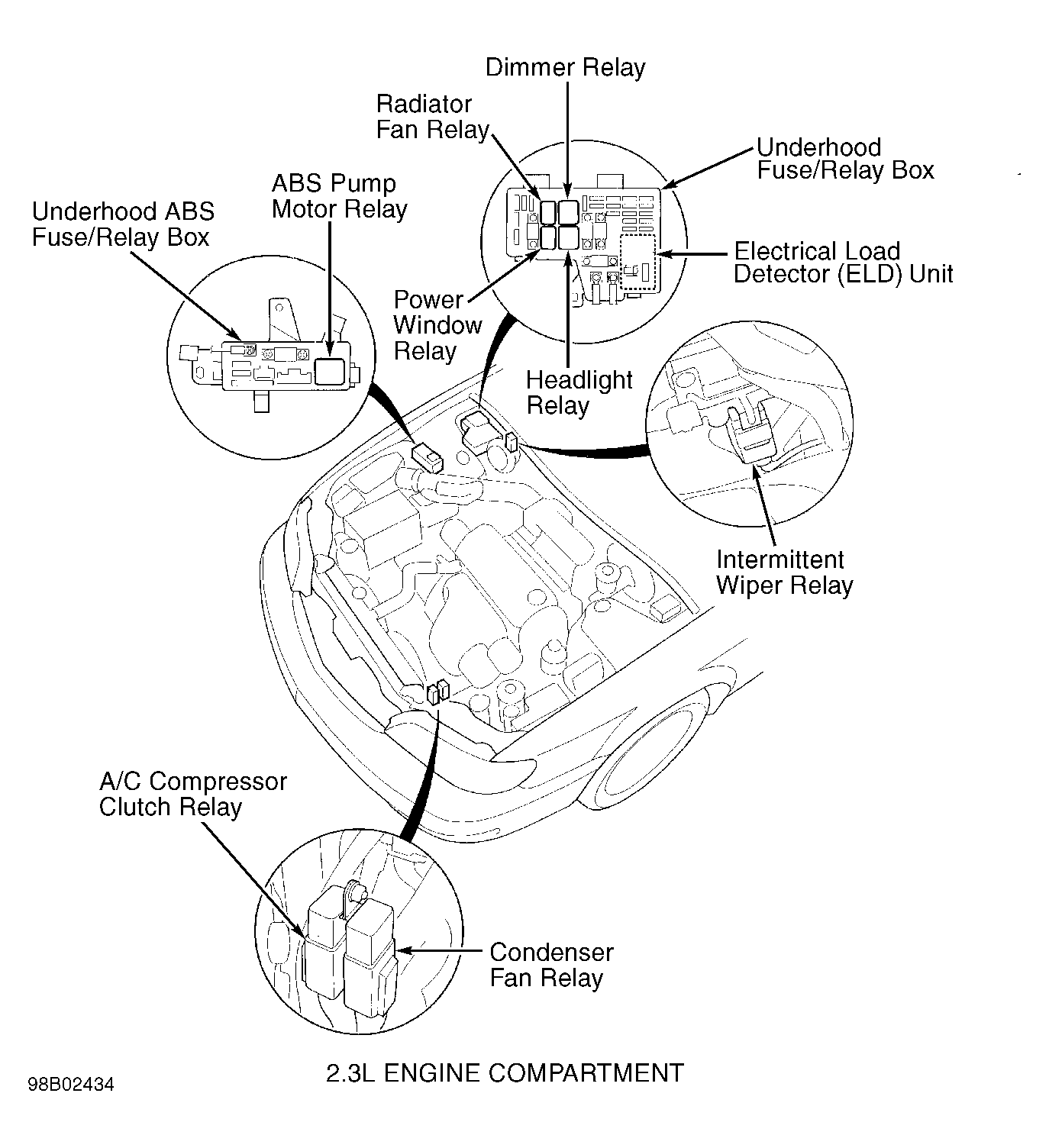

Underhood ABS Fuse/Relay Box (2.3L) On right side of engine compartment. See Figure.

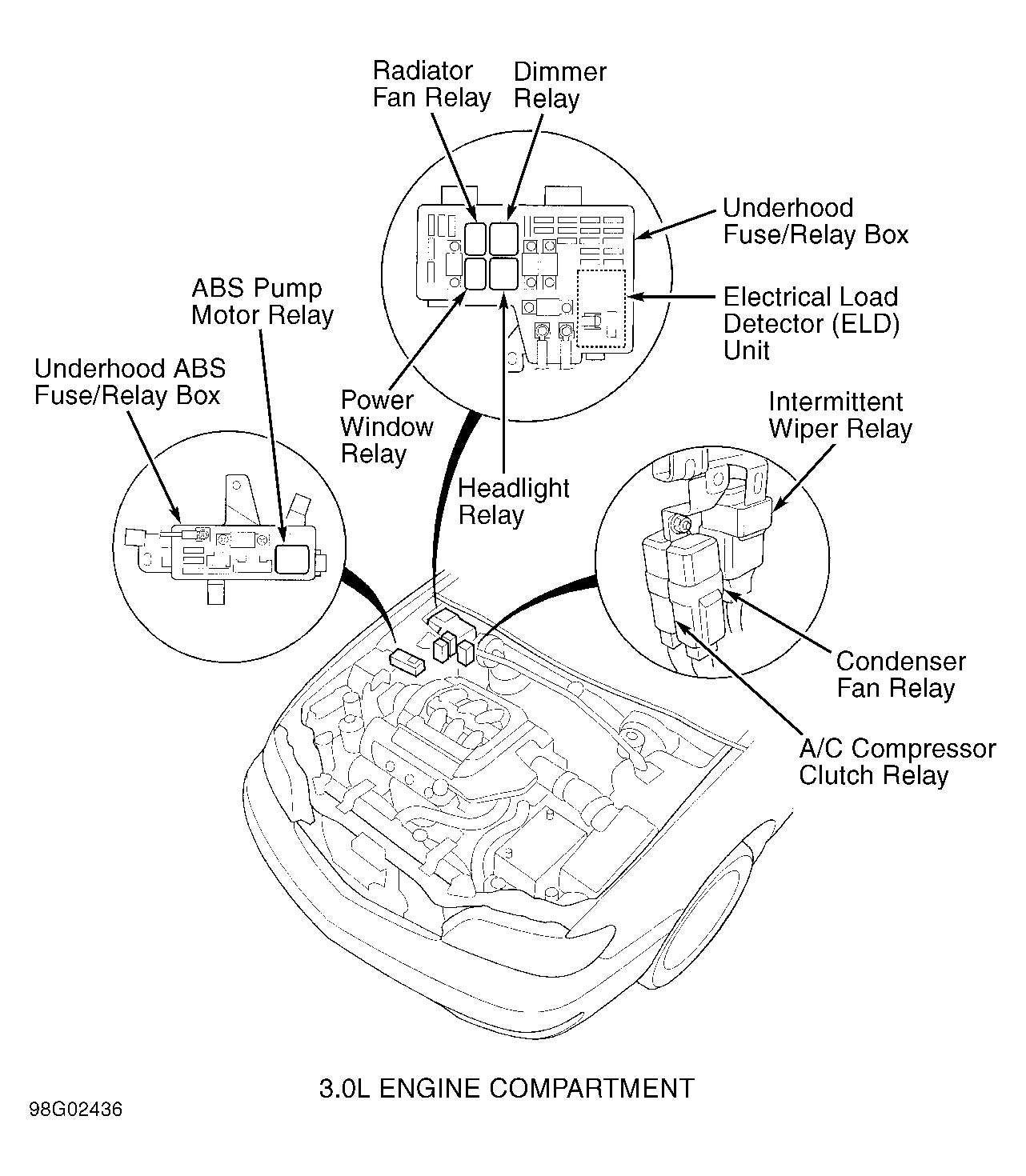

Underhood ABS Fuse/Relay Box (3.0L) On right side of engine compartment. See Figure.
Underhood Fuse/Relay Box (2.3L) On right rear of engine compartment. See Figure.
Underhood Fuse/Relay Box (3.0L) On right rear of engine compartment. See Figure.
