Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

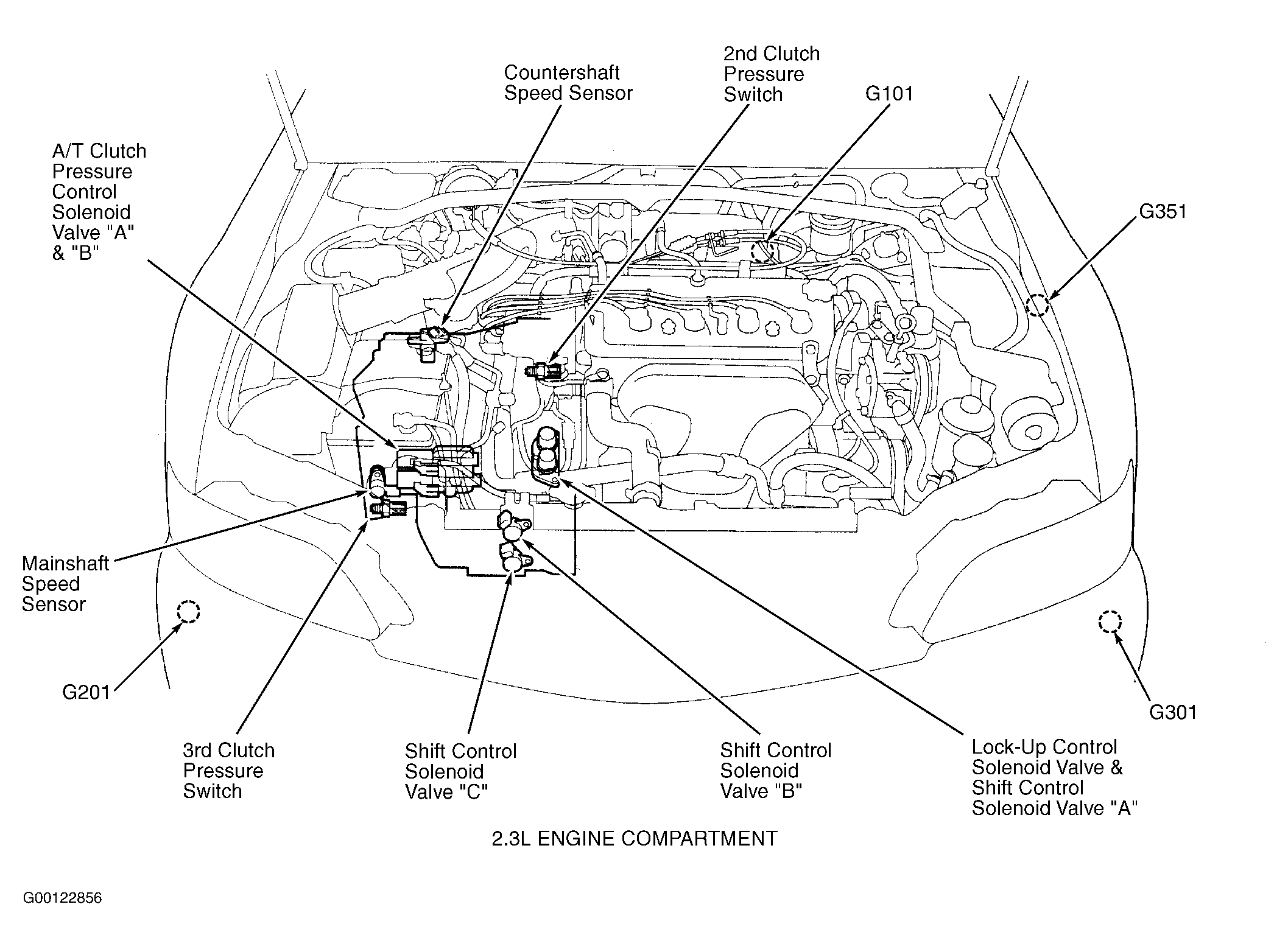

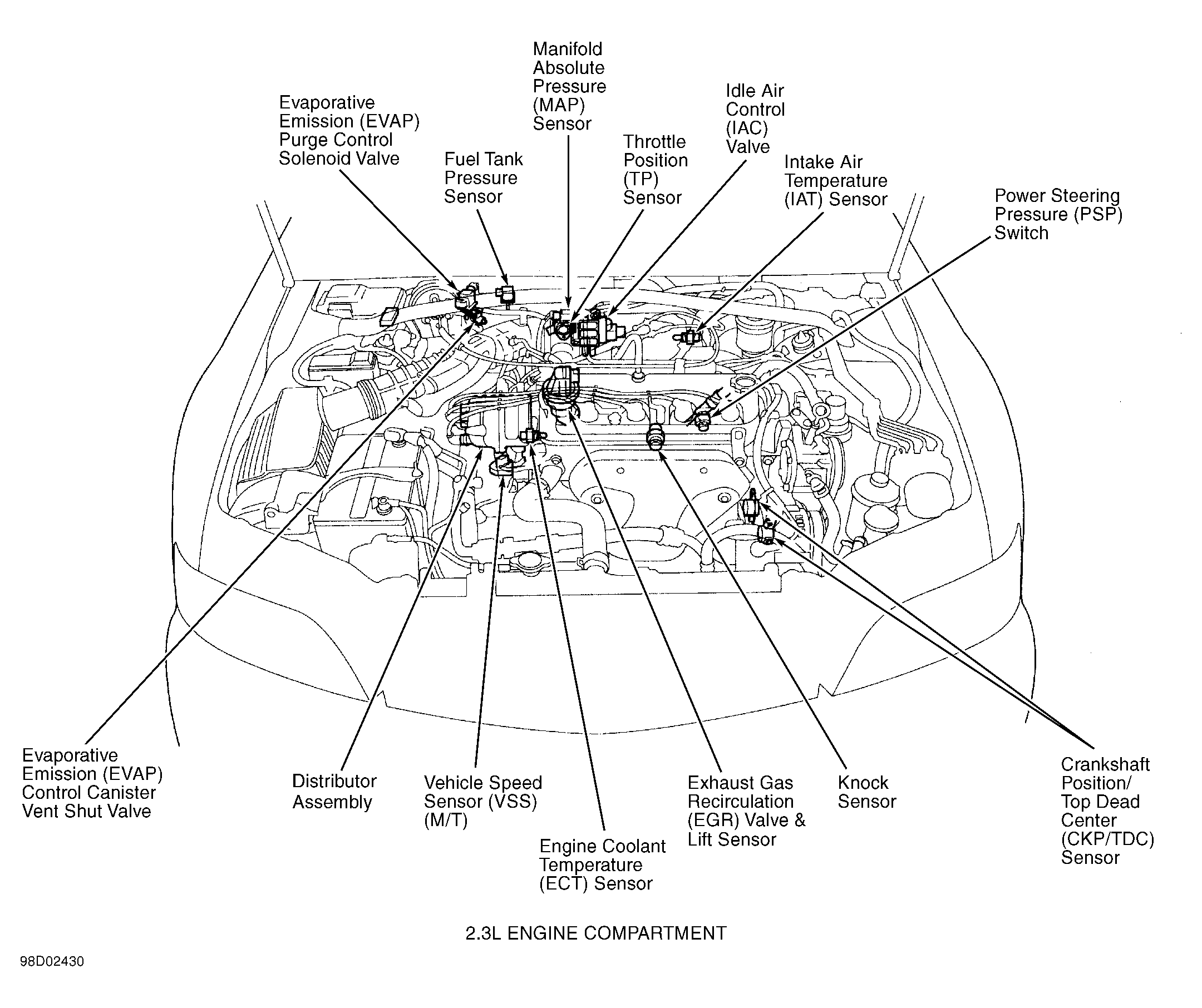

Fig 1: Engine Compartment (2.3L)

Fig 2: Engine Compartment (2.3L)

Fig 3: Engine Compartment (2.3L)

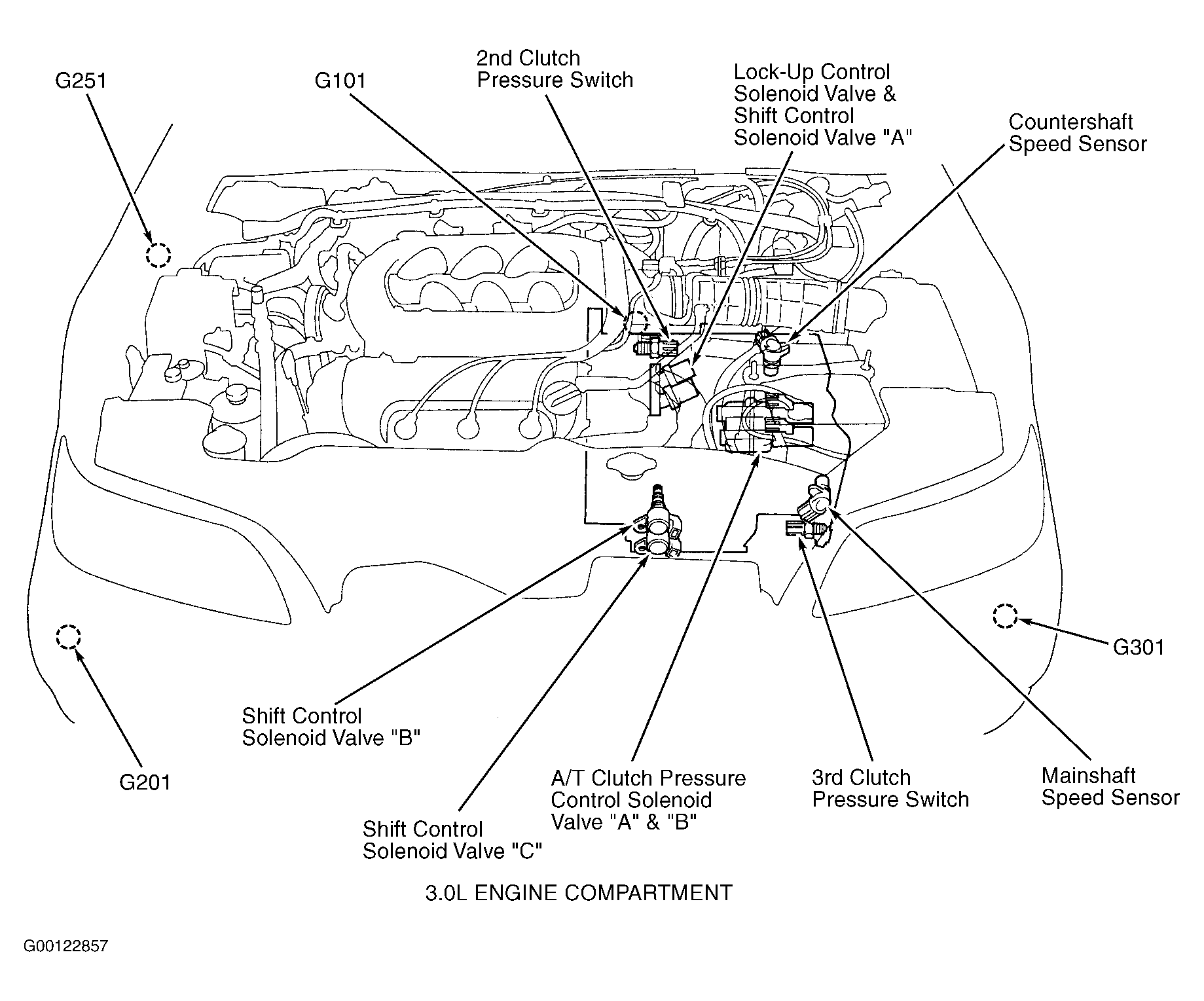

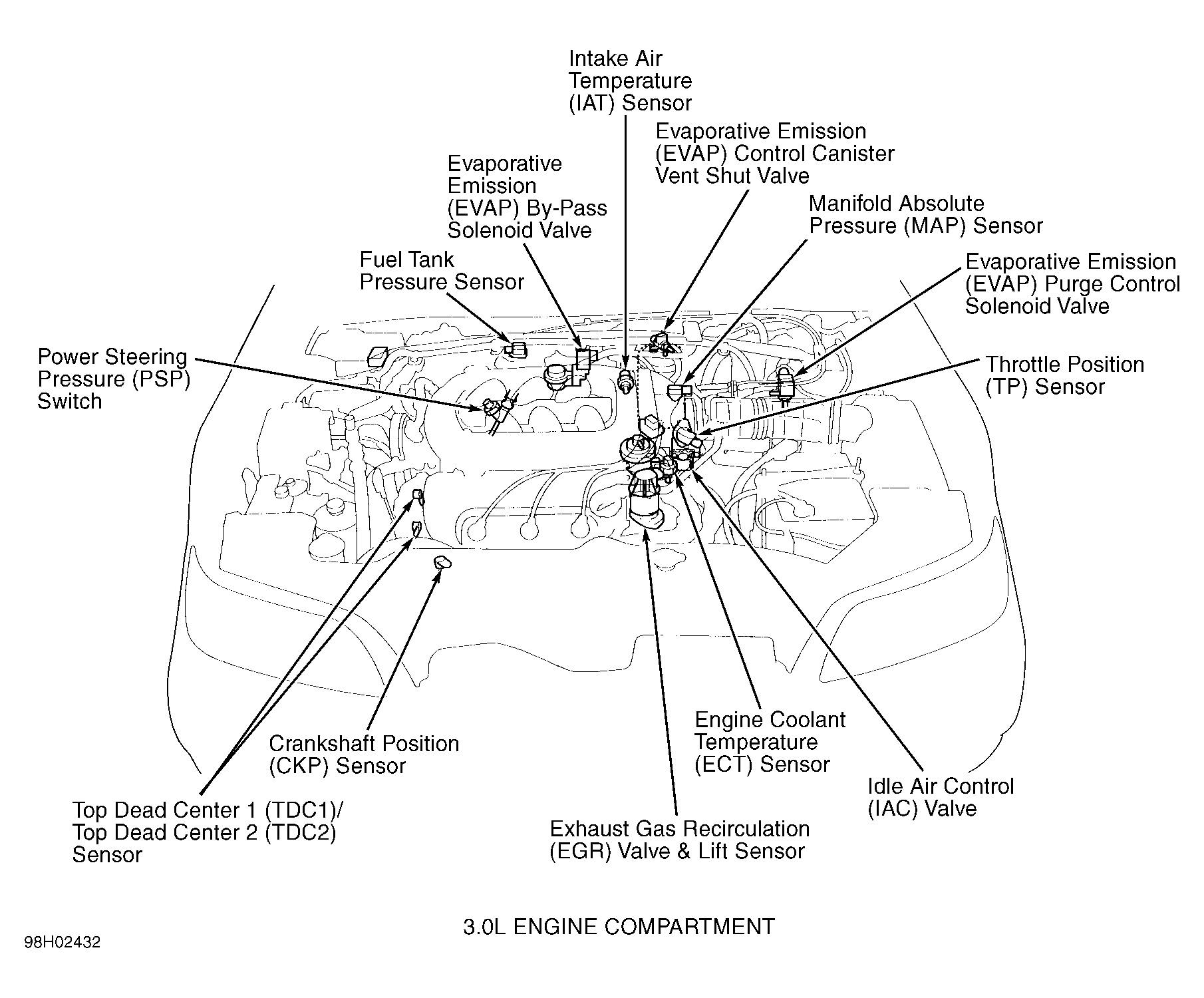

Fig 4: Engine Compartment (3.0L)

Fig 5: Engine Compartment (3.0L)

Fig 6: Engine Compartment (3.0L)

Fig 7: Dash

Fig 8: Dash

Fig 9: Dash

Fig 10: Dash

Fig 11: Behind left side of dash
