Circuit Tests: Notes

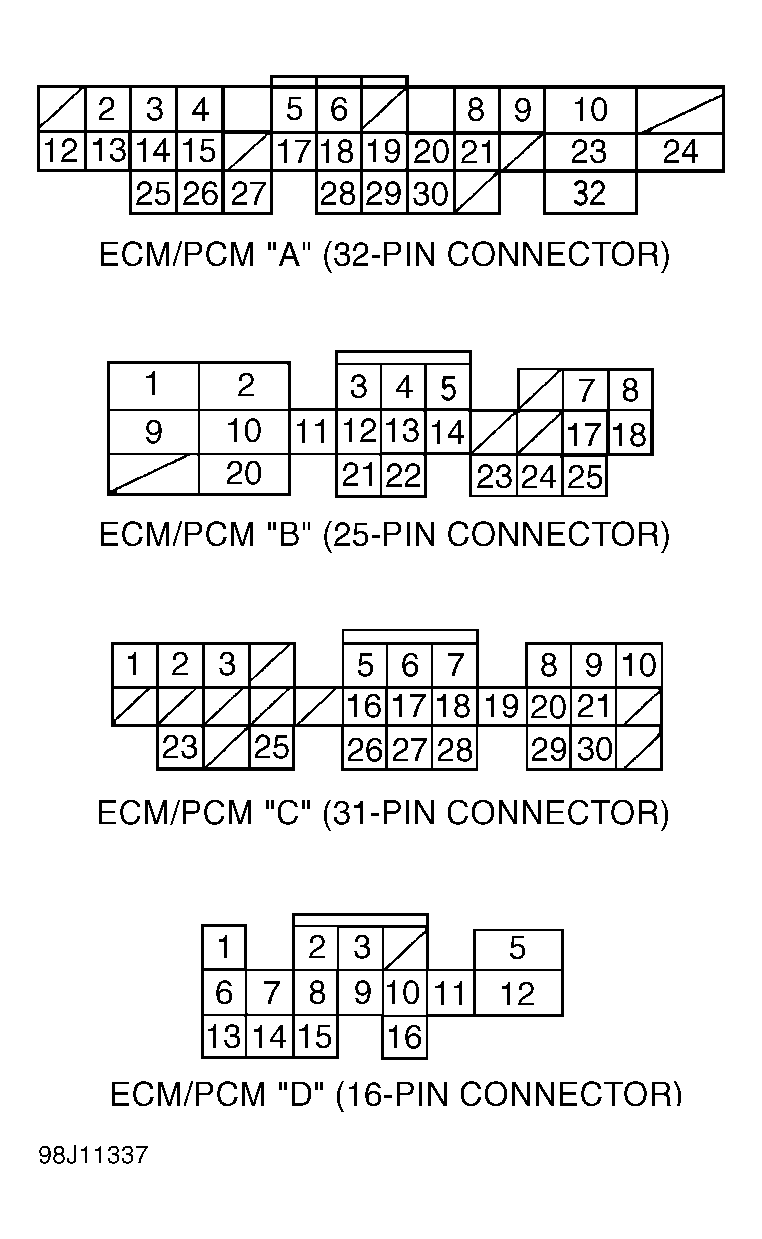

NOTE: Use illustration for PCM connector terminal identification. See Figure.

NOTE: Unless otherwise specified in circuit testing, scan tool will refer to Honda PGM tester or OBD-II compliant scan tool.

NOTE: If replacing PCM, replacement PCM will have a different immobilizer code and must be reprogrammed using a Honda PGM tester. See ANTI-THEFT SYSTEM & KEYLESS ENTRY SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section.

When directed by testing procedure to install test equipment, see TEST EQUIPMENT .
