All Windows Do Not Operate

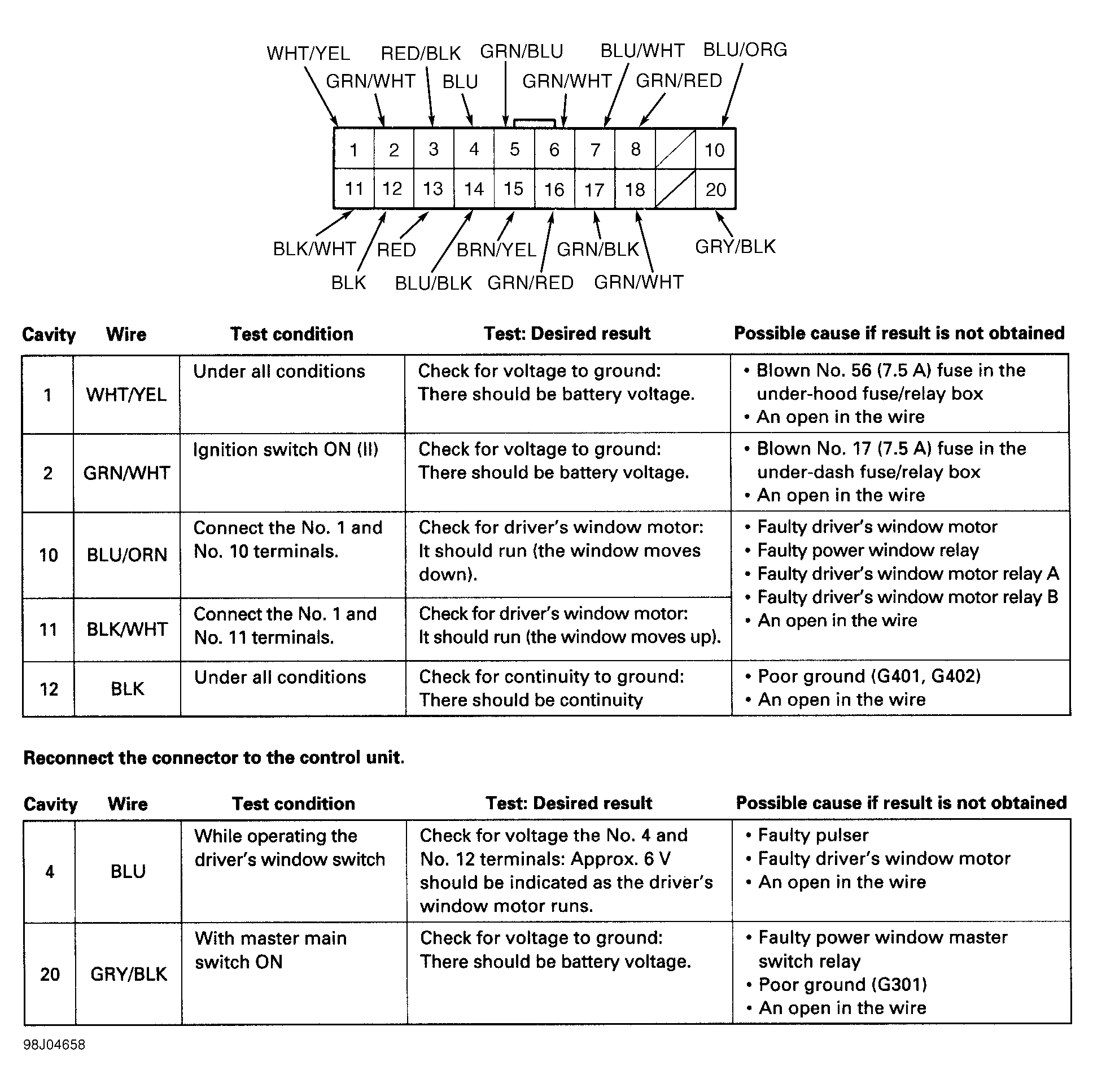

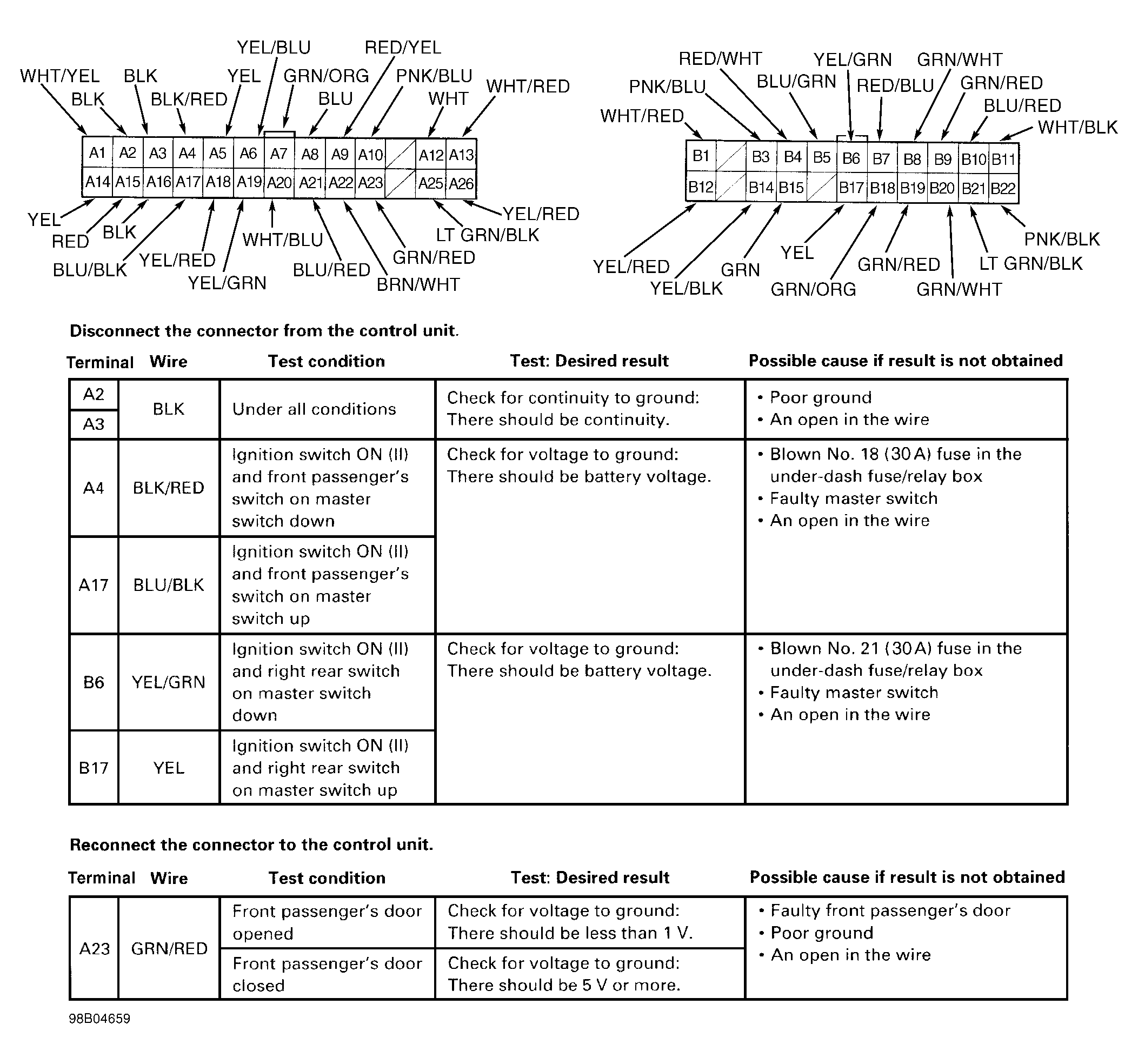

  1. Check fuse No. 31 (120-amp) located in underhood fuse/relay box. Check fuse No. 36 (40-amp) located in underhood fuse/relay box. Check power window relay in underhood fuse/relay box. See POWER WINDOW RELAY TEST  under COMPONENT TESTS. Check multiplex control unit input. See Figure , Figure and Figure .
  2. Check for poor ground connections behind left kick panel, under hood release and behind right kick panel. Check for open in White/Green wire between fuse No. 36 (40-amp) located in underhood fuse/relay box and power window relay. See WIRING DIAGRAMS  .
