Steering Column Control Unit Input Test

Steering column control unit is located behind dashboard lower cover to right of steering column. See DASHBOARD LOWER COVER  under REMOVAL & INSTALLATION. Disconnect steering column control unit connectors and check for bent, loose or corroded terminals and repair as required. See Fig 1 and Fig 2 .

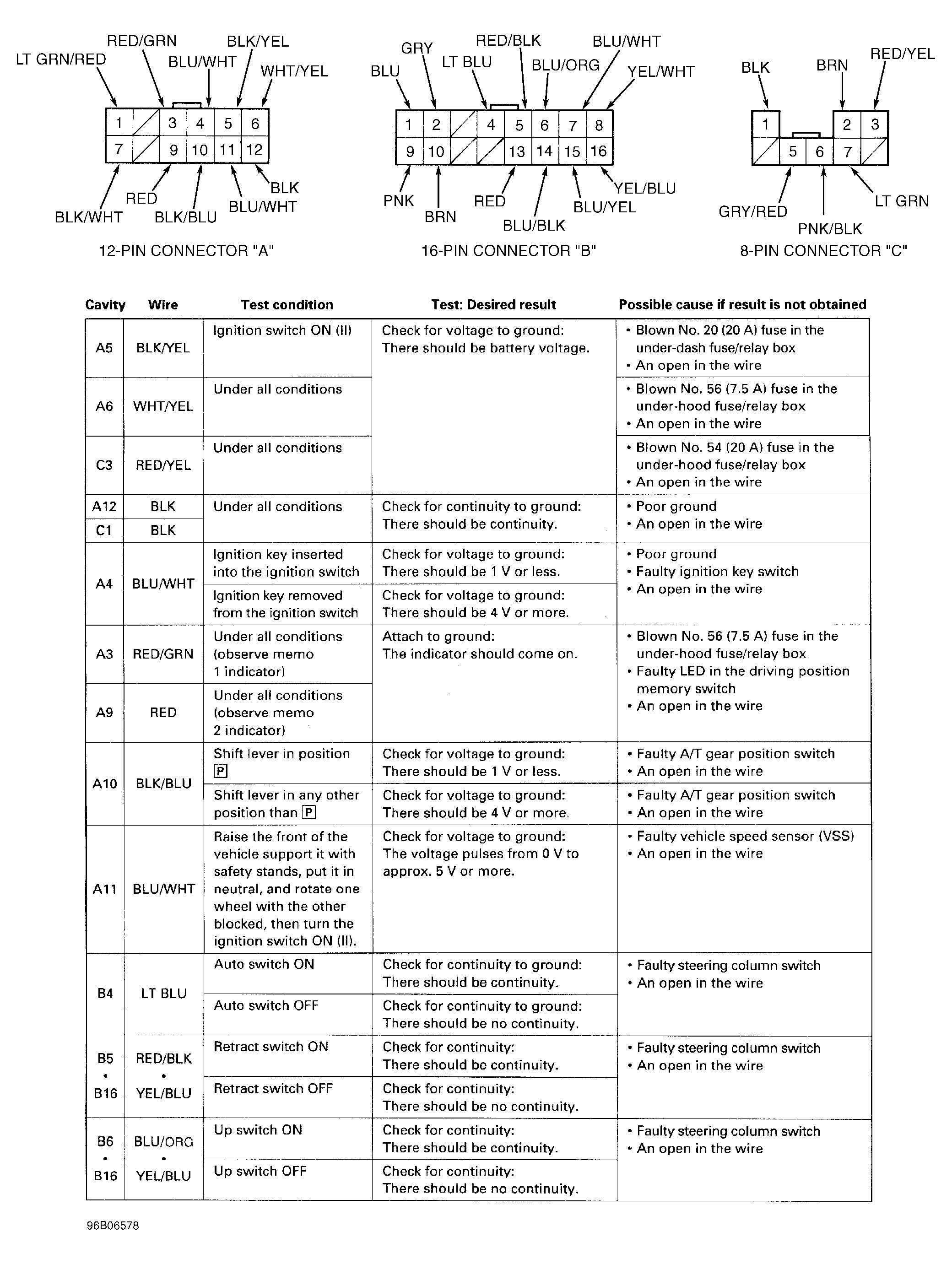

Fig 1: Steering Column Control Unit Input Test (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Steering Column Control Unit Input Test (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
