Abs Pump Motor & Fail-Safe Relay Test

With relay disconnected, check continuity between relay terminals No. 1 and 3. See Fig 1 or Fig 2 . Continuity should not exist. Apply battery voltage across terminals No. 2 and 4. Continuity should exist between terminals No. 1 and 3. If continuity is not as indicated, replace relay.

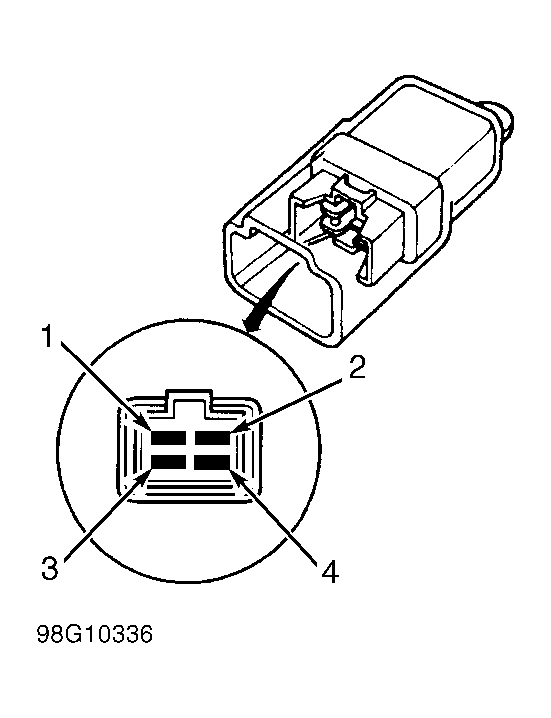

Fig 1: Identifying Fail-Safe Relay Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying ABS Pump Motor Relay Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
