Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 23 .

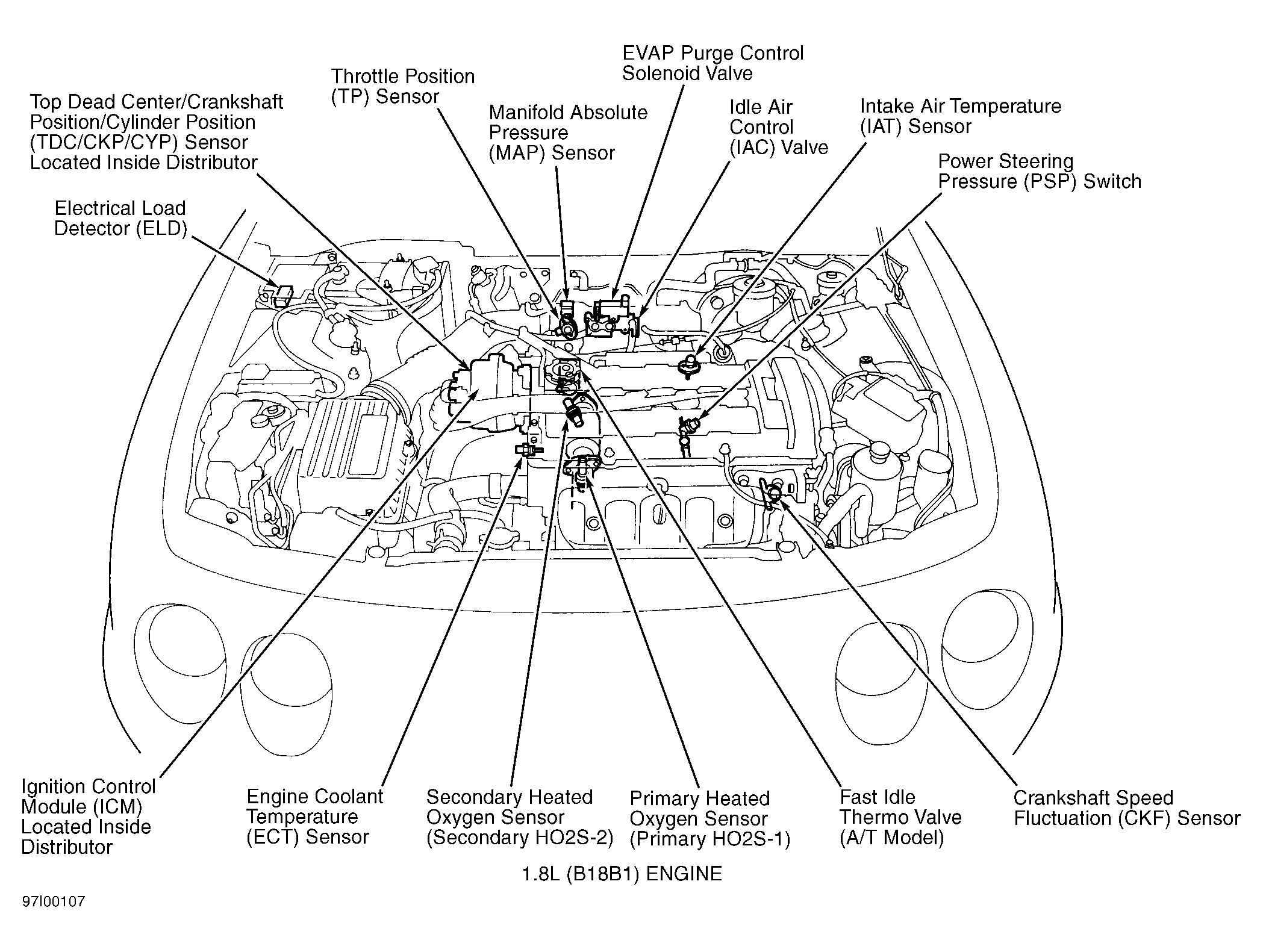

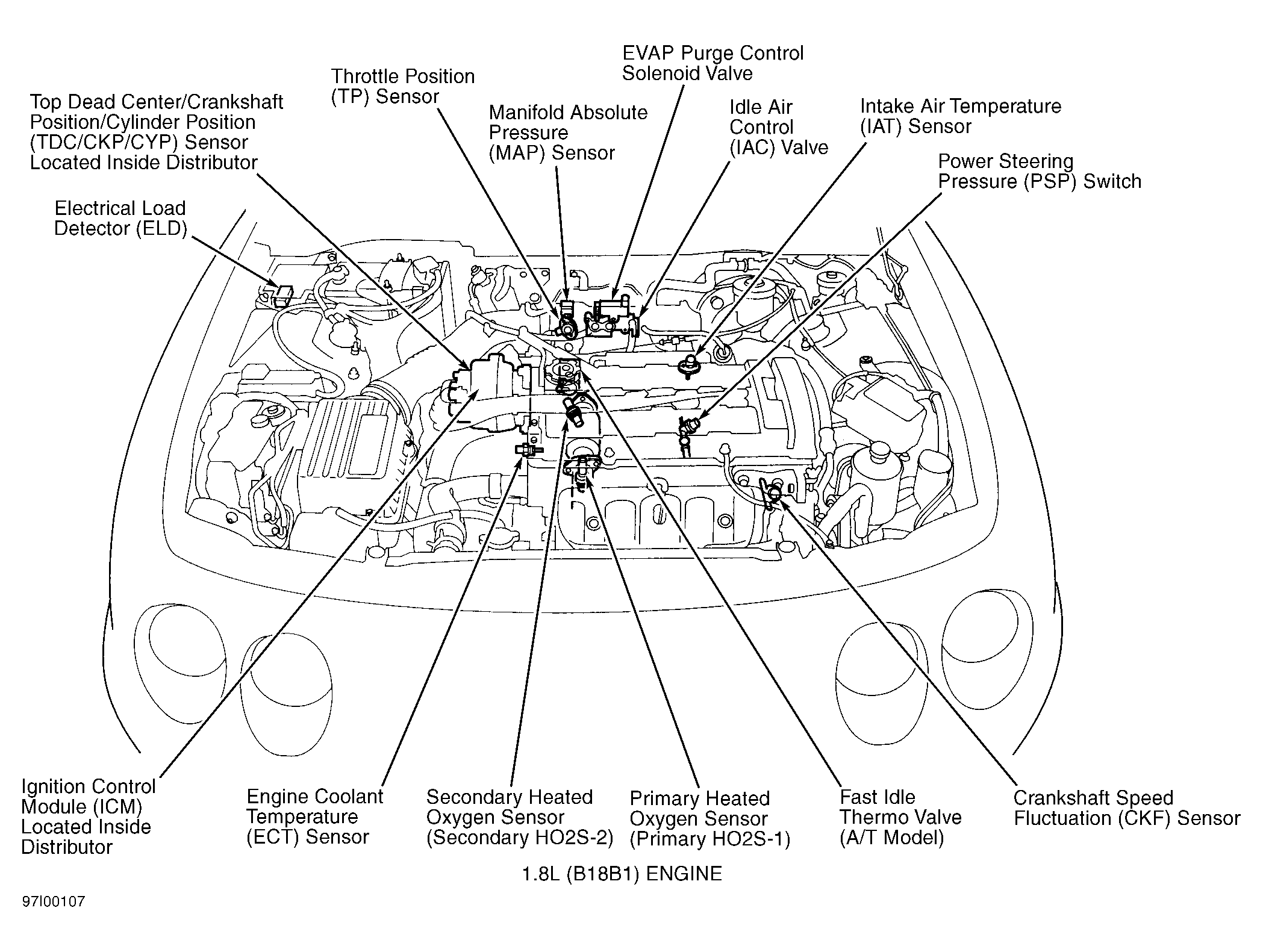

Fig 1: Locating Engine Performance-Related Components (Integra - 1 Of 5)

G97I00107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

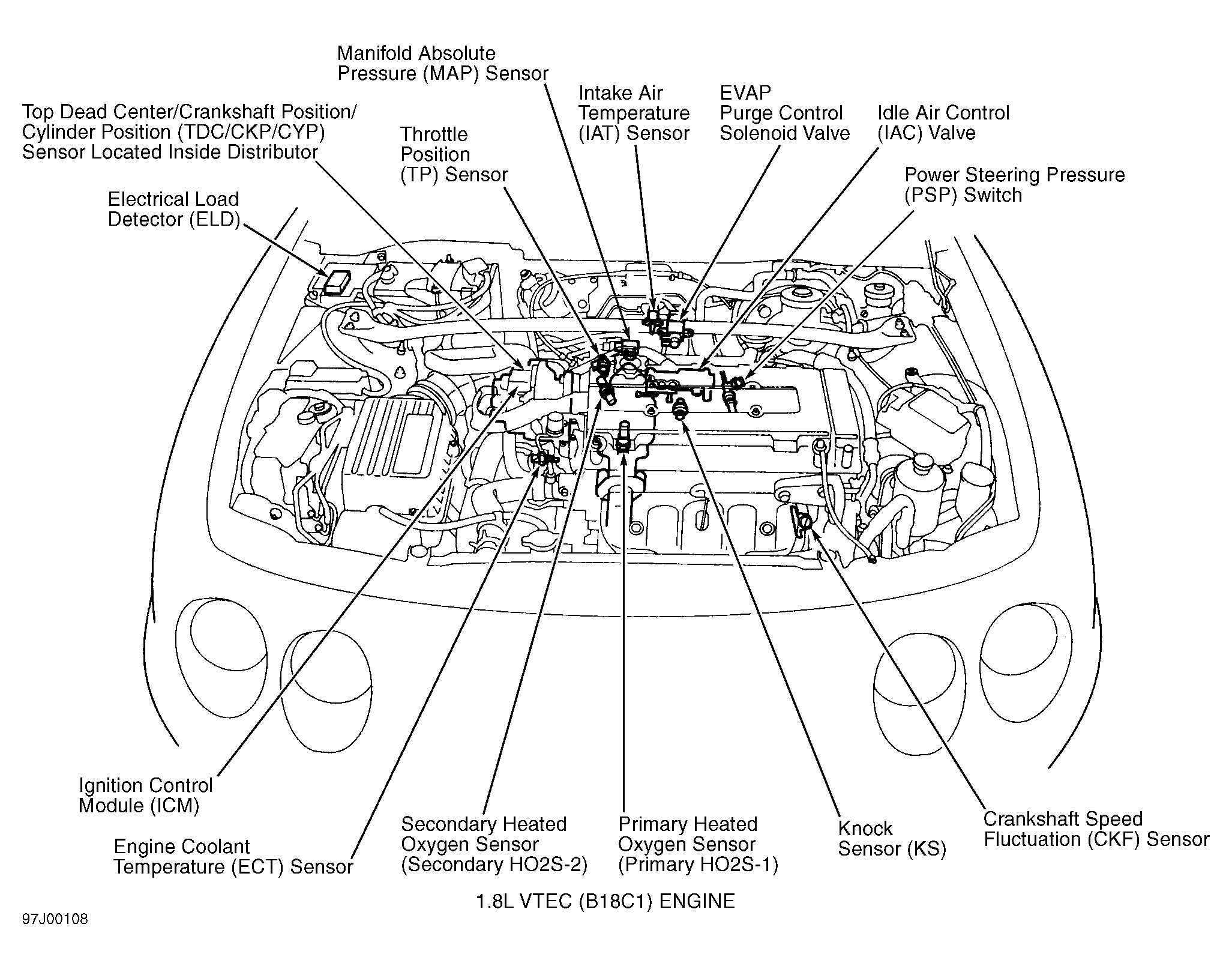

Fig 2: Locating Engine Performance-Related Components (Integra - 2 Of 5)

G97J00108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

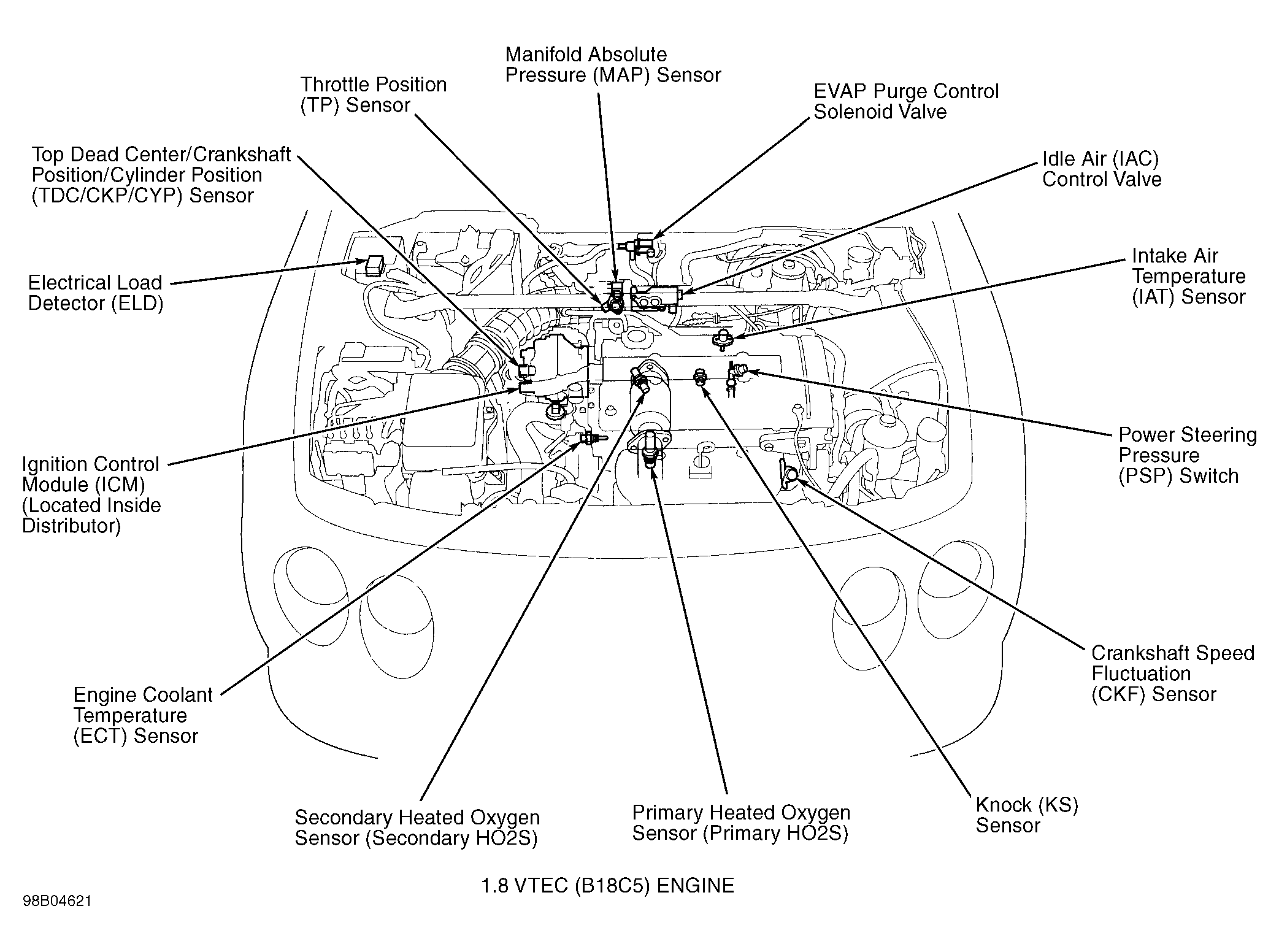

Fig 3: Locating Engine Performance-Related Components (Integra - 3 Of 5)

G98B04621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

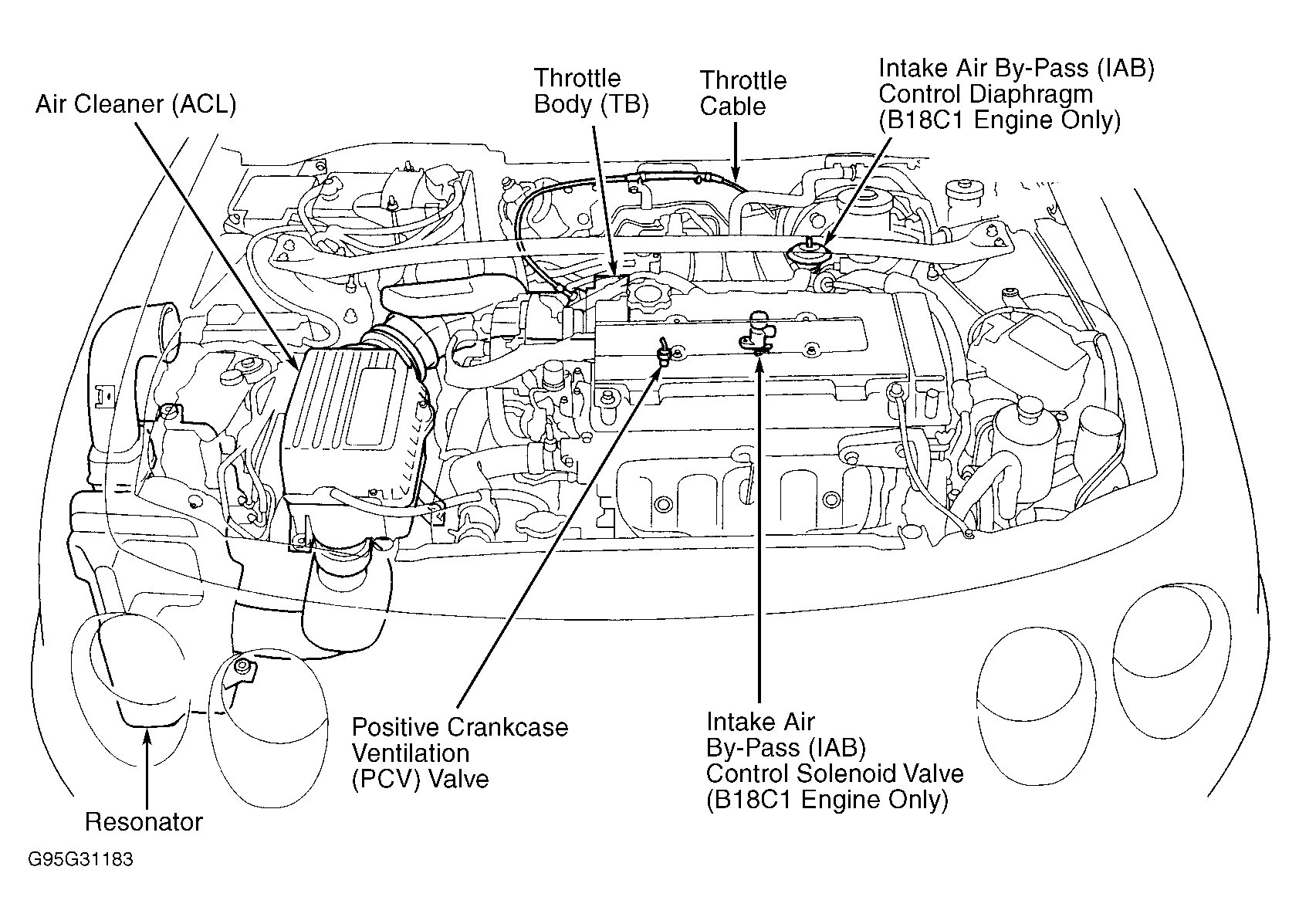

Fig 4: Locating Engine Performance-Related Components (Integra - 4 Of 5)

G95G31183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

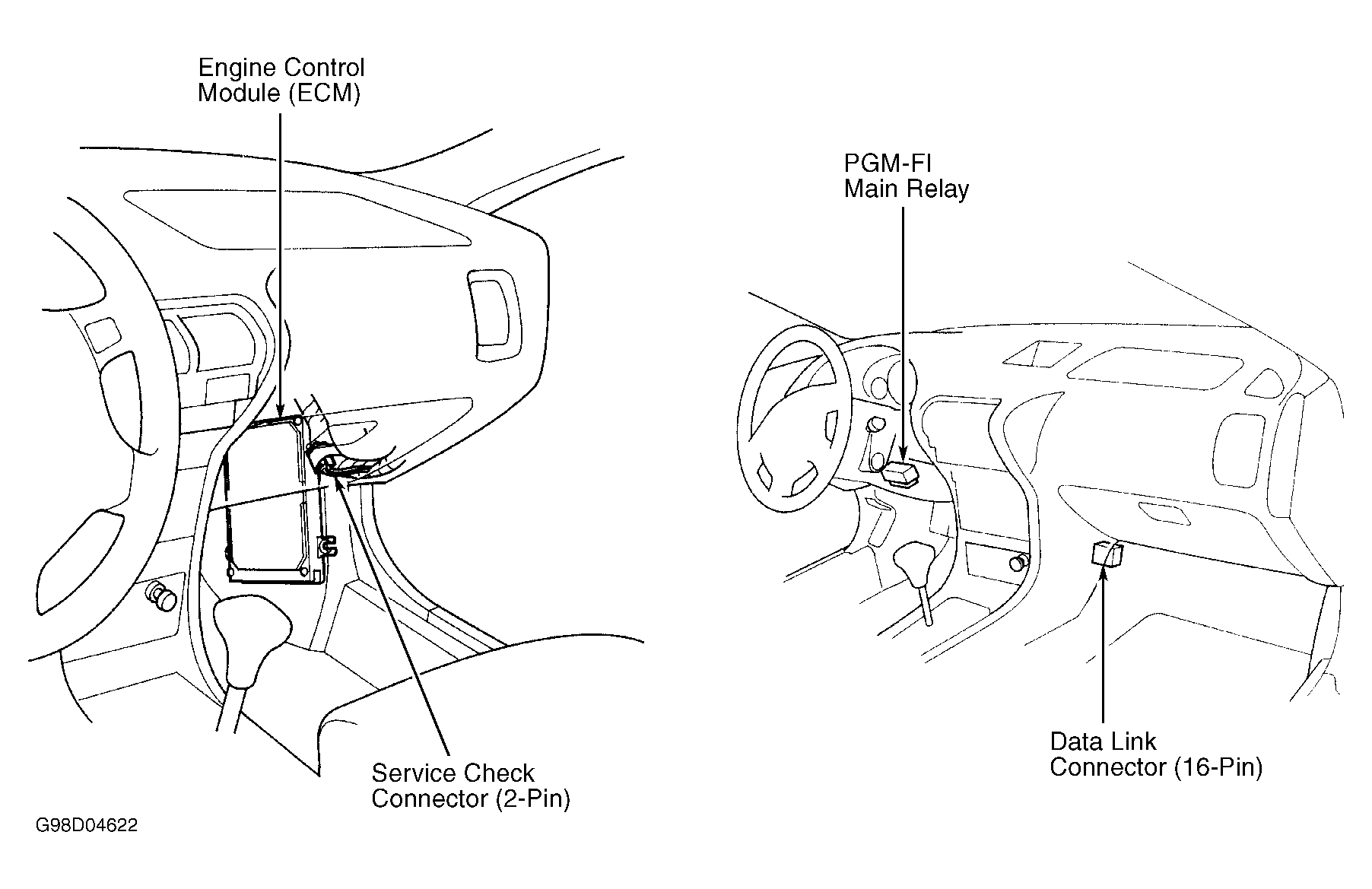

Fig 5: Locating Engine Performance-Related Components (Integra - 5 Of 5)

G98D04622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

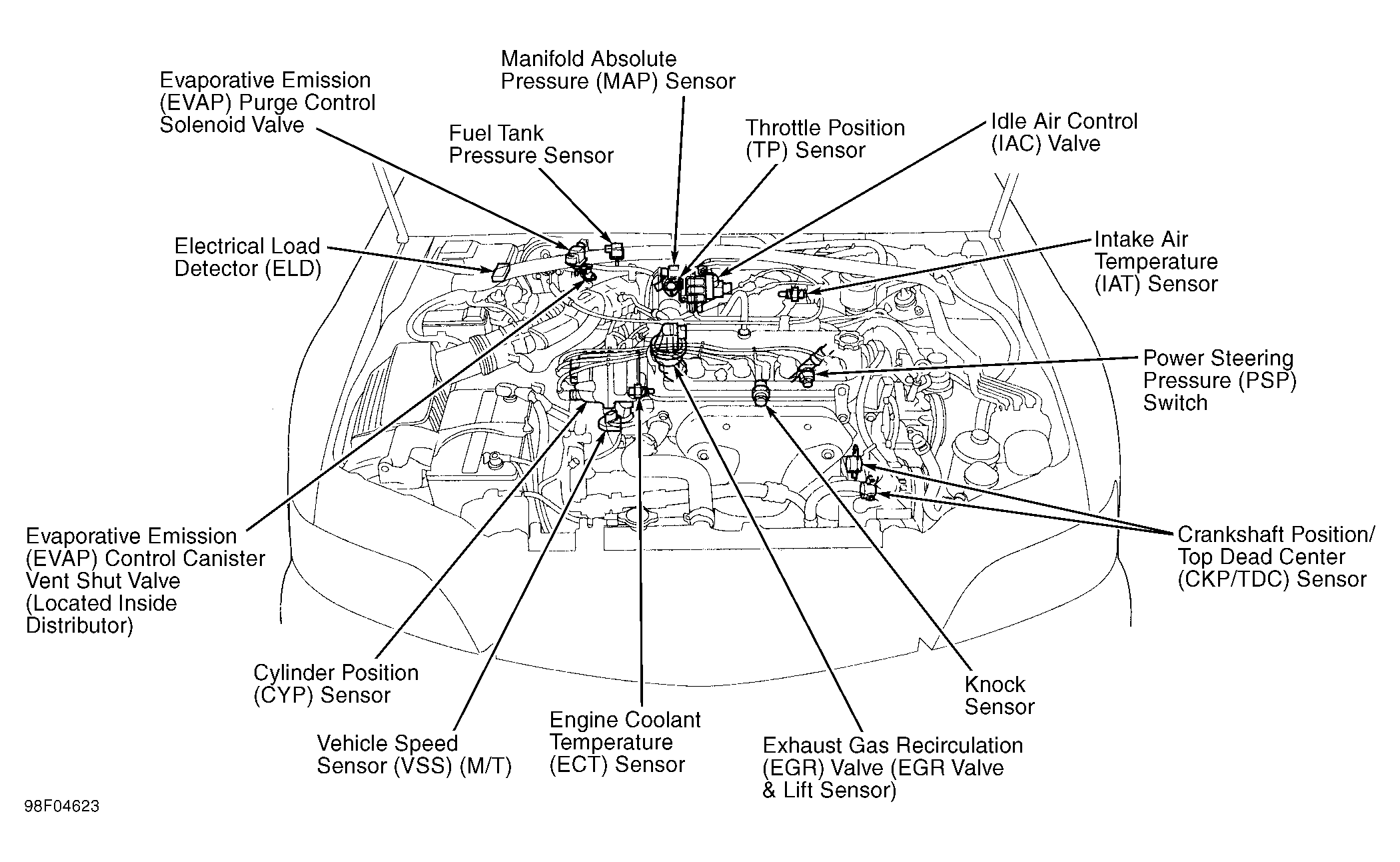

Fig 6: Locating Engine Performance-Related Components (2.3CL - 1 Of 3)

G98F04623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

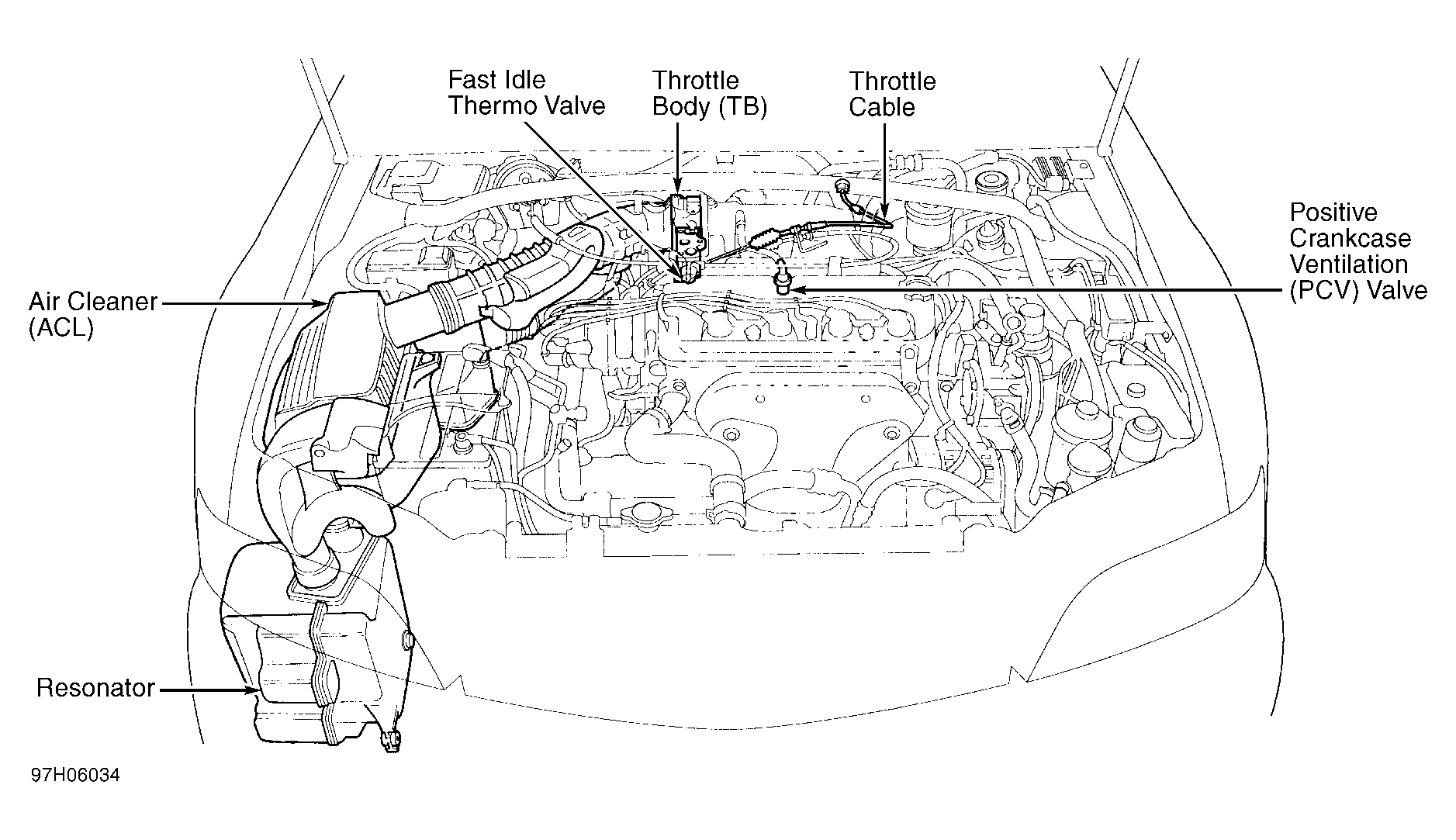

Fig 7: Locating Engine Performance-Related Components (2.3CL - 2 Of 3)

G97H06034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

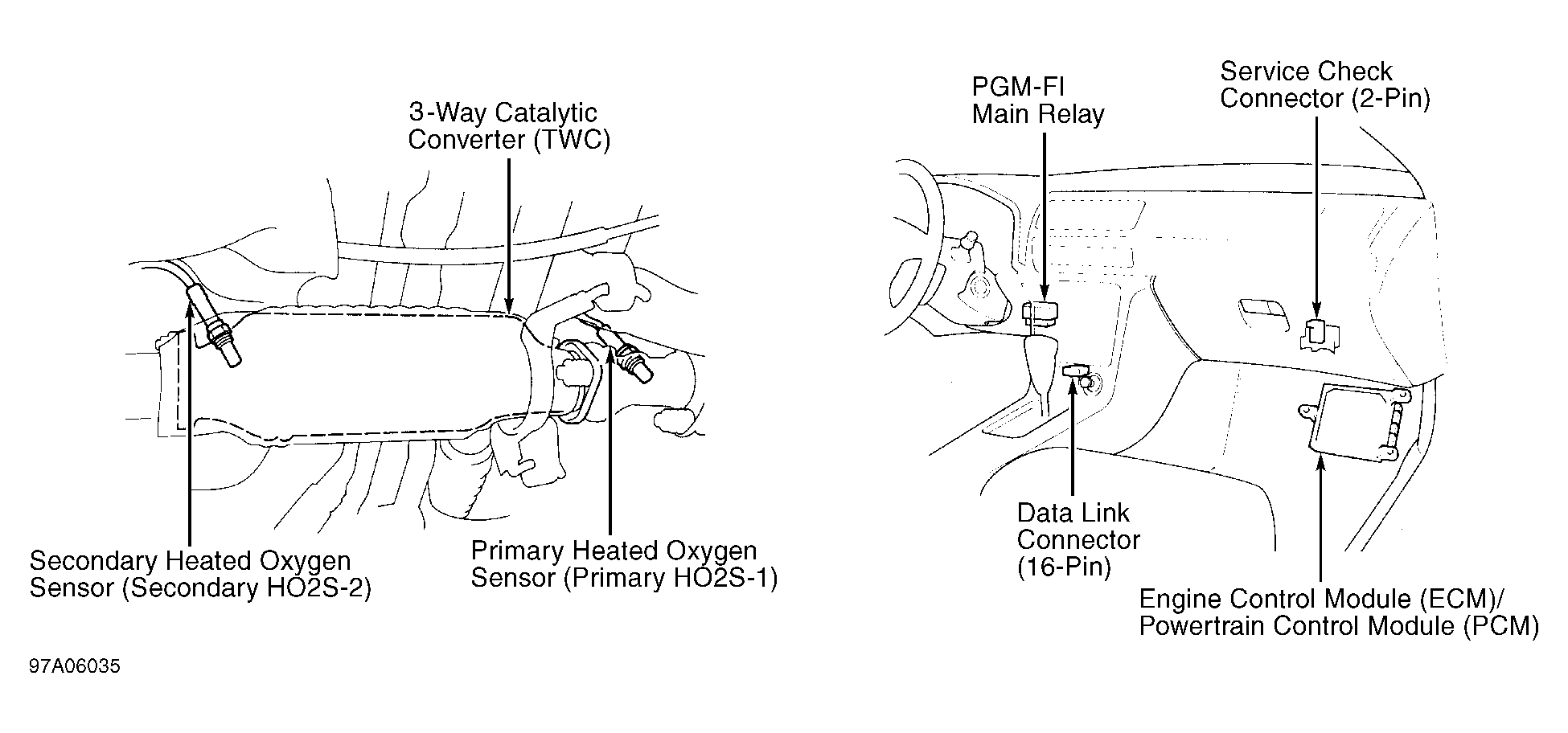

Fig 8: Locating Engine Performance-Related Components (2.3CL - 3 Of 3)

G97A06035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

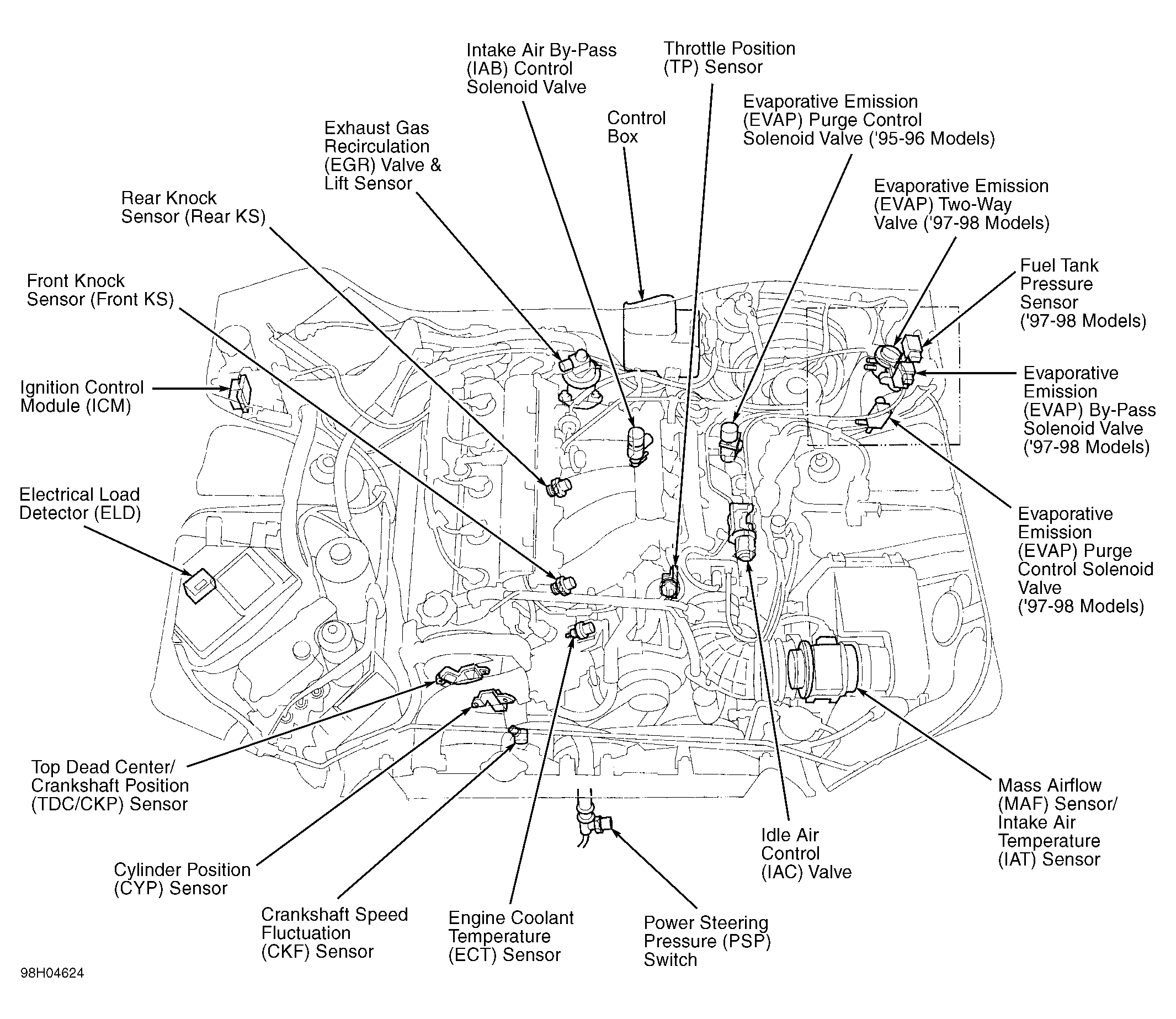

Fig 9: Locating Engine Performance-Related Components (2.5TL - 1 Of 4)

G98H04624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

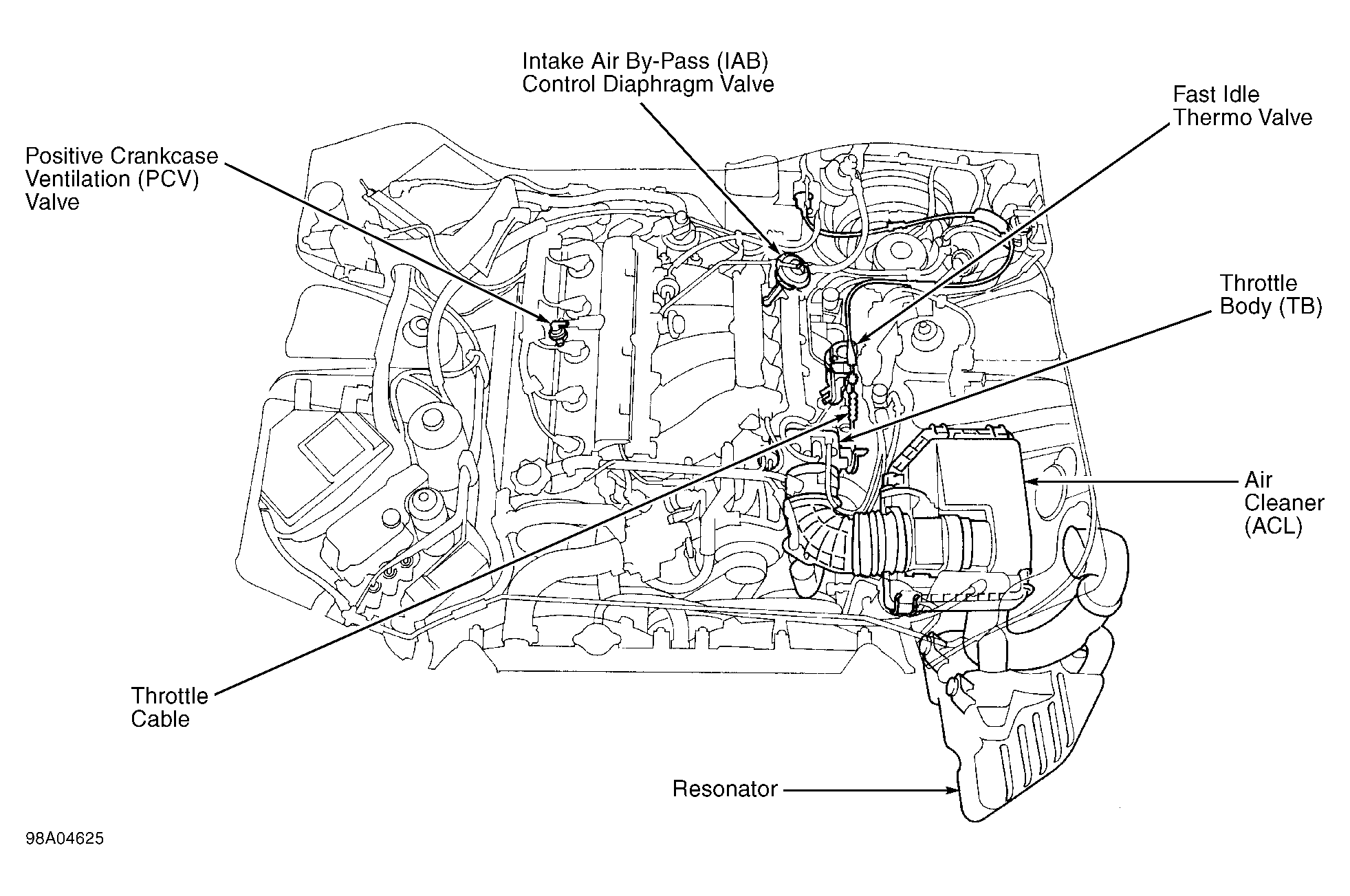

Fig 10: Locating Engine Performance-Related Components (2.5TL - 2 Of 4)

G98A04625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

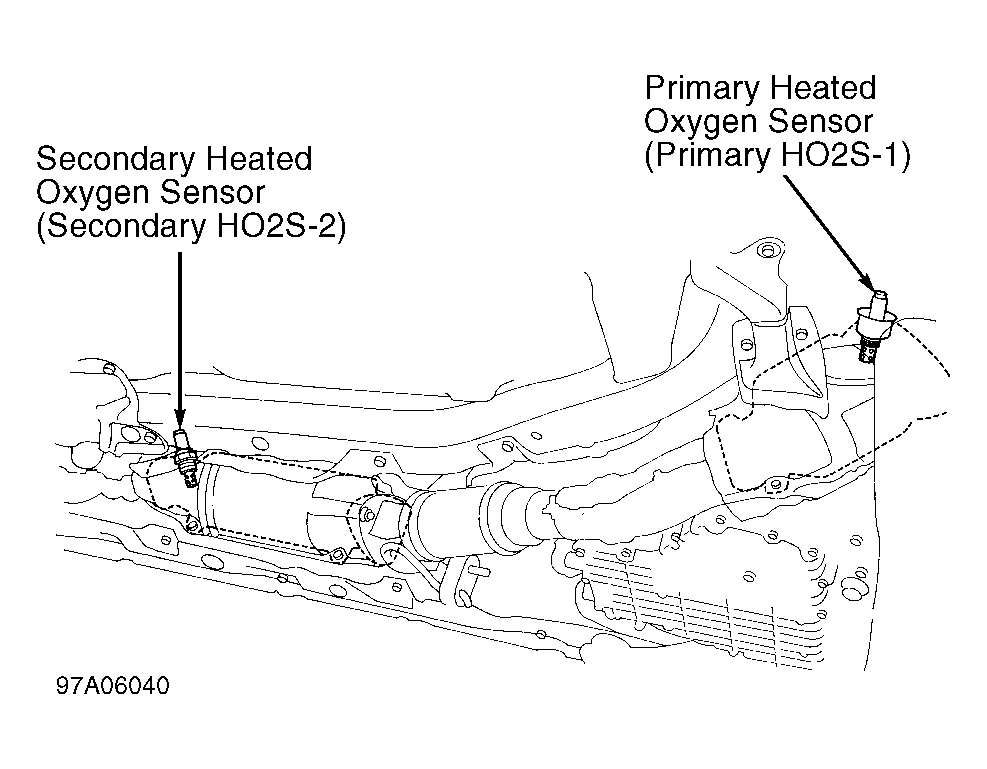

Fig 11: Locating Engine Performance-Related Components (2.5TL - 3 Of 4)

G97A06040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

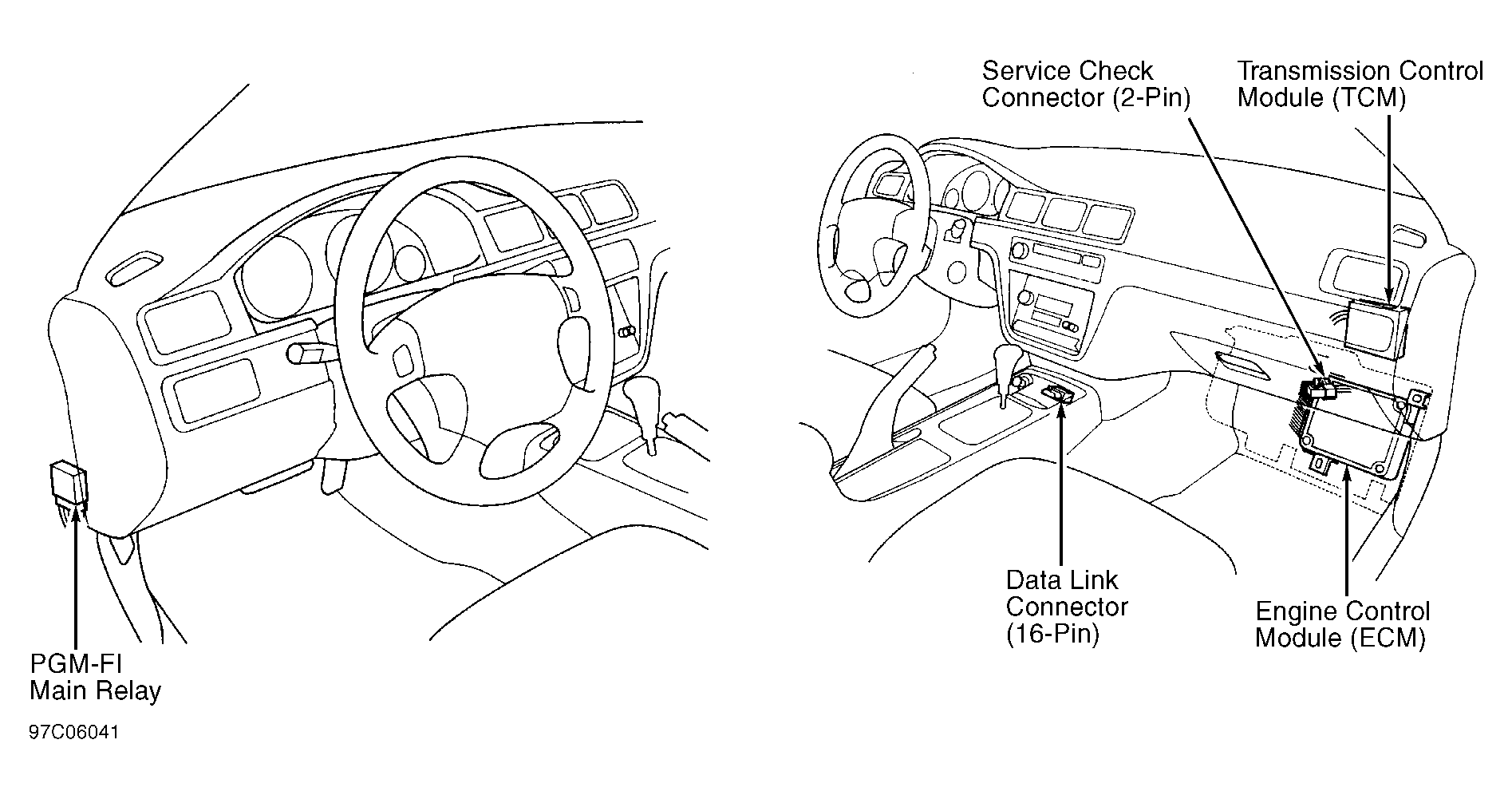

Fig 12: Locating Engine Performance-Related Components (2.5TL - 4 Of 4)

G97C06041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

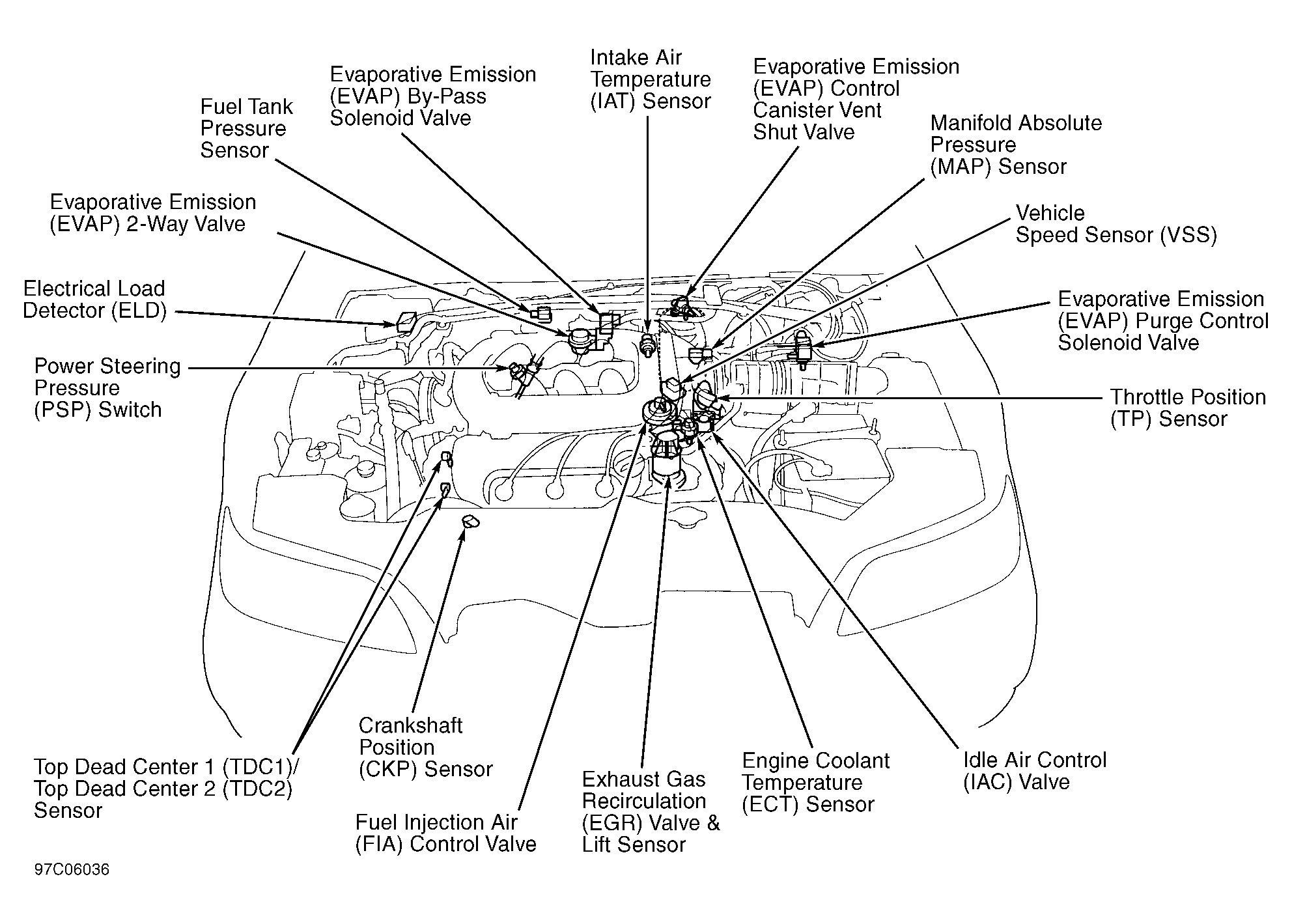

Fig 13: Locating Engine Performance-Related Components (3.0CL - 1 Of 3)

G97C06036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

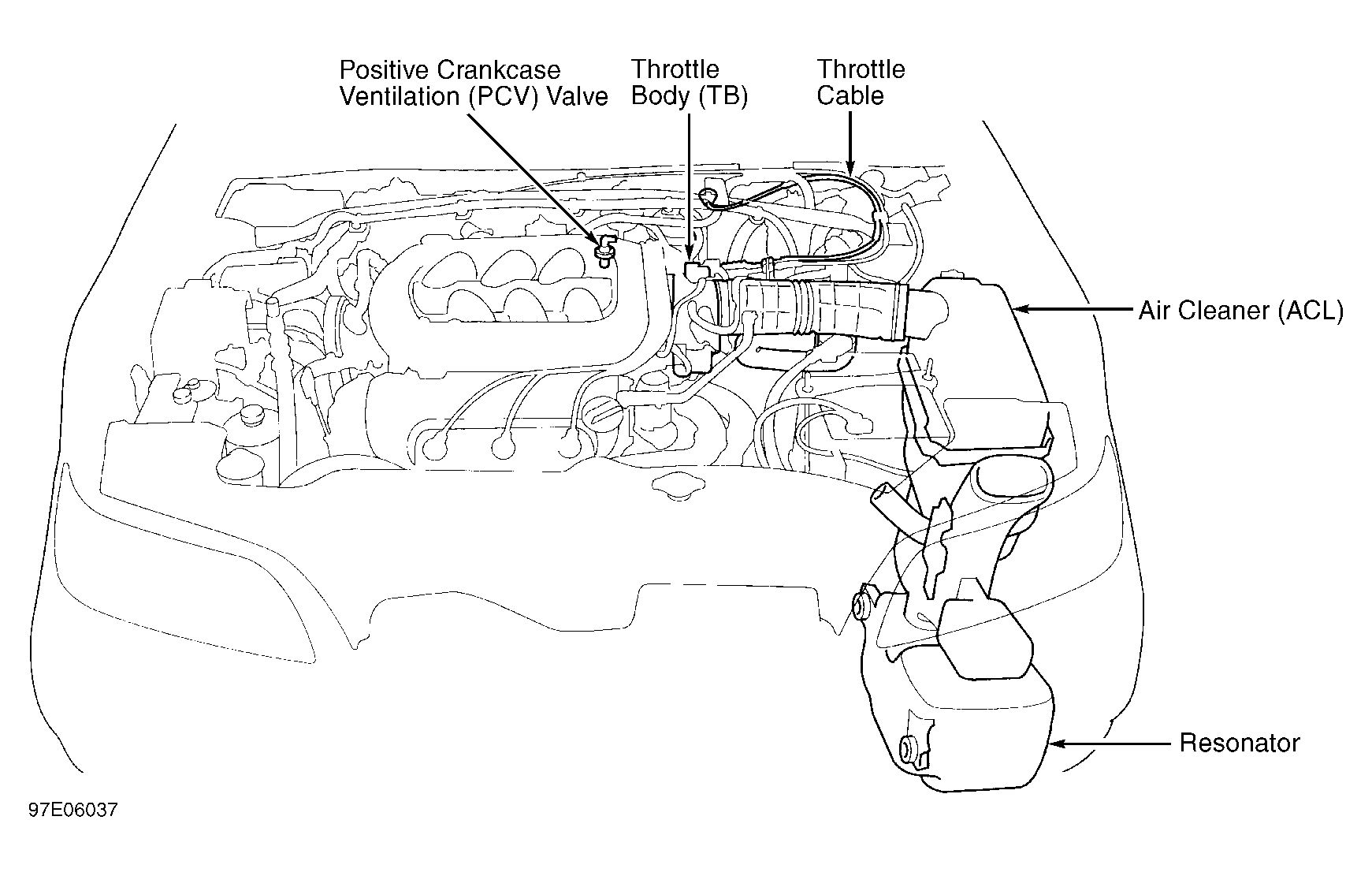

Fig 14: Locating Engine Performance-Related Components (3.0CL - 2 Of 3)

G97E06037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

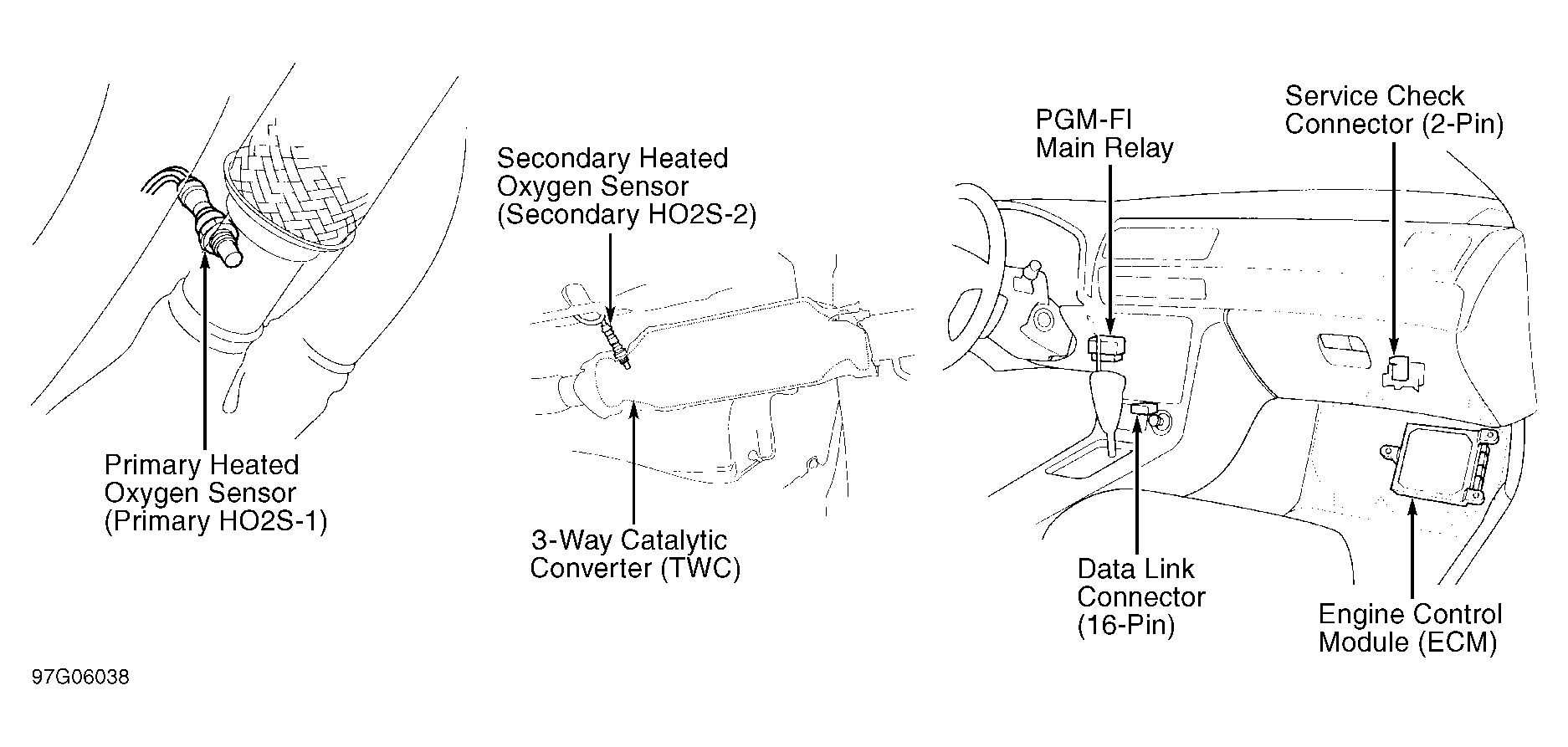

Fig 15: Locating Engine Performance-Related Components (3.0CL - 3 Of 3)

G97G06038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

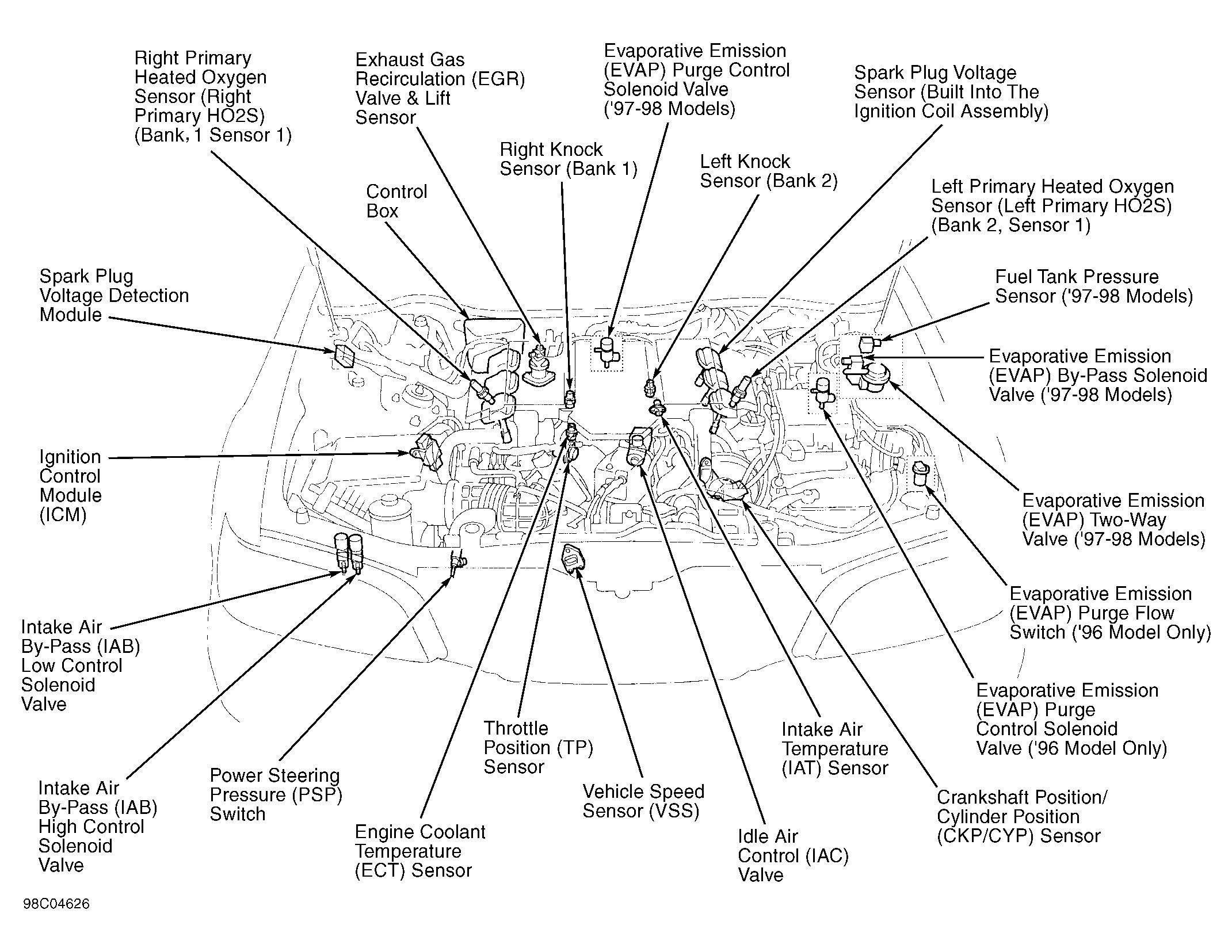

Fig 16: Locating Engine Performance-Related Components (3.2TL - 1 Of 4)

G98C04626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

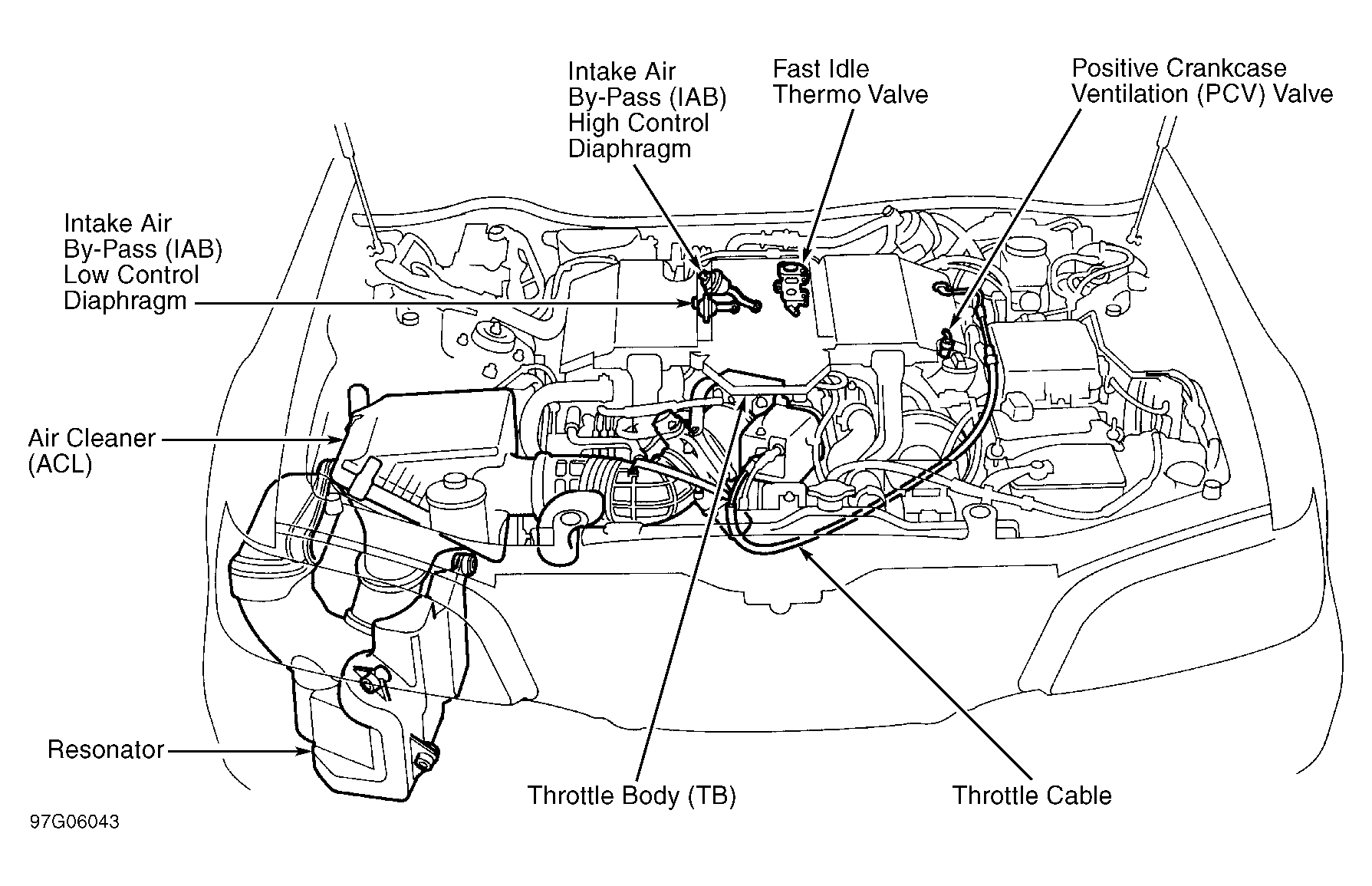

Fig 17: Locating Engine Performance-Related Components (3.2TL - 2 Of 4)

G97G06043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

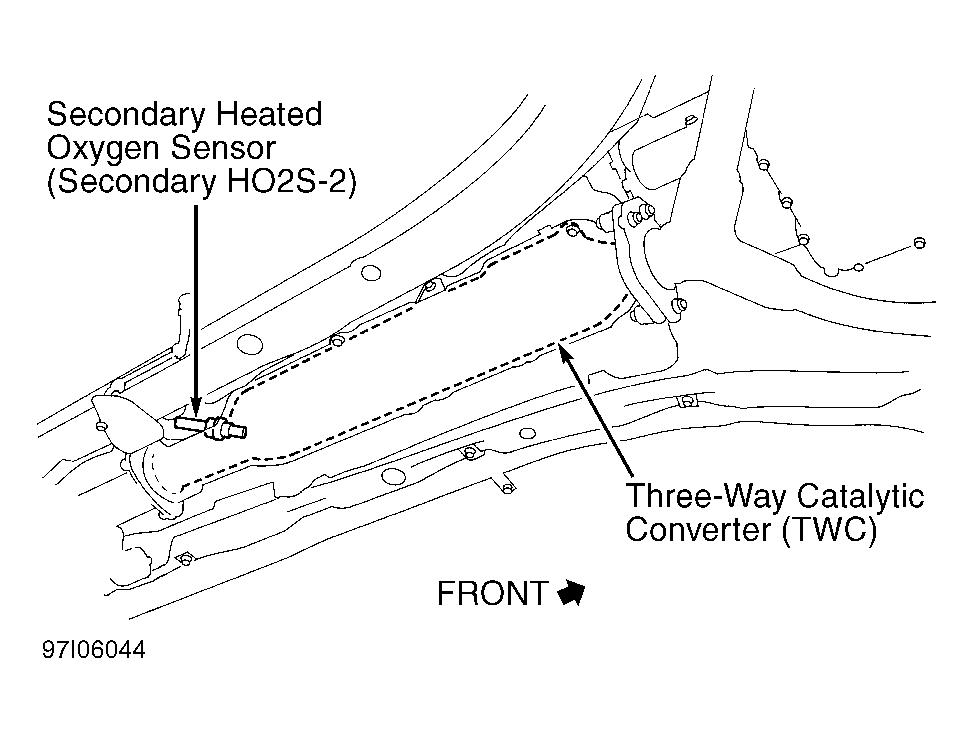

Fig 18: Locating Engine Performance-Related Components (3.2TL - 3 Of 4)

G97I06044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

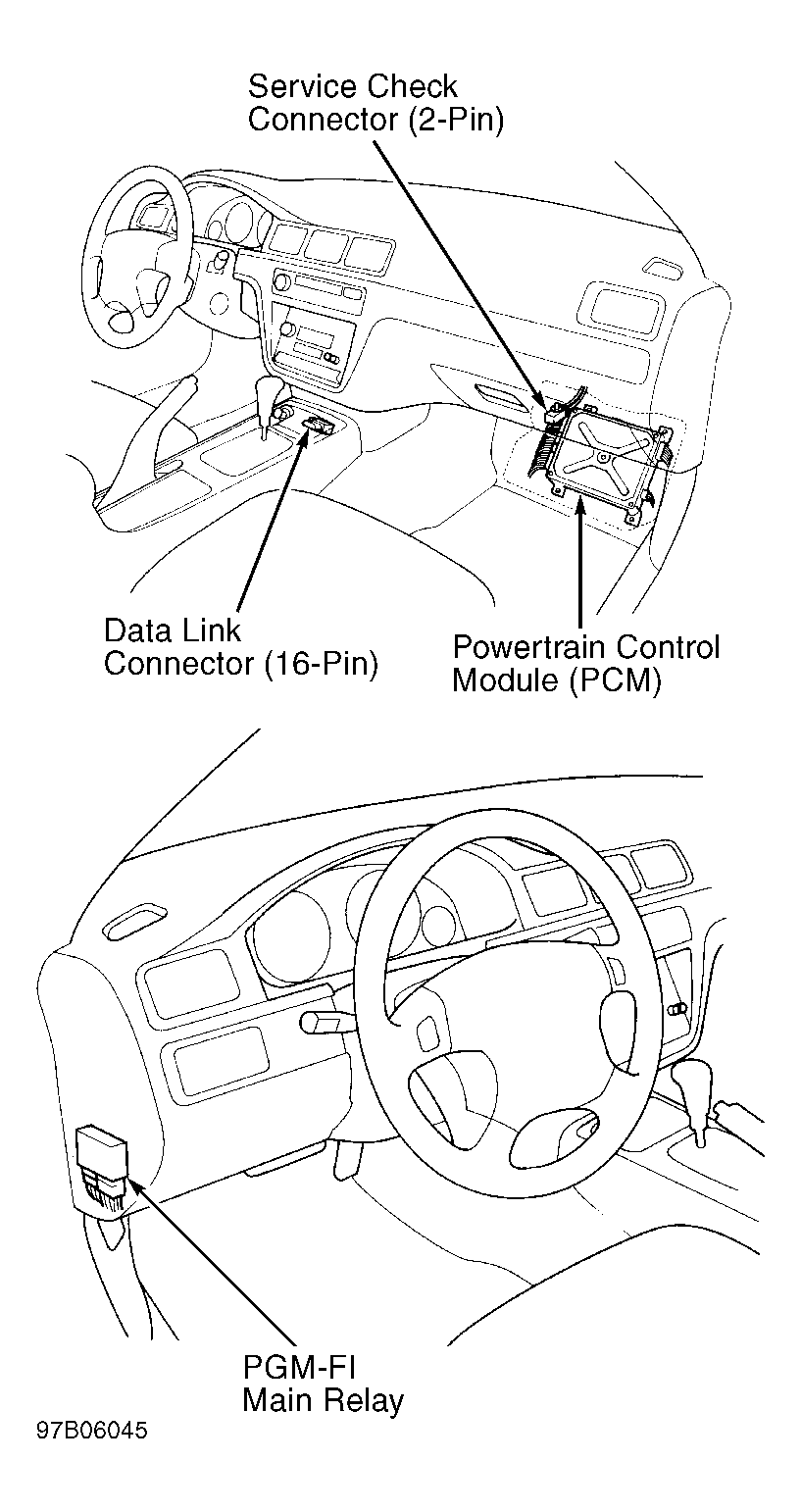

Fig 19: Locating Engine Performance-Related Components (3.2TL - 4 Of 4)

G97B06045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

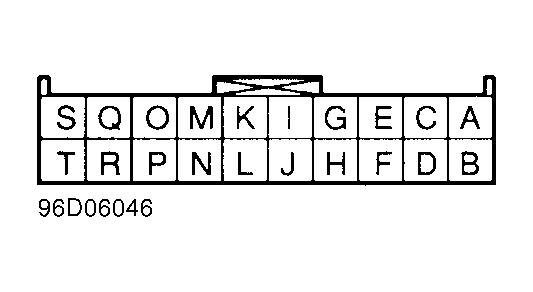

Fig 20: Locating Engine Performance-Related Components (3.5RL - 1 Of 4)

G96D06046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

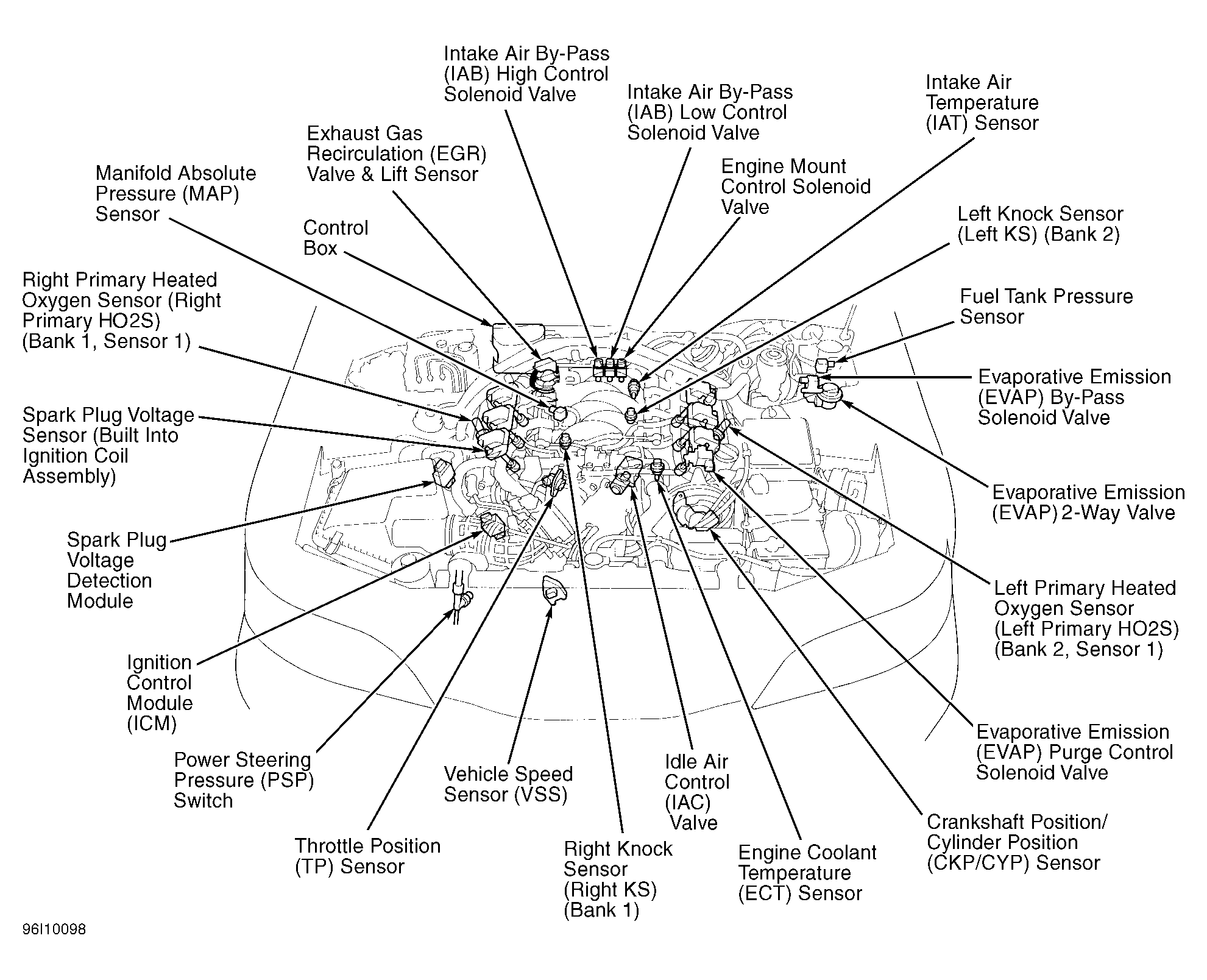

Fig 21: Locating Engine Performance-Related Components (3.5RL - 2 Of 4)

G96I10098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Locating Engine Performance-Related Components (3.5RL - 3 Of 4)

G97F06047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Locating Engine Performance-Related Components (3.5RL - 4 Of 4)

G98E04627

Courtesy of AMERICAN HONDA MOTOR CO., INC.
