Repair and Diagnosis: Electrical: Starters: Overhaul

NOTE: See exploded views of starters. See Fig 1 and Fig 2 .

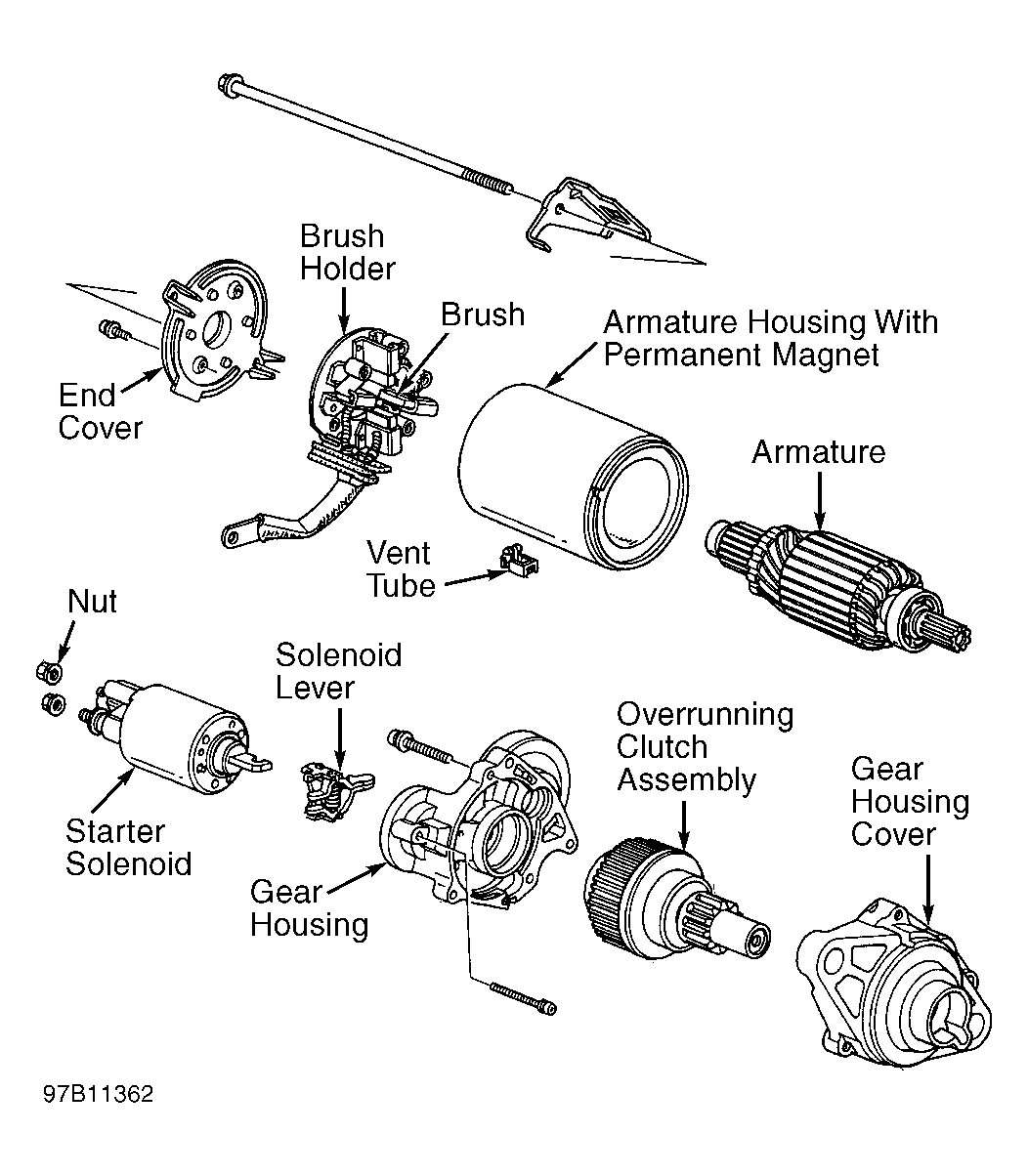

Fig 1: Exploded View Of Starter (2.3CL With M/T)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

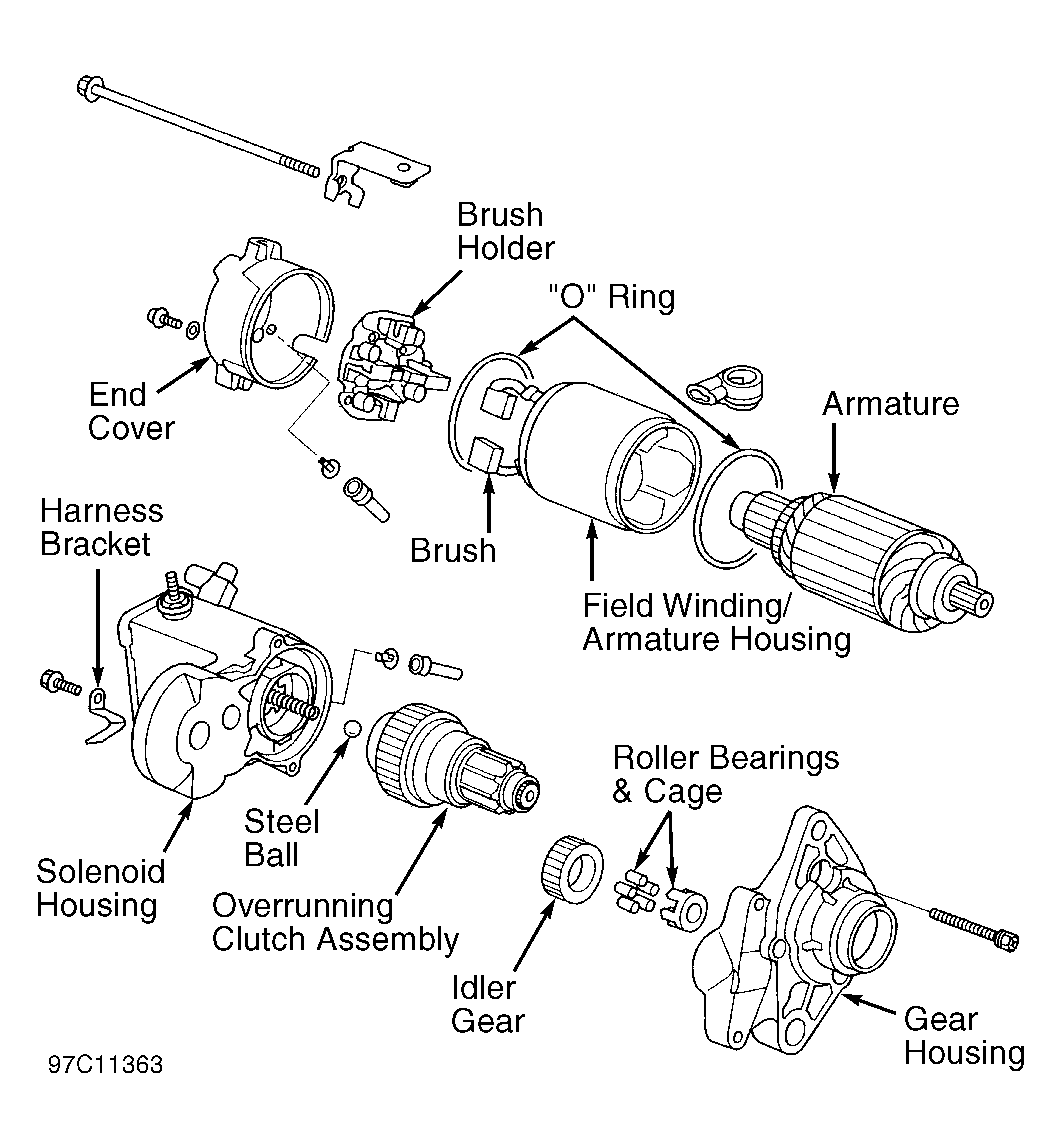

Fig 2: Exploded View Of Starter (2.3CL With A/T & 3.0CL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
