Connector Identification

NOTE: PCM is located behind center console, to left of glove box, under footwell carpet. For connector terminal identification, refer to appropriate illustration. See Fig 1 and Fig 2 .
Fig 1: Identifying Data Link Connector (DLC) Connector Terminals
G99H08429Courtesy of AMERICAN HONDA MOTOR CO., INC.

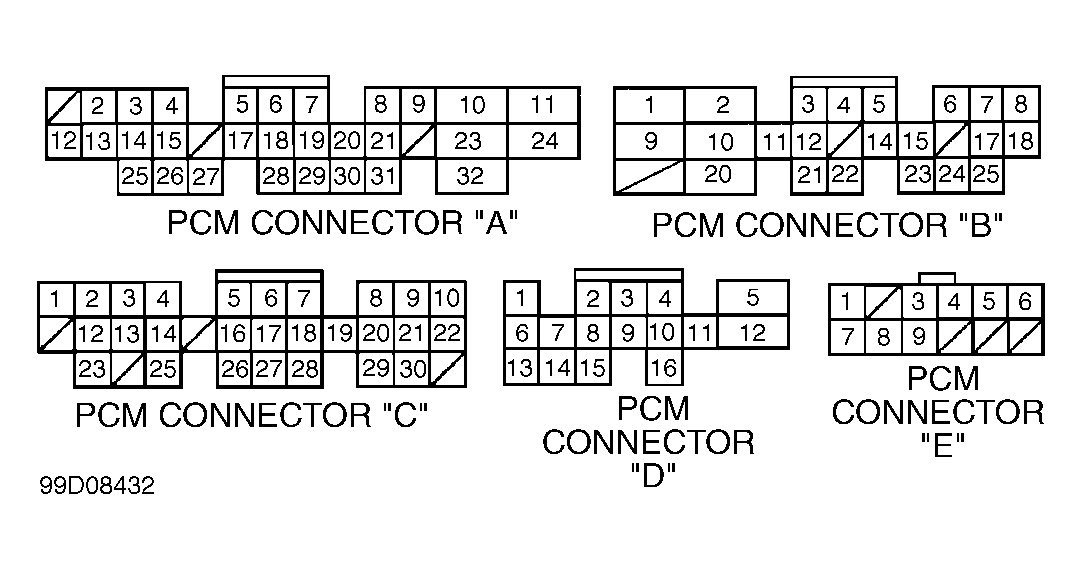

Fig 2: Identifying PCM Connectors & Terminals
G99D08432Courtesy of AMERICAN HONDA MOTOR CO., INC.
