Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS/TCS Control Unit | Behind right kick panel. See Figure . |

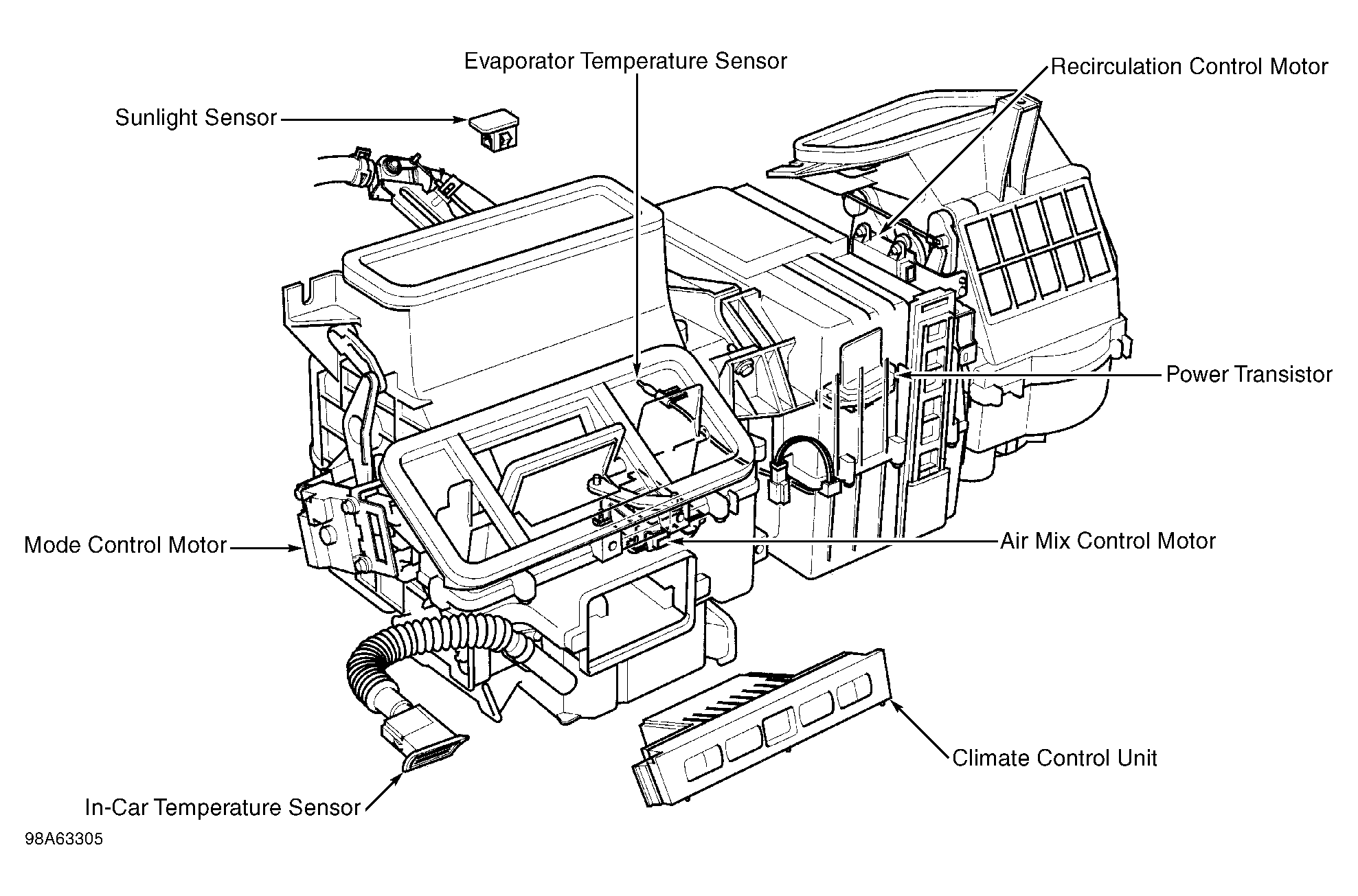

| Climate Control Unit | On center of dash. See Figure . |
| Cruise Control Unit | Behind left side of dash. See Figure . |
| Door Multiplex Control Unit | In driver's door. |
| Driver's Multiplex Control Unit | On driver's underdash fuse/rely box. See Figure . |
| DRL Control Unit (Canada) | Behind left side of dash. See Figure . |

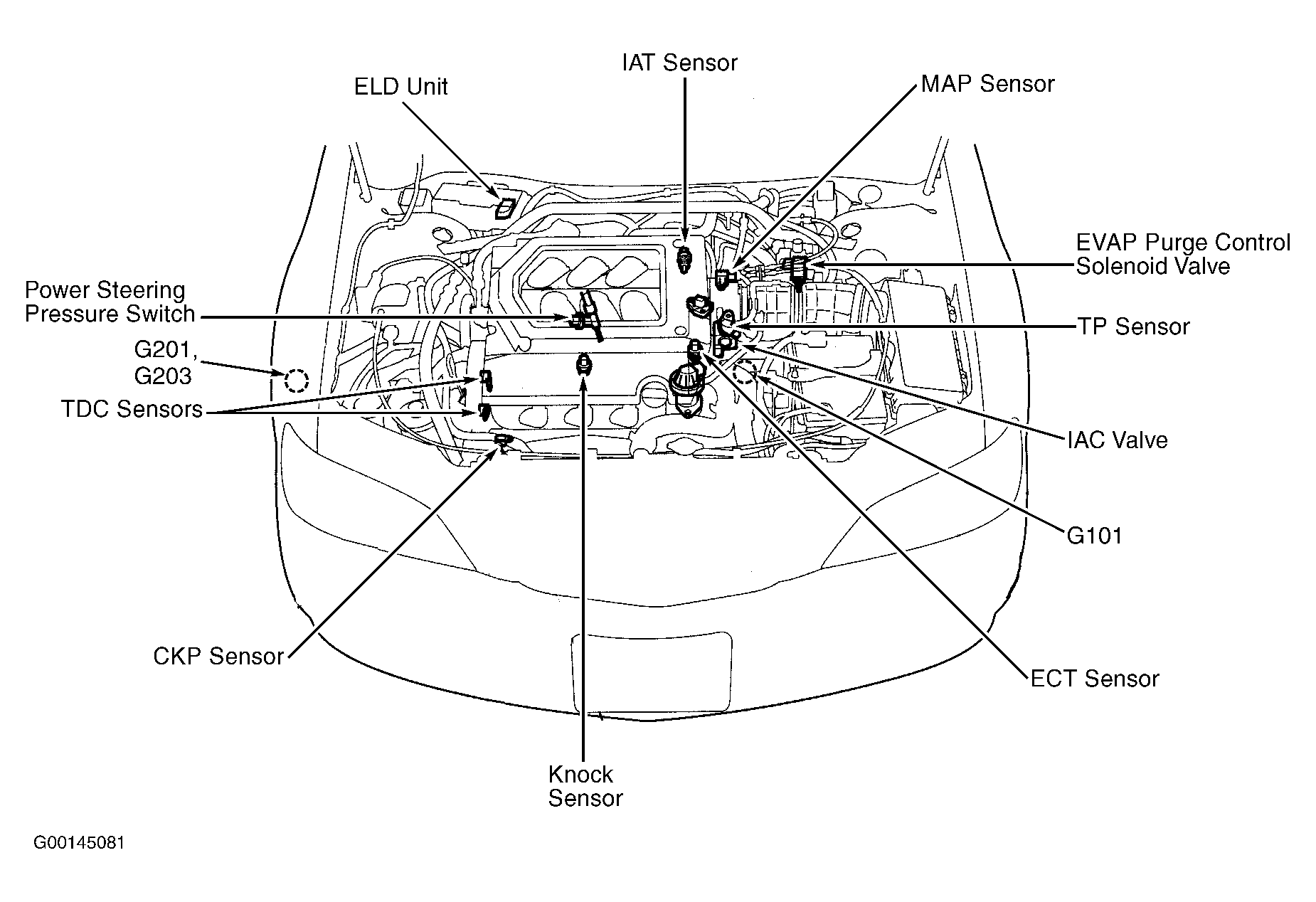

| ELD Unit | In underhood fuse/relay box. See Figure . |
| Immobilizer Receiver Unit | On right side of steering column. |
| Navigation Unit | In trunk, below left side of package tray. |
| OPDS Unit | On side of front passenger's seat back. |

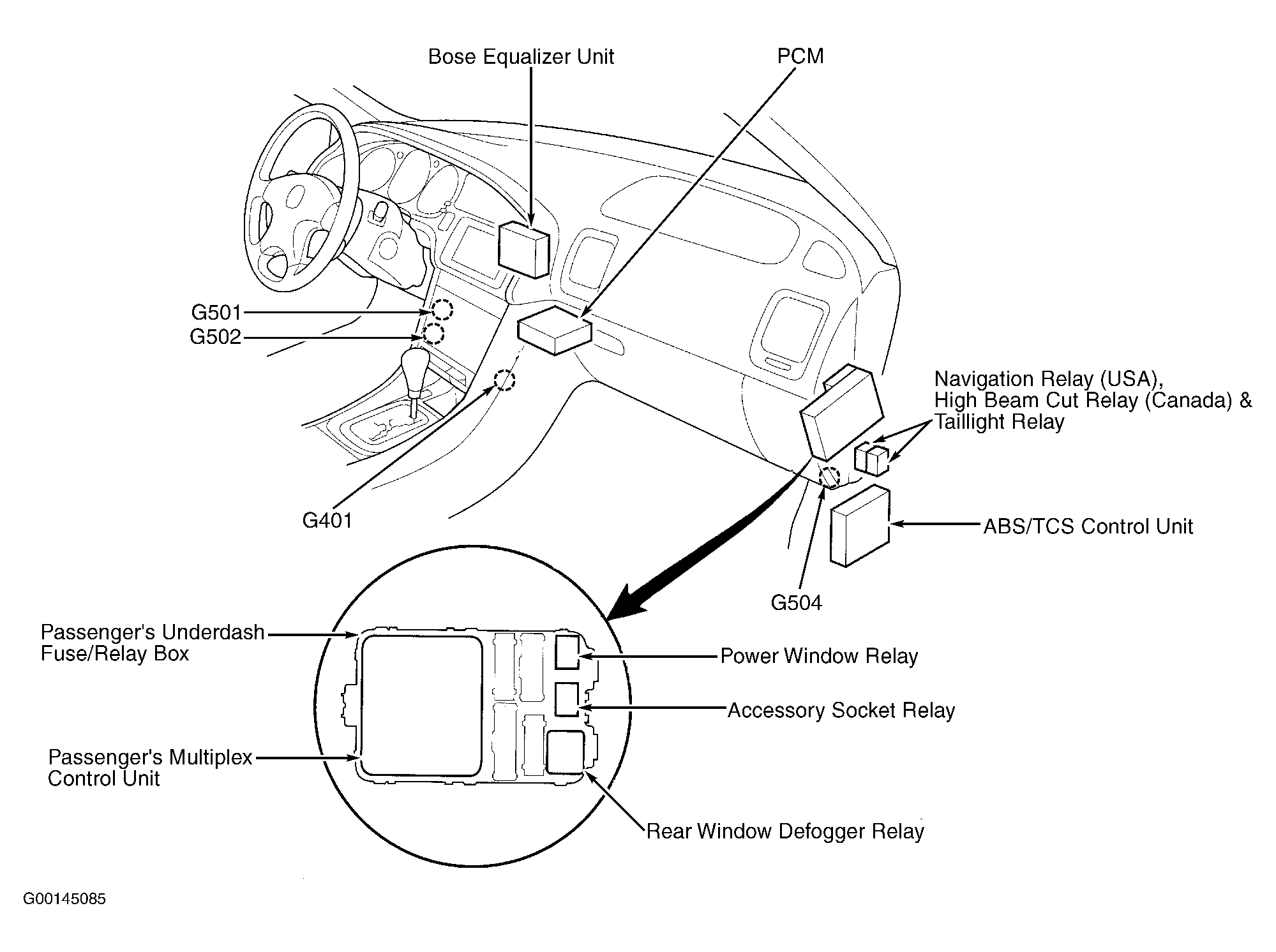

| Passenger's Multiplex Control Unit | On passenger's underdash fuse/relay box. See Figure . |
| PCM | Behind center of dash. See Figure . |

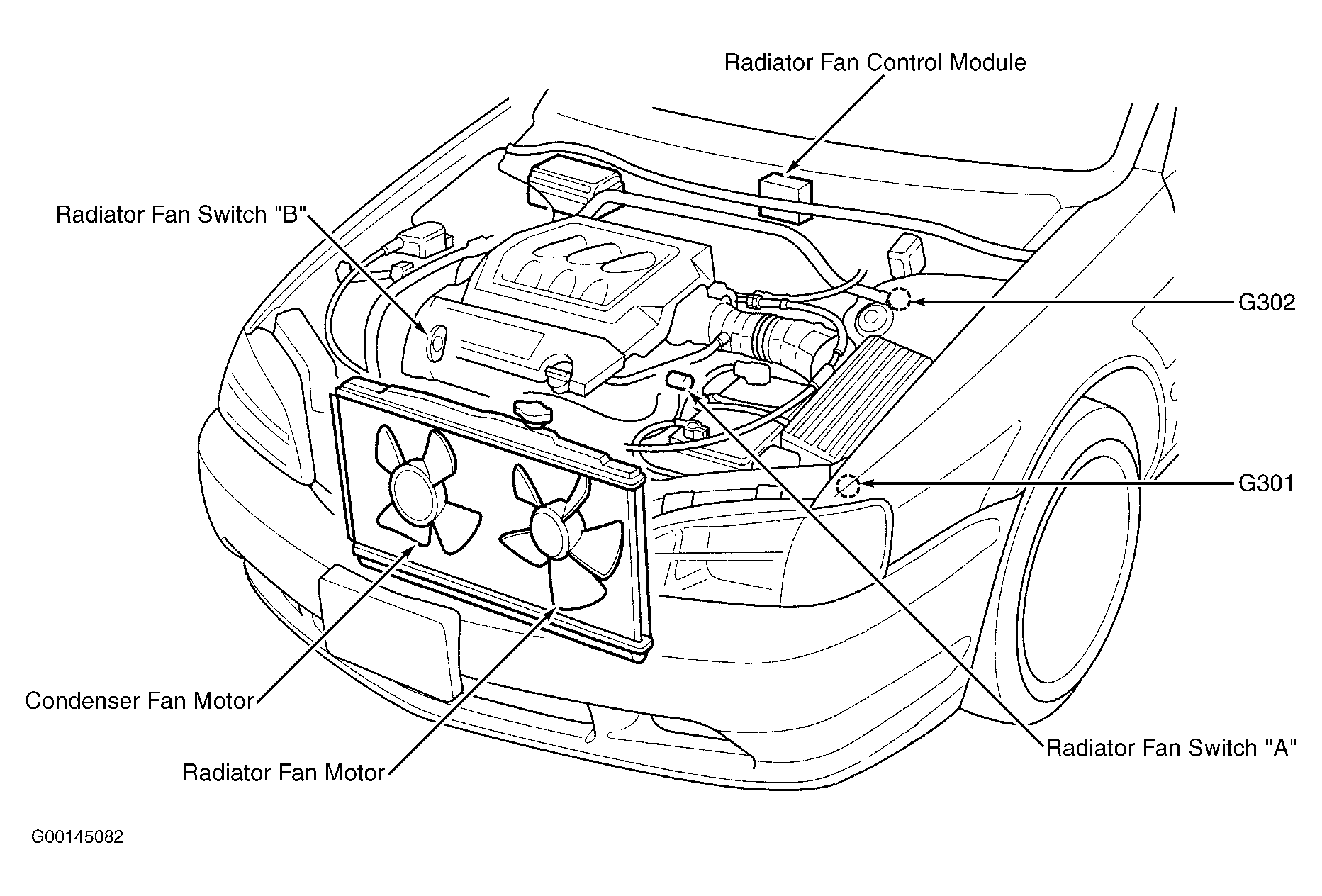

| Radiator Fan Control Module | Behind center of dash. See Figure . |
| SRS Unit | Under front of center console. See Figure . |
