Component Location

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 11 .

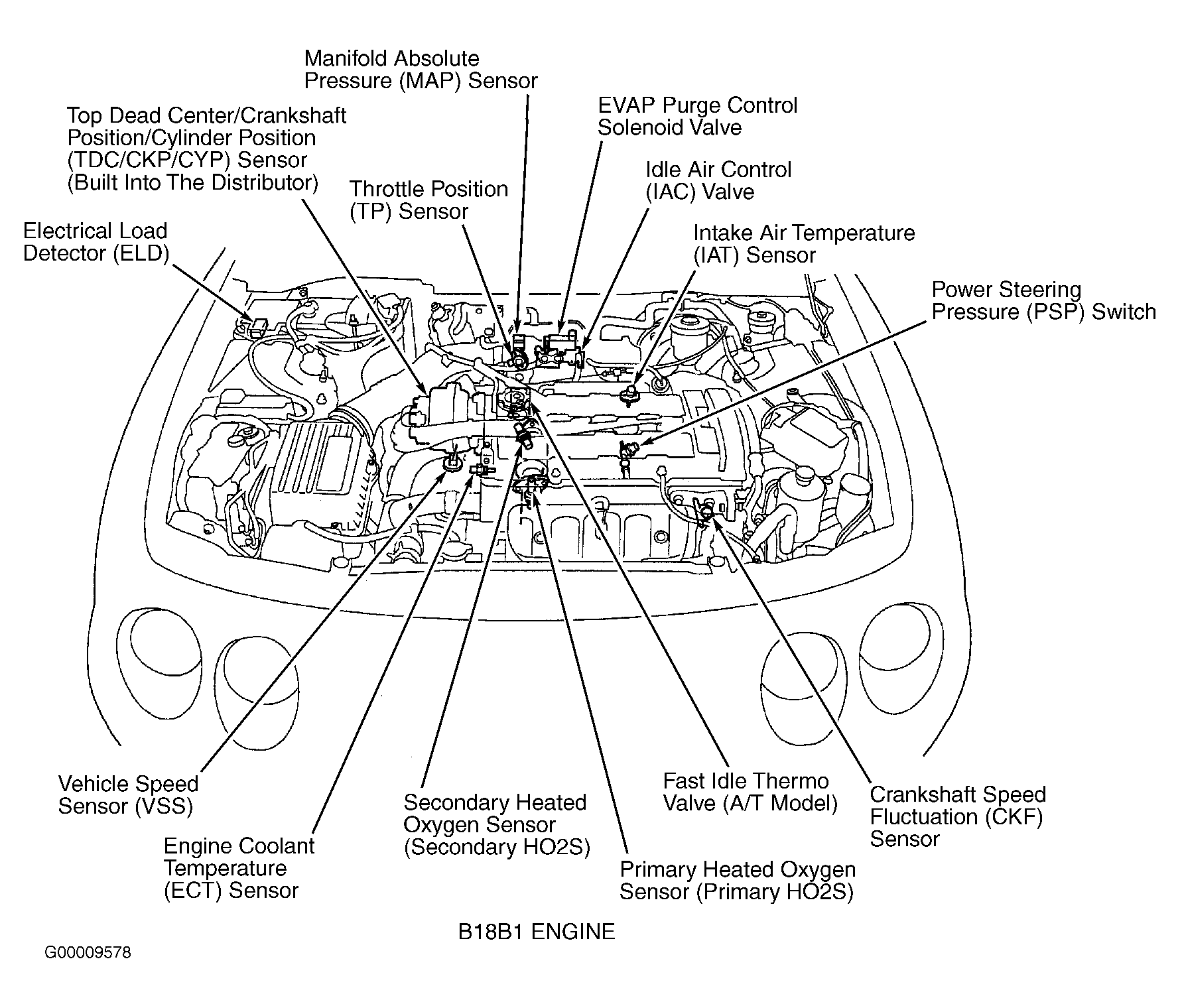

Fig 1: Locating Engine Performance-Related Components (Integra - 1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Engine Performance-Related Components (Integra - 2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Engine Performance-Related Components (Integra - 3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Engine Performance-Related Components (Integra - 4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Locating Engine Performance-Related Components (Integra - 5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Engine Performance-Related Components (3.2TL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating Engine Performance-Related Components (3.2TL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Locating Engine Performance-Related Components (3.2TL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Locating Engine Performance-Related Components (3.5RL - 1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Locating Engine Performance-Related Components (3.5RL - 2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Locating Engine Performance-Related Components (3.5RL - 3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
