Park Pin Switch Test
- Remove the console panel. See Console Panel
.

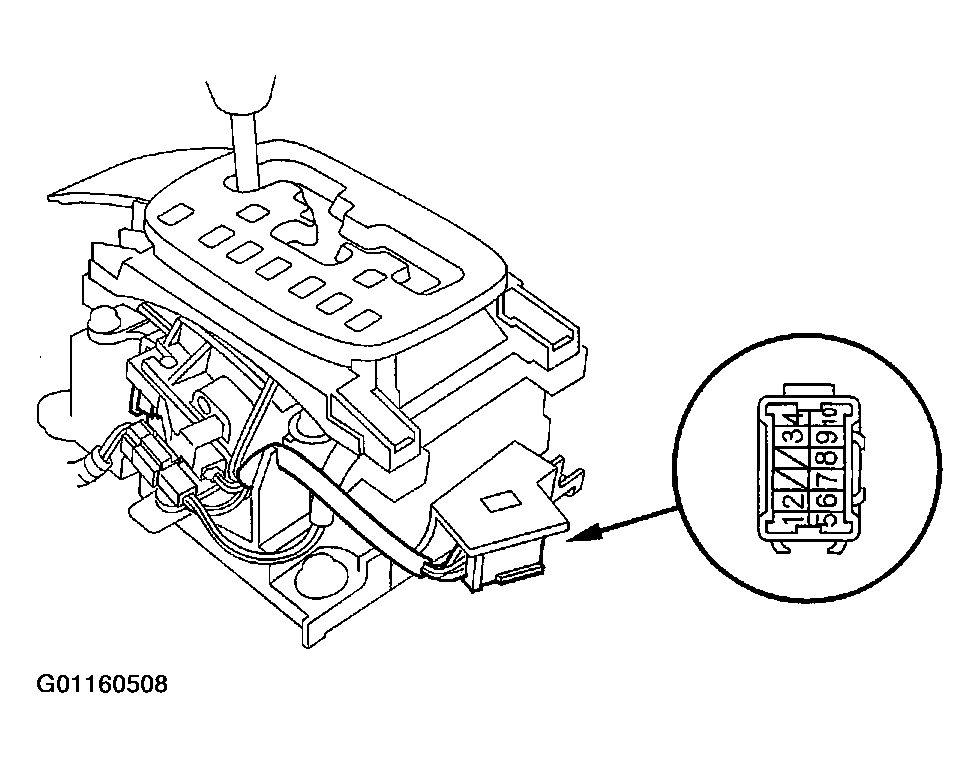

- Disconnect the transmission gear selection switch connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Shift the shift lever into the P
position, then check for continuity between the No. 4 and No. 10 terminals. There should be continuity.
- Shift the shift lever out of the P
position, and check for continuity between the terminals in step 3. There should be no continuity.
- If the park pin switch is faulty, replace the detent bracket assembly. (The park pin switch is not available separately.)
