Passenger's Power Window Switch

Remove passenger's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Remove passenger's power window switch from door panel. Disconnect 6-pin connector (3.2TL) or 8-pin connector (3.5RL) from switch. Check for continuity between specified switch terminals with switch in each specified position. See Fig 1 or Fig 2 . See PASSENGER'S POWER WINDOW SWITCH table. If continuity is not as specified, replace passenger's power window switch.

PASSENGER'S POWER WINDOW SWITCH

Application & Window Switch Position

Continuity Between Terminals No.

3.2TL

1 & 2; 3, 4, 5 & 6

OFF

1, 3, 4, 5 & 6

DOWN

1, 3, 5 & 6

3.5RL ⁽¹⁾

3 & 5

OFF

1 & 3; 3 & 7; 3 & 8

DOWN

3 & 5

⁽¹⁾	Illumination bulbs are positioned between terminals No. 4 and 6. Replace illumination bulb and retest before replacing switch.

Fig 1: Identifying Passenger's Power Window Switch Terminals (3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

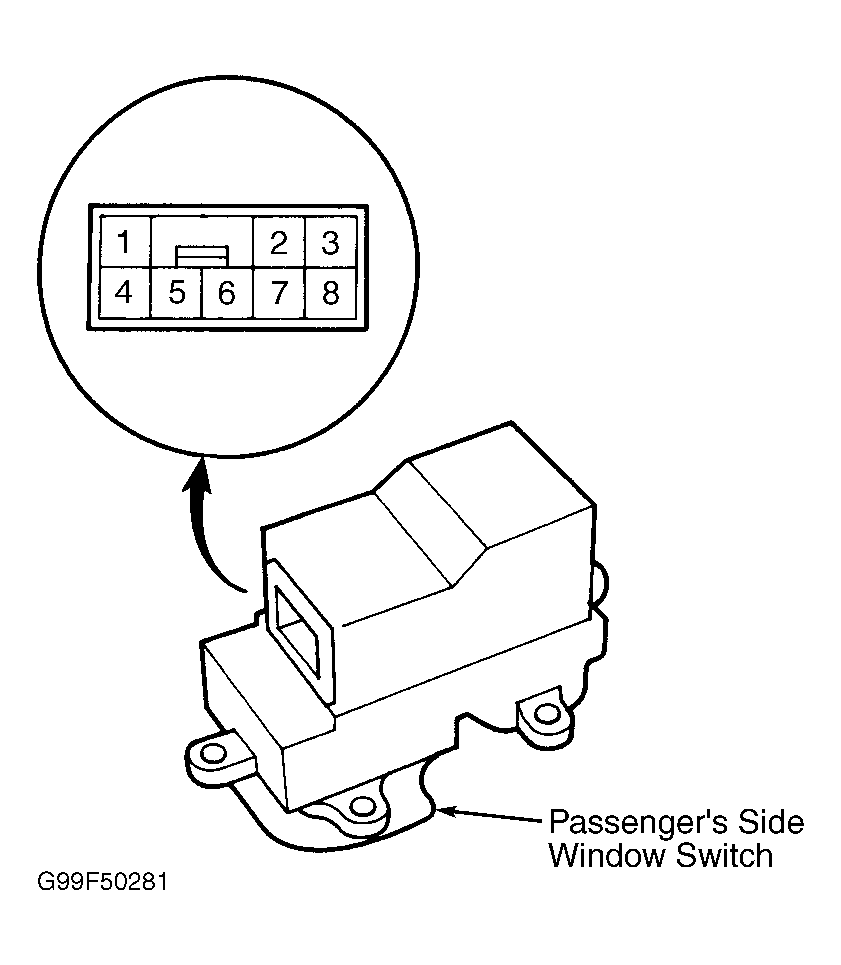

Fig 2: Identifying Passenger's Power Window Switch Terminals (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
