Deflection Method

NOTE: If the belt is worn or damaged, replace it.

Apply a force of 22 Lbs. (98 N) and measure the deflection between the alternator and crankshaft pulley. See Fig 1Deflection:

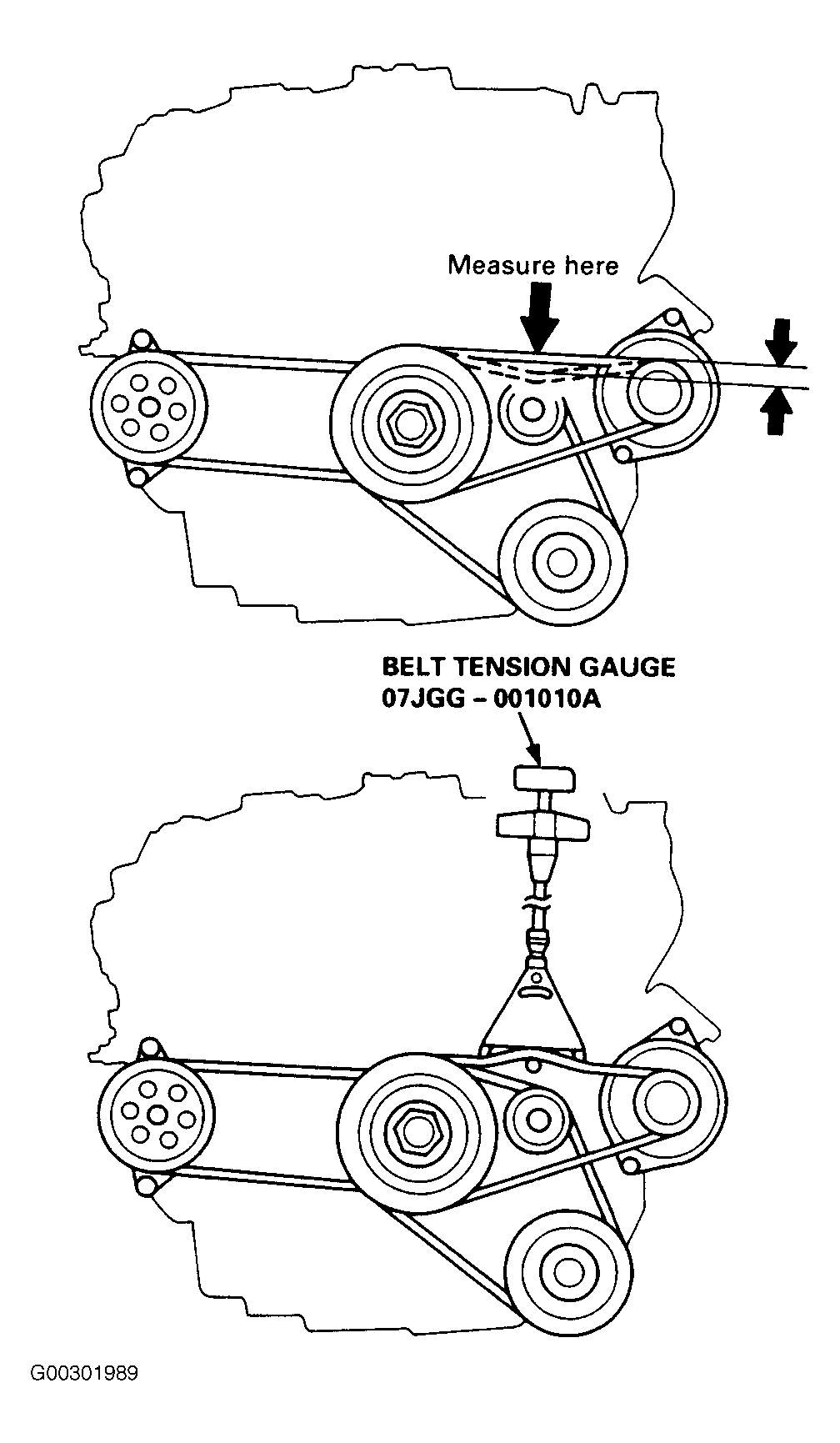

Fig 1: Inspecting Alternator Belt Deflection

Courtesy of AMERICAN HONDA MOTOR CO., INC.
