Generators & Regulators: Overhaul

NOTE: Use exploded view of generator for overhaul. See Fig 1.

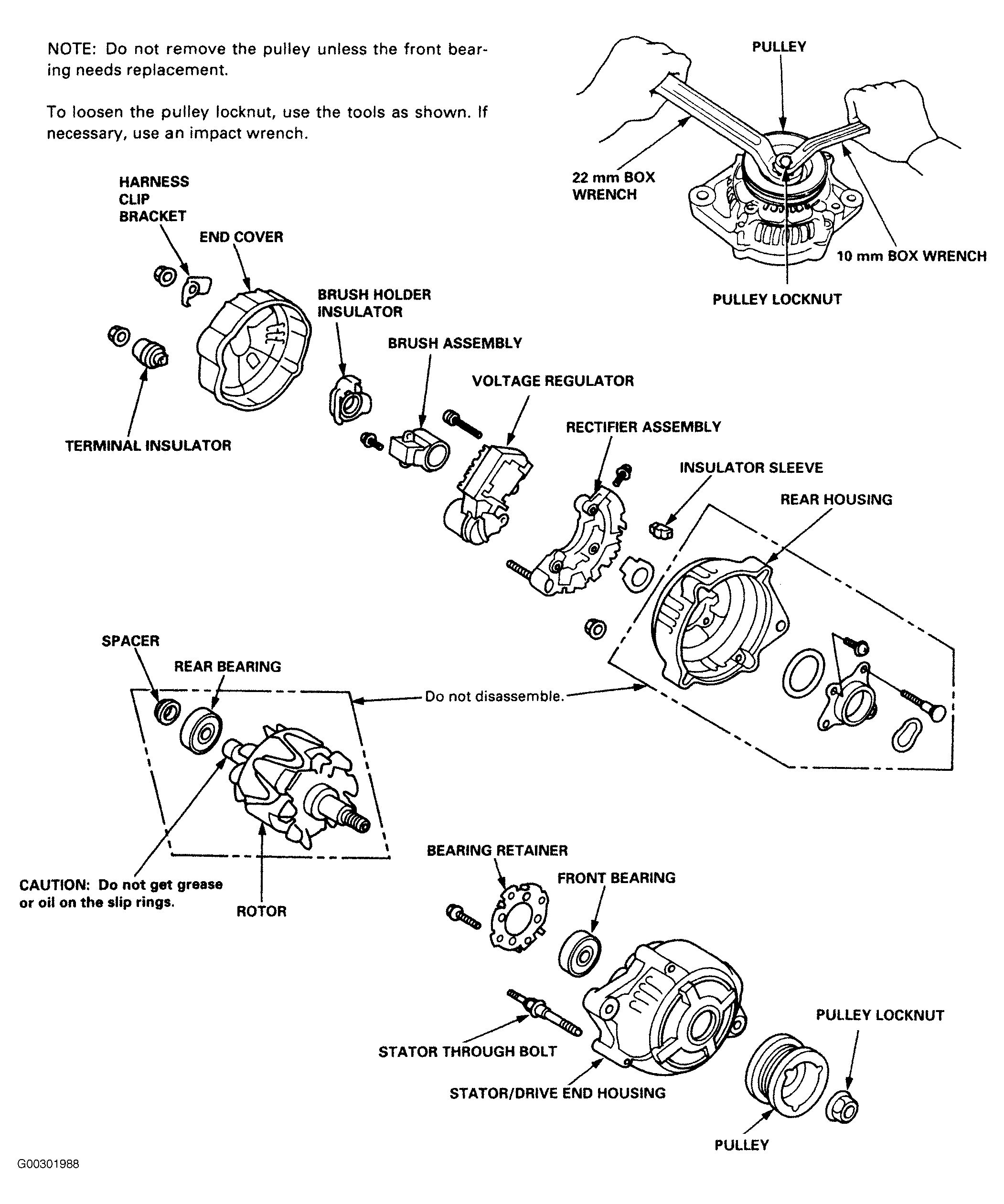

Fig 1: Exploded View Of Alternator
G00301988Courtesy of AMERICAN HONDA MOTOR CO., INC.
