Alternator & Regulator Test

For alternator and regulator test, see Fig 1 and Fig 2 .

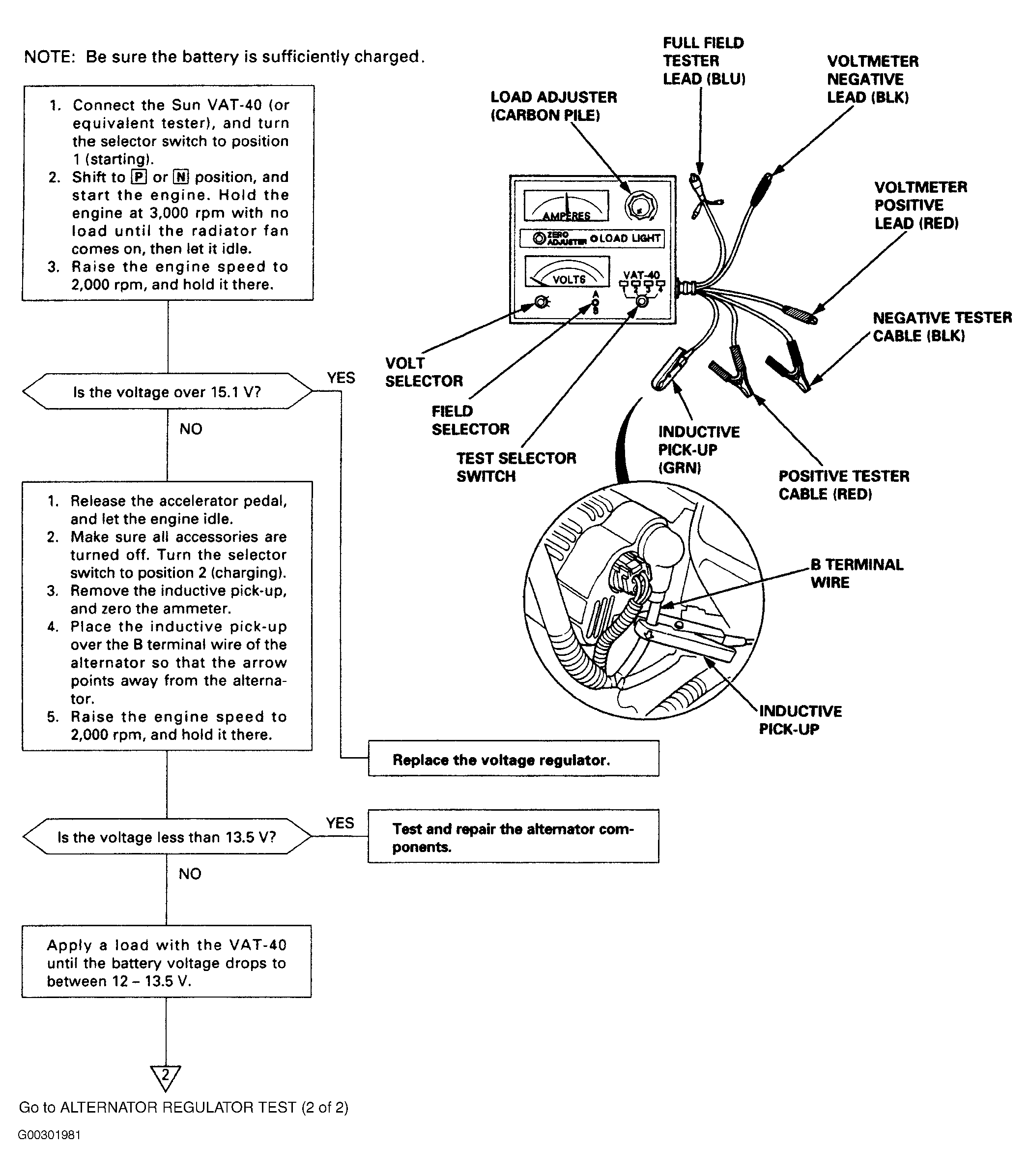

Fig 1: Alternator & Regulator Test (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

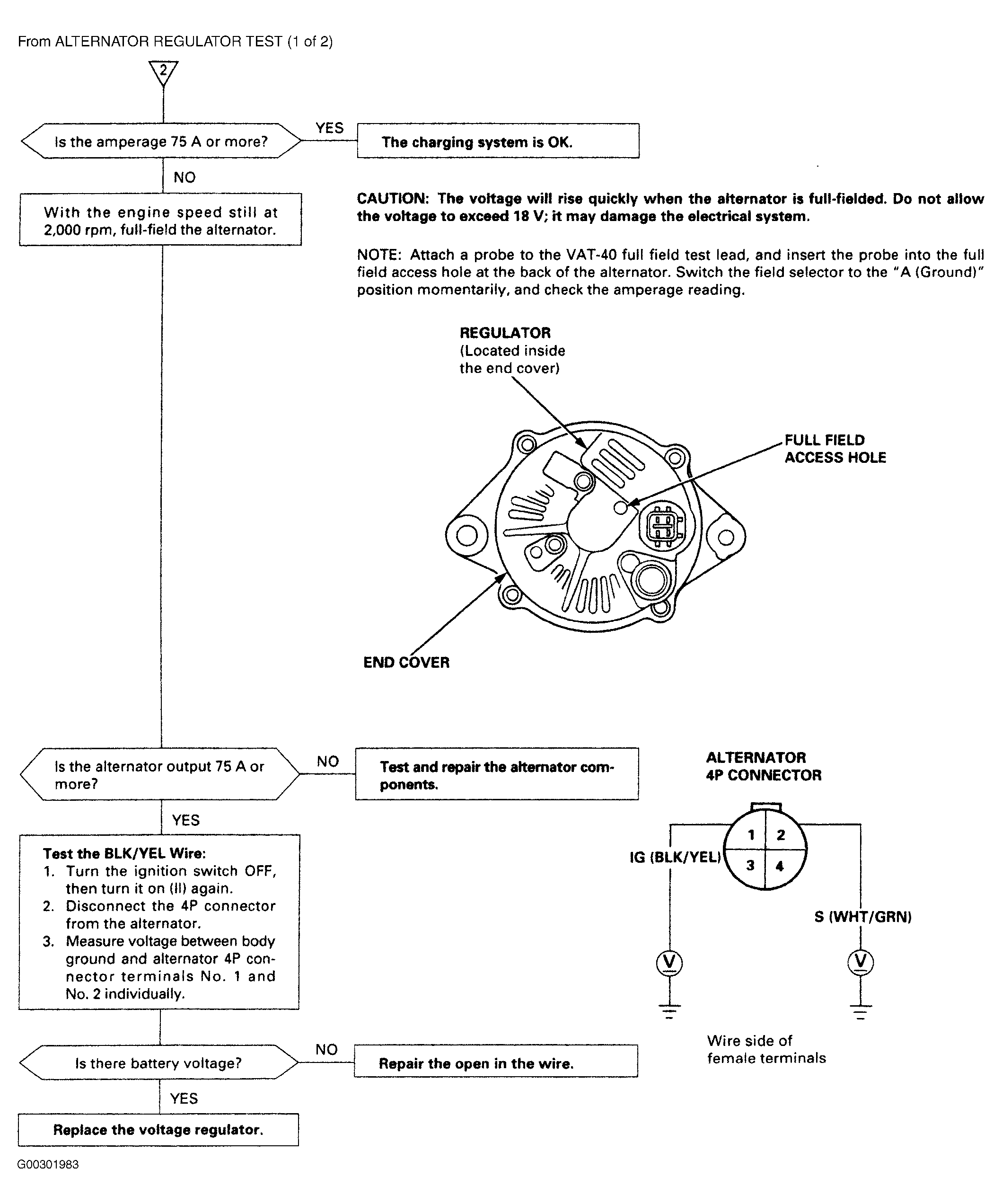

Fig 2: Alternator & Regulator Test (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
