Charging System Light Test

For charging system light test, see Fig 1 and Fig 2 .

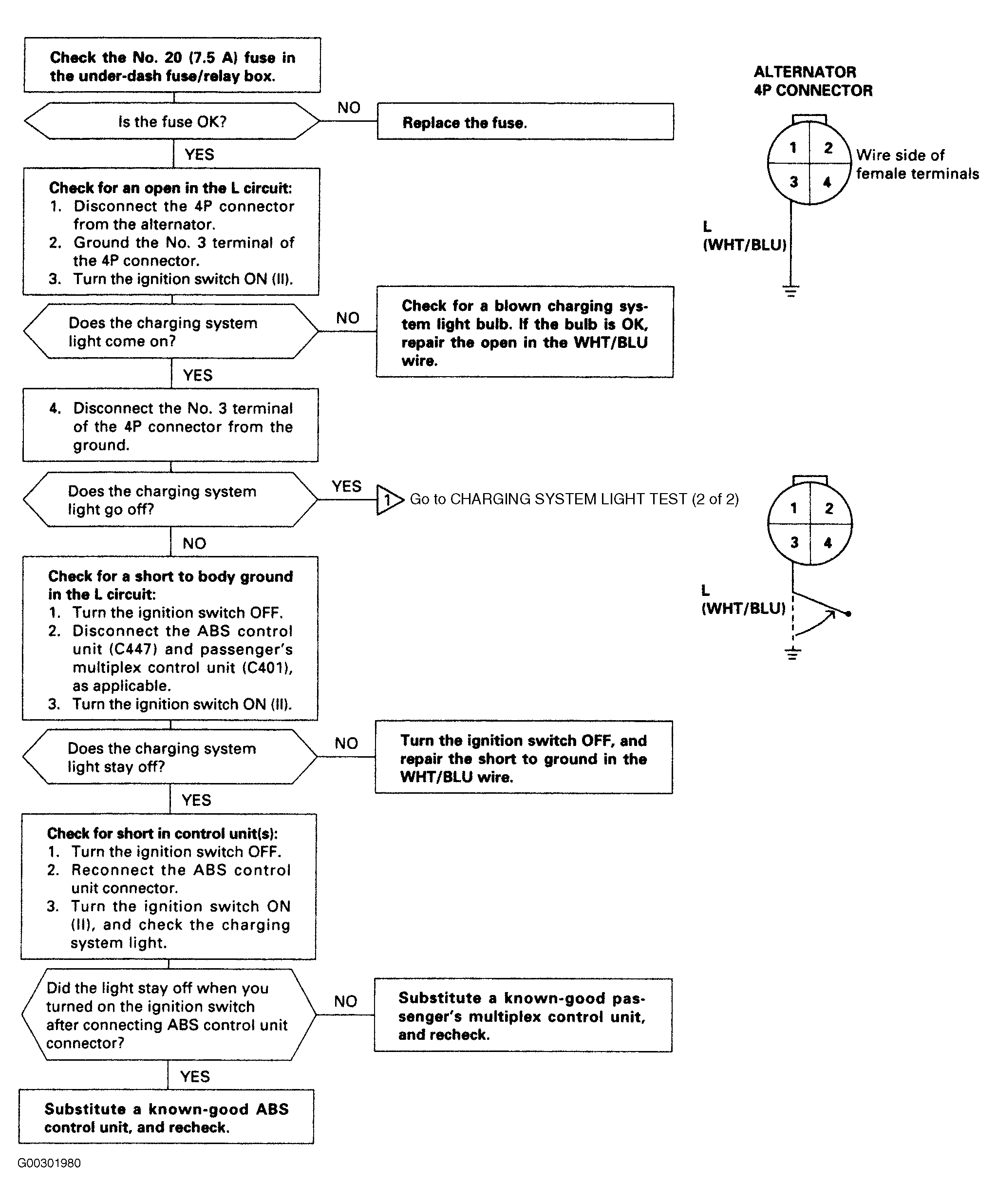

Fig 1: Charging System Light Test (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

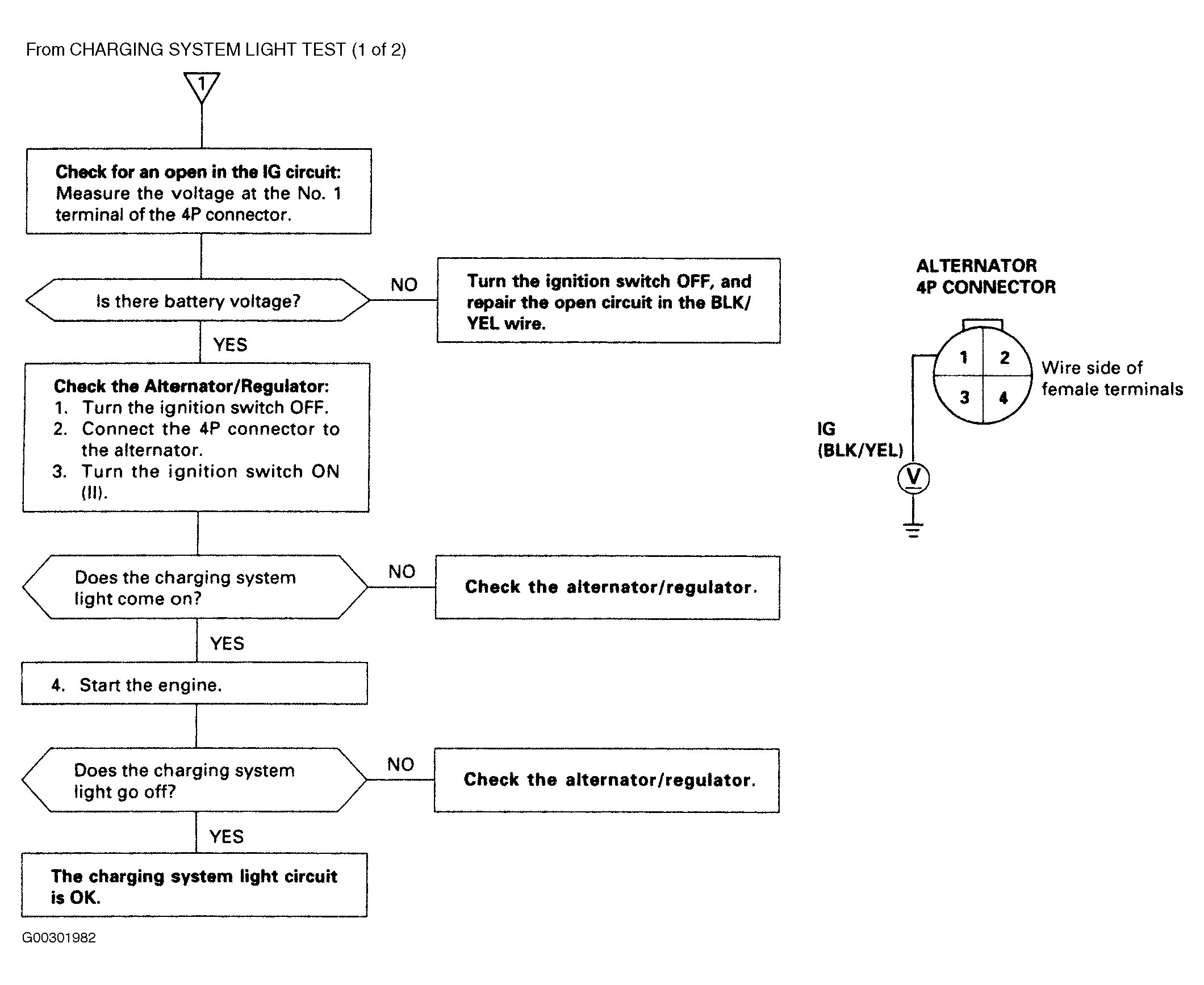

Fig 2: Charging System Light Test (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
