Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

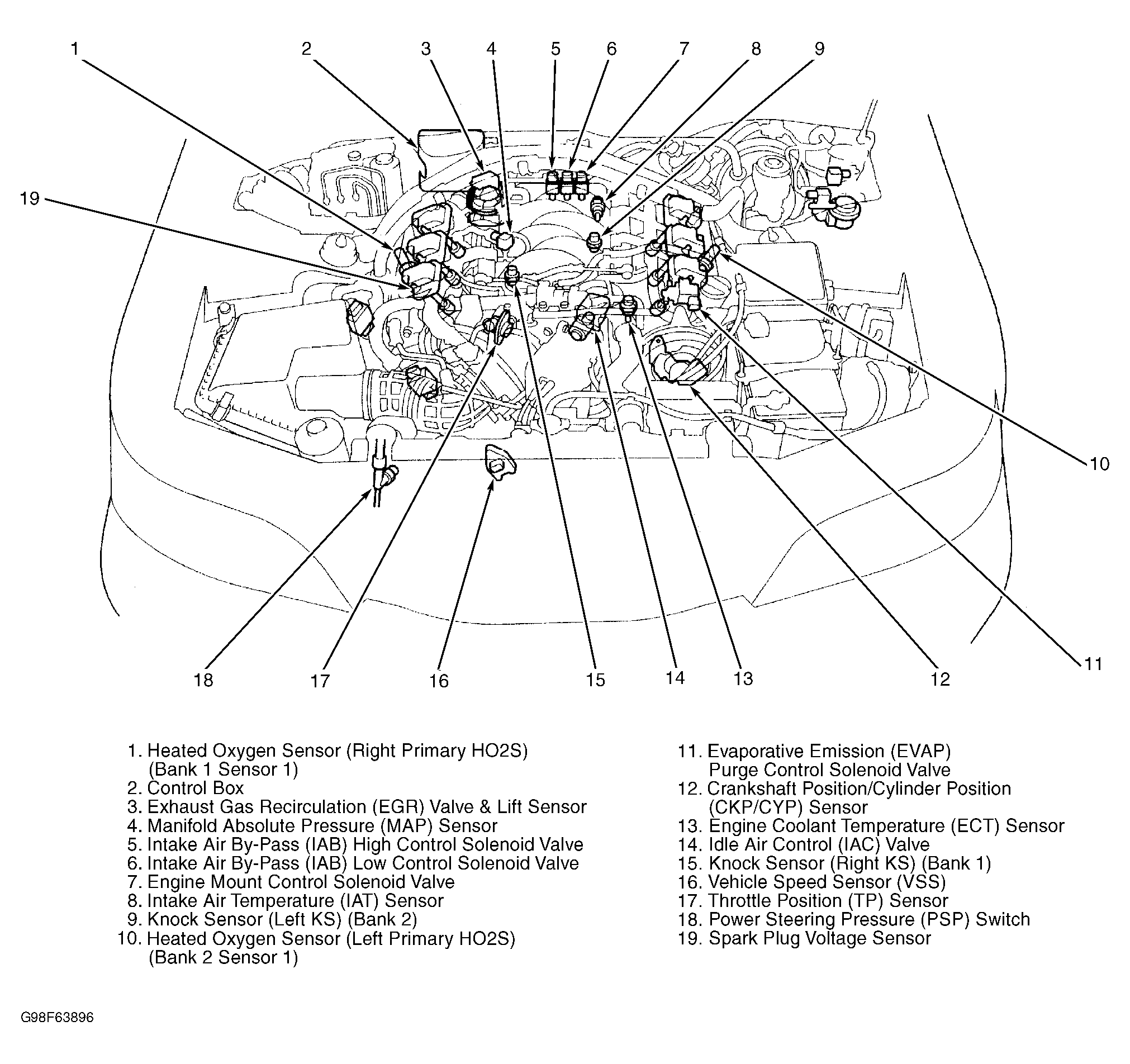

Fig 1: Engine Compartment

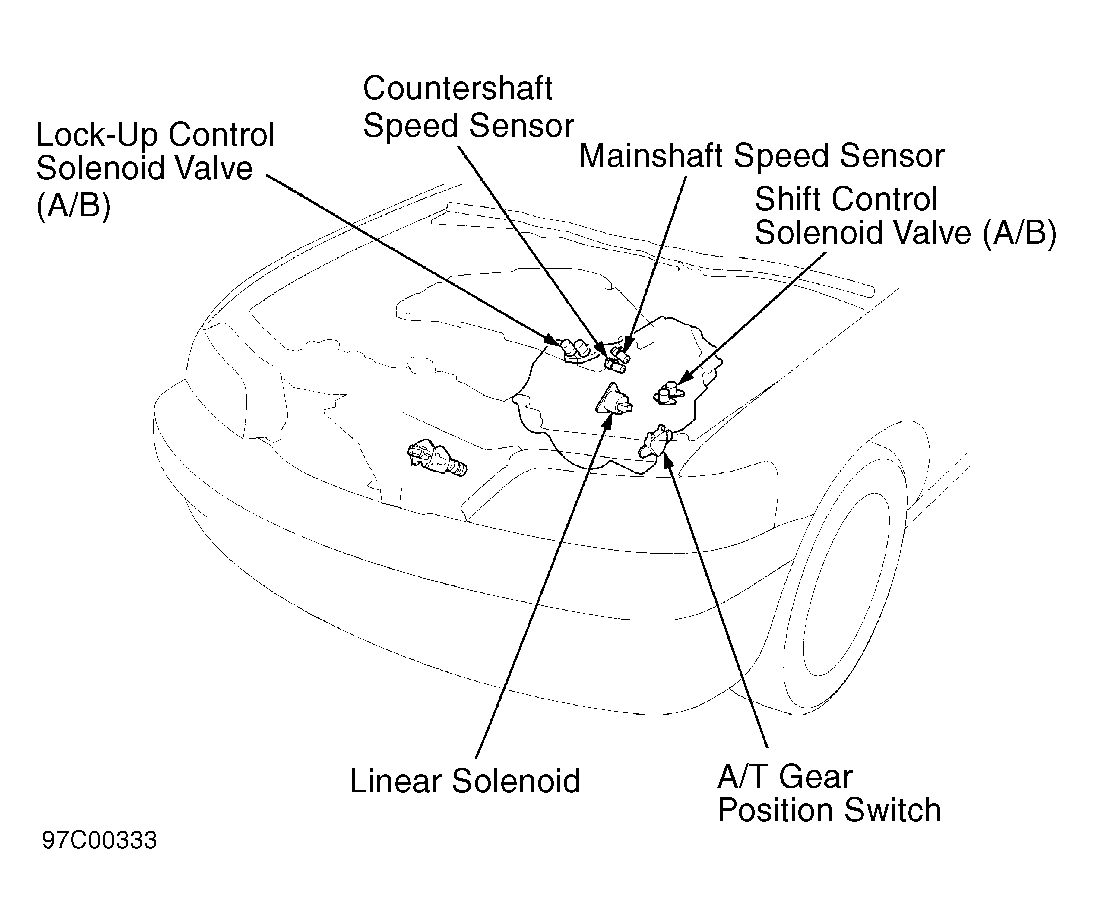

Fig 2: Transaxle

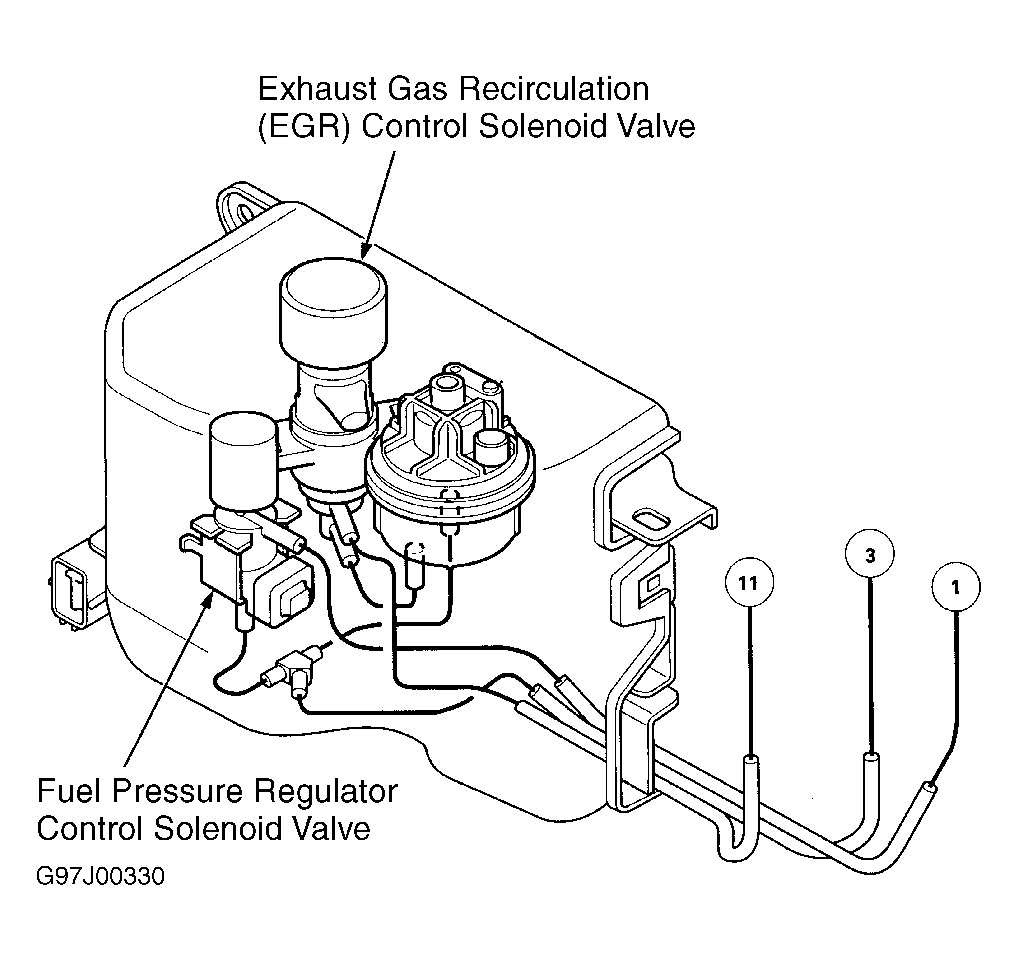

Fig 3: Emissions Control Components

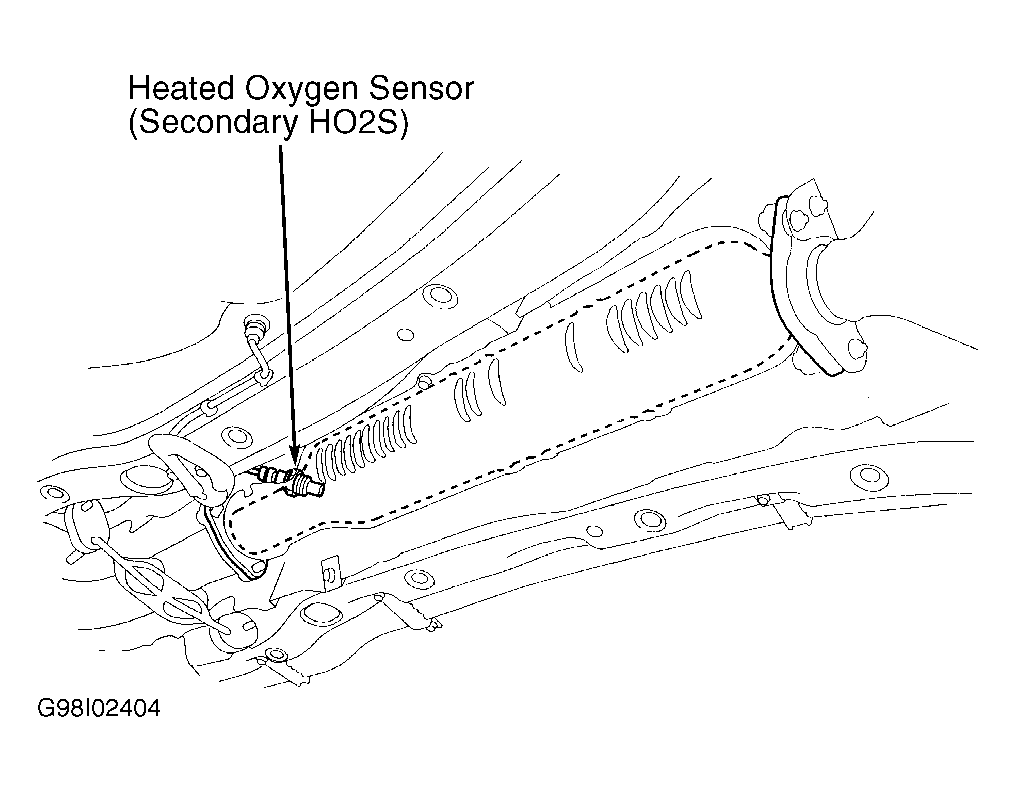

Fig 4: Underside Of Vehicle

Fig 5: Engine Compartment

Fig 6: Engine Compartment

Fig 7: Left Side Of Dash

Fig 8: Right Side Of Dash

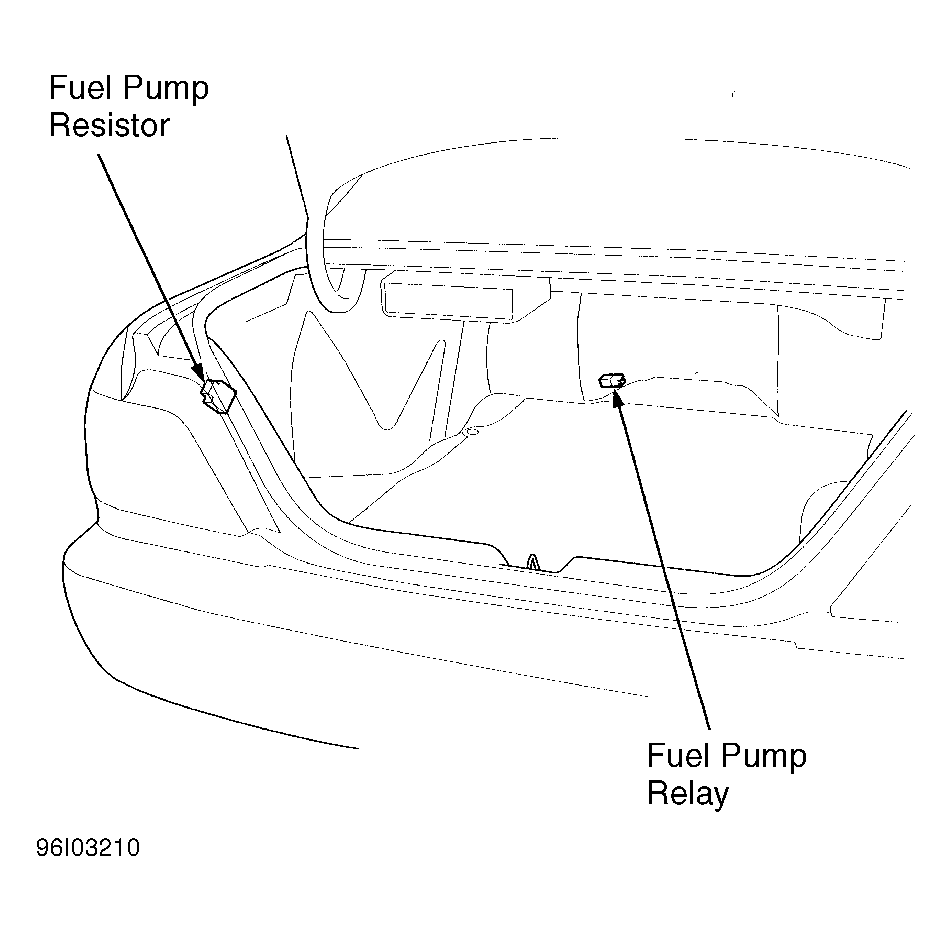

Fig 9: Right Rear Of Vehicle

Fig 10: Left Rear Of Vehicle

Fig 11: Trunk
