Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| ABS Inspection Connector | Below right side of dash. |
| A/C Compressor Clutch | On lower left front of engine. |
| A/T Reverse Diode | Behind blower unit, taped to harness. |

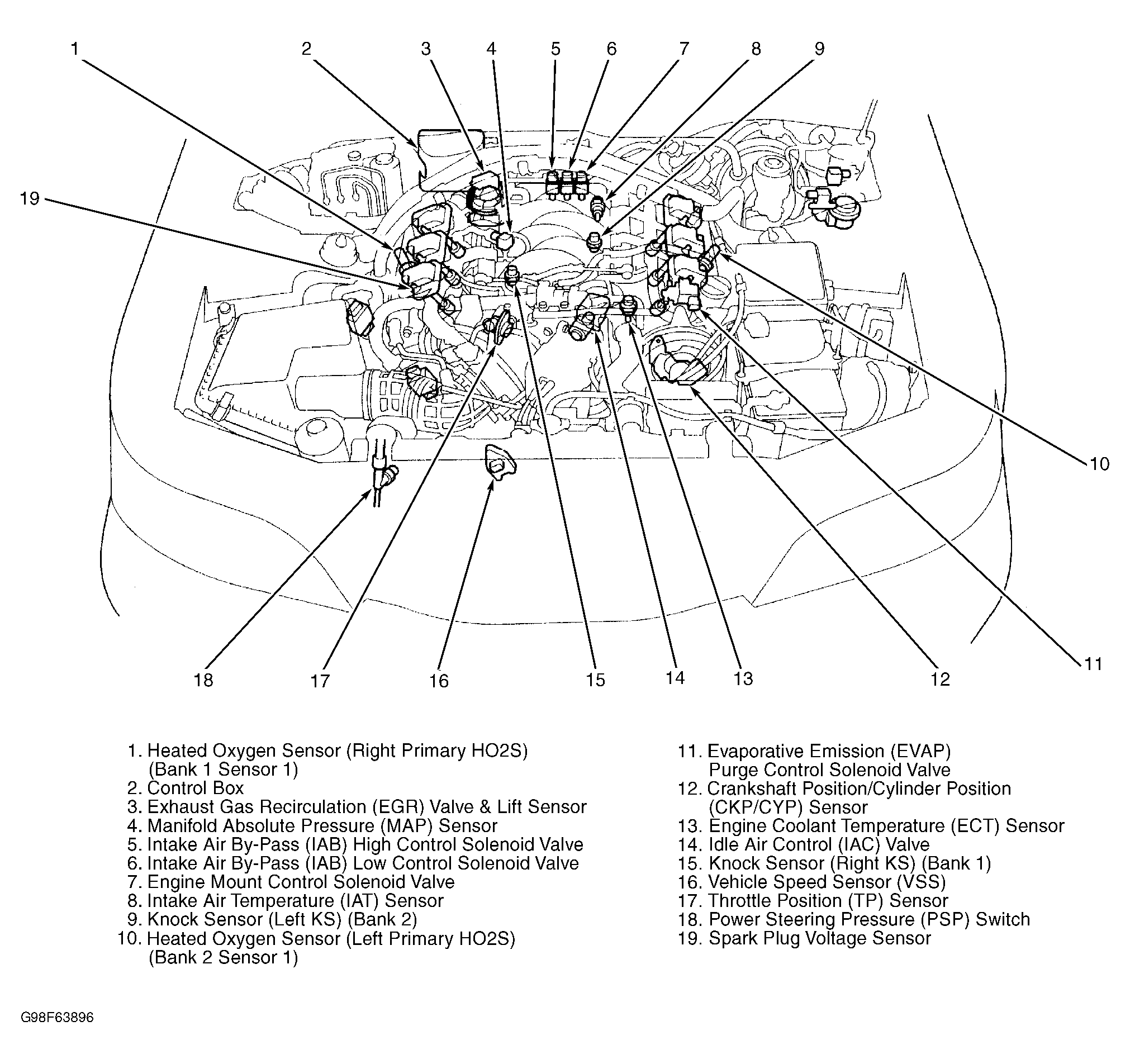

| Control Box | On right side of firewall. See Figure . |
| Data Link Connector (DLC) | In front console, behind ashtray. See Figure . |
| Driver's Seat Belt Tension Reducer Diode | Below left rear doorsill trim. |
| Front Passenger's Seat Belt Tension Reducer Diode | Below right rear doorsill trim. |
| Fuel Pump Resistor | On left side of trunk. See Figure . |
| Fuel Tank Unit | On underside of vehicle, top of fuel tank. |
| Ignition Coils (6) | On valve covers, top of respective cylinder. |
| Junction Connector C421 | At base of steering column. |
| Junction Connector C448 | Above right kick panel. |
| Junction Connector C456 | Below right side of dash. |
| Junction Connector C464 | Below right side of dash. |
| Junction Connector C487 | Above PCM cover, taped to harness. |
| Lighting Diode | Behind left kick panel. |
| Multiplex Control Inspection Connector | Above left kick panel. |
| Navigation Antenna | On rear shelf. |
| Navigation Service Check Connector | At right front of trunk. |
| Noise Condenser | On right front corner of engine compartment. |
| Power Transistor | Behind glove box, on plenum. |
| Security Diode | Behind left kick panel. |
| Security Horn | At right front of engine compartment. |
| Service Check Connector | Below right side of dash, under glove box. See Figure . |
| SRS Memory Erase Signal (MES) Connector | Behind lower left dash panel. |
| Test Tachometer Connector | On right rear of engine compartment, taped to harness. |
| Turn Signal Switch Diode | On underside of steering column. |
| Turn Signal Light Diode | On underside of steering column. |
| Window Defogger Coil (Rear) | On right side of trunk. |
