Diagnostic Circuit Check: Notes
NOTE:
Circuit tests are written specifically for use with Honda PGM tester. Other scan tools can be used but may have limited functions.
WARNING:
Codes must be retrieved and cleared while performing the following DTC test procedures. Refer to RETRIEVING DIAGNOSTIC TROUBLE CODES and PCM RESET PROCEDURE/CLEARING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM.
CAUTION:
When substituting a known-good PCM, immobilizer code must be rewritten using Honda PGM tester, or engine will not start.
NOTE:

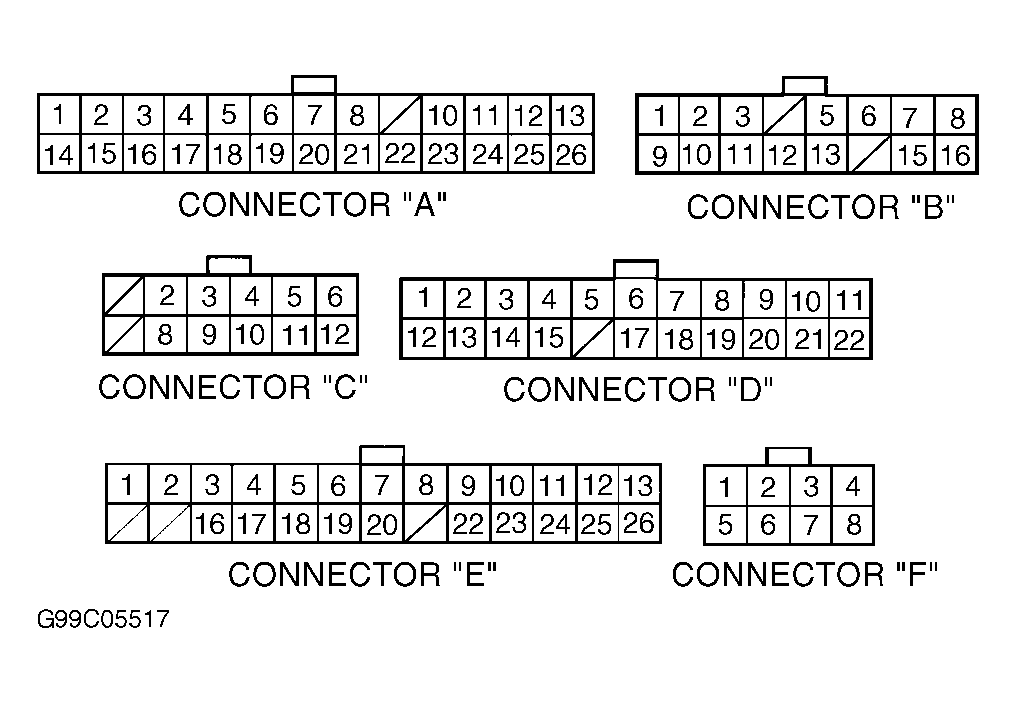

Use illustration to identify PCM connectors. See Figure.
