Driver's Power Seat Position Sensor
CAUTION:
Disconnect battery power immediately after motor stops running. If battery power is left connected, damage to motor may occur.

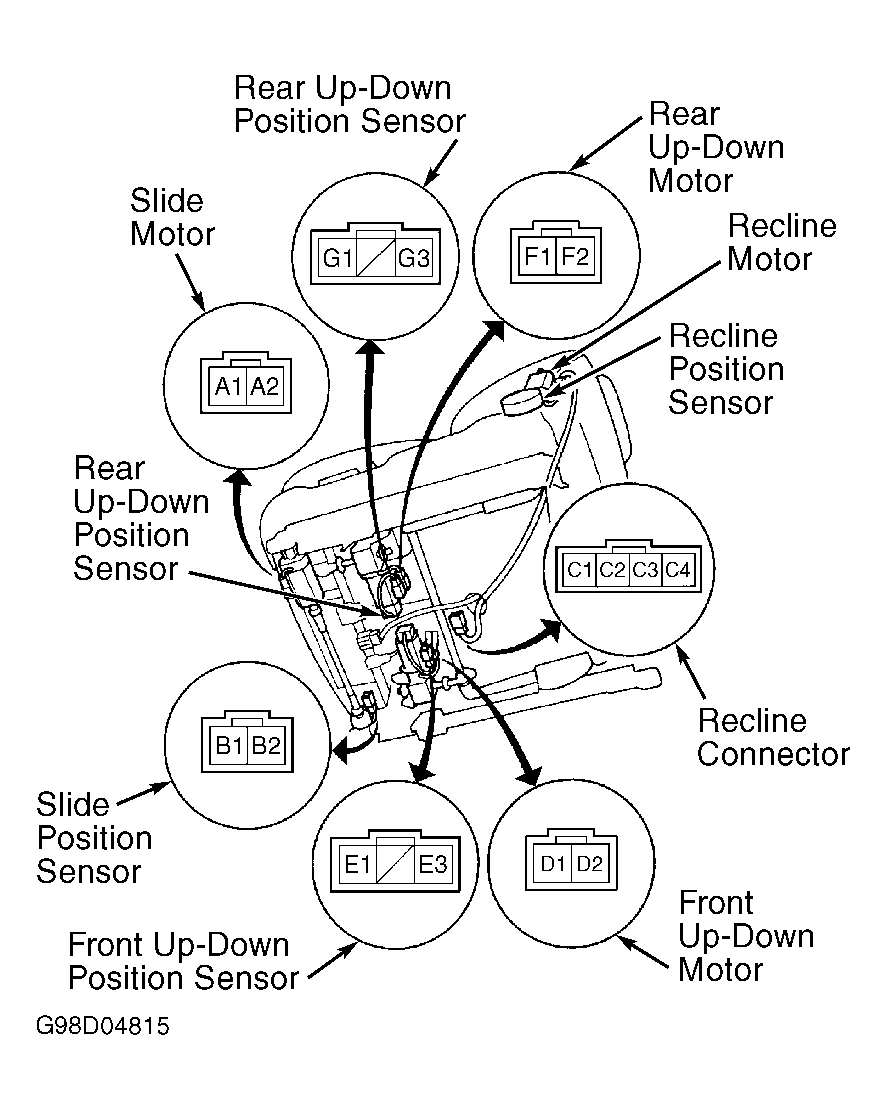

Remove driver's seat. See FRONT SEAT under REMOVAL & INSTALLATION. Disconnect all power seat motors and sensors. See Figure . Connect battery power across motor leads. Using an analog ohmmeter, observe resistance across associated sensor terminals. See DRIVER'S POWER SEAT POSITION SENSOR table. Needle on ohmmeter should move from left to right. If motor does not run, reverse battery power terminals. If motor still does not run, replace faulty motor. If ohmmeter needle does not move from left to right, replace faulty sensor. Repeat this procedure for each motor-sensor combination.
DRIVER'S POWER SEAT POSITION SENSOR
| Sensor | Connect Terminals To B+ & Ground | Connect Terminals To Ohmmeter |
|---|---|---|
| Slide | A1 & A2 | B1 & B2 |
| Recline | C3 & C4 | C1 & C2 |
| Front Up/Down | D1 & D2 | E1 & E3 |
| Rear Up/ Down | F1 & F2 | G1 & G3 |
