System Flow Charts

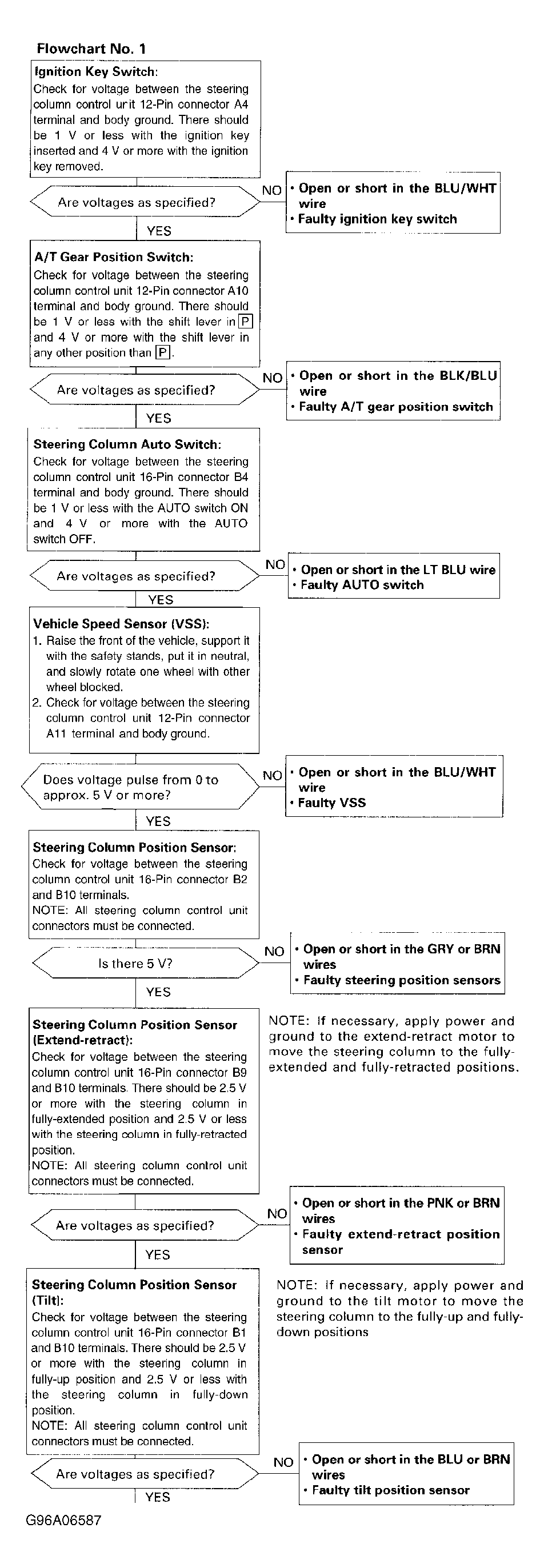

Fig 1: Flow Chart No. 1 (1 Of 2)

G96A06587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

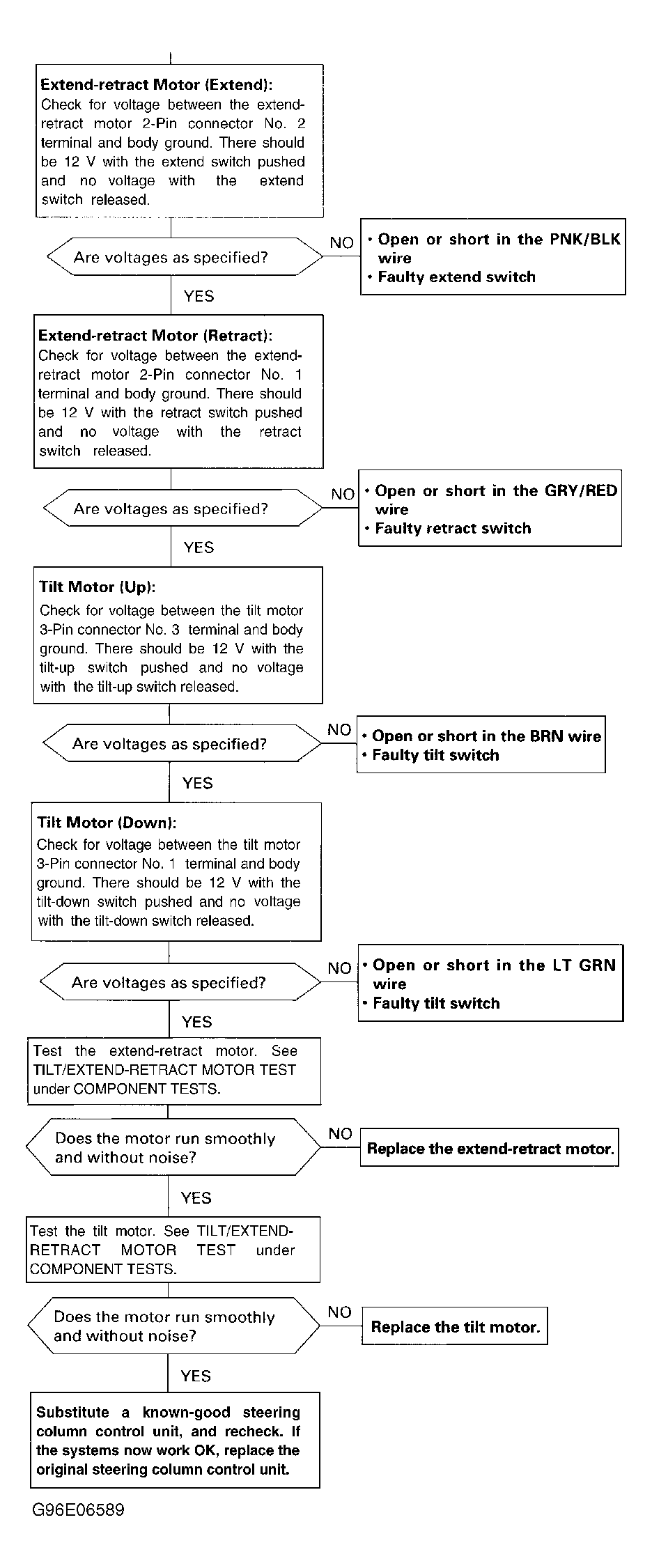

Fig 2: Flow Chart No. 1 (2 Of 2)

G96E06589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

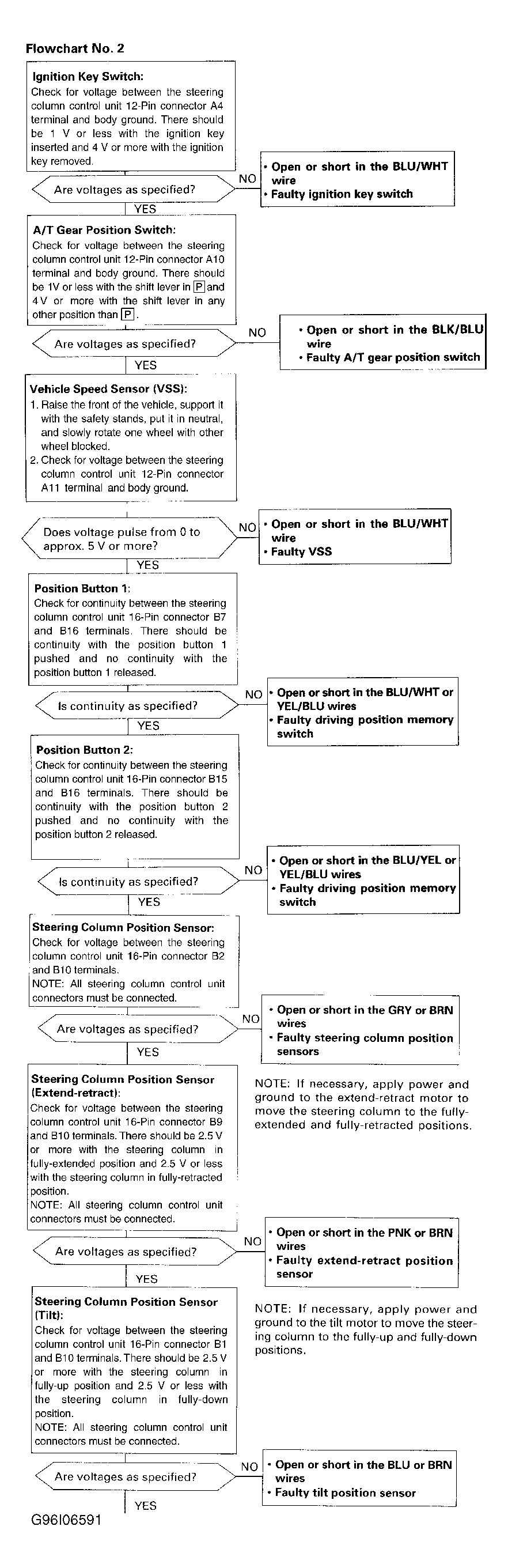

Fig 3: Flow Chart No. 2 (1 Of 3)

G96I06591

Courtesy of AMERICAN HONDA MOTOR CO., INC.

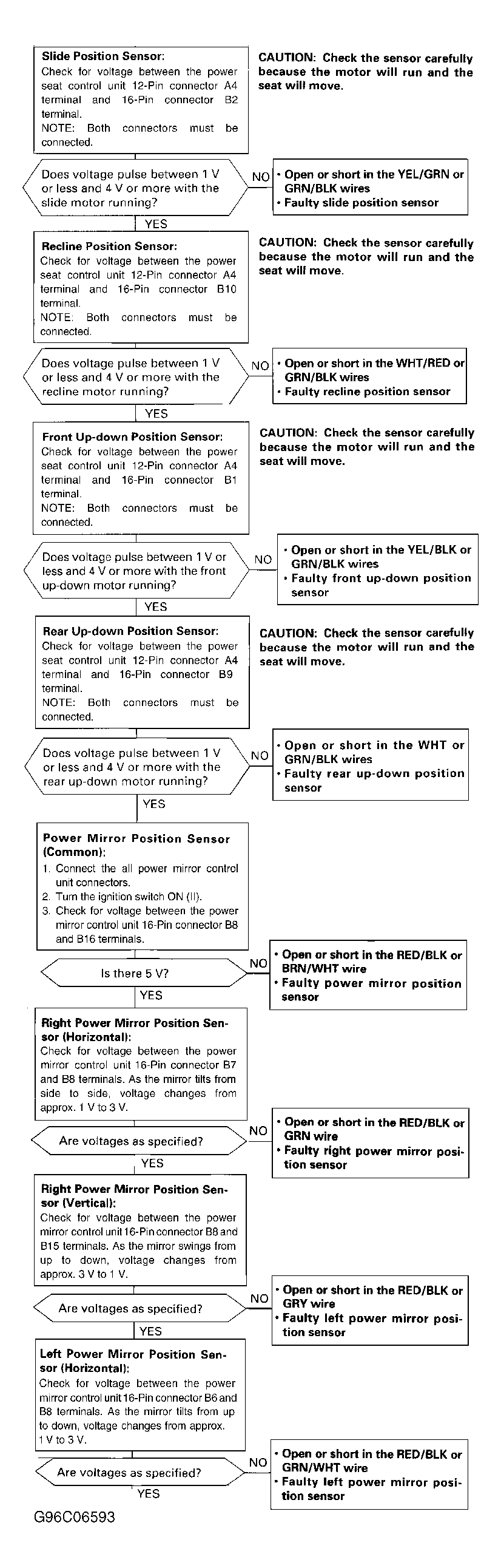

Fig 4: Flow Chart No. 2 (2 Of 3)

G96C06593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

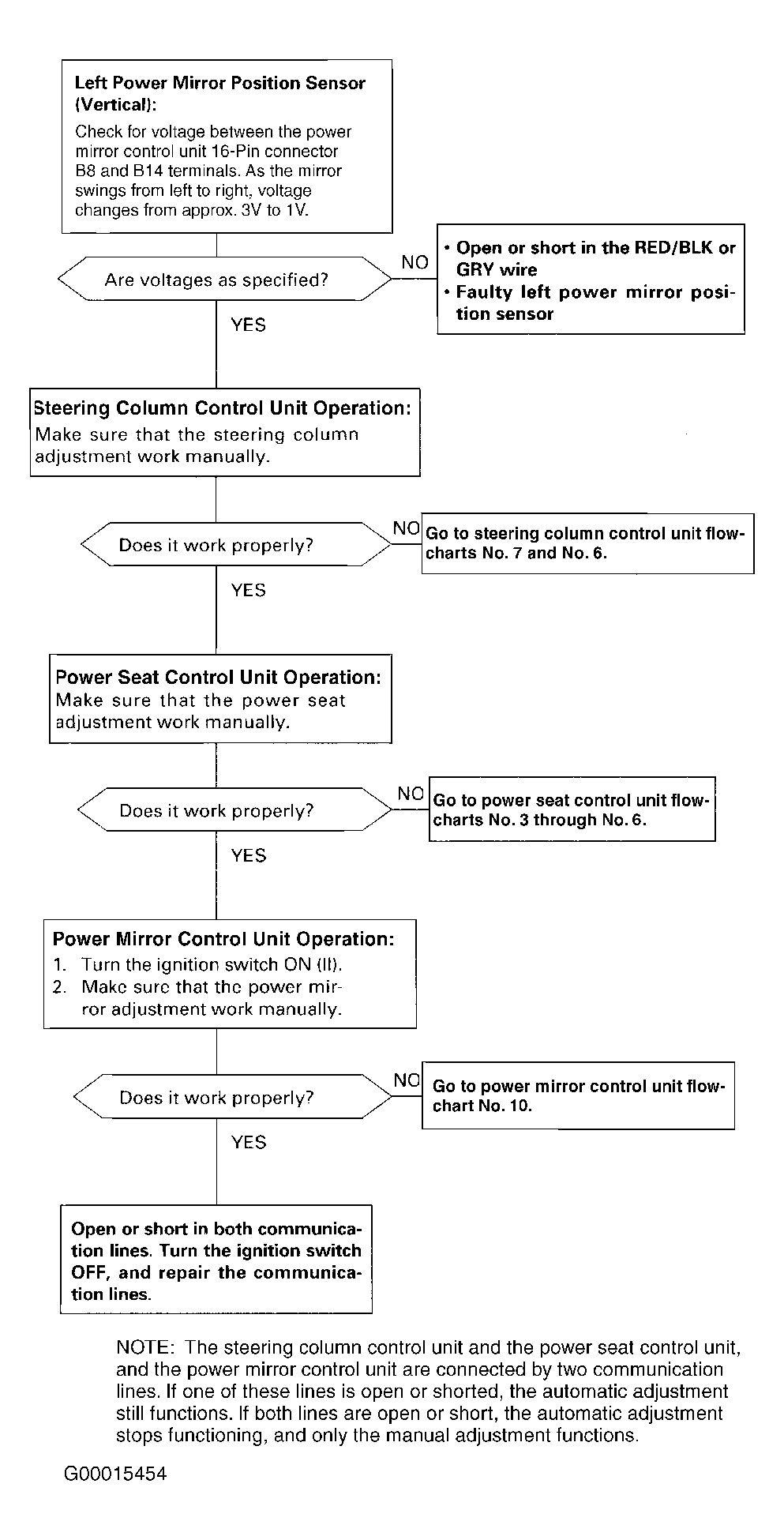

Fig 5: Flow Chart No. 2 (3 Of 3)

G00015454

Courtesy of AMERICAN HONDA MOTOR CO., INC.

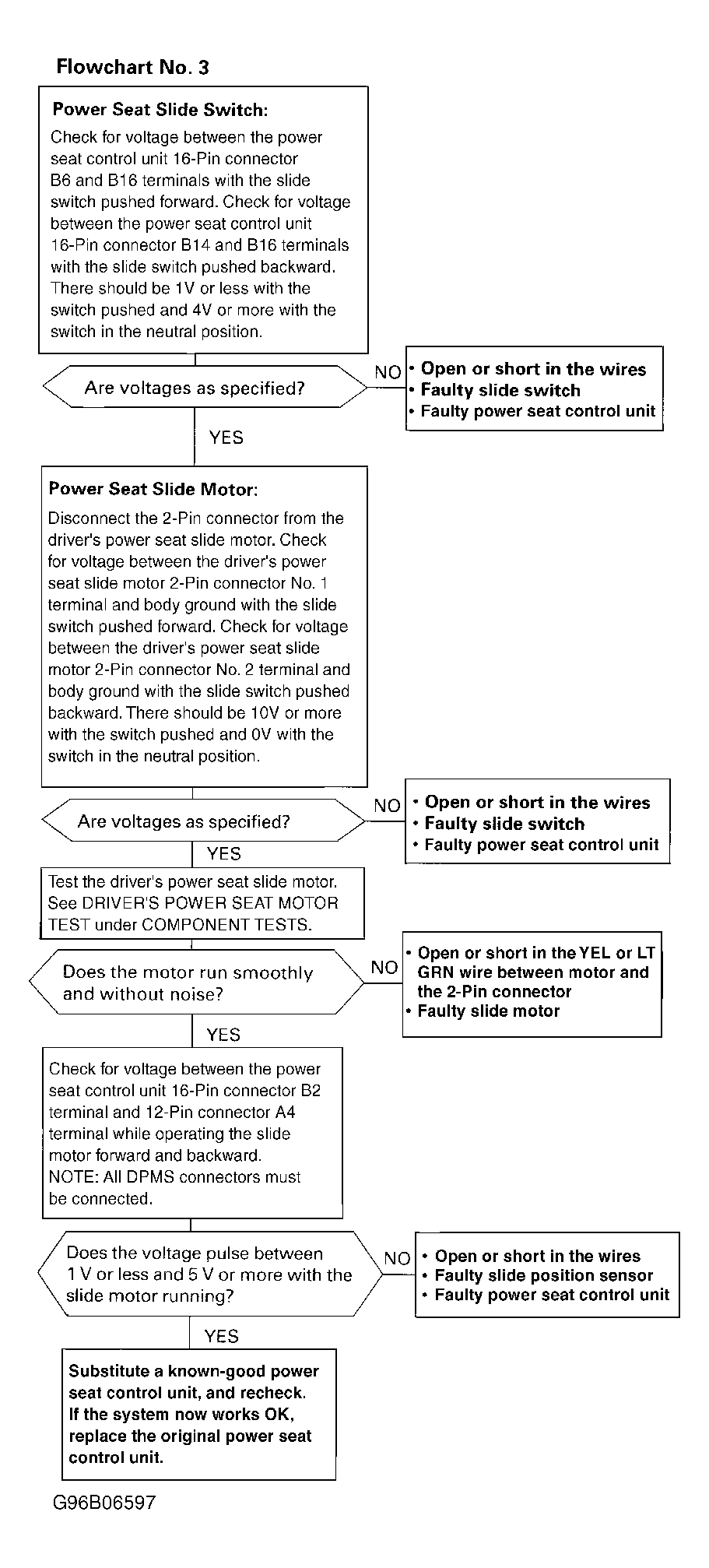

Fig 6: Flow Chart No. 3

G96B06597

Courtesy of AMERICAN HONDA MOTOR CO., INC.

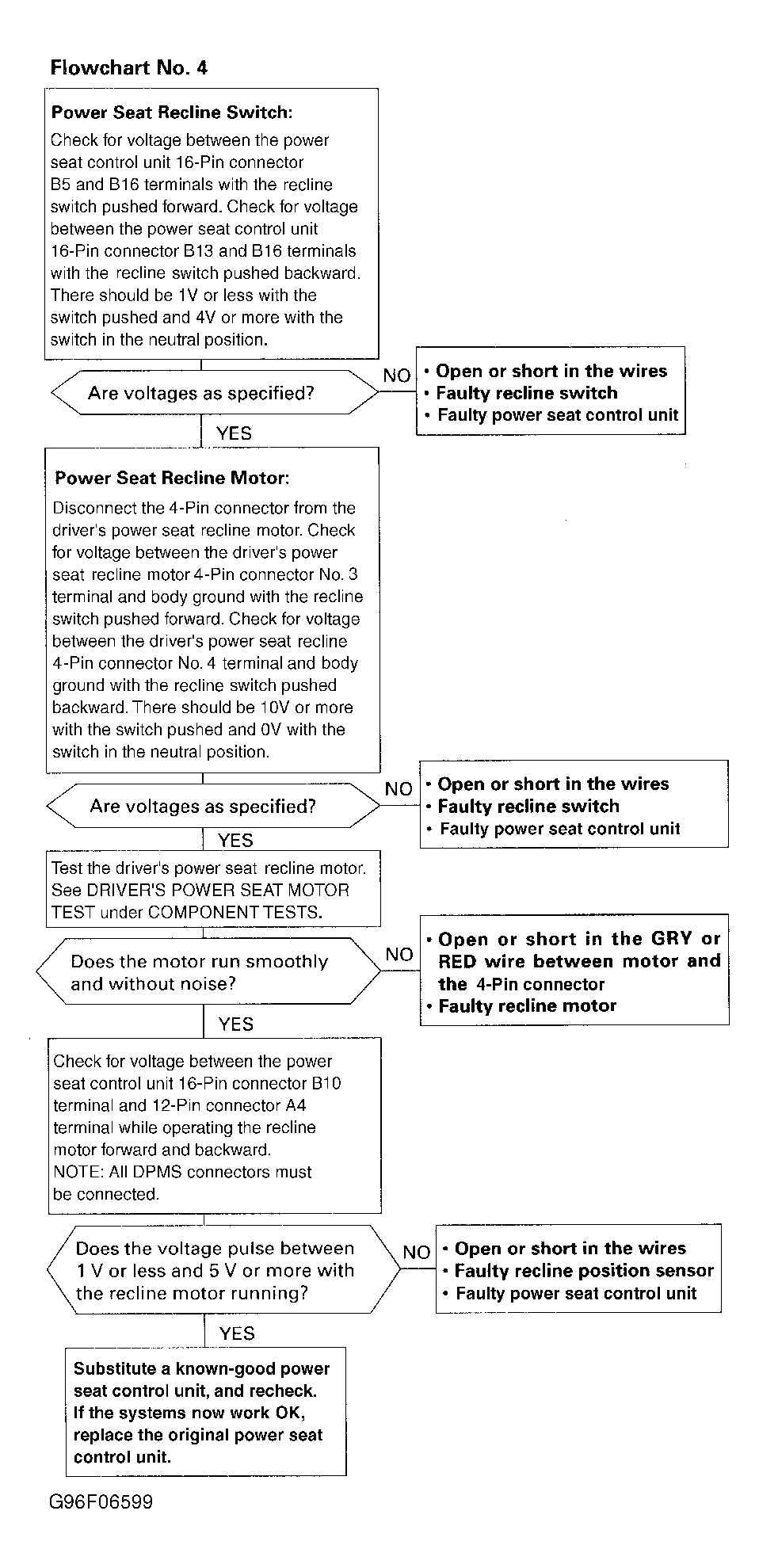

Fig 7: Flow Chart No. 4

G96F06599

Courtesy of AMERICAN HONDA MOTOR CO., INC.

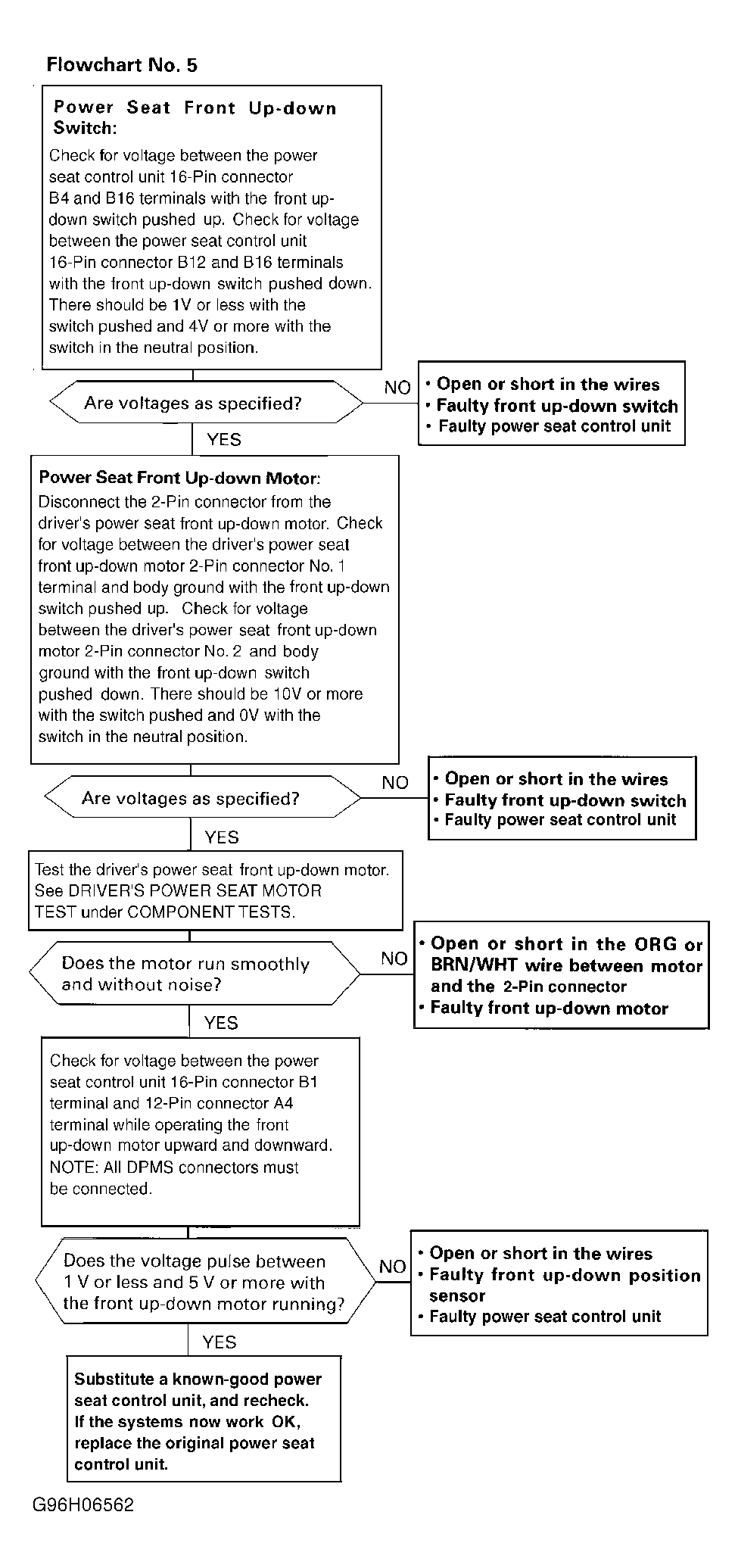

Fig 8: Flow Chart No. 5

G96H06562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

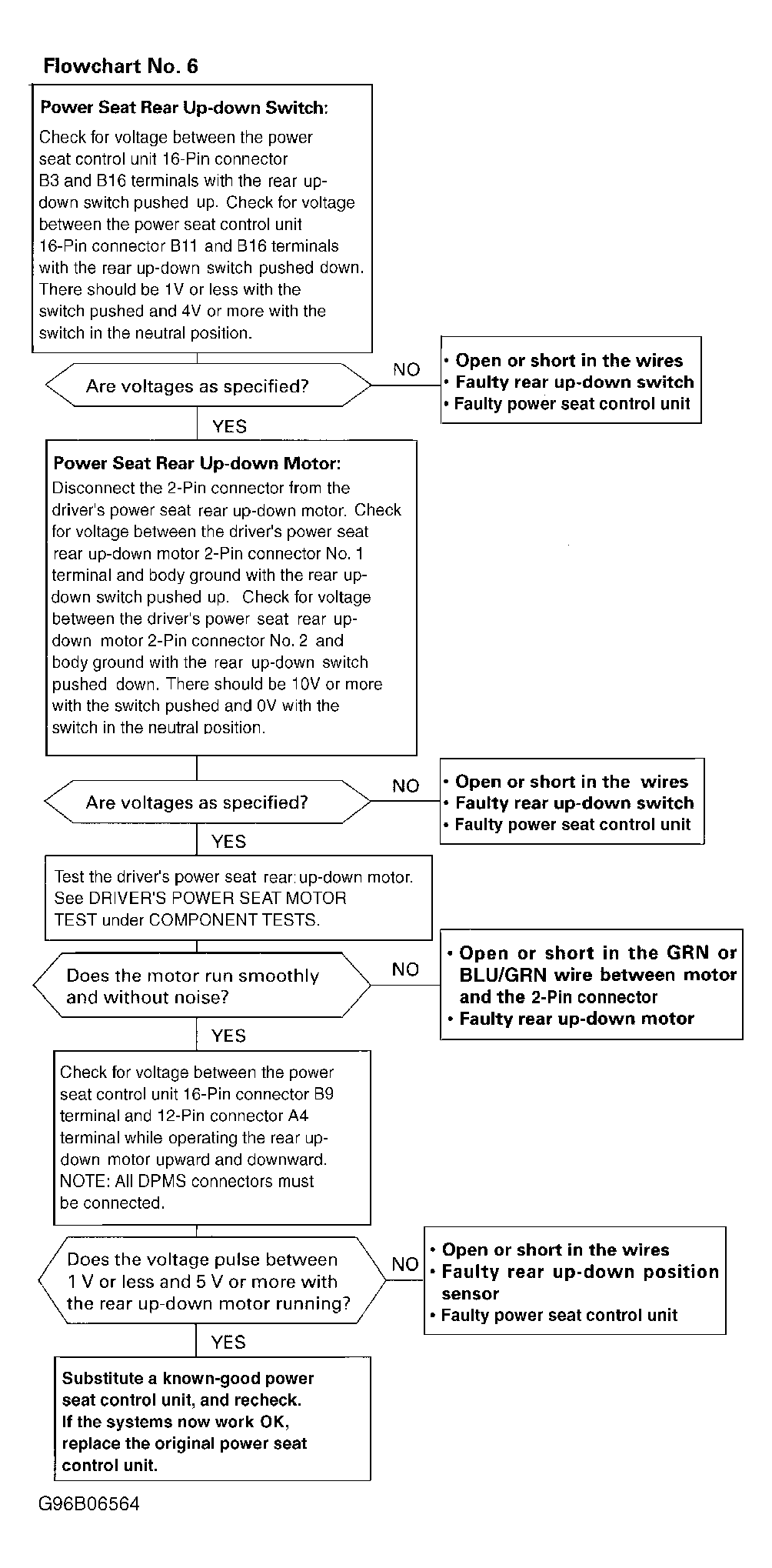

Fig 9: Flow Chart No. 6

G96B06564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

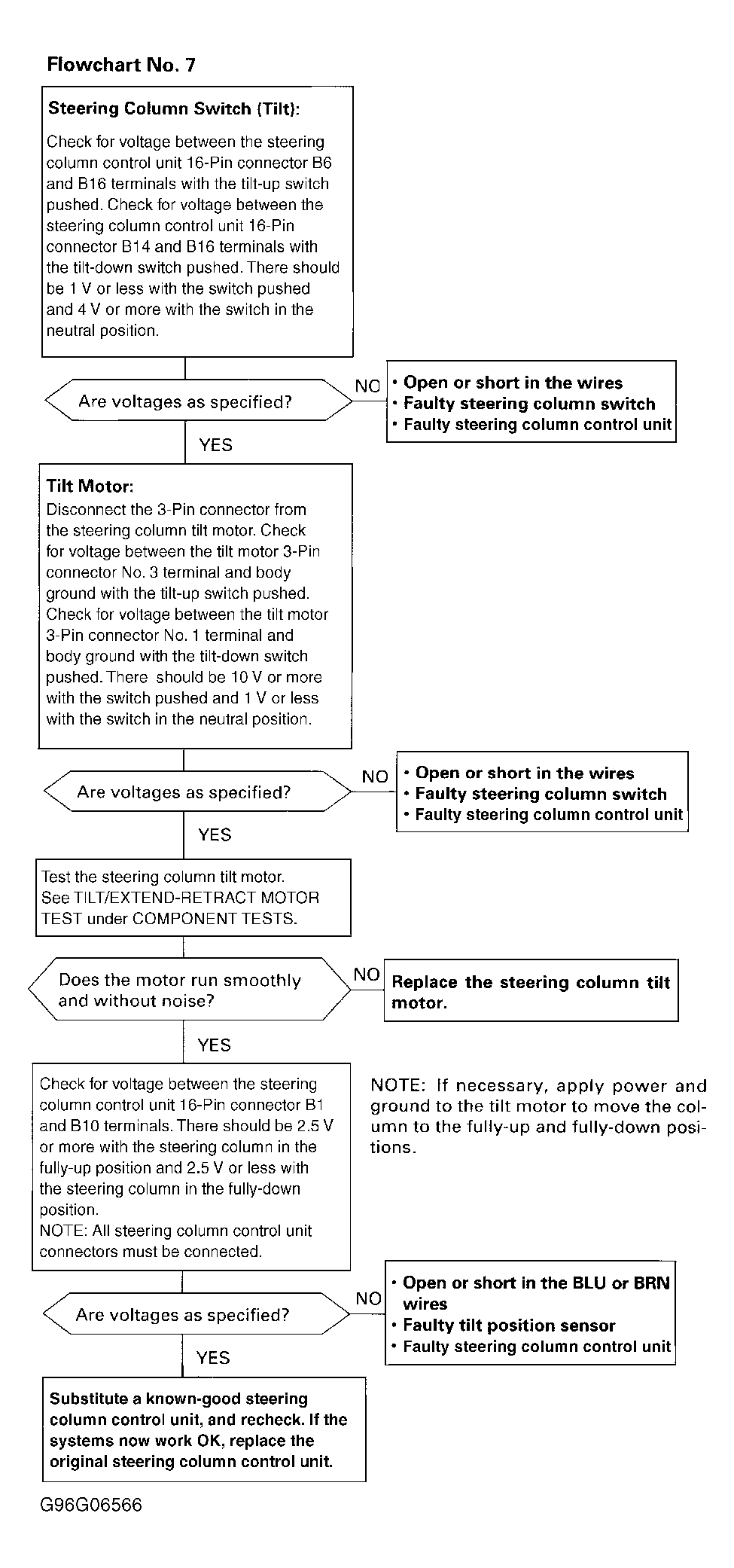

Fig 10: Flow Chart No. 7

G96G06566

Courtesy of AMERICAN HONDA MOTOR CO., INC.

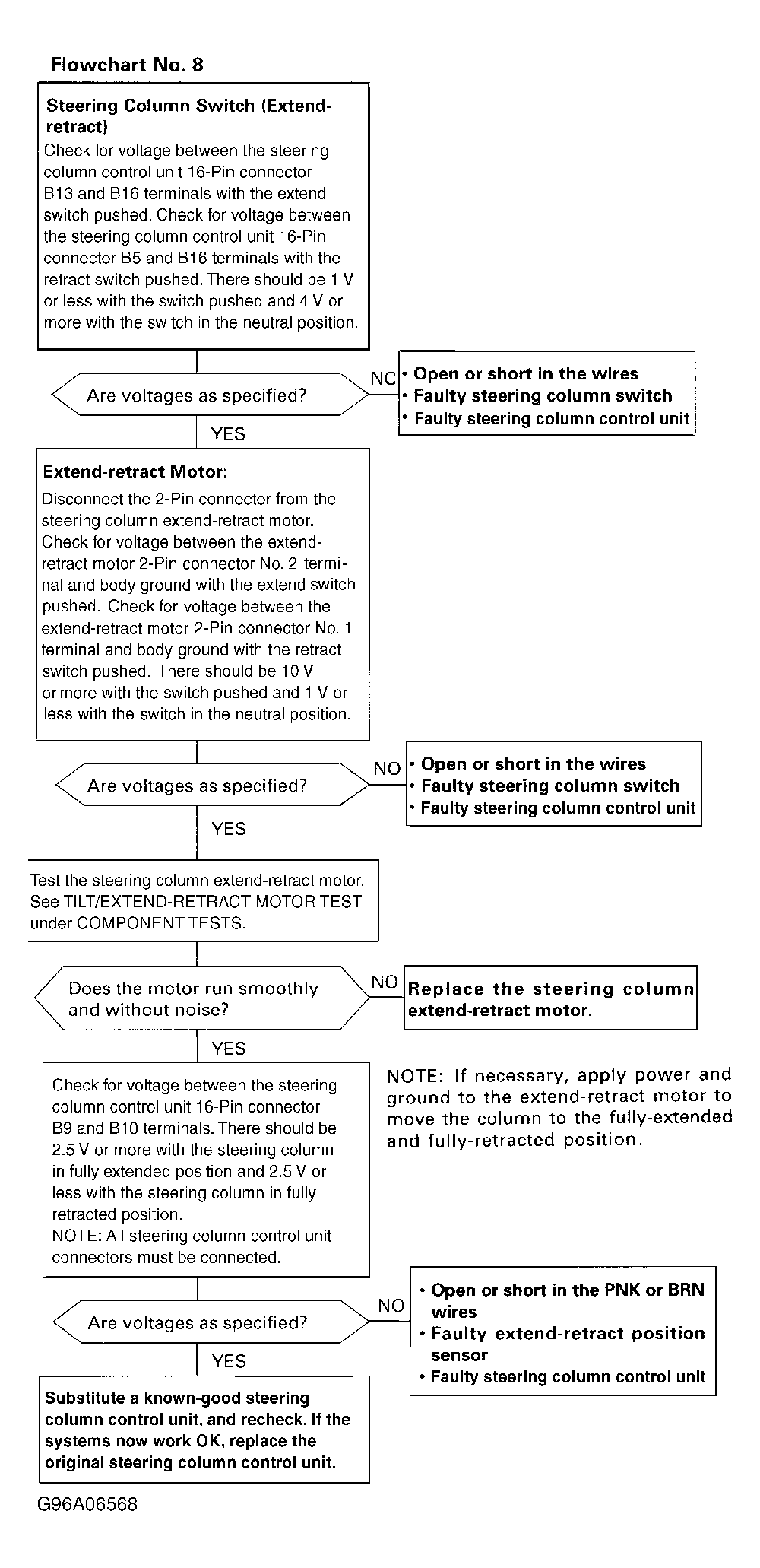

Fig 11: Flow Chart No. 8

G96A06568

Courtesy of AMERICAN HONDA MOTOR CO., INC.

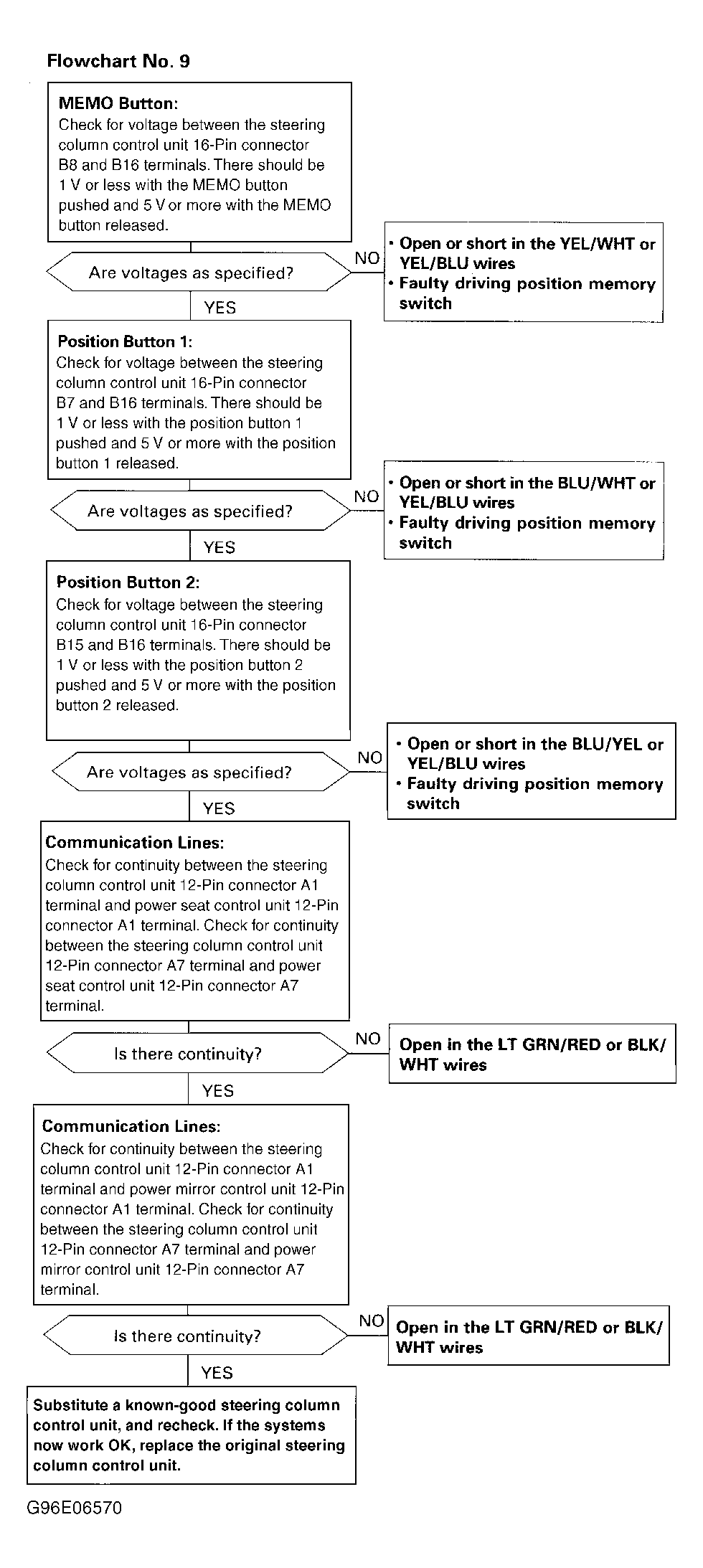

Fig 12: Flow Chart No. 9

G96E06570

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Flow Chart No. 10 (1 Of 3)

G00015455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Flow Chart No 10 (2 Of 3)

G00015456

Courtesy of AMERICAN HONDA MOTOR CO., INC.

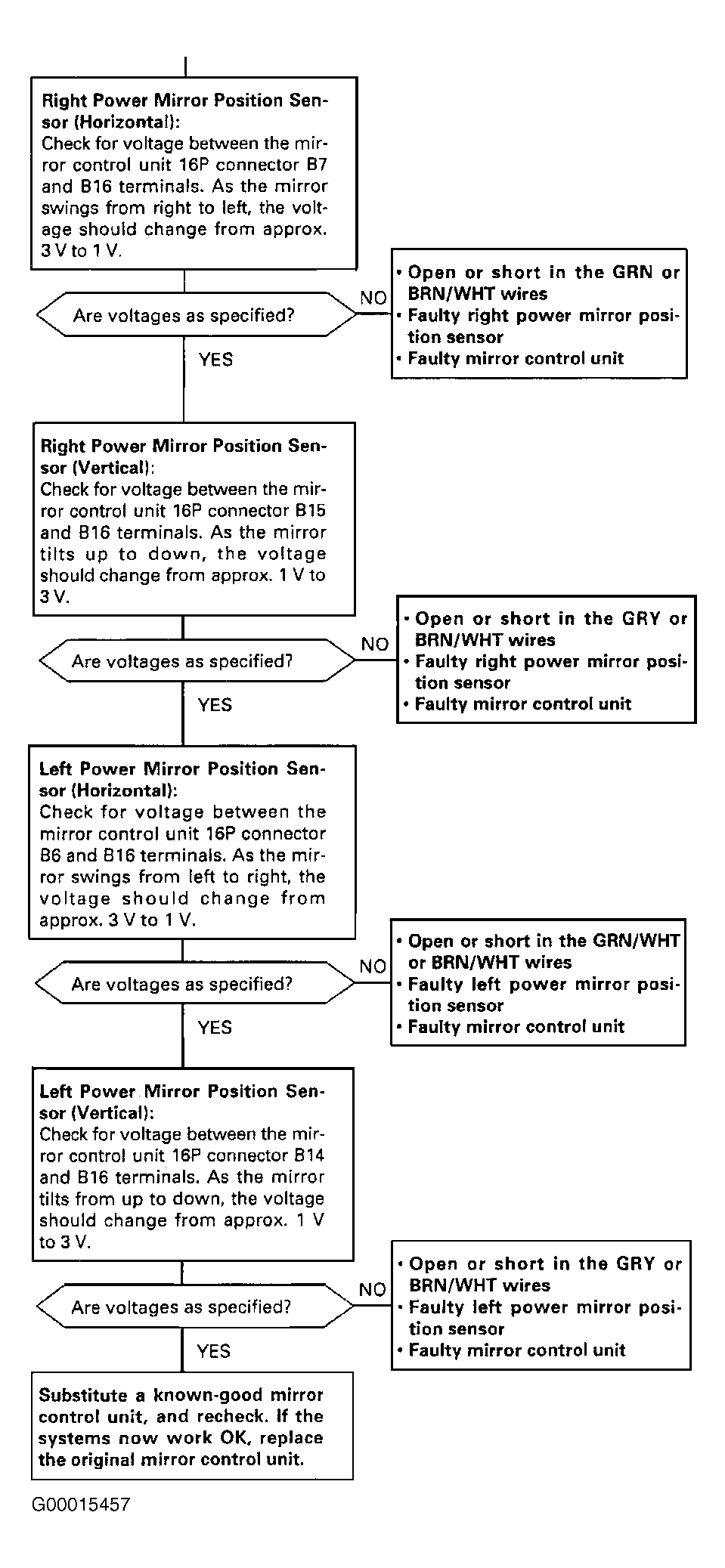

Fig 15: Flow Chart No. 10 (3 Of 3)

G00015457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

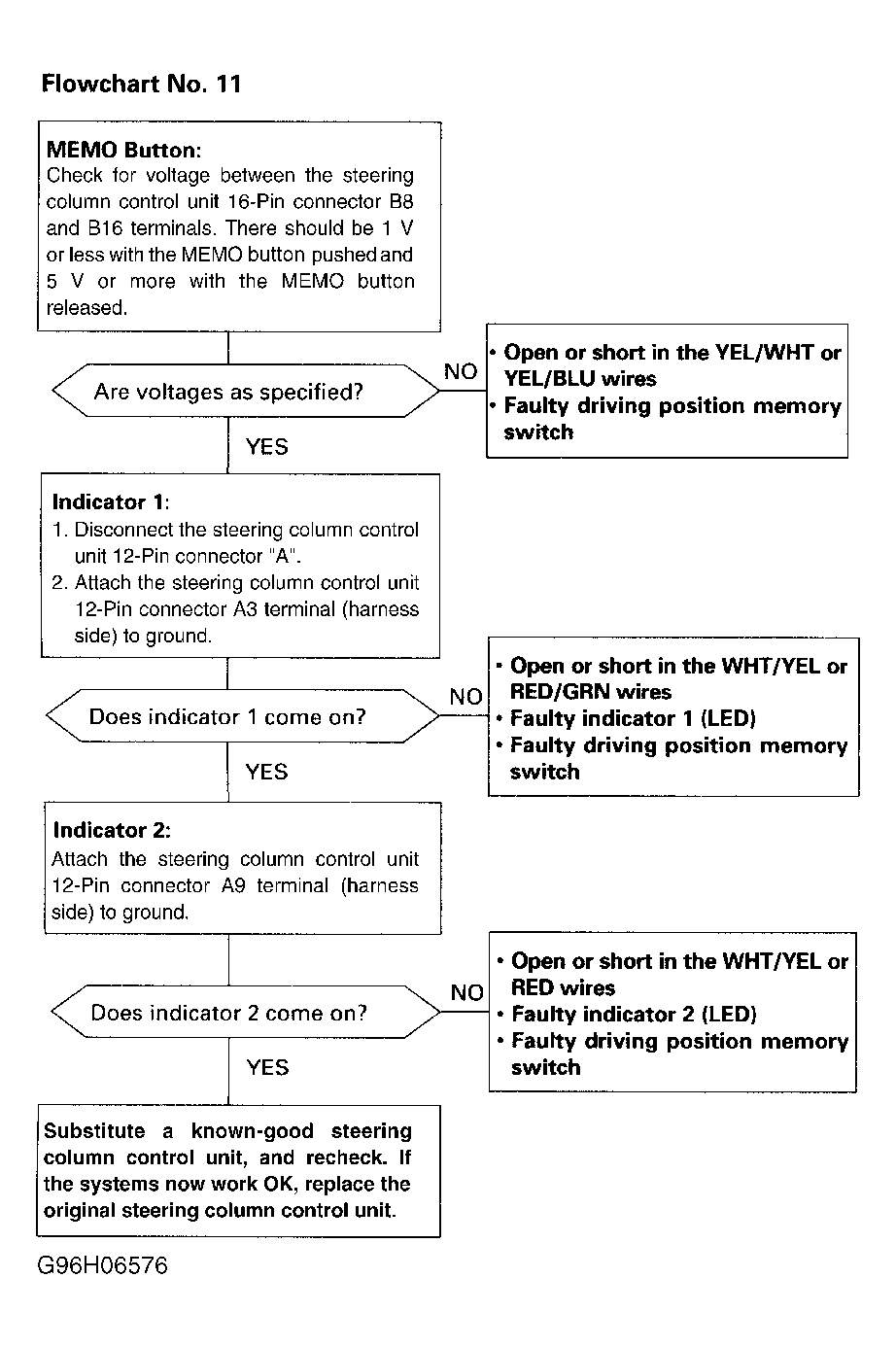

Fig 16: Flow Chart No. 11

G96H06576

Courtesy of AMERICAN HONDA MOTOR CO., INC.
