Recirculation Control Switch

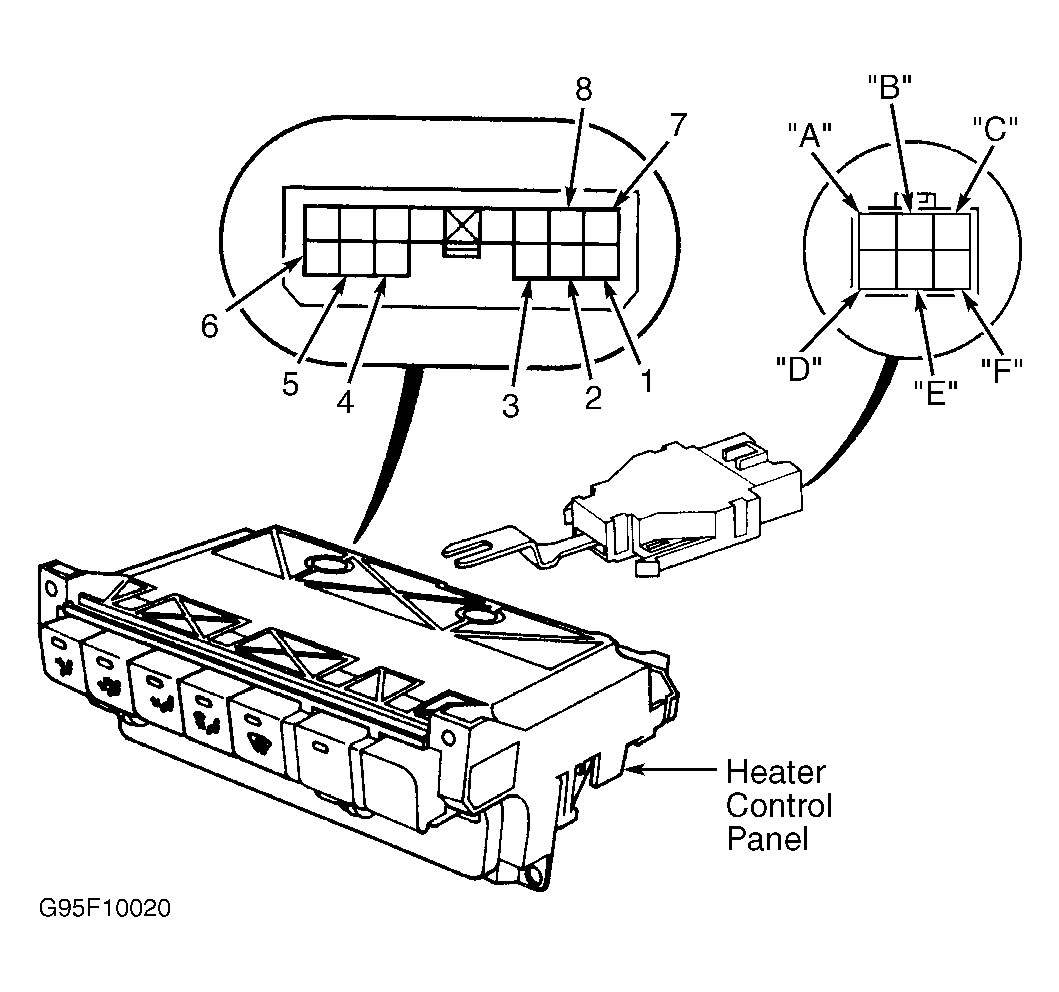

With fresh/recirculated air button in fresh air position, continuity should exist between terminals No. 4 and 6. See Fig 1 . With button in recirculated air position, continuity should exist between terminals No. 4 and 5. If continuity is not as specified, replace heater control panel.
