Description & Operation
WARNING:
Deactivate air bag system before performing any service operation. See appropriate
AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.
CAUTION:
Before disconnecting battery, obtain anti-theft code for radio. After battery is reconnected, the word CODE will appear on radio display. Enter 5-digit anti-theft code using select buttons and radio will begin working. If code is entered wrong 10 times, leave radio on at least one hour and enter code correctly. Any time radio power is lost, pre-selected radio stations will have to be set.

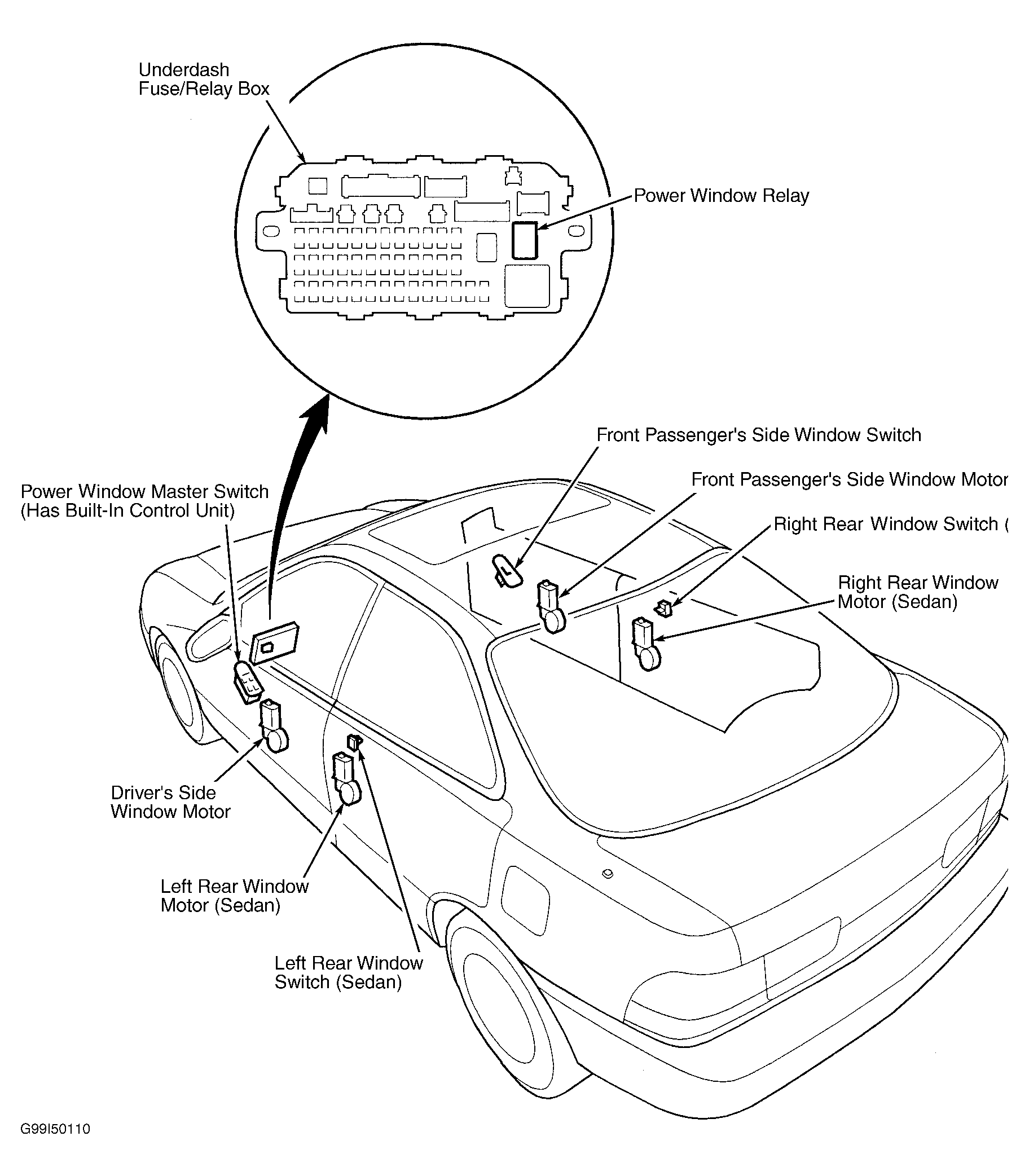

A permanent magnet motor operates each power window. Driver's master switch controls all windows. Passenger switches control only the associated window. If the main switch is in OFF position, only the driver's window operates. See Fig 1 .
AUTO mode permits driver's window to be fully lowered without holding switch. Pressing switch down to its second detent position will engage AUTO mode, fully lowering window. AUTO function is controlled by an integral pulser within the driver's window motor assembly. The pulser cannot be serviced separately.
