Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

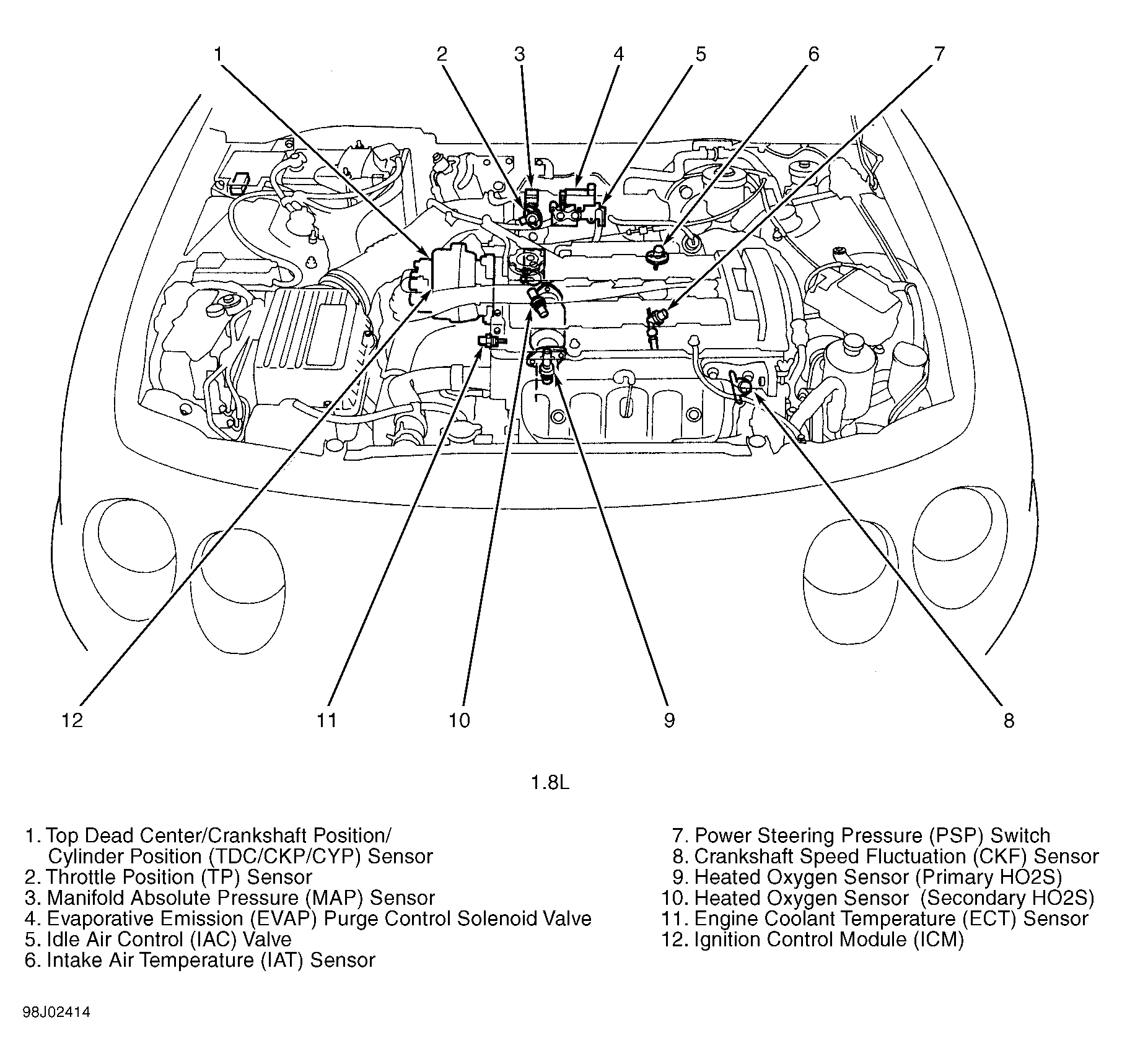

Fig 1: Engine (1.8L)

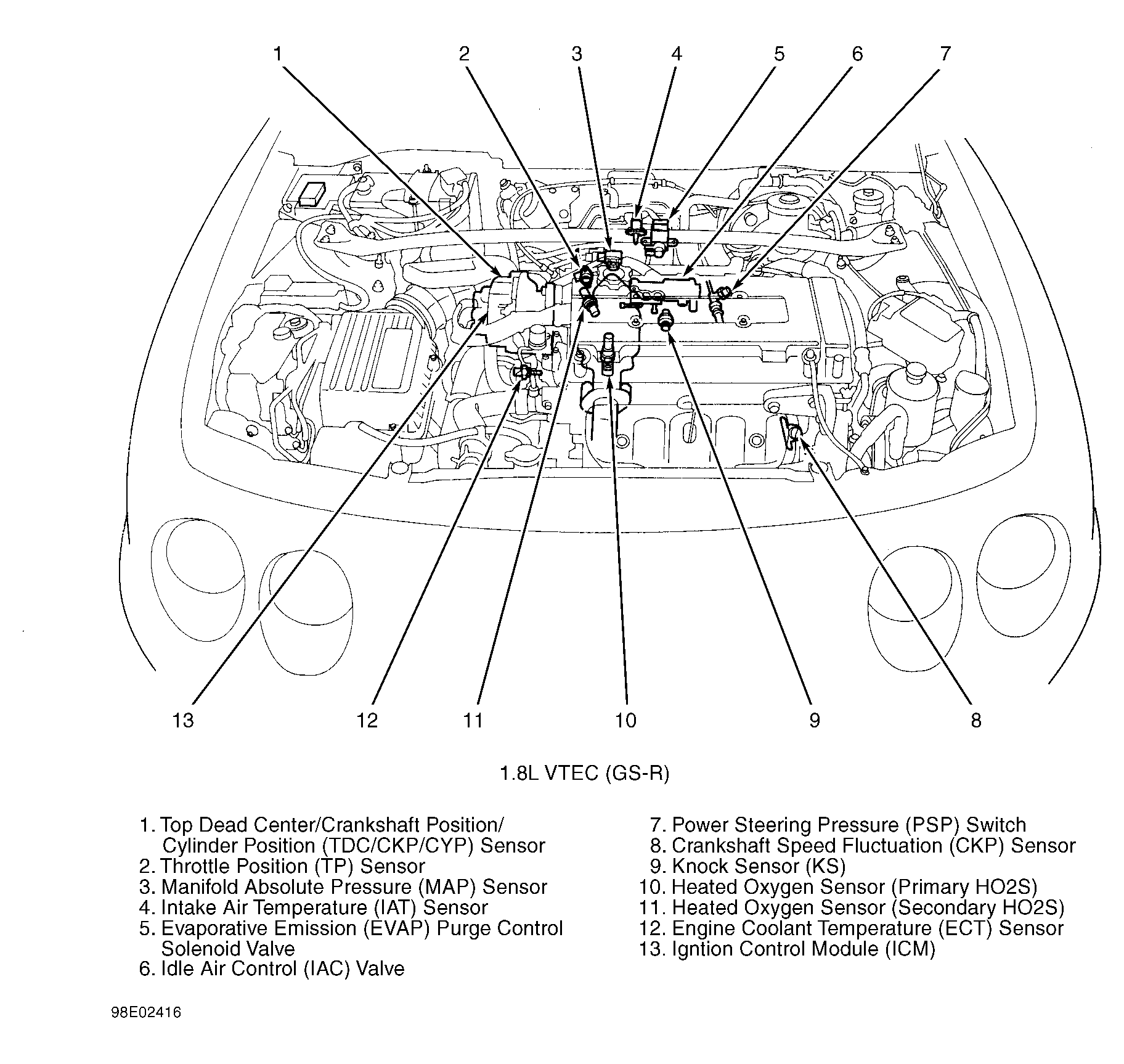

Fig 2: Engine (1.8L VTEC) (GS-R)

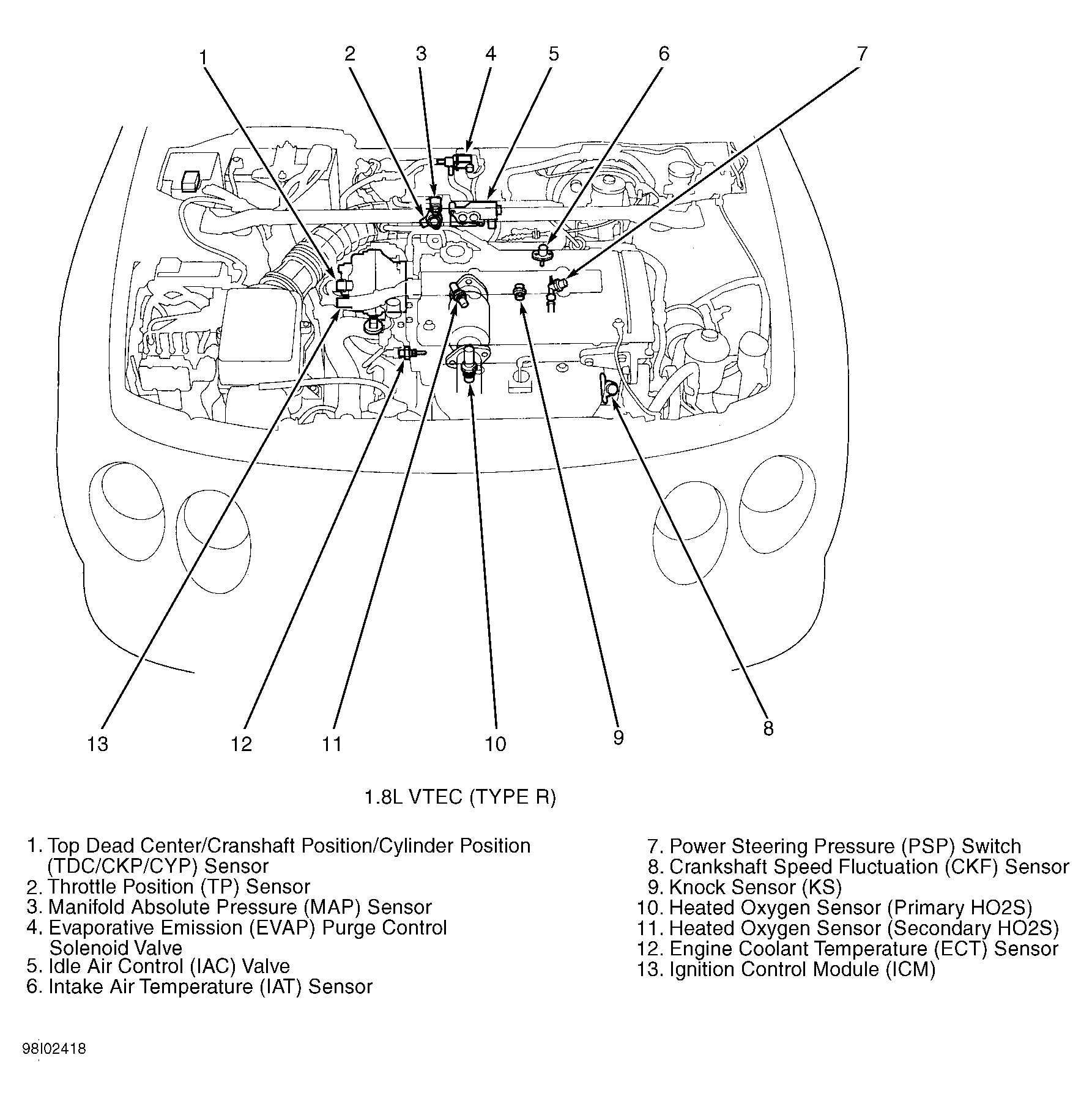

Fig 3: Engine (1.8L VTEC) (TYPE R)

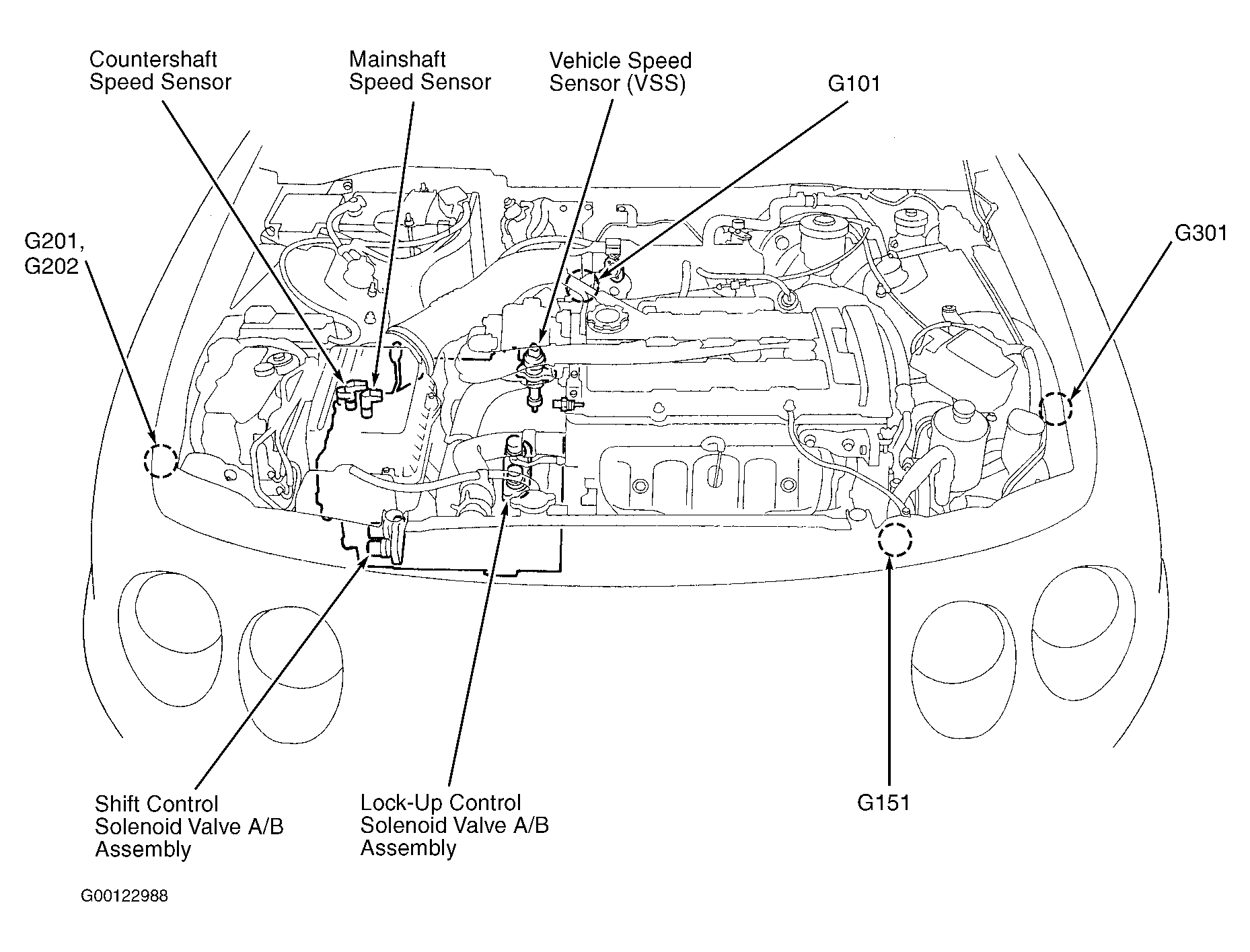

Fig 4: Engine Compartment

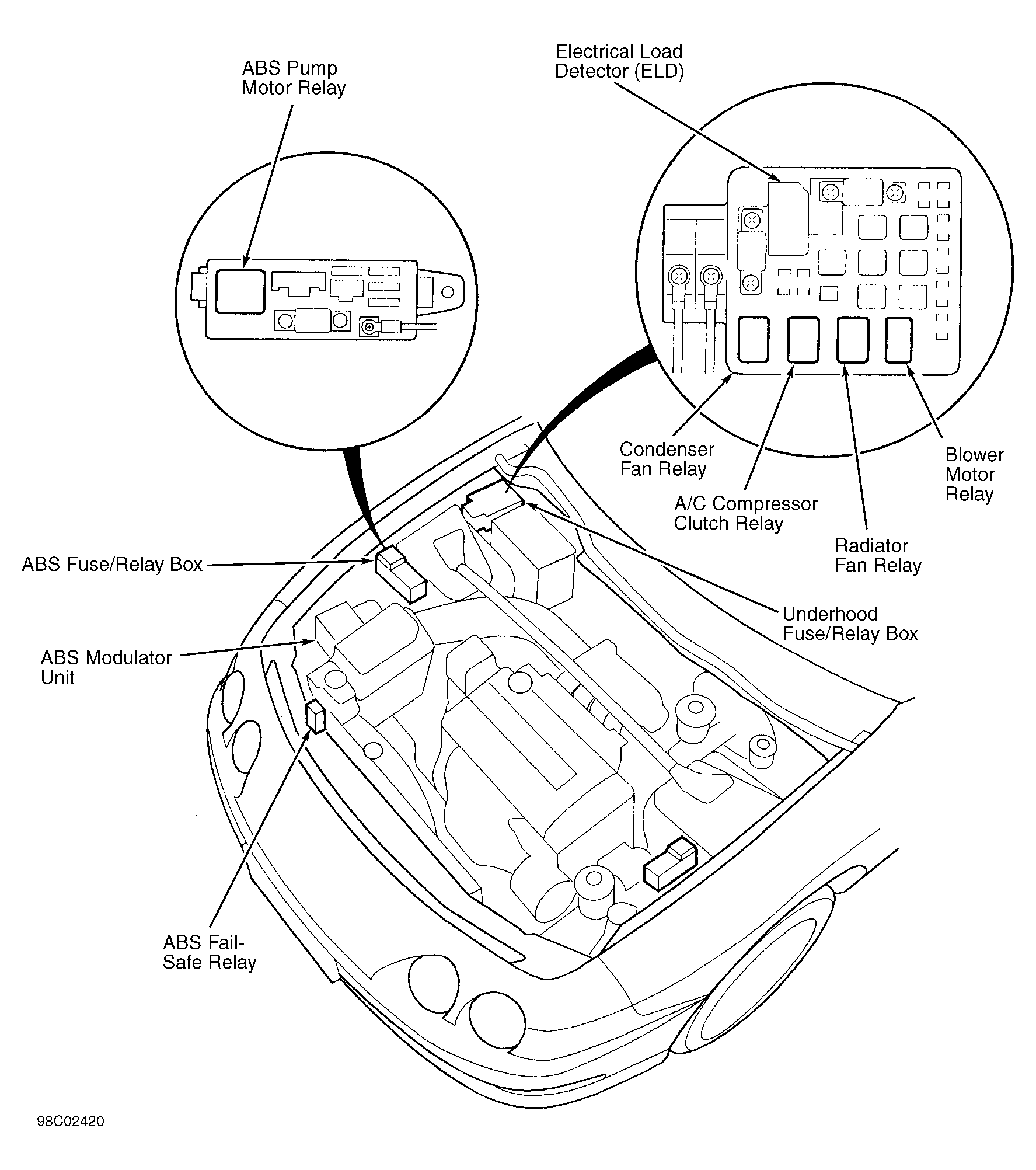

Fig 5: Right Side Of Engine Compartment

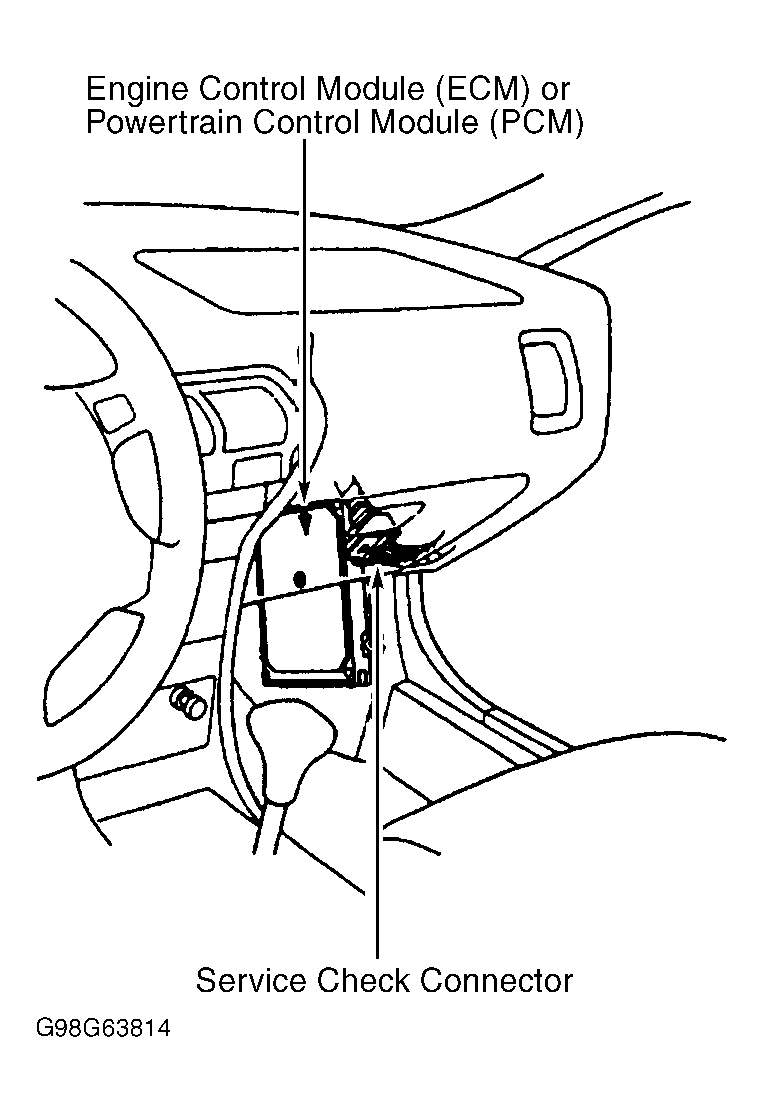

Fig 6: Right Side Of Dash

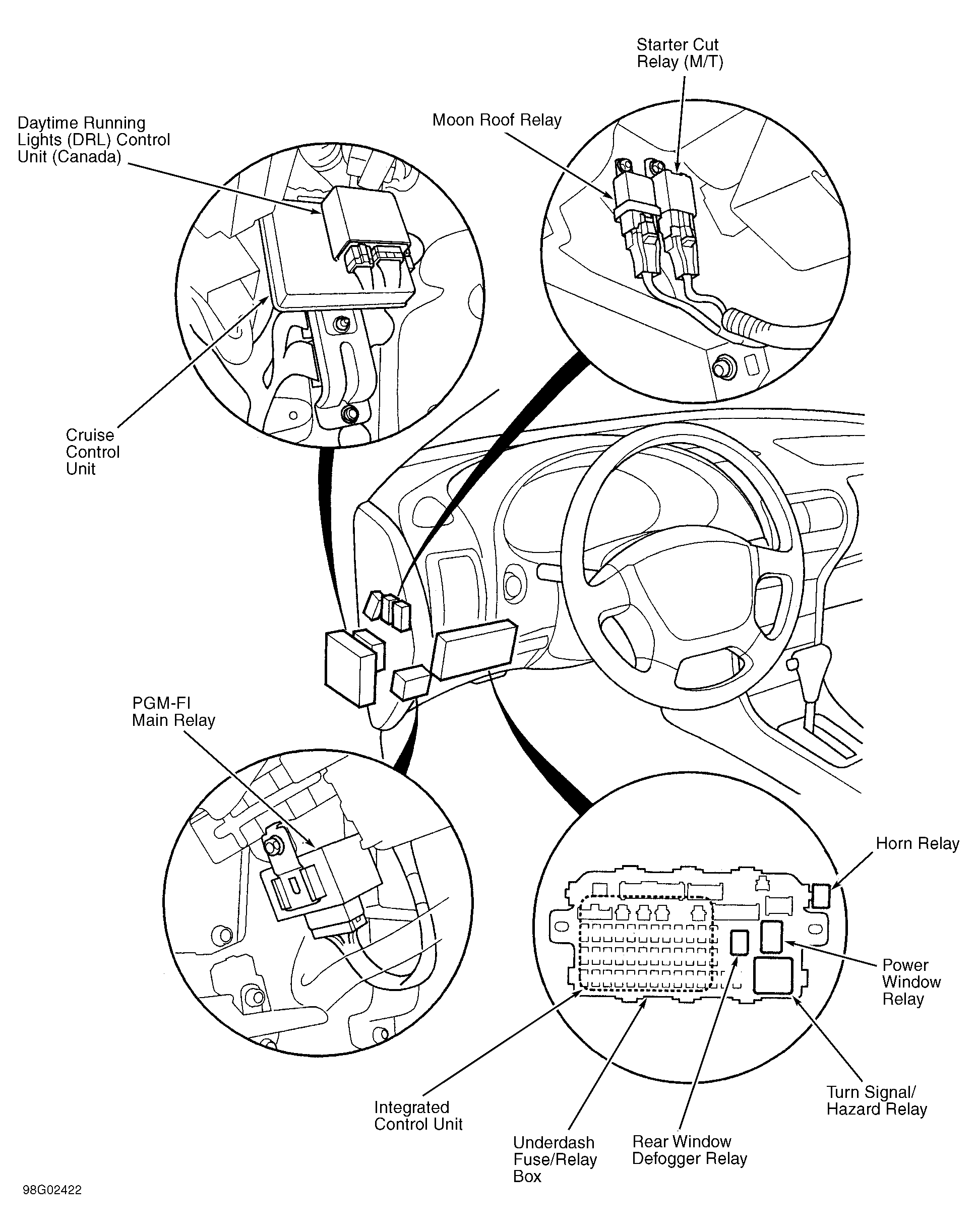

Fig 7: Left Side Of Dash
