Integra (Hatchback)

Remove mirror panel and disconnect power mirror motor 8-pin connector. See Fig 1. Using fused jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST (INTEGRA HATCHBACK) table. If motor does not function as specified, replace faulty motor assembly.

POWER MIRROR MOTOR TEST (INTEGRA HATCHBACK)

Application & Mirror Movement

⁽¹⁾ Battery Connection (+) & (-)

Tilt

H & G

Down

G & H

Swing

Left

G & F

Right

F & G

⁽¹⁾	Connect battery + and - terminals to indicated terminal.

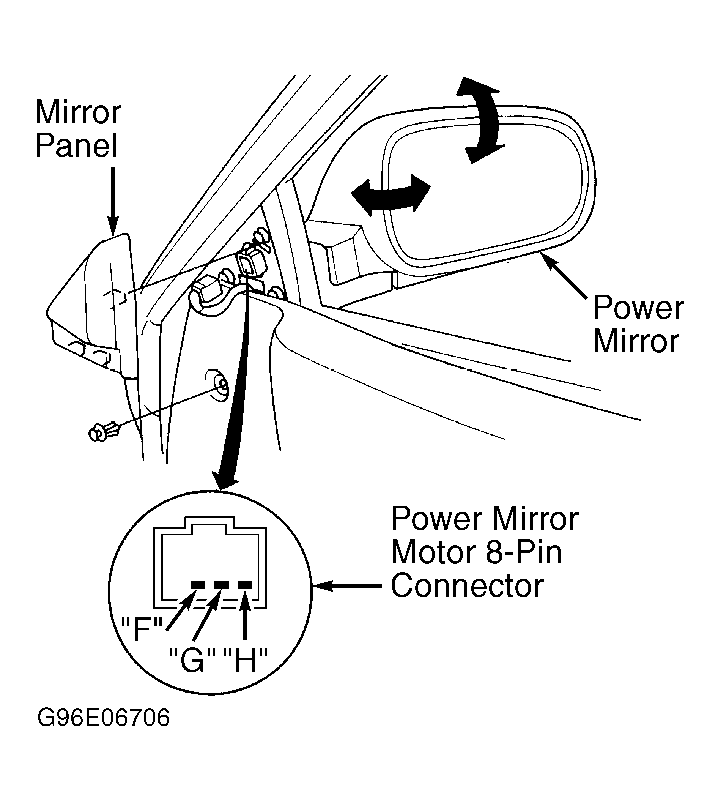

Fig 1: Power Mirror Motor Terminals (Integra Hatchback)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
