Generators & Regulators: Overhaul

NOTE: Use exploded view of generator for overhaul reference. See Fig 1 .

NOTE: Do not remove generator pulley unless front bearing needs to be replaced.

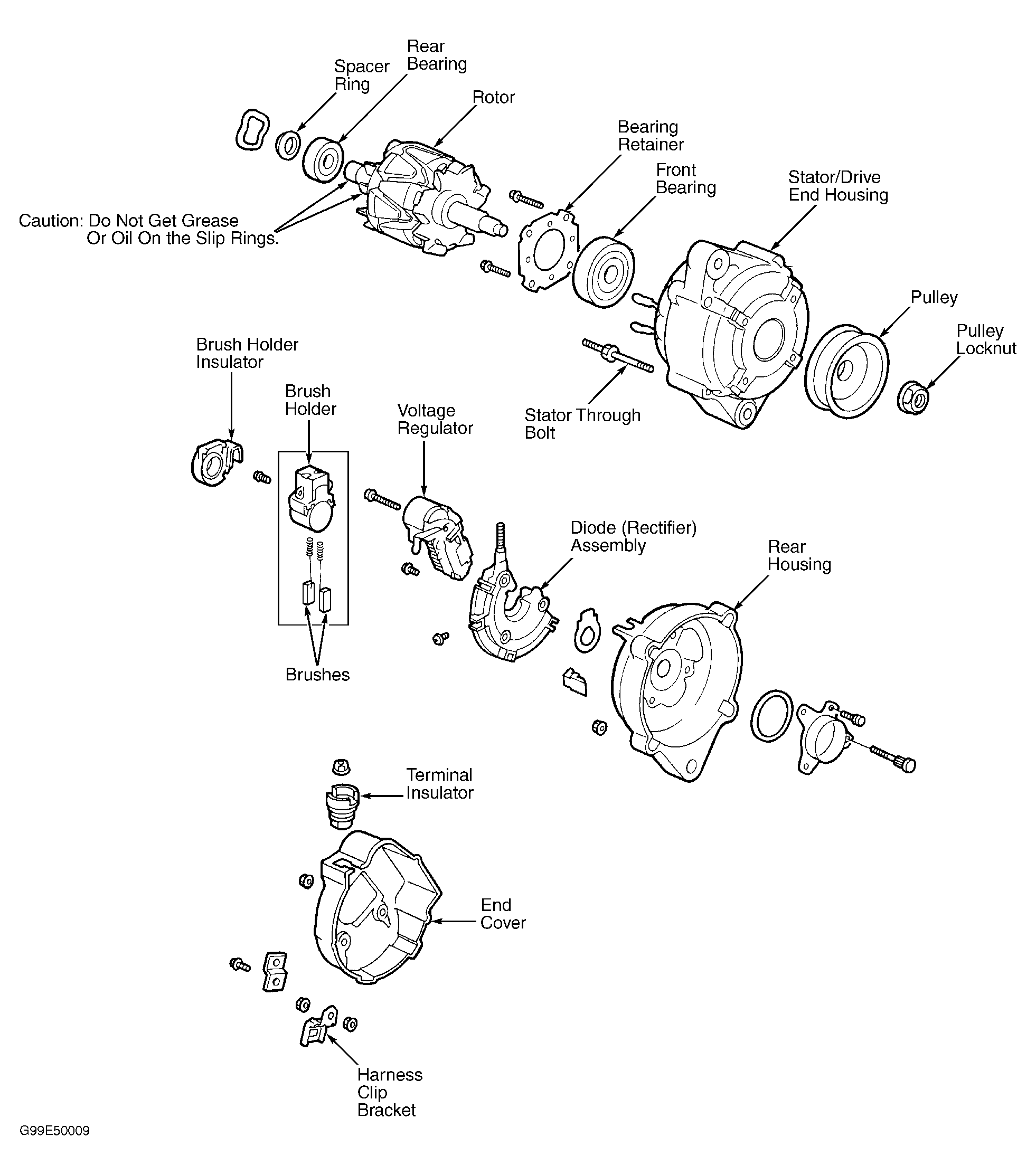

Fig 1: Exploded View Of Typical Nippondenso Generator

Courtesy of AMERICAN HONDA MOTOR CO., INC.
