Power Mirror

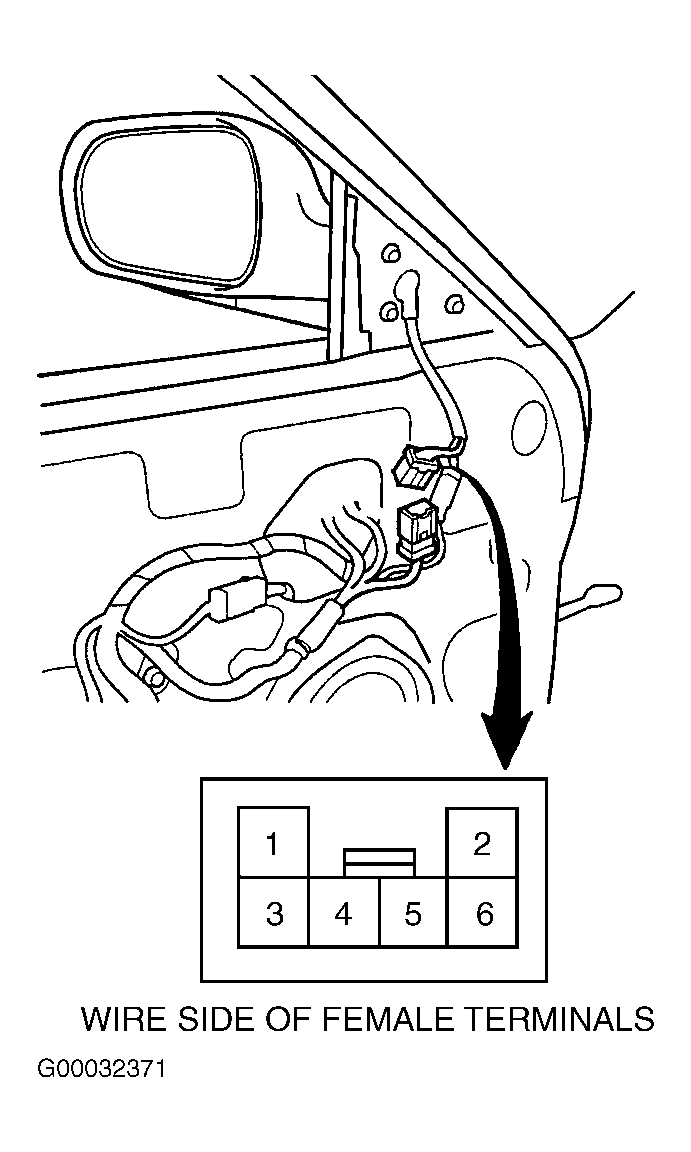

Remove appropriate door panel and disconnect power mirror motor connector. See Fig 1 . Using fused jumper wires, check motor operation by applying power and ground as specified. See POWER MIRROR MOTOR TEST table. If motor does not function as specified, replace appropriate motor assembly.
POWER MIRROR MOTOR TEST
| Application & Mirror Movement | (1) Battery Connection (+) & (-) | |||
|---|---|---|---|---|
| Tilt | ||||
| Up | 4 & 5 | |||
| Down | 5 & 4 | |||
| Swing | ||||
| Left | 5 & 6 | |||
| Right | 6 & 5 | |||
|
||||
