Component Locations

See Fig 1.

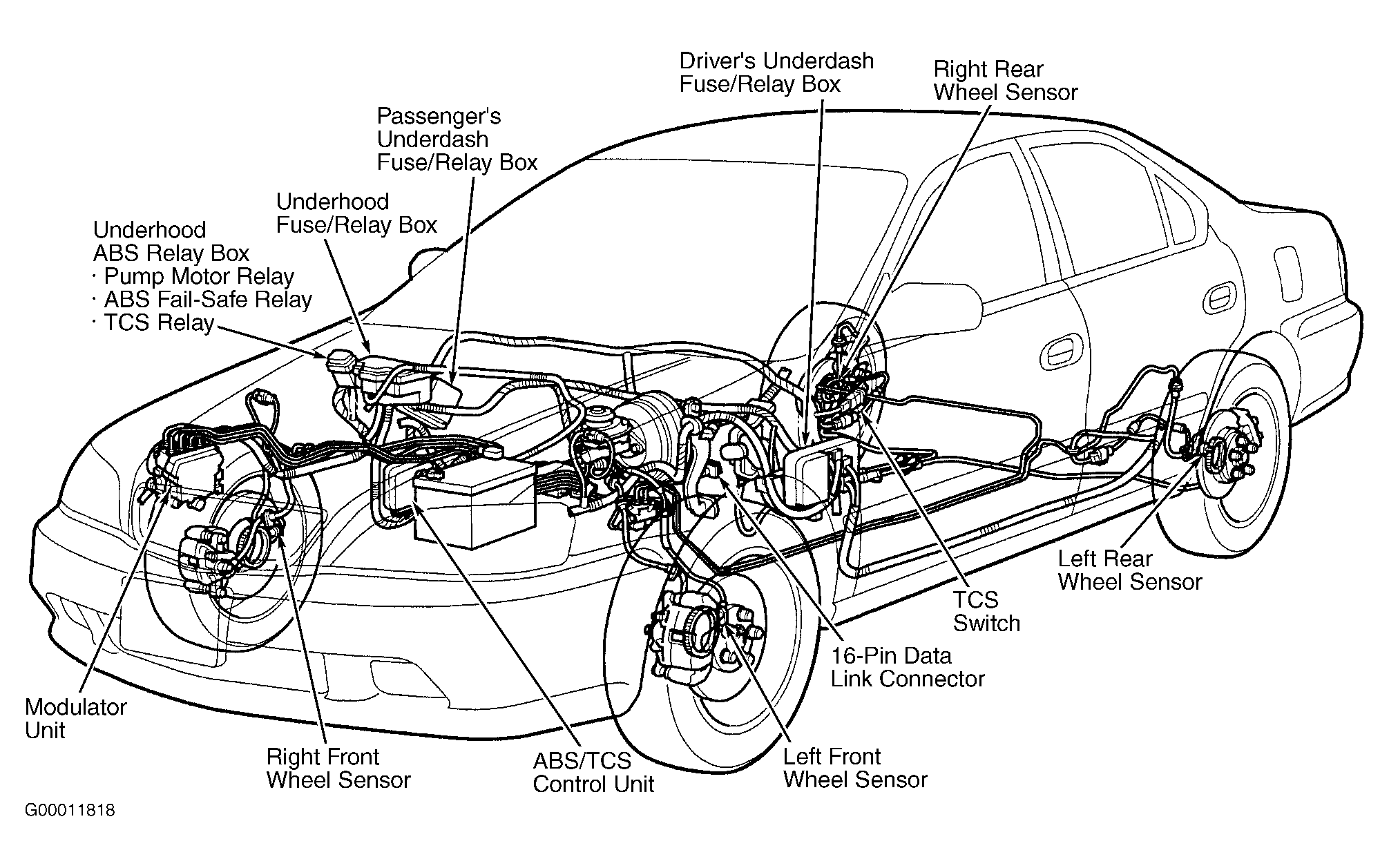

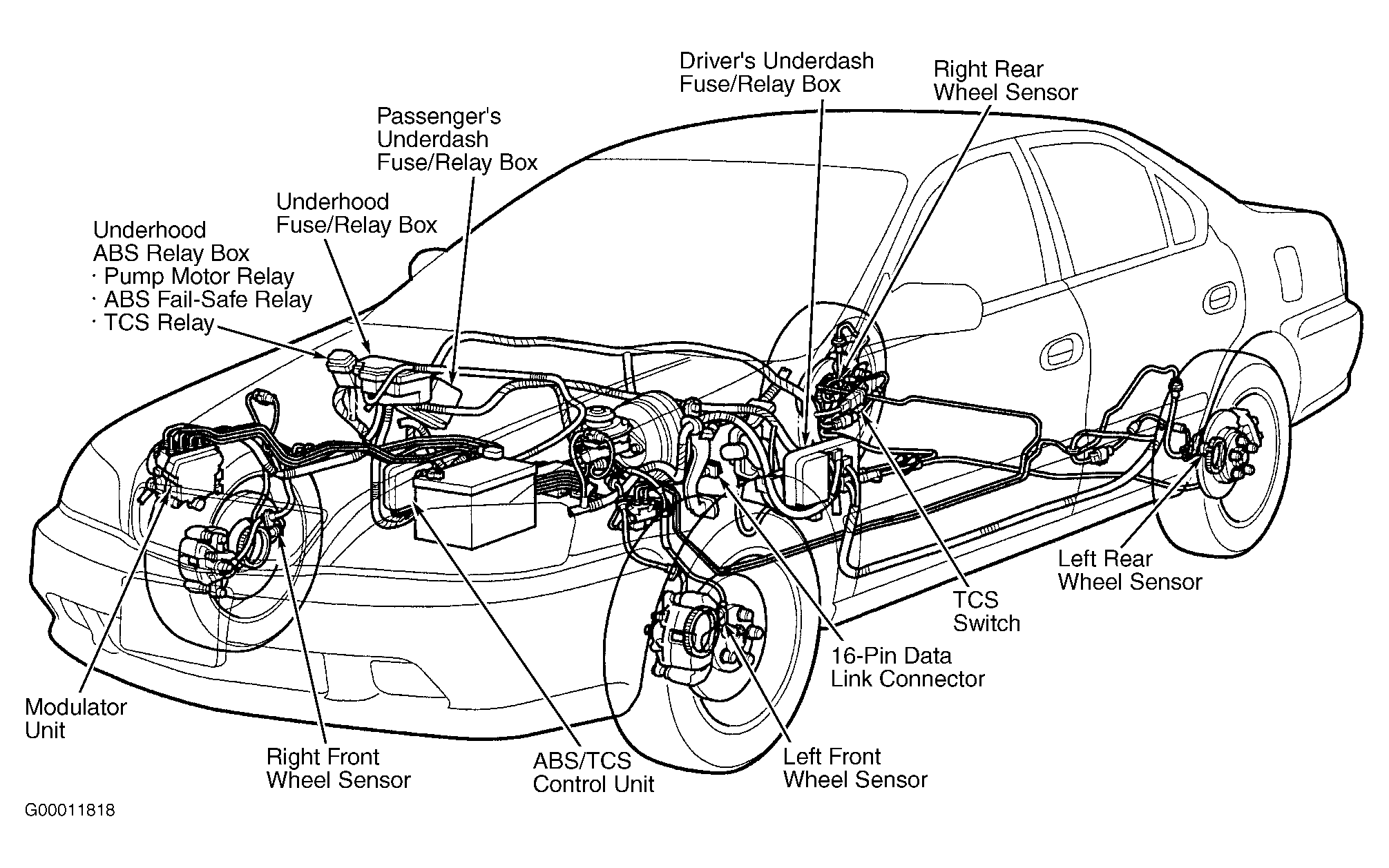

Fig 1: Identifying ABS/TCS Components

G00011818

Courtesy of AMERICAN HONDA MOTOR CO., INC.
