Abs/TCS Control Unit Connector Identification

NOTE: For ABS/TCS control unit connector and terminal identification, see Fig 1-Fig 3 .

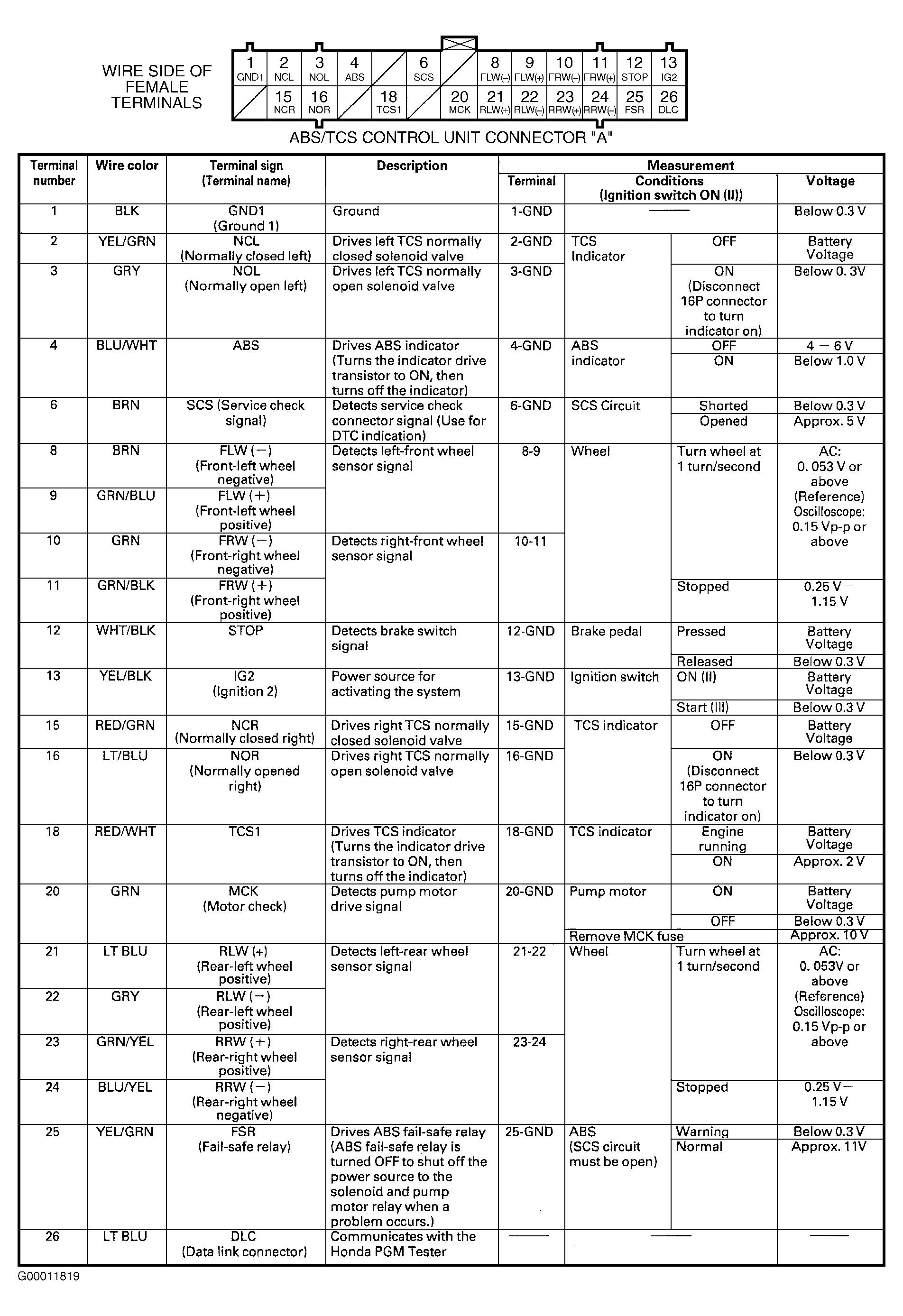

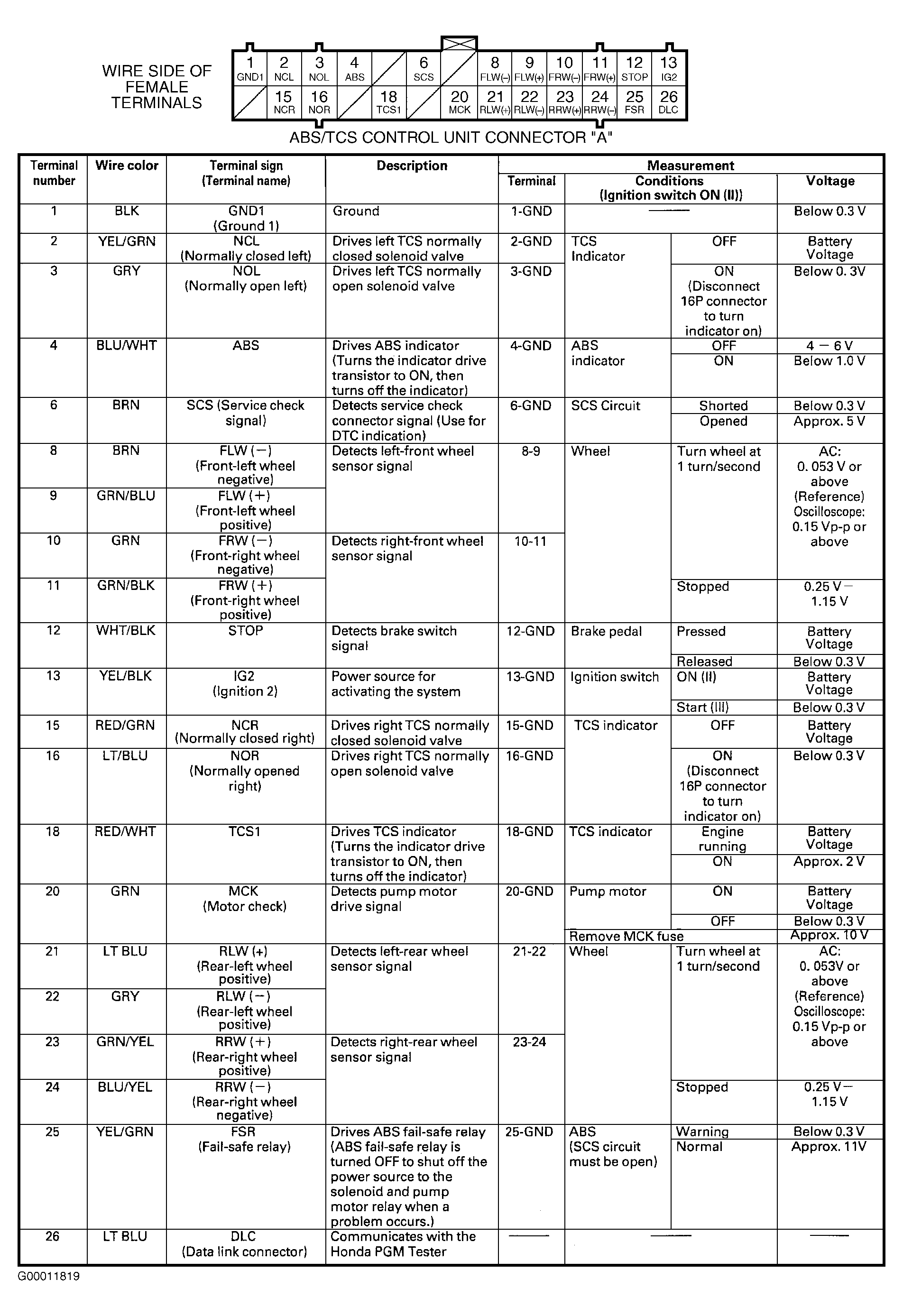

Fig 1: Identifying ABS/TCS Control Unit 26-Pin Connector "A" Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

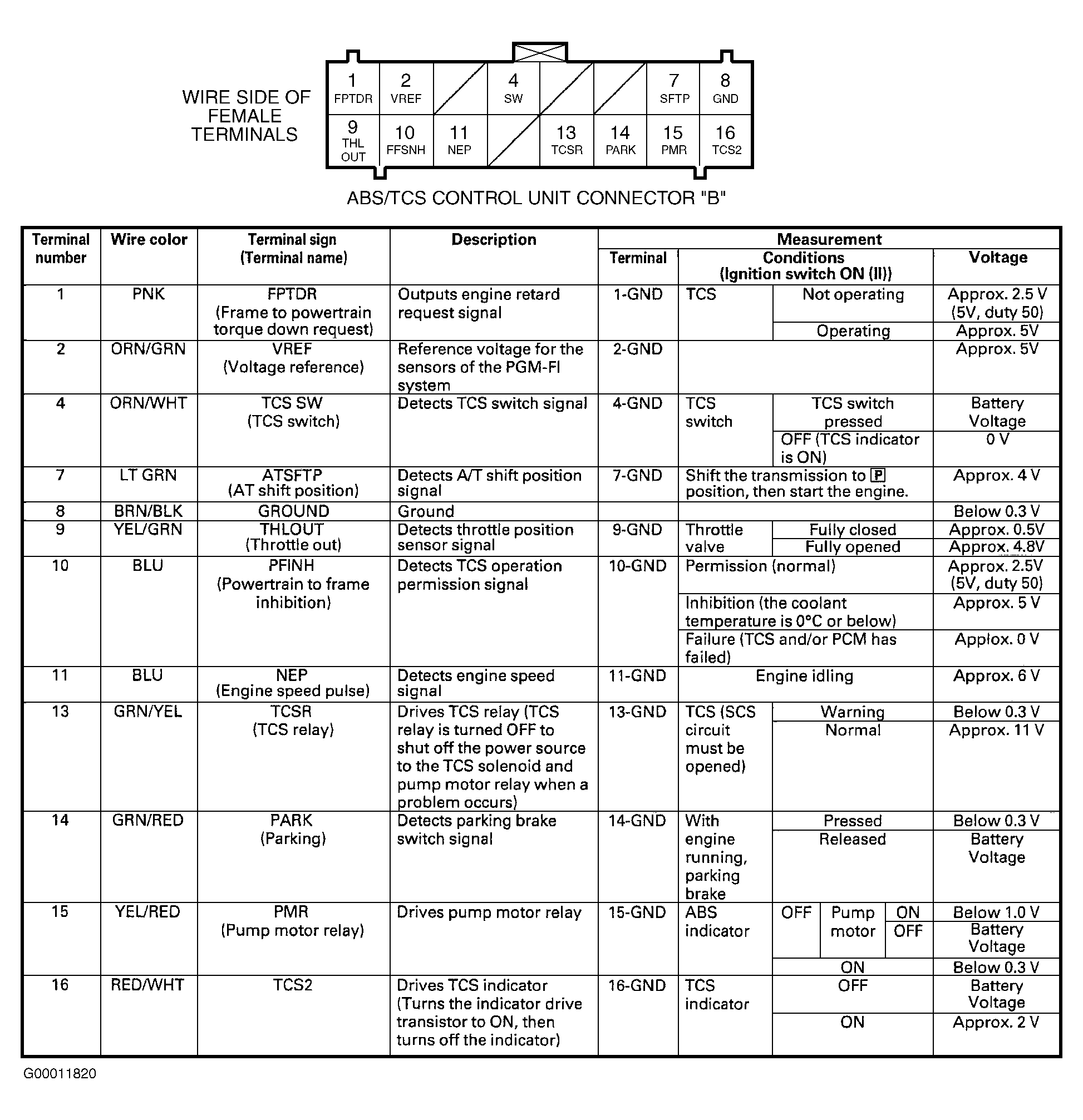

Fig 2: Identifying ABS/TCS Control Unit 16-Pin Connector "B" Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

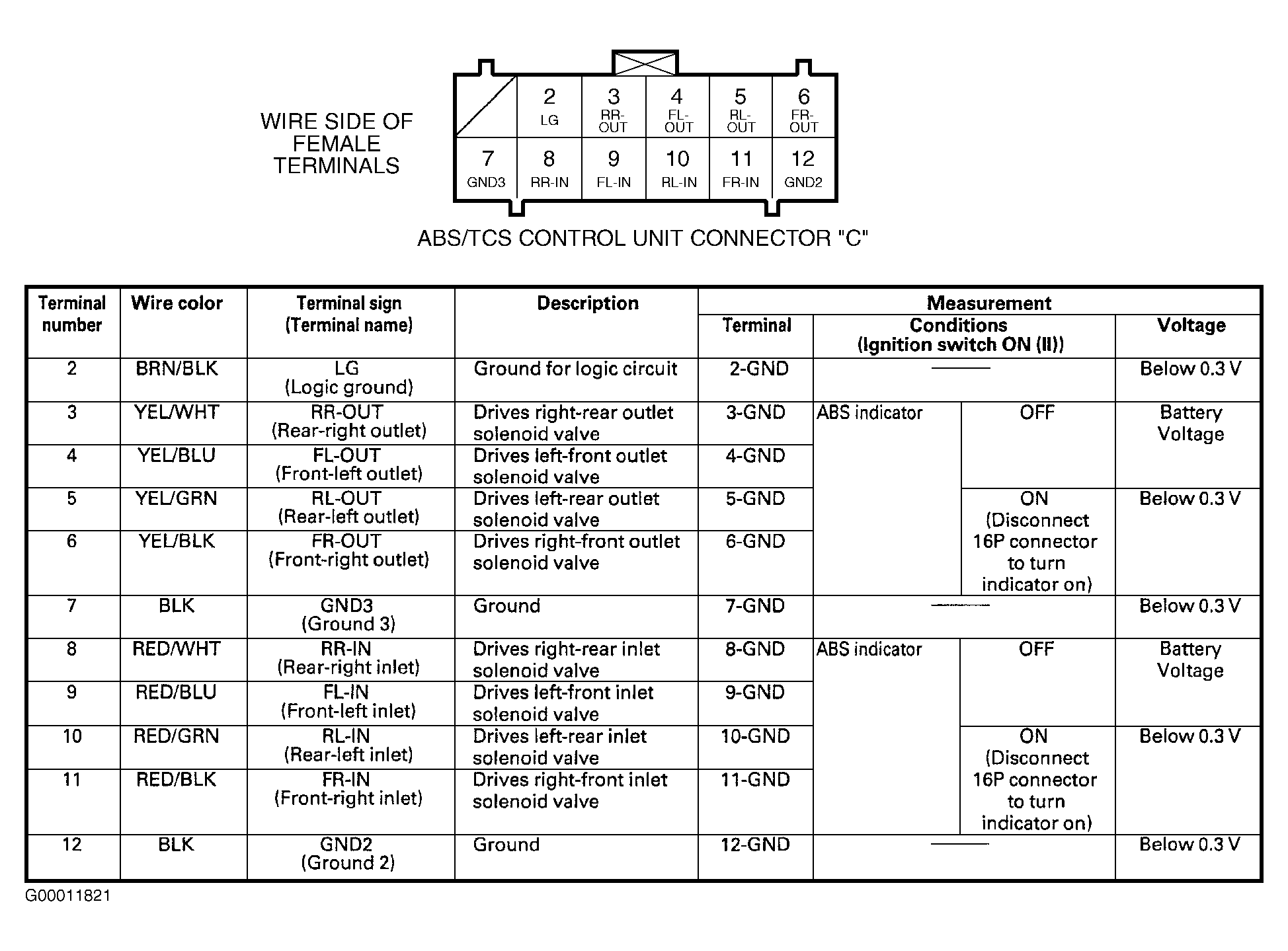

Fig 3: Identifying ABS/TCS Control Unit 12-Pin Connector "C" Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
