Modulator Unit: Installation

To install, reverse removal procedure. See TORQUE SPECIFICATIONS . Bleed brake system. See BLEEDING BRAKE SYSTEM . Start engine and allow to idle a few minutes. Ensure ABS and TCS indicator lights go out and there are no brake fluid leaks. Stop engine and ensure brake fluid level in reservoir is filled to MAX level.

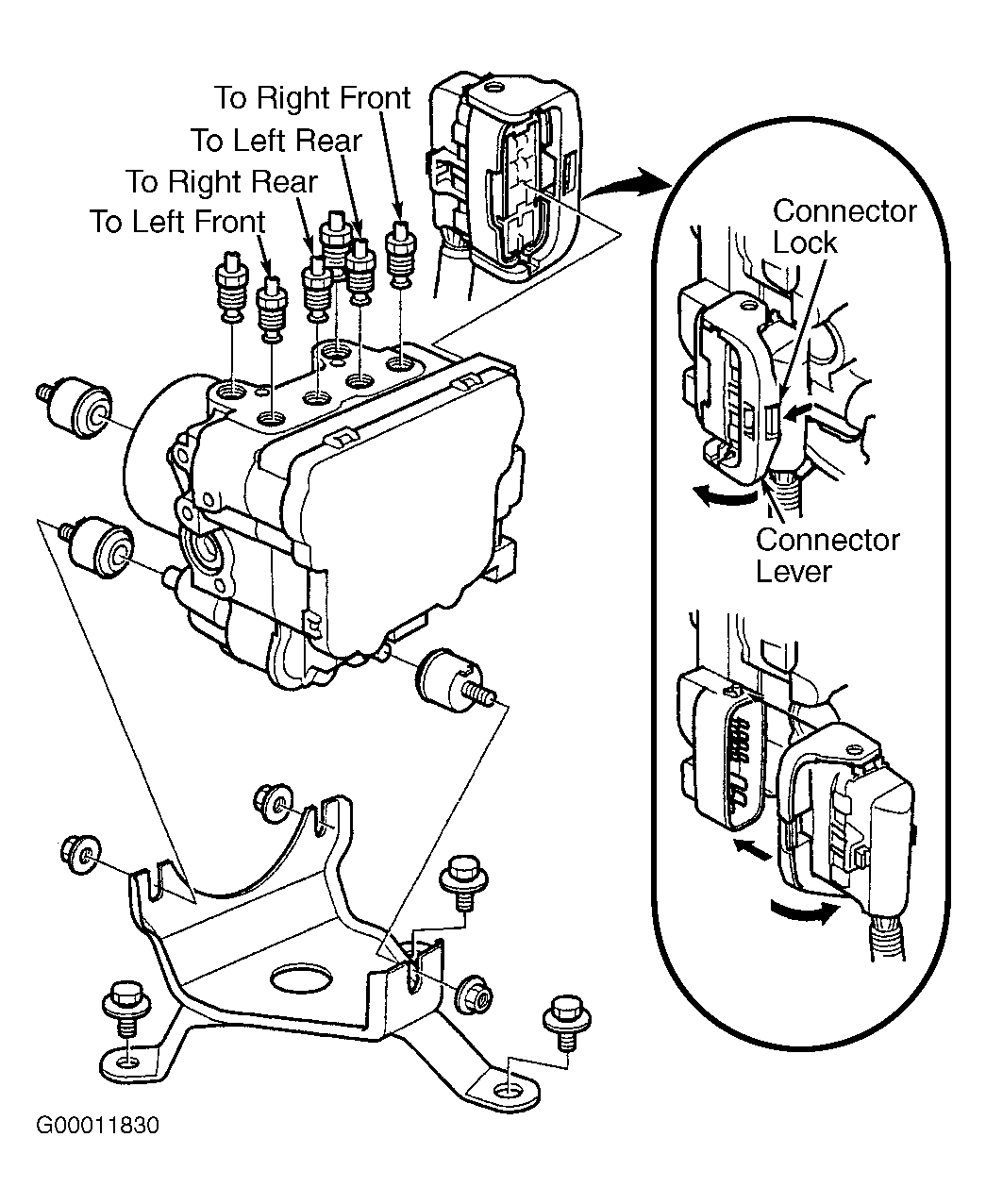

Fig 1: Identifying Modulator Unit Connections & Mounting Points
G00011830Courtesy of AMERICAN HONDA MOTOR CO., INC.
