Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

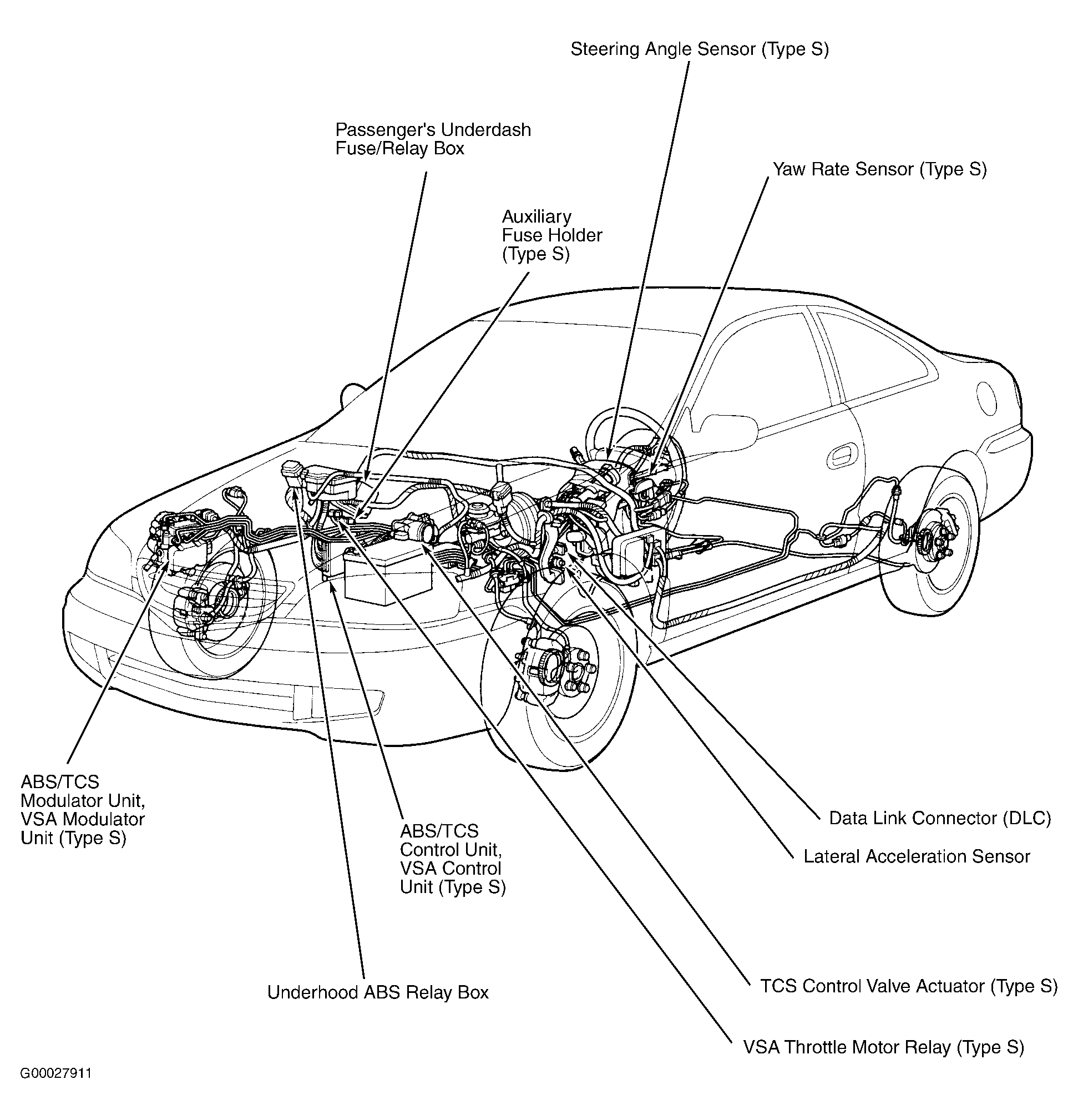

| ABS/TCS Control Unit | Behind right kick panel. See Figure . |

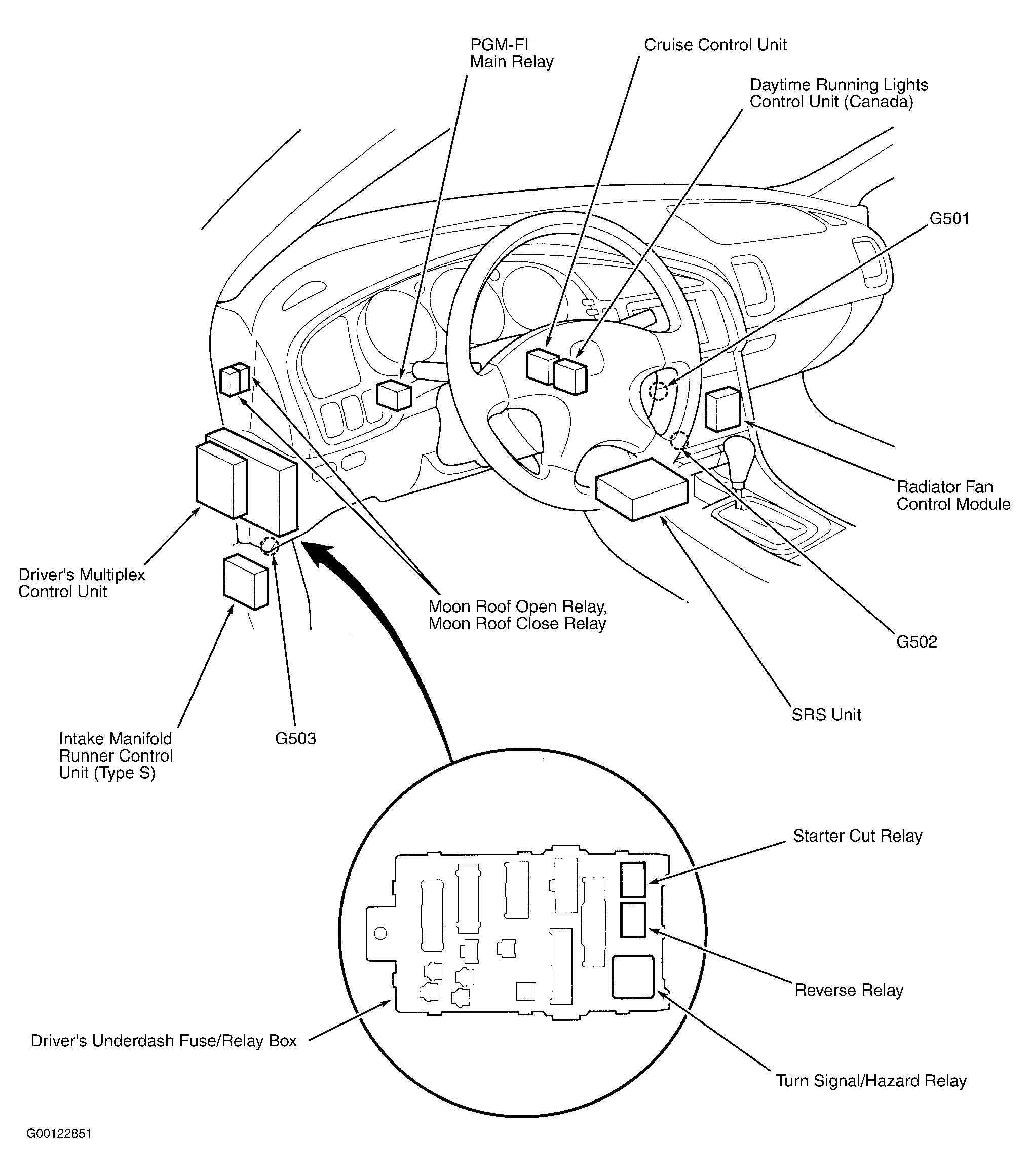

| Cruise Control Unit | Behind left side of dash, right of steering column. See Figure . |
| Daytime Running Lights Control Unit (Canada) | Behind left side of dash. See Figure . |
| Driver's Multiplex Control Unit | Behind left side of dash. See Figure . |

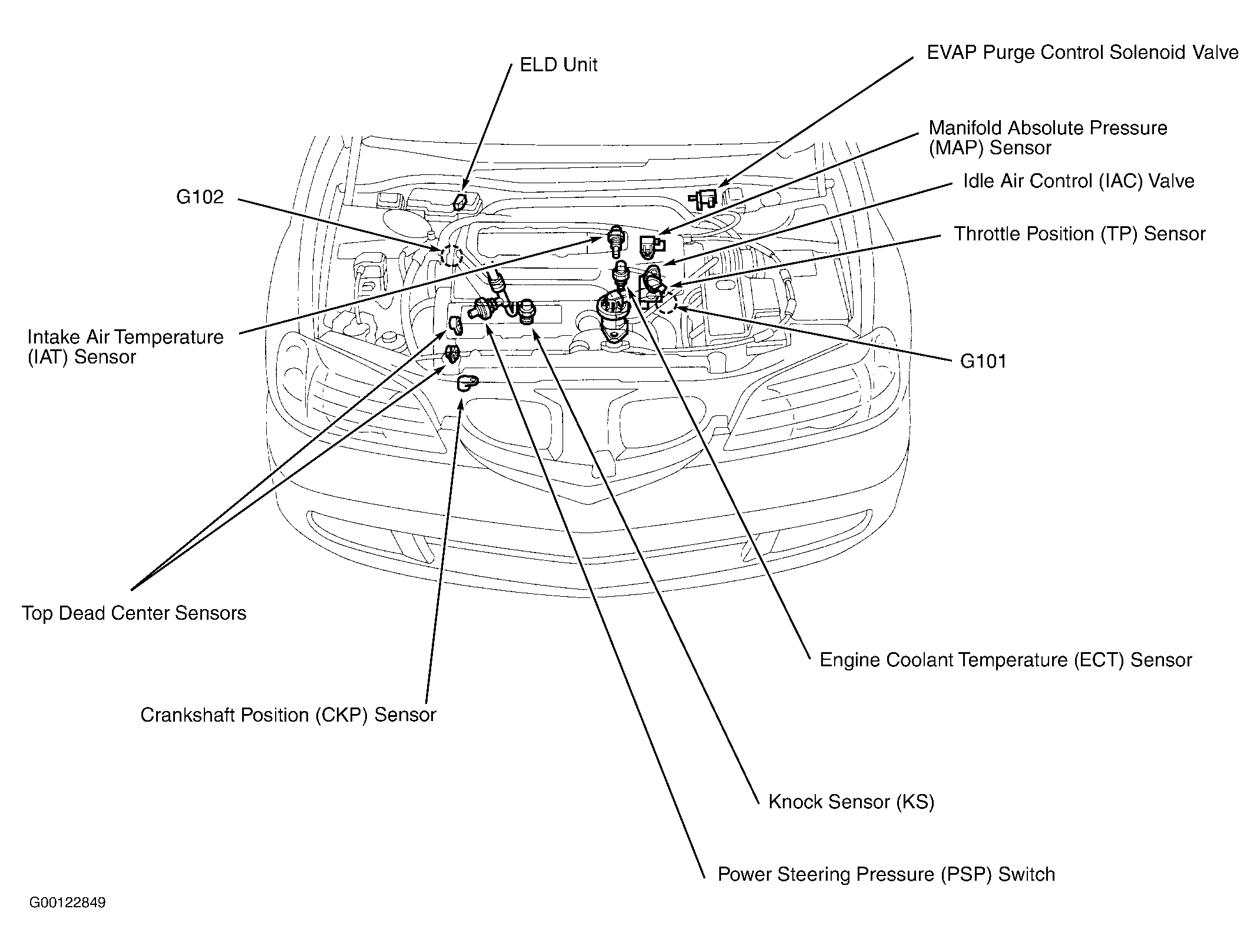

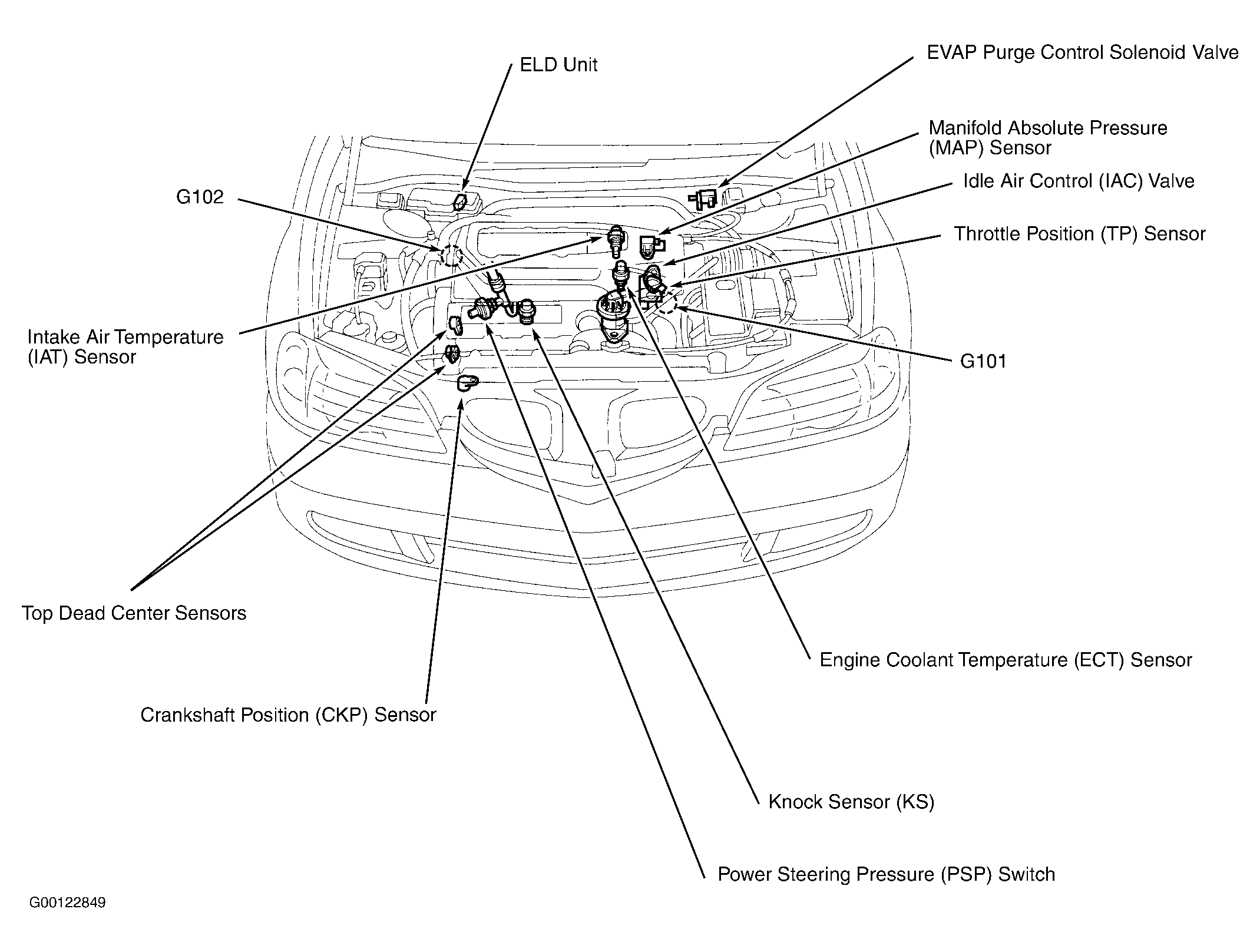

| ELD Unit | In underhood fuse/relay box. See Figure . |
| Immobilizer Receiver Unit | In steering column, on ignition key cylinder. |
| Intake Manifold Runner Control Unit (Type S) | Above left kick panel. See Figure . |
| Keyless Receiver Unit | Behind right side of dash. |
| Navigation Unit | Under middle of rear shelf. |
| Passenger's Multiplex Control Unit | Behind right side of dash. |
| Radiator Fan Control Module | Behind center of dash. See Figure . |
| SRS Unit | Behind lower center of dash. See Figure . |
