A/T Gear Position Switch: Integra

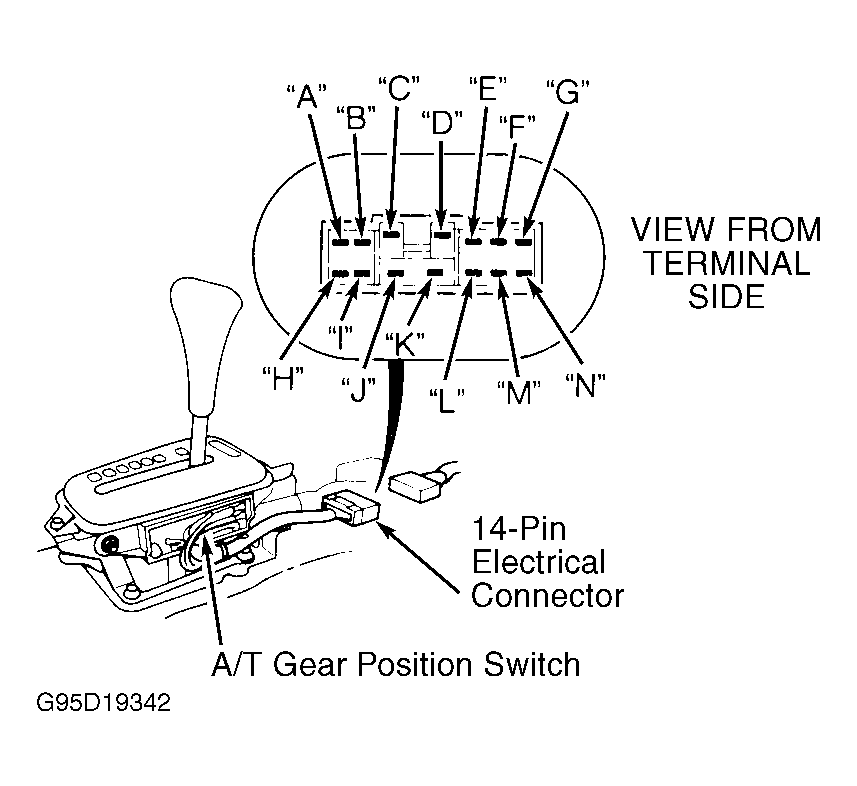

- Remove center console. Disconnect A/T gear position switch harness connector. Note connector terminal identification. See Fig 1 .
- Using ohmmeter, check continuity between specified terminal(s) with shift lever in indicated positions. See A/T GEAR POSITION SWITCH CONTINUITY (INTEGRA)
table.NOTE: Check continuity while moving shift lever back and forth in free play area of each gear position. DO NOT touch push button on shift lever when checking continuity.
- If continuity is not as specified, adjust A/T gear position switch. See appropriate AUTOMATIC TRANSMISSIONS article. If correct continuity cannot be obtained by adjusting A/T gear position switch, replace switch assembly.
A/T GEAR POSITION SWITCH CONTINUITY (INTEGRA)
| Application | Shift Lever Position | Continuity Between Terminals | |
|---|---|---|---|
| With Cruise Control | |||
| Gear Position Switch | P | A & L | |
| ..... | R | A & M | |
| ..... | N | A & N | |
| ..... | D4 | I, A & G | |
| ..... | D | I, A & F | |
| ..... | 2 | I, A & E | |
| ..... | 1 | A & B | |
| Back-Up Light Switch | R | C & D | |
| Neutral Position Switch | P | J & K | |
| ..... | N | J & K | |
| Without Cruise Control | |||
| Gear Position Switch | P | A & L | |
| ..... | R | A & M | |
| ..... | N | A & N | |
| ..... | D4 | A & G | |
| ..... | D | A & F | |
| ..... | 2 | A & E | |
| ..... | 1 | A & B | |
| Back-Up Light Switch | R | C & D | |
| Neutral Position Switch | P | J & K | |
| ..... | N | J & K | |
