Repair and Diagnosis: Electrical: Starters: Overhaul

NOTE: See exploded views of starters. See Fig 1 -Fig 3 .

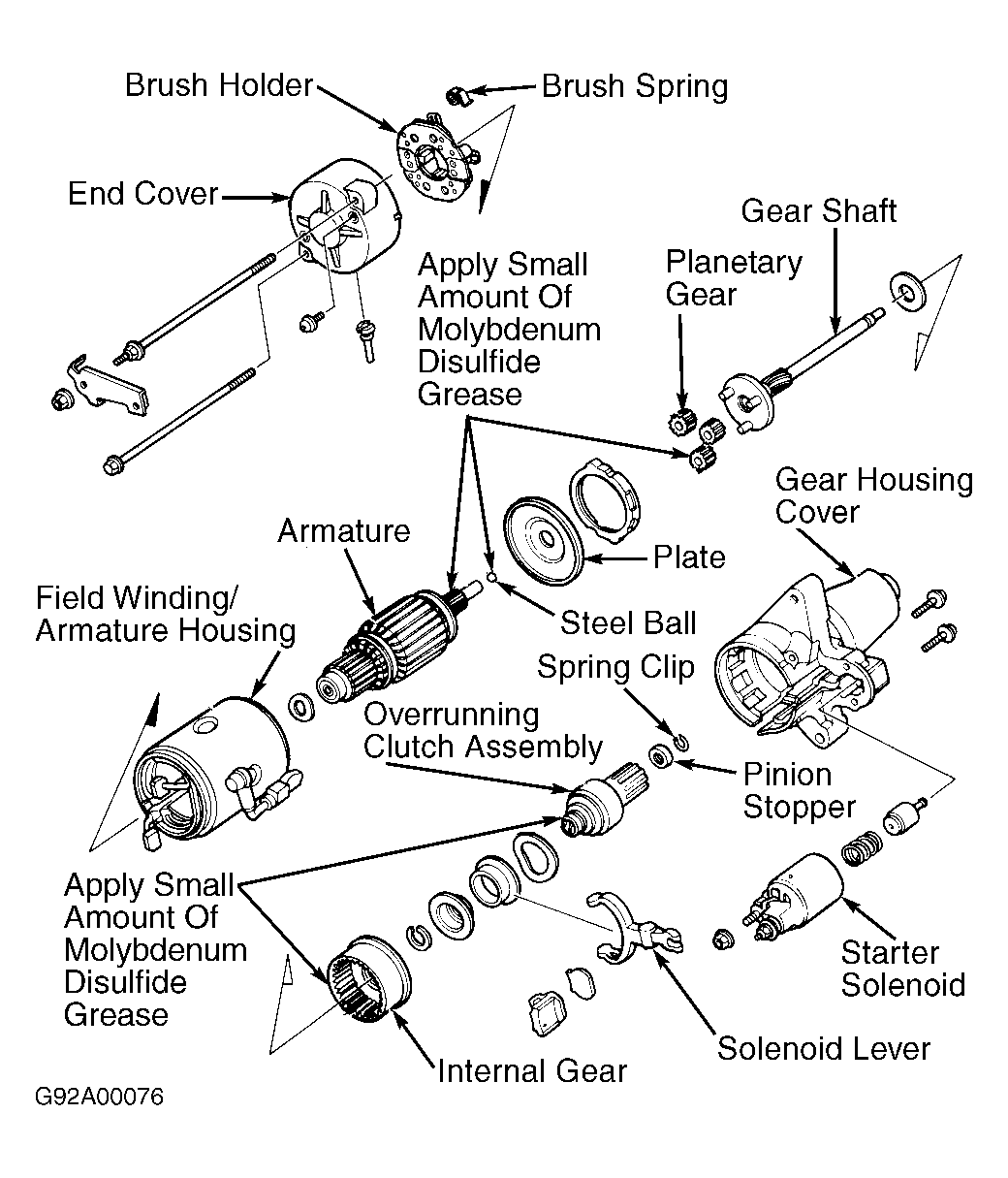

Fig 1: Exploded View Of Starter (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

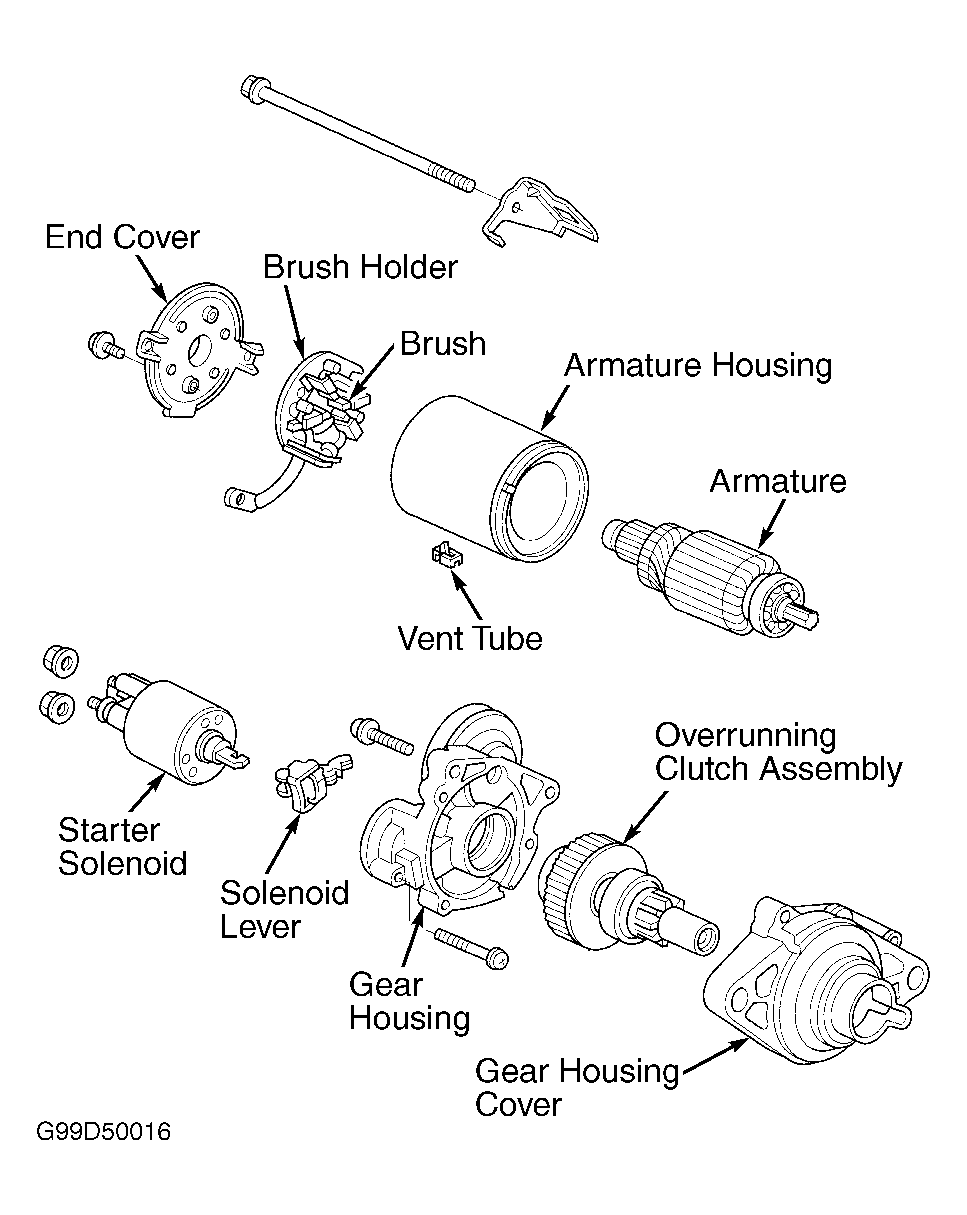

Fig 2: Exploded View Starter (3.2TL Shown; 3.2CL & MDX Are Similar)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

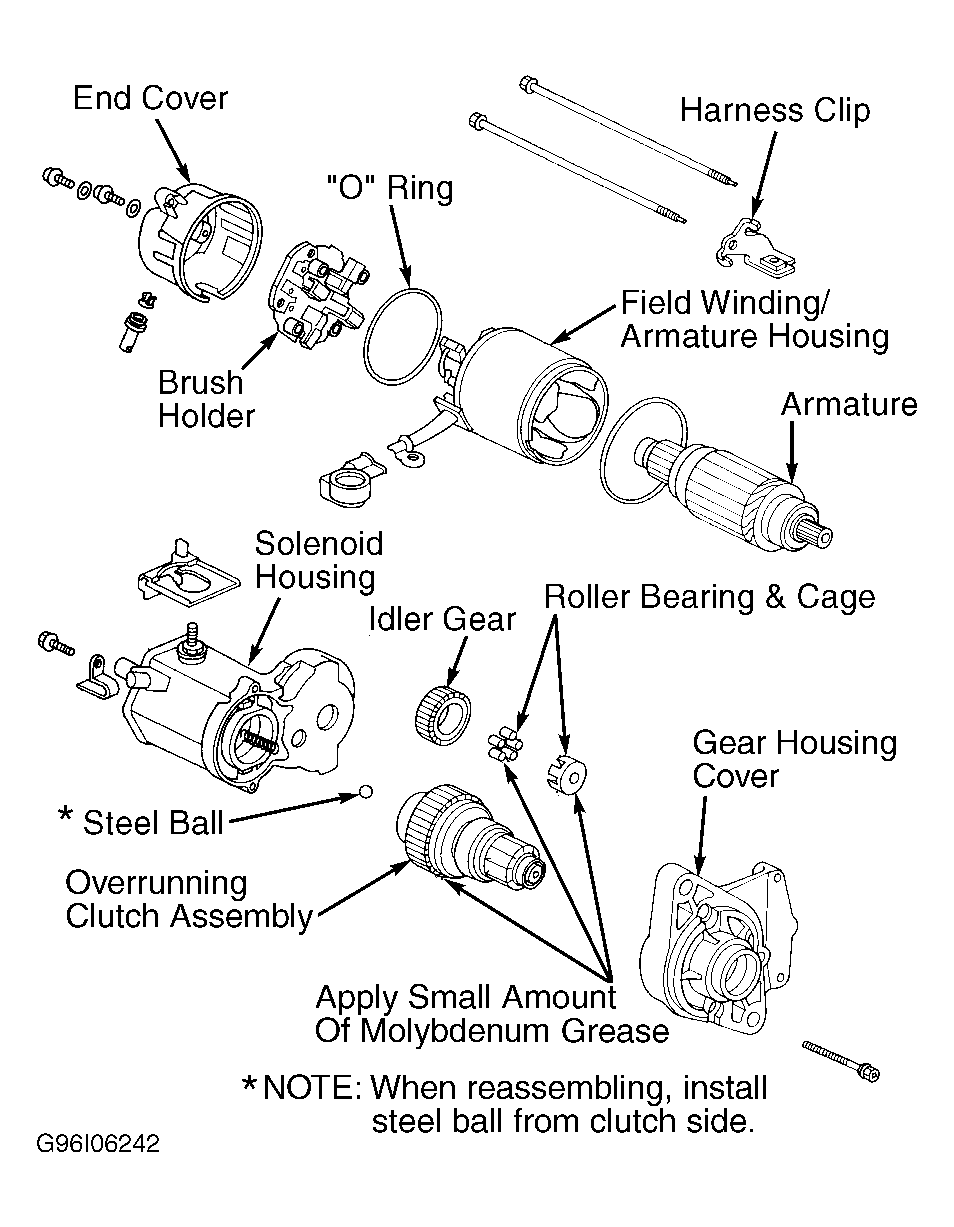

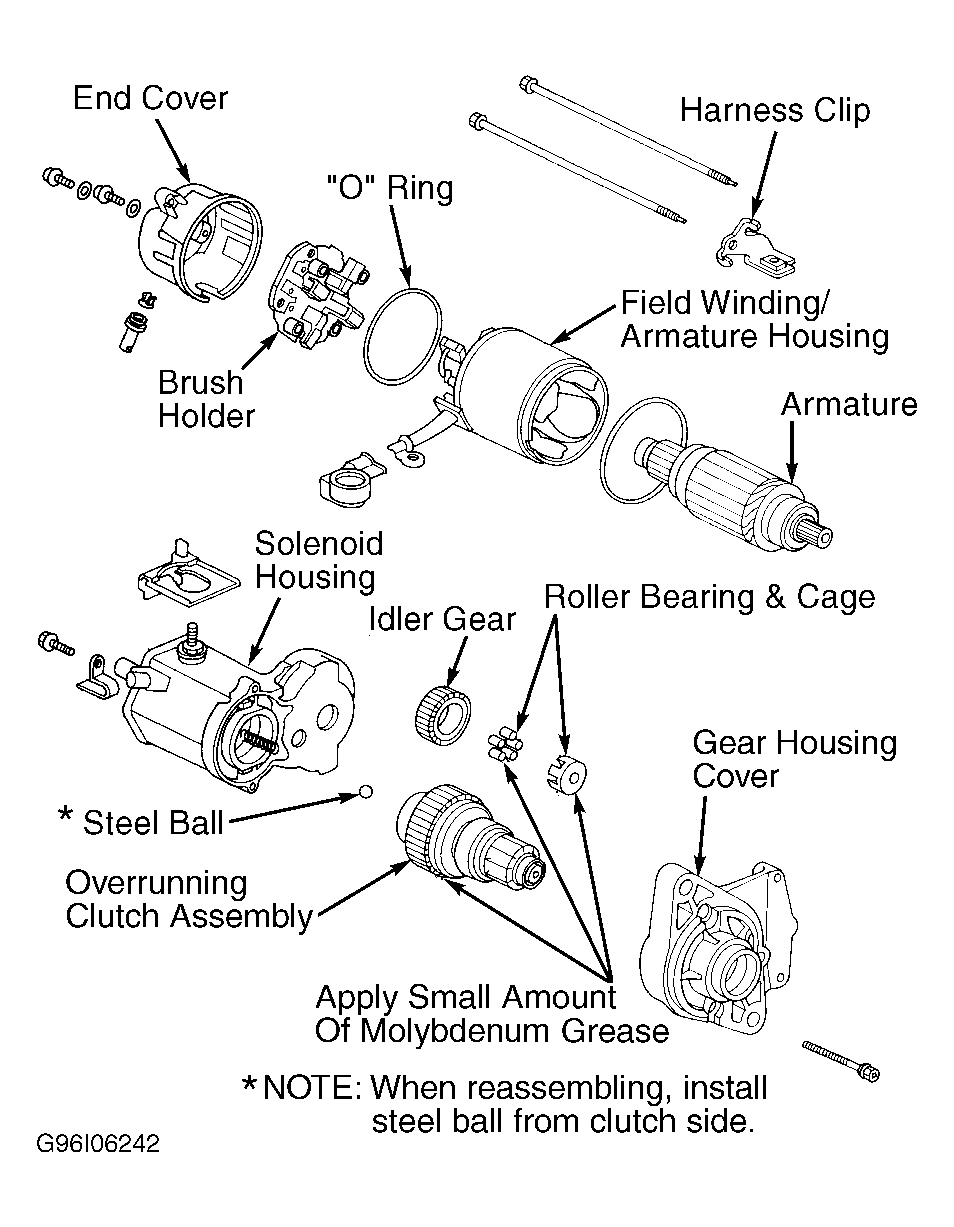

Fig 3: Exploded View Of Starter (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
