Intake Air Bypass (IAB) System: Integra

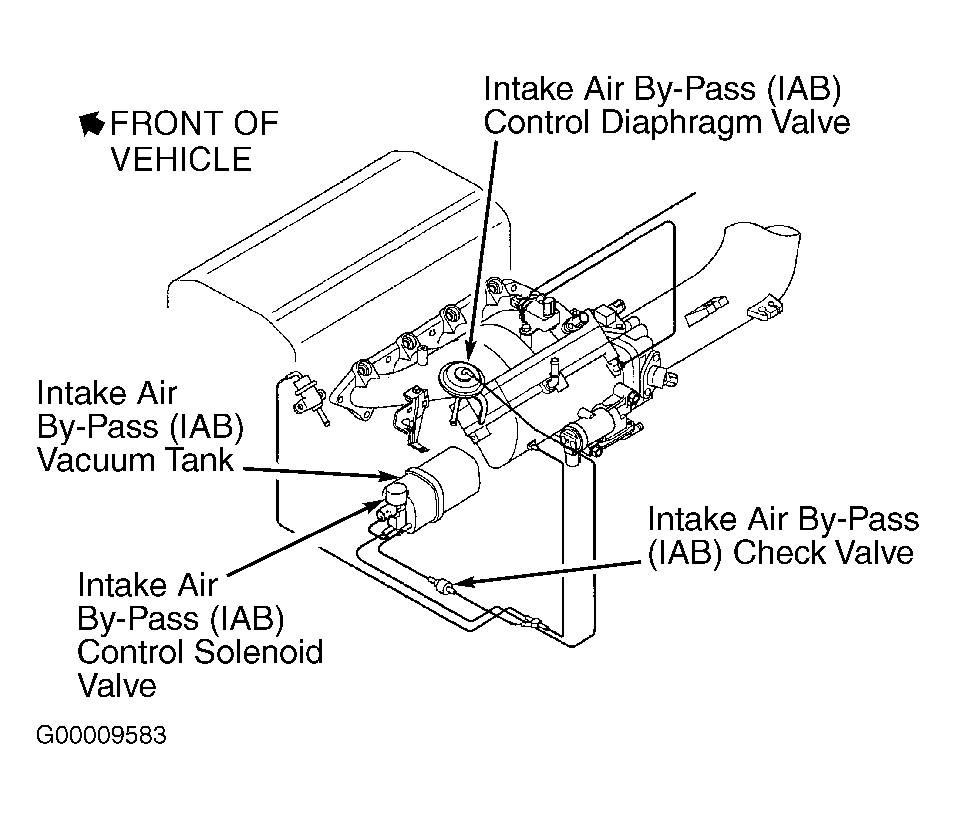

IAB control solenoid valve is located on top of intake manifold. See Figure . Before testing system, ensure IAB control valve shaft is not binding or sticking and valve moves smoothly. With engine at idle and IAB control valve vacuum hose disconnected, ensure IAB control valve arm is in contact with upper stop. Reconnect vacuum hose. Ensure IAB control valve arm is in contact with lower stop. If a problem exists, clean linkage and shafts with carburetor cleaner. DO NOT adjust upper or lower stop. If problem still exists, disassemble intake manifold and check IAB valve body assembly.
- Start engine and allow to idle. Disconnect vacuum hose from IAB control diaphragm. Check for vacuum at hose. See Fig 1 . If vacuum is not present, go to next step. If vacuum is present, go to step 6 .
- Remove vacuum hose from IAB vacuum tank. If vacuum exists at vacuum tank, go to next step. If vacuum does not exist at vacuum tank, repair blockage or vacuum leak between intake manifold and vacuum tank.
- Turn ignition off. Disconnect IAB control solenoid valve 2-pin connector. Turn ignition on. Measure voltage between solenoid valve 2-pin harness connector terminals No. 1 (Red/Blue wire) and No. 2 (Black/Yellow wire). If battery voltage is not present, go to next step. If battery voltage is present, replace IAB control solenoid valve.
- Ensure ignition is on. Measure voltage between ground and IAB control solenoid valve 2-pin harness connector terminal No. 2 (Black/Yellow wire). If battery voltage is present, go to next step. If battery voltage is not present, repair open in Black/Yellow wire between IAB control solenoid valve and fuse No. 15 (7.5 amp) in underdash fuse/relay block.
- Turn ignition switch off. Reconnect IAB control solenoid valve 2-pin harness connector. Turn ignition on. Use fused jumper wire to connect PCM 25-pin harness connector terminals No. 16 (Pink/Blue wire) and 20 (Brown/Black wire) together. See Fig 2 . If the IAB solenoid makes a clicking sound, Cut temporary key from a non-immobilizer key blank and tape donor vehicle key to it backwards in order to deactivate immobilizer system during testing. Substitute known-good PCM, then recheck. If symptom or indication goes away, replace original PCM. If no clicking sound can be heard, repair open in wire between PCM 25-pin harness connector terminal No. 16 (Pink/Blue wire) and IAB control solenoid valve 2-pin harness connector terminal No. 1 (Red/Blue wire). See WIRING DIAGRAMS article.
- Increase engine speed to 6000 RPM. Check for vacuum at IAB control diaphragm hose. If vacuum is not present, system is okay. If vacuum is present, go to next step.
- Disconnect IAB control solenoid valve 2-pin connector. If vacuum is present at IAB control diaphragm hose, replace IAB control solenoid valve. If vacuum is not present, go to next step.
- Turn ignition off. Disconnect PCM 25-pin harness connector. Check for continuity between ground and IAB control solenoid valve 2-pin harness connector terminal No. 1 (Red/Blue wire). If continuity is not present, Cut temporary key from a non-immobilizer key blank and tape donor vehicle key to it backwards in order to deactivate immobilizer system during testing. Substitute known-good PCM, then recheck. If symptom or indication goes away, replace original PCM. If continuity is present, repair short in wire between PCM 25-pin harness connector terminal No. 16 (Pink/Blue wire) and IAB control solenoid valve 2-pin harness connector terminal No. 1 (Red/Blue wire).
