Pcm Replacement: 3.2TL And 3.2CL (03-017)

Publication date: 2006-05-22
Reference number: 03-017

PCM REPLACEMENT: 3.2TL AND 3.2CL

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 03-017, Date of Issue: May 22, 2006

ACURA:	2000 3.2TL, 2001 3.2CL
CATEGORY:	Body Electrical
APPLIES TO:	2000-02 3.2TL; 2003 3.2TL (except Type S); 2003 3.2TL Type S; 2001-02 3.2CL; 2003 3.2CL (all models)

Superceded Bulletin(s): 03-017, Date of Issue: September 22, 2003

BACKGROUND

Some vehicles that received a remanufactured transmission also need a new PCM to improve the performance and durability of the transmission. In addition, to complete the repair on certain 2000 3.2TLs and 2001 3.2CLs, a new fuel pressure regulator is needed.

CLIENT NOTIFICATION

All owners of affected vehicles were sent a notification of this update in September 2003.

NOTE: The offer to repair these vehicles free of charge expired in September 2004. Any repairs on these vehicles now would have to be under goodwill or customer-pay.

VEHICLES AFFECTED

2000-02 3.2TL - All

2003 3.2TL (except Type S) -

From VIN 19UUA5...3A000001

thru 19UUA5...3A019556

2003 3.2TL Type S -

From VIN 19UUA5...3A000001

thru 19UUA5...3A019061

2001-02 3.2CL - All

2003 3.2CL (all models) -

From VIN 19UYA42..3A000001

thru 19UYA42..3A005203

Before beginning work on a vehicle, verify its eligibility by checking at least one of these items:

The customer has a notification letter.
The vehicle is shown on your responsibility report.
The vehicle is shown as eligible on a VIN status inquiry.

CORRECTIVE ACTION

Replace the PCM and, if needed, the fuel pressure regulator.

PARTS INFORMATION

Fuel Pressure Regulator: P/N 16740-PGK-A01

Needed only on these vehicles:

2000 3.2TL -

From VIN 19UUA5...YA000001

thru 19UUA5...YA052284

2001 3.2CL -

From VIN 19UYA4...1A000001

thru 19UYA4...1A012396

PCM P/N: Refer to the chart.

PARTS INFORMATION

PCM P/N

Year/Model

Emission Type⁽¹⁾

37820-P8E-305RM

2000-01 3.2TL

2001 3.2CL

37820-PGE-305RM

2001 3.2CL Type-S

KA, KL

37820-P8E-306RM

2000-01 3.2TL

2001 3.2CL

37820-PJE-A62RM

2002-03 3.2TL

2002-03 3.2CL

37820-PGE-A58RM

2002-03 3.2TL Type-S

KA, KL

2002-03 3.2CL Type-S

KA, KL

37820-PJE-L62RM

2002-03 3.2TL

2002-03 3.2CL

⁽¹⁾	To order the correct PCM, you need to know the vehicle's emission type. To find the vehicle's emission type, do this:

From the main menu on the i N workstation, click on Cust Sales Support.
From the Cust Sales Support drop-down menu, click on Vehicle Info.
From the Vehicle Info drop-down menu, click on VIN Status Inquiry.
From the VIN Status Inquiry screen, enter the VIN, and then click on Submit. On the VIN Status Inquiry, the vehicle's emission type is displayed below the immobilizer information.

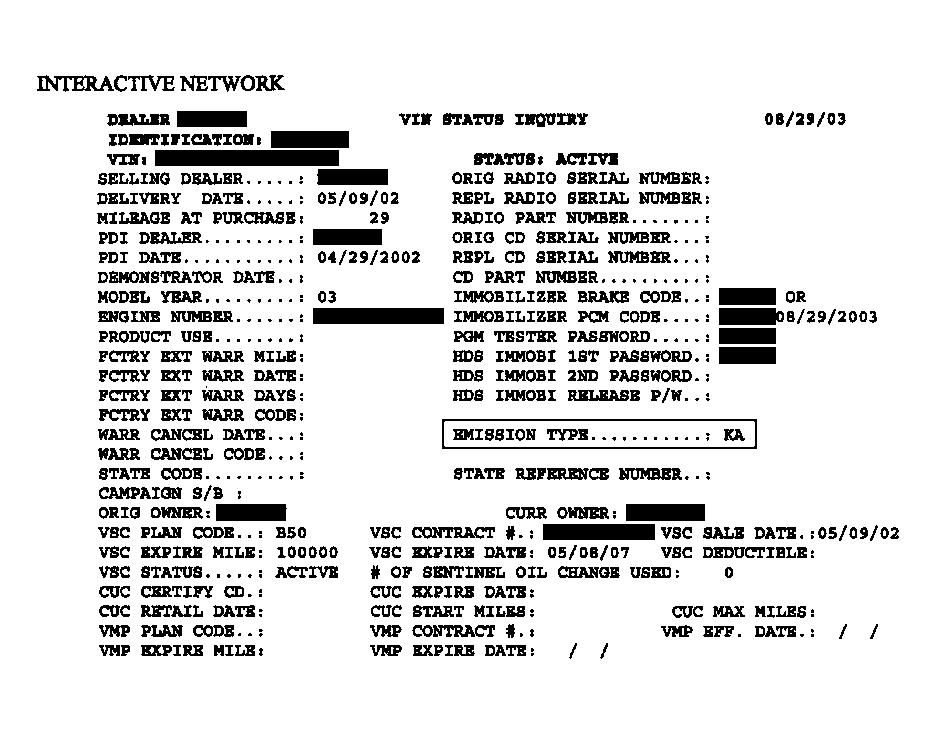

Fig 1: VIN Status Inquiry Screen

WARRANTY CLAIM INFORMATION

NOTE: The offer to repair these vehicles free of charge expired in September 2004. Any repairs on these vehicles now would have to be under goodwill or customer-pay.

WARRANTY CLAIM INFORMATION

OP #	FRT	Description
218117	0.4	Replace PCM.
218118	0.5	Replace PCM and fuel pressure regulator.

WARRANTY CLAIM INFORMATION

Failed Part:	P/N 37820-P8E-A53
Defect Code:	03217
Symptom Code:	01201
Skill Level:	Repair Technician
Part used for repair:	Use the "RM" part number (from the repair order) Example: 37820-PJE-A62RM

REPAIR PROCEDURE

On 2000 3.2TLs and 2001 3.2CLs within the applicable VIN ranges, install a new fuel pressure regulator. For 3.2TLs, refer to page 11-173 of the 1999-03 3.2TL Service Manual . For 3.2CLs, refer to page 11-187 of the 2001-03 3.2CL Service Manual .
NOTE: The new fuel pressure regulator has a black dot on top to help you identify it.
Download the immobilizer key transponder codes from the PCM to the HDS (Honda Diagnostic System). Refer to REPLACING THE ECM/PCM in Service Bulletin 00-019 , Immobilizer System (Type 2).
Remove and discard the PCM.

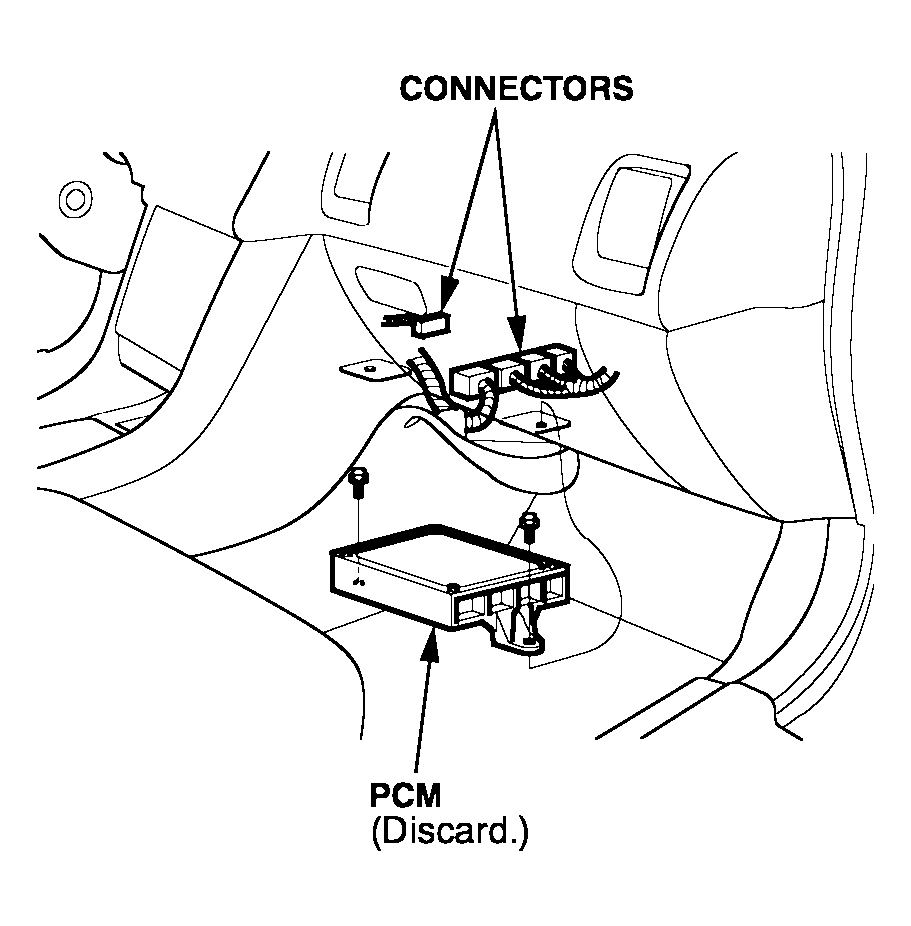

Fig 2: Removing PCM
Install the new PCM, and torque the bolts to 12 N.m (8.7 lb-ft).
Upload the immobilizer key transponder codes from the HDS to the PCM. Refer to 00-019 , Immobilizer System (Type 2).
Do the idle learn procedure:
- Make sure all electrical items (A/C, audio unit, defogger, lights, etc.) are off.
- Start the engine, and let it warm up to its normal operating temperature (the cooling fan cycles twice).
- Let the engine idle (throttle fully closed and all electrical items off) for 10 minutes.

EXAMPLE OF CLIENT LETTER

September 2003

Improved Powertrain Control Module

Dear 3.2CL/3.2TL Owner:

Recently, your Acura dealer replaced the transmission in your vehicle. While we are confident the replacement transmission will provide years of trouble-free service, we have also developed an enhanced powertrain control module (PCM) and, for some vehicles, a new fuel pressure regulator. These new parts improve the performance and durability of your transmission. We are offering you these parts free of charge. This offer is available only within one year of receiving this letter.

How to Get Your Free Part(s)

Call any authorized Acura dealer (preferably, the one who replaced the transmission), and make an appointment to have your vehicle updated. The dealer will install an improved PCM and, if needed, a new fuel pressure regulator. Please plan to leave your vehicle at the dealer about half a day to allow them some flexibility in scheduling.

If you have any questions about this letter, or comments on the service you receive from your Acura dealer, please call Acura Client Services at (800) 382-2238, and select Option 2.

Thank you for your continued patronage as one of our valued customers.

Sincerely,

American Honda Motor Co., Inc.

Acura Automobile Division
