TQI And New Model Information (00-009)

Publication date: 2000-12-18
Reference number: 00-009

TQI AND NEW MODEL INFORMATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00-009, Date of Issue: December 18, 2000

ACURA:	2001 3.2CL
CATEGORY:	TQI
APPLIES TO:	All

NOTE: Supersedes 00-009, dated April 10, 2000

SERVICE INFORMATION

Most of the features, equipment, and delivery preparation procedures for the 2001 3.2CL are the same as for other Acura vehicles. This service bulletin describes things that are unique to the 2001 model and things you need to know before you service it.

WARRANTY CLAIM INFORMATION

None: the information in this service bulletin is part of the Total Quality Inspection before delivery.

FUSE INSTALLATION

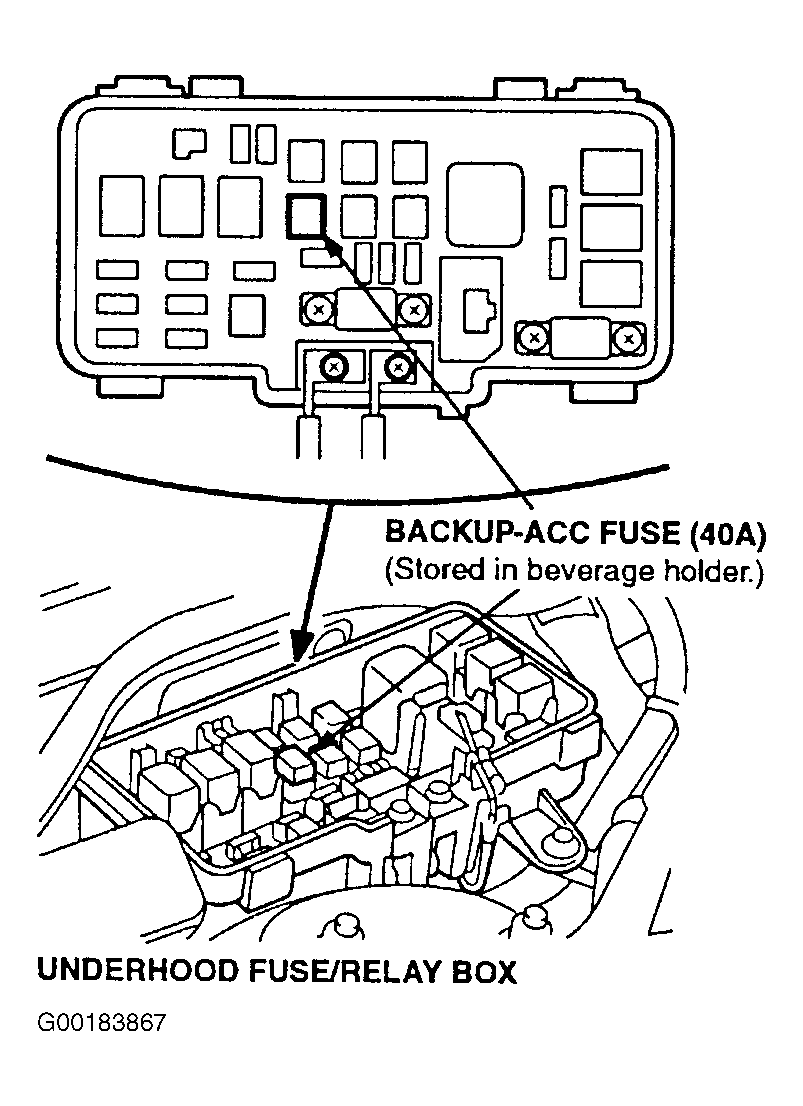

To prevent battery drain during vehicle shipment, the BACKUP-ACC fuse (40A) in the under-hood fuse/relay box is removed and placed in the beverage holder. Insert the fuse into the fuse/relay box as shown in Fig 1 .

NOTE: Do not drive the vehicle until you install the BACKUP-ACC fuse; the taillights do not work without it.

Fig 1: Underhood Fuse Relay Box

SHIFT LOCK RELEASE

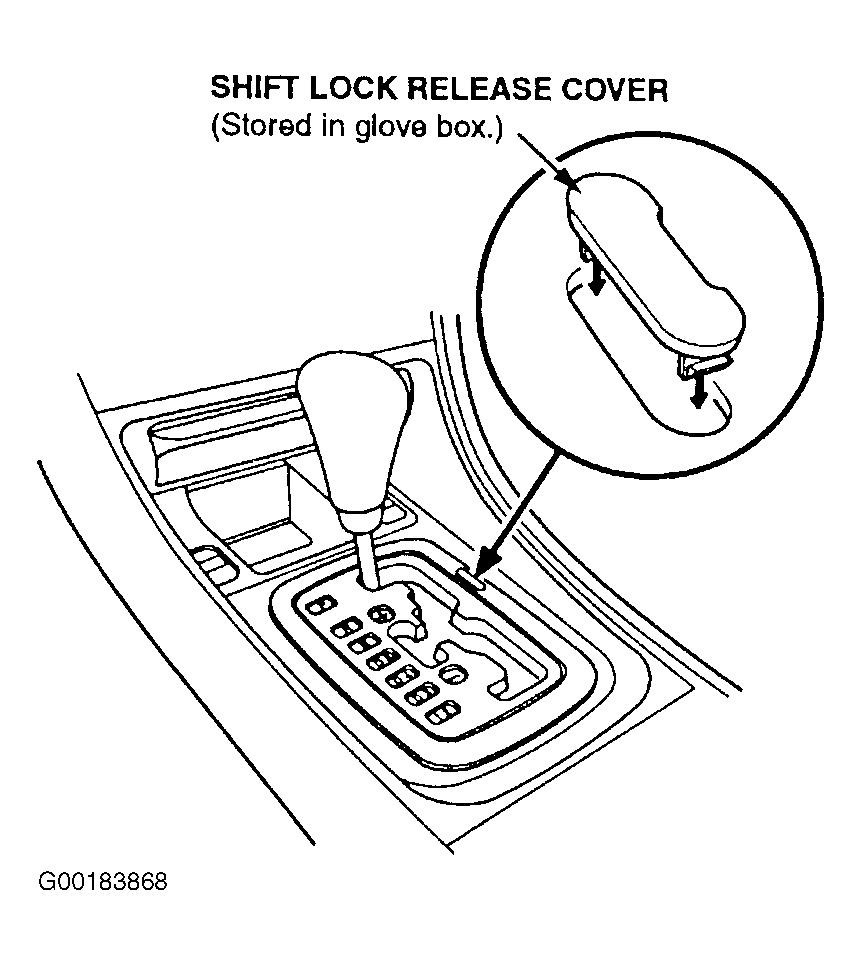

The shift lock release is on the right side of the shift indicator trim ring shown in Fig 2 . For vehicle operation during shipment, the shift lock release cover is removed and stored in a small bag along with the Owner's Manual in the glove box. Remove the cover from the bag, and install it.

NOTE: If customers need to operate the shift lock release, they must remove the cover.

Fig 2: Shift Lock Release

WHEEL BALANCE AND ALIGNMENT

The wheels on the Type S model do not have an exterior flange to mount wheel weights or alignment equipment. Genuine Honda Alloy wheel weights can be used on the inner flange of the wheel. However, tape weights must be used for the outer weights. Alignment equipment must be mounted on the outer lip of the wheels.

DO NOT INSTALL TYPES WHEELS ON PREMIUM MODELS

Do not install the 17-inch wheels from the Type S model onto a premium model 3.2CL. The larger wheels can damage the chassis and the body.

The Type S uses a different power steering rack, a different front beam, and different radius rods that can accommodate the larger wheels.

SIDE AIRBAGS

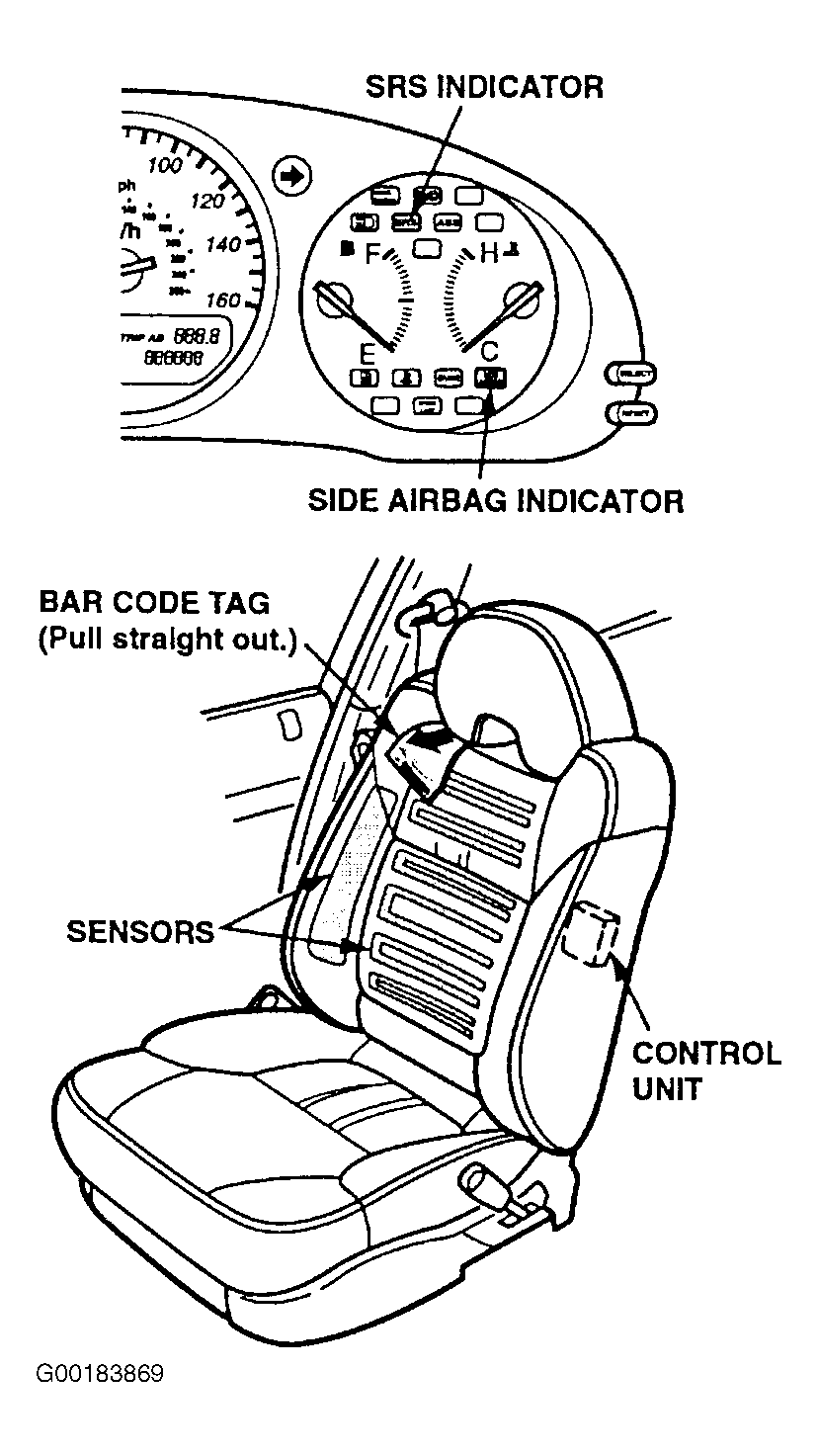

Side airbags are located in the outer bolsters of the front seats. The front passenger's side airbag system includes an Occupant Position Detection System (OPDS) See Fig 3 . This system consists of sensors and a control unit in the front passenger's seat-back and an indicator on the instrument panel. The control unit sends occupant height and position information to the SRS unit.

Fig 3: Occupant Position Detection System (OPDS)

The SRS unit automatically disables the passenger's side airbag if it determines that:

A small child is sitting in the seat and the child's head is in the deployment path of the passenger's side airbag.
An object of a specified size/weight is sitting on the passenger's seat.

When the SRS unit senses either of these conditions for more than 3 seconds, it turns off the passenger's side airbag and turns on the SIDE AIRBAG indicator. This is normal. The indicator stays on for 3 seconds after the sensors detect that conditions have returned to normal.

NOTE: The passenger's seat-back does not have a heating element.

REMOVE TAG AT TQI

During TQI, remove and discard the bar code tag from the passenger's seat headrest by pulling it straight out. This tag was installed during assembly to identify the seat.

REMOTE ACTIVATION OF DRIVER'S SEAT MEMORY

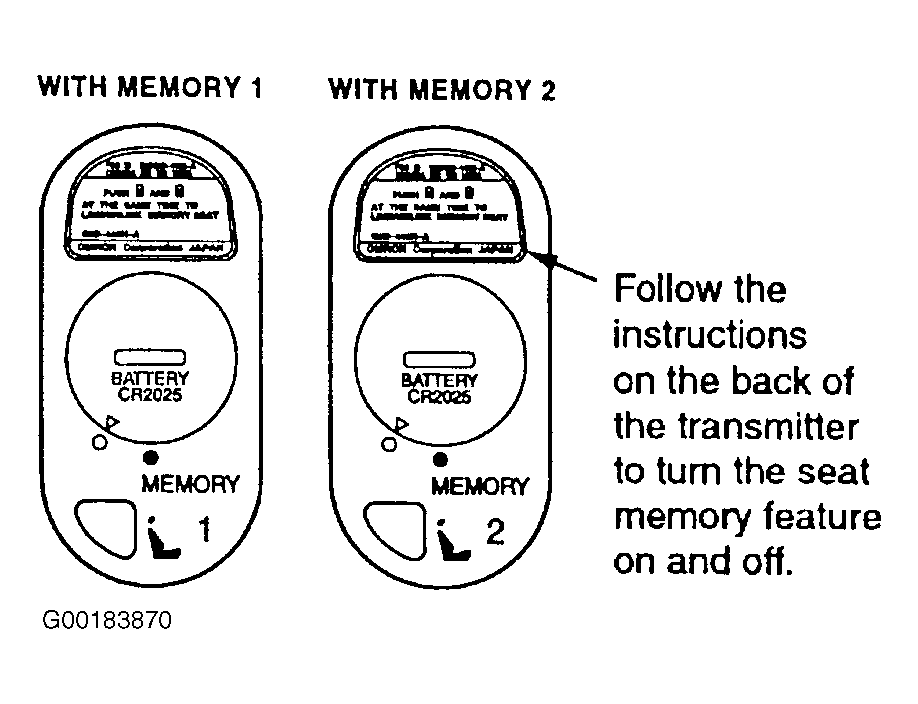

This feature enables the two keyless remote transmitters (up to three transmitters can be used) to activate the DPMS whenever the doors are unlocked. Each transmitter is coded to send either the Memory 1 or Memory 2 signal to the DPMS control unit. See Fig 4 . The code is marked on the rear of each remote transmitter. The feature can be turned on or off by following the instructions on the back of the transmitters; turn it on during TQI.

Fig 4: DPMS Remote Transmitters

When you open the driver's door after unlocking it with the remote transmitter, you'll hear one beep. The driver's seat and outside mirrors will then move to the positions stored in that memory location. When the movement stops, you'll hear two beeps. If the seat and mirrors are already in their memorized positions when you unlock the driver's door, you'll hear three beeps.

NOTE: If the driver's seat stops while moving backward and then moves slightly forward, the "anti-trap" feature has been activated. Check for an obstruction behind the seat.

HVAC SYSTEM

The redesigned HVAC system (heating, ventilation, and air conditioning) is quieter, more efficient, and easier to use than the system on previous models. For system operation, refer to the Owner's Manual. The system has a micron air filter that requires replacement during scheduled vehicle maintenance. To replace the filter, refer to section 21 of the service manual.

PREMIUM FUEL RECOMMENDATION

This vehicle requires premium unleaded fuel (octane rating of 91 or higher). Lower-octane fuel should be used only in emergency situations where premium fuel is not available.

SERVICE CONNECTORS

The 2001 3.2CL has three service connectors: DLC (data link connector), MES (memory erase signal), and Multiplex Control Inspection Socket.

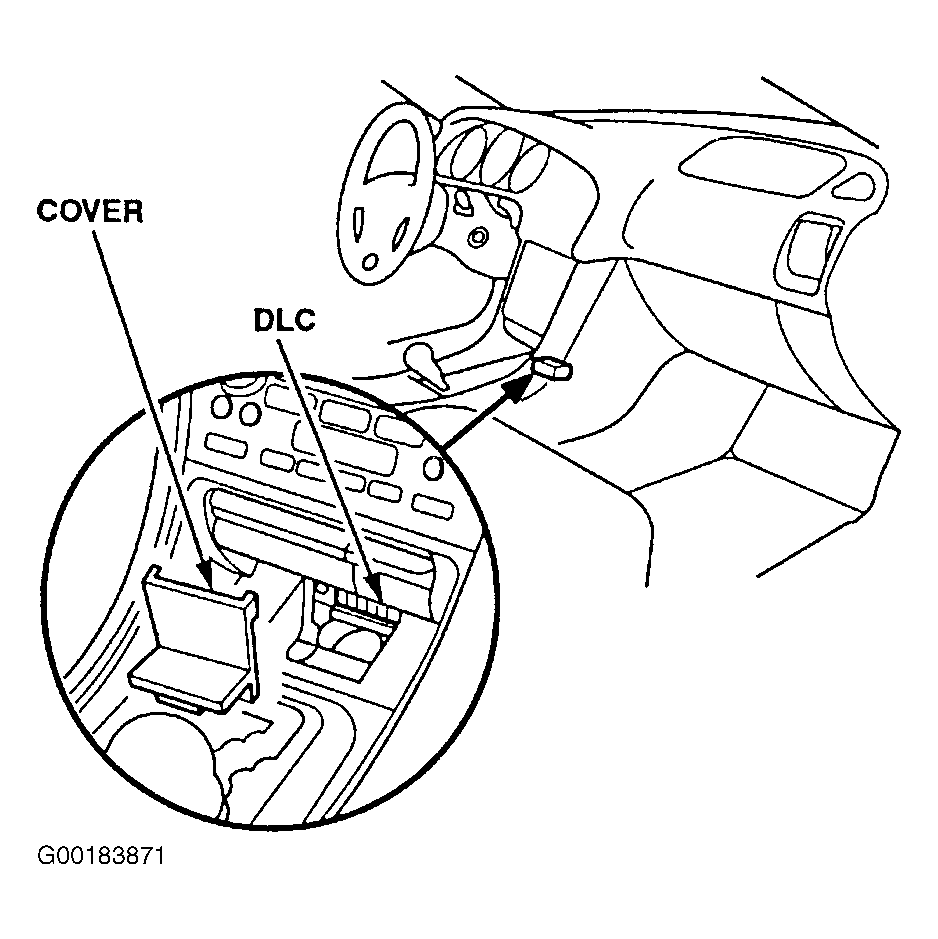

The DLC is under the black plastic cover between the seat heater switches. See Fig 5 .

Fig 5: Data Link Connector Location

To read DTCs (Diagnostic Trouble Codes) as flash codes, connect the PGM Tester to the DLC, select SCS on the Tester's menu screen, then turn the ignition switch ON (II). The indicators (CHECK ENGINE, SRS, ABS, VSA) will flash any stored codes.

NOTE: An easier way to retrieve DTCs (diagnostic trouble codes) is by reading them on the PGM Tester screen.

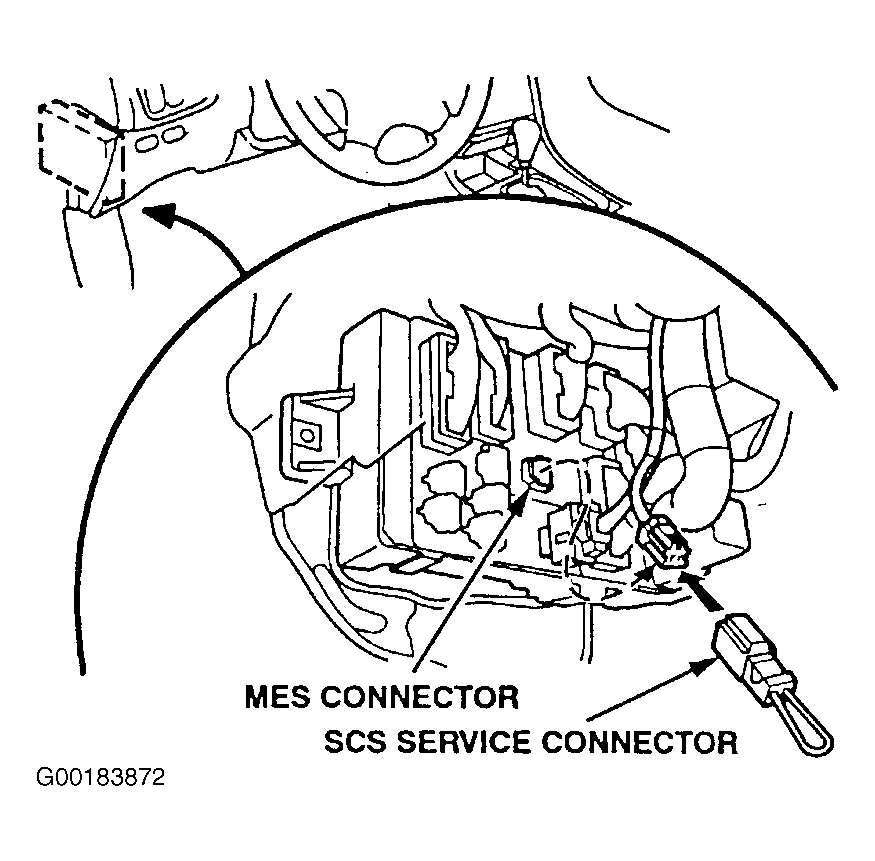

The MES connector is on the back of the driver's side fuse/relay box. To erase SRS DTCs with the MES connector, connect the SCS service connector (T/N 07PAZ-0010100) to it, and follow the erasing procedure in section 23 of the service manual. See Fig 6 .

NOTE: SRS DTCs can also be erased with the PGM Tester.

Fig 6: Erase SRS DTCs Via MES Connector

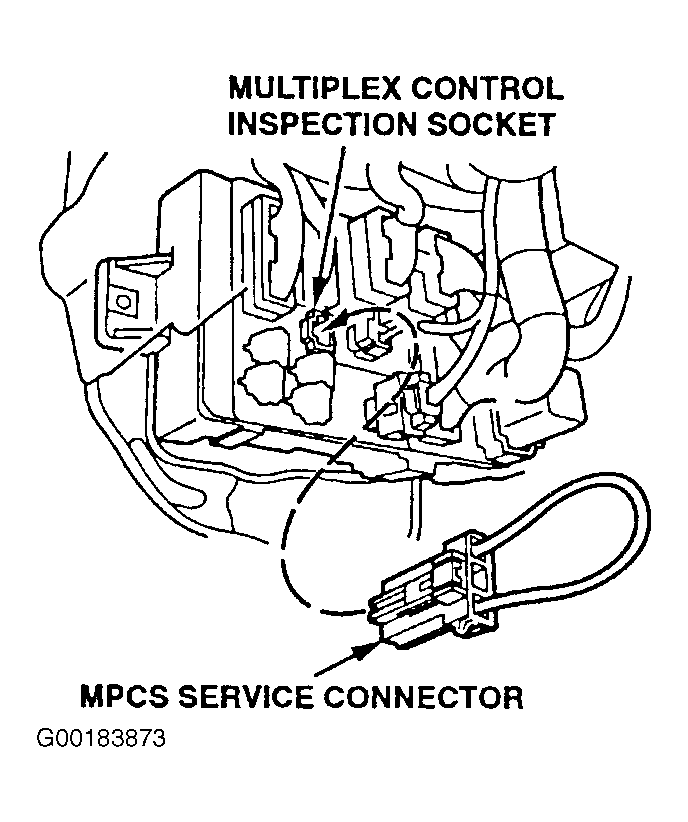

The Multiplex Control Inspection Socket is also on the back of the driver's fuse/relay box shown in Fig 7 . When you troubleshoot the multiplex system, use the MPCS service connector (T/N 07WAZ-001010A) to jump the connector. Refer to section 22 of the service manual.

Fig 7: Multiplex Control Inspection Socket

PGM TESTER USAGE

To work on this vehicle with the PGM Tester, the Tester must have program card version SN010P or later.

RETRIEVING THE AUDIO UNIT SERIAL NUMBER

To reduce warranty and customer costs whenever an anti-theft code is lost, the audio unit's serial number can be retrieved without having to remove the unit. To recall the serial number, follow these steps:

Turn the ignition switch to the accessory (I) position.
Turn on the audio unit. Make sure "CODE" appears on the display.
Turn off the audio unit.

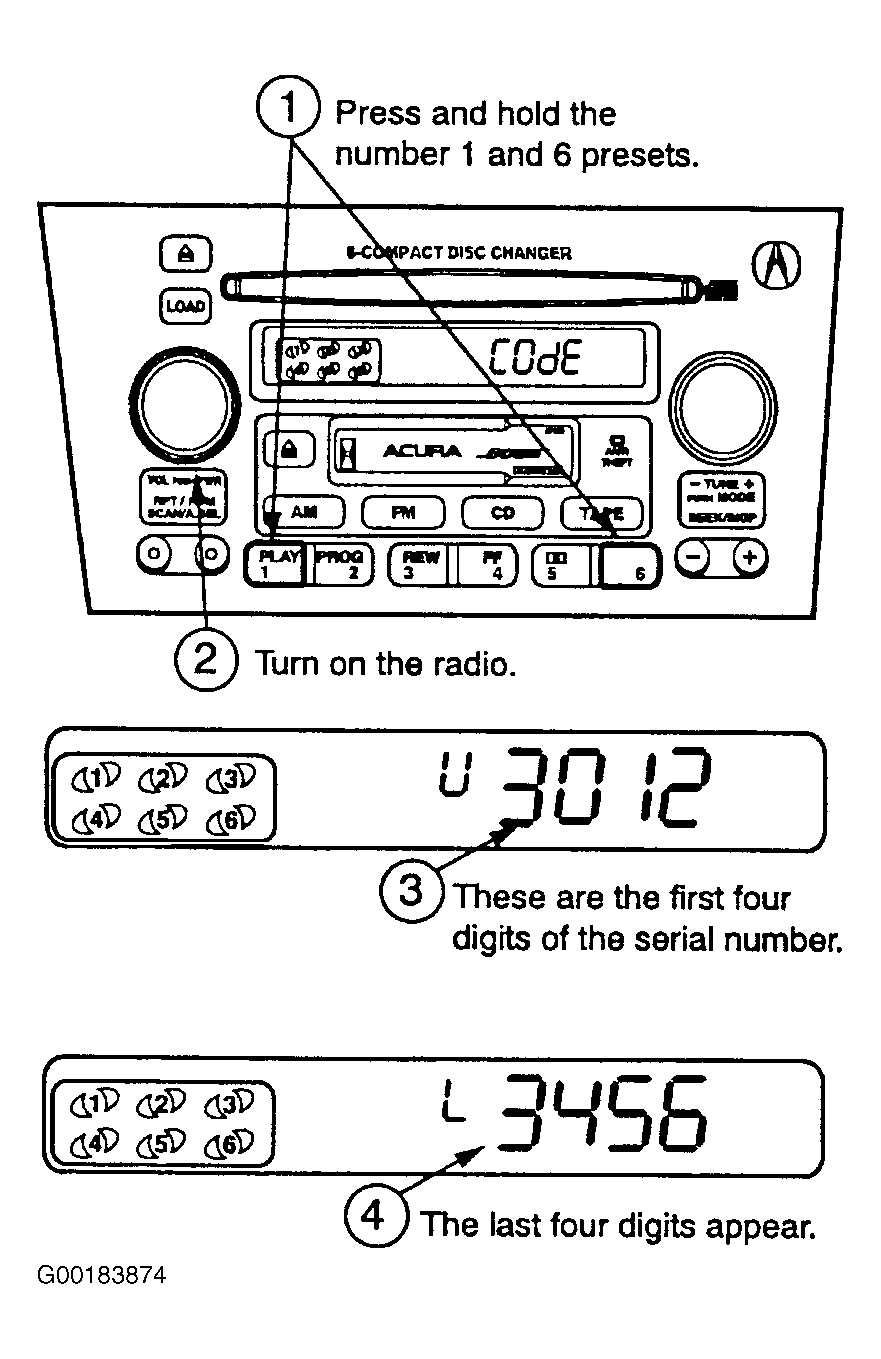

Press and hold the number 1 and number 6 preset buttons at the same time, and then turn on the unit. The serial number will appear in two parts - the first four digits followed by the last four digits, and then the sequence will repeat. See Fig 8 .

Fig 8: Audio Unit Display
Enter these eight digits into DCS to retrieve the antitheft code.
NOTE: If you happen to compare the serial number on the audio system's chassis sticker to the displayed serial number, you will find the first two digits do not match. The serial number on the sticker begins with two alpha characters. When doing an inquiry on DCS, always use "30" followed by the six-digit serial number.

VSA (VEHICLE STABILITY ASSIST)

The Type S model is equipped with a vehicle stability assist system that integrates the ABS and TCS systems. In addition to performing the ABS function during braking and the TCS function during acceleration, the system applies the brakes and reduces engine power in certain driving situations to maintain vehicle stability.

Whenever the VSA system is operating, the VSA activation indicator blinks. If the driver turns off the VSA system, the indicator stays on until the next drive cycle. See Fig 9 .

Fig 9: VSA Activation Indicator

5-SPEED AUTOMATIC TRANSMISSION

With the exception of a heavy-duty torque converter and increased second gear clutch capacity in the Type S model, the 5-speed automatic transmission in the CL is the same as the one used in the 3.2TL. Some normal characteristics worth noting while in the sequential sport shift mode are:

The driver cannot manually upshift or downshift between first gear and second gear. The transmission automatically upshifts as it would in conventional A/T mode, and it automatically downshifts to first gear when the car comes to a complete stop.
If the driver shifts manually while the transmission is still in first gear, the transmission may end up in third gear. Depending on the driving conditions, the driver may be upshifting at the same time the PCM is making a 1-2 upshift. The PCM then "reads" the driver's input as a signal to shift again, and the transmission immediately shifts from second gear to third gear.

FUEL TANK DRAIN BOLT

This vehicle does not have a fuel tank drain bolt.

HEADLIGHT MOUNTS

If a headlight assembly on the CL is damaged in an accident, and the headlight housing can be reused, an auxiliary bracket can be ordered separately to reinstall the headlight housing.

BRAKE SYSTEM INDICATOR

This indicator comes on when you turn the ignition switch ON (II), whether or not the parking brake is applied. After you start the engine, the indicator goes off if the parking brake is not applied.

NAVIGATION SYSTEM

The navigation system uses the same DVD-based storage system as the 3.2TL. For more information, refer to S/B 99-041, TQI of the DVD Navigation System.

WINDSHIELD WIPER ARMS

The windshield wiper arms are positioned below the hood line to eliminate wind noise and improve vehicle appearance. To avoid damaging the hood when you service or replace the wiper blades, turn the ignition switch ON (II), turn the wipers on, and then turn off the ignition switch when the wipers are in the middle of the windshield.

IN-DASH CD CHANGER

All models are equipped with a 6-disc in-dash CD changer. Six CDs can be loaded into the unit without the need for a CD cartridge.

Advise your customers to follow the loading instructions in their owner's manual exactly when loading CDs.

PASSENGER'S SIDE MIRROR

With the mirror selector switch in the center position, the passenger's side mirror pivots down slightly when you shift the transmission into reverse. This gives the driver a better view of that side of the car while parallel parking. The mirror returns to its original position when you take the transmission out of reverse.

NOTE: You can turn this feature off by leaving the mirror selector switch in the L or R positions.

ROAD LAMPS

All models are equipped with road lamps in the front bumper that come on whenever the headlights are turned on (high and low beam). They are not fog lights or driving lights.
