Lifting Using Floor Jack

Set parking brake. Block wheels not being lifted. When lifting rear of vehicle, set manual transmission into Reverse, or automatic transmission into Park. Lift vehicle at indicated points. See Fig 1.

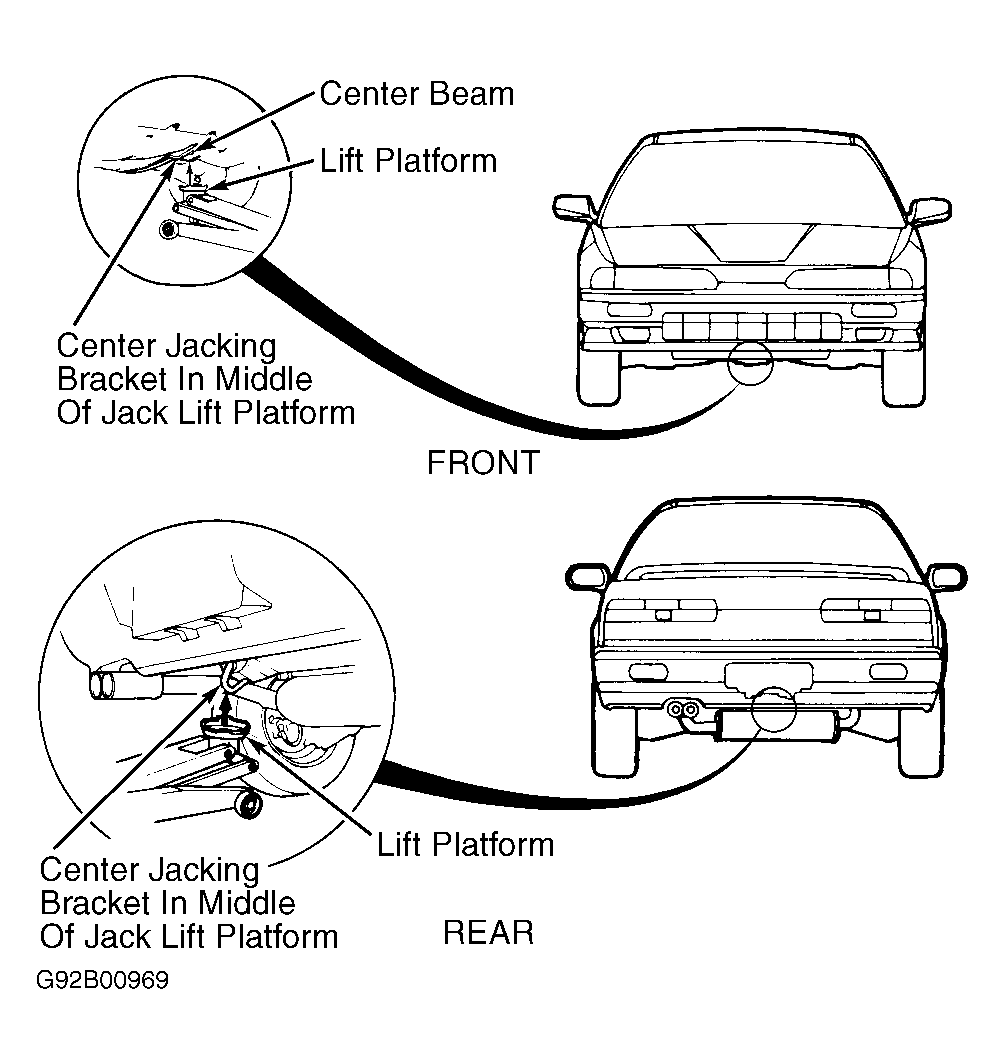

Fig 1: Identifying Floor Jack Lifting Points (Typical)
G92B00969Courtesy of AMERICAN HONDA MOTOR CO., INC.
