Lifting Using Hoist

Position lift blocks as shown. See Fig 1. Raise hoist a few inches. Rock vehicle to ensure it is firmly supported. Raise hoist to full height. Inspect lift points for solid support.

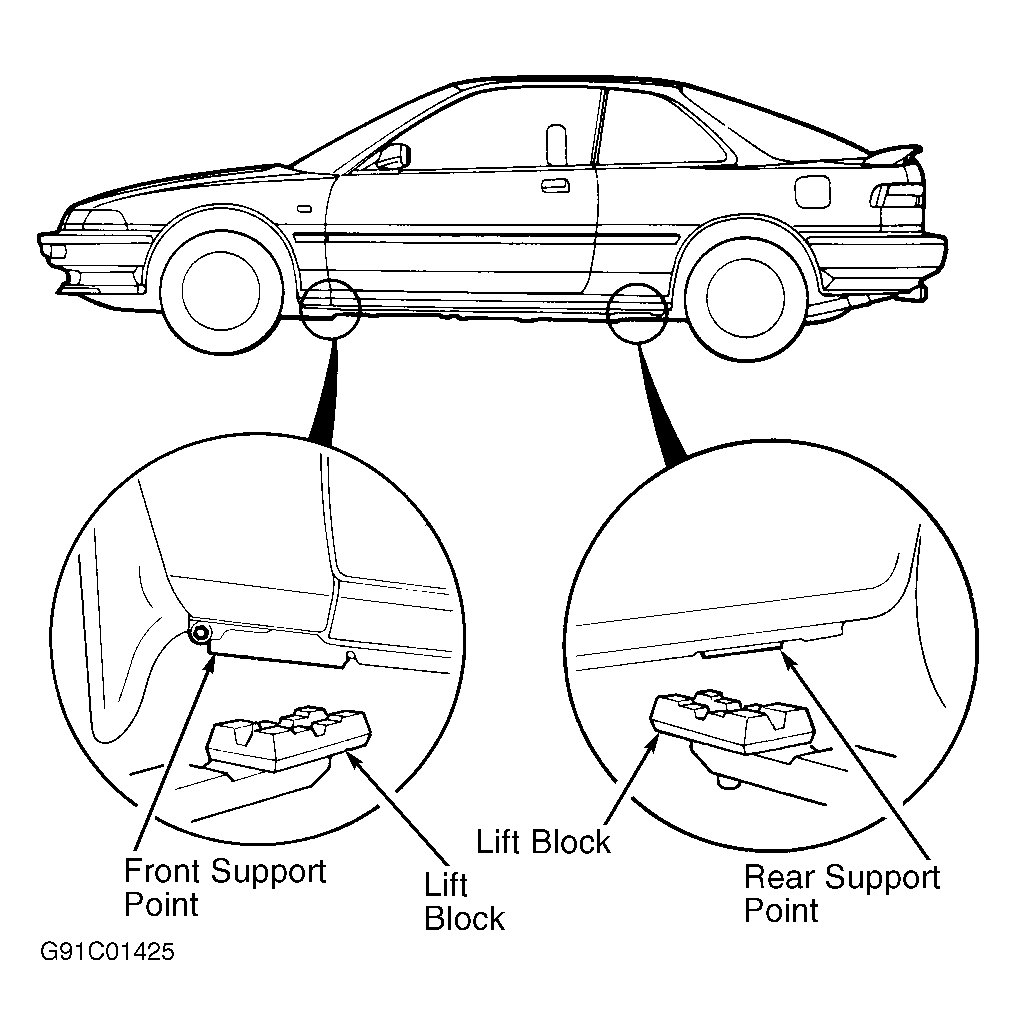

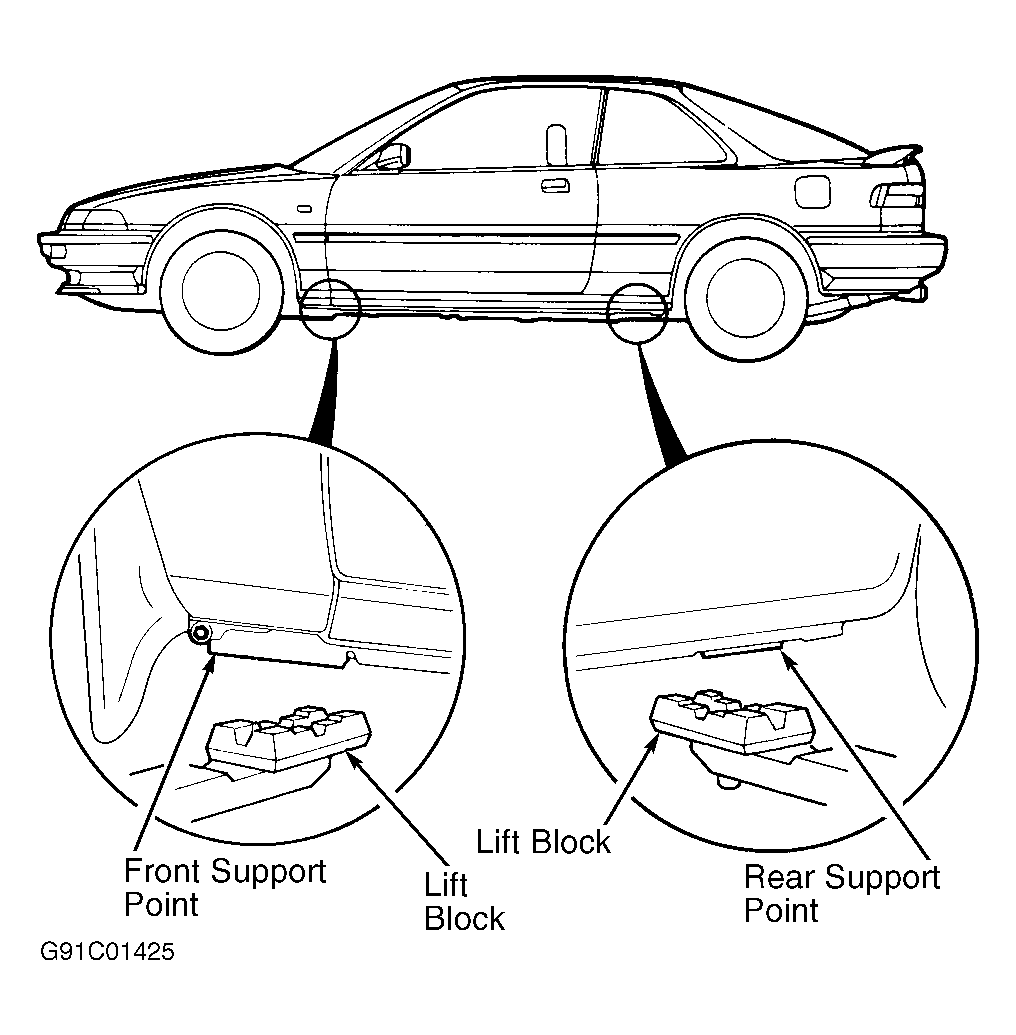

Fig 1: Identifying Hoist Lifting Points (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
