Rear (Integra)

Release parking brake. If parking brake is engaged, toe reading may be incorrect. Note locations of right and left compensator arm adjusting bolts. See Fig 1. Loosen adjuster bolt. Slide compensator arm in or out to adjust toe-in. See WHEEL ALIGNMENT SPECIFICATIONS . Tighten adjuster bolt. See TORQUE SPECIFICATIONS .

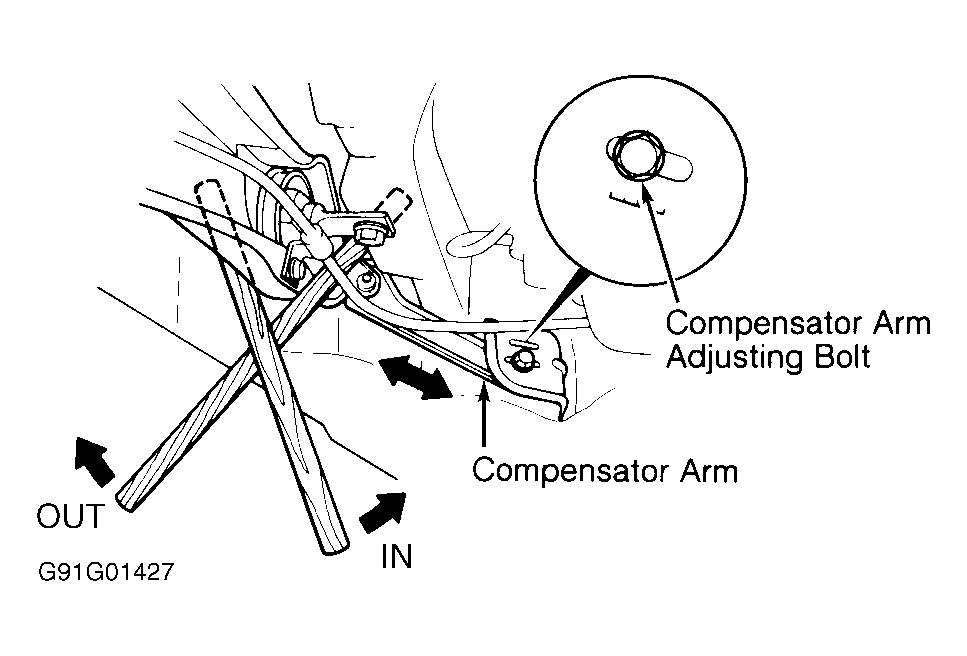

Fig 1: Adjusting Rear Toe-In (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
