Removal & Installation (Hatchback)
- Remove door panel. See DOOR PANEL
. Remove power window switch from door panel and connect to door wiring harness. Lower glass fully.

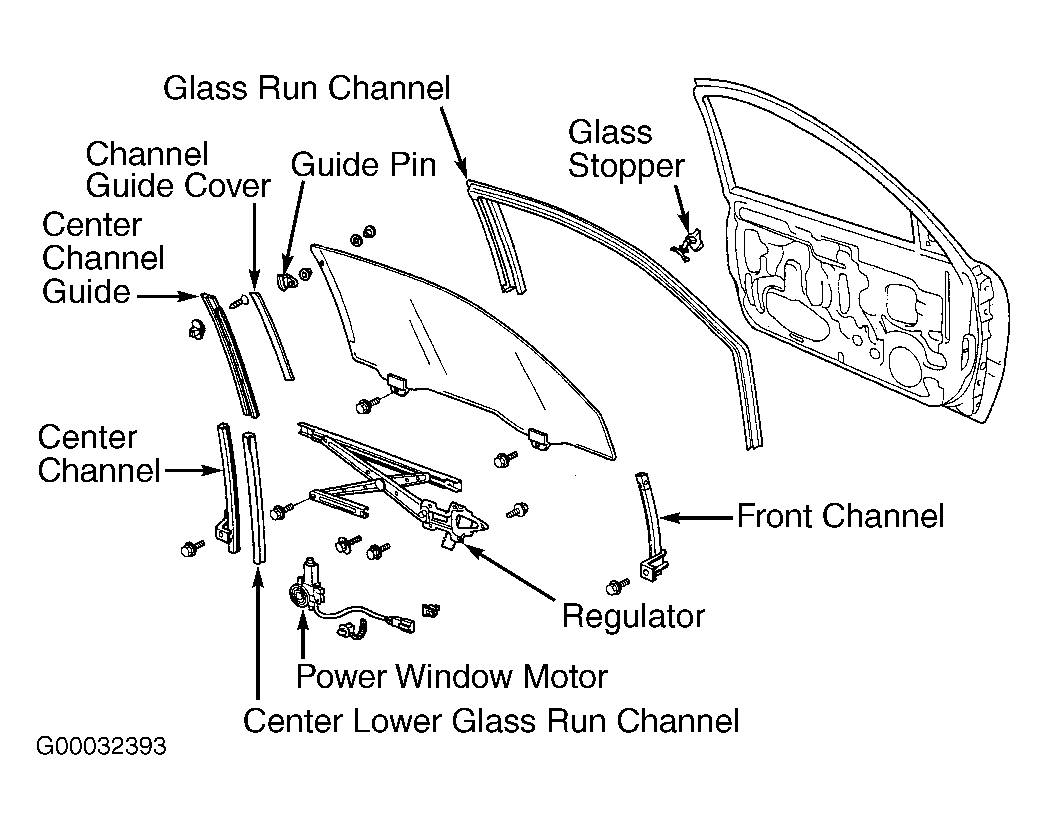

- Peel channel guide cover down from top, then remove 3 screws. Remove center channel guide by pulling upward. Raise glass to access window glass guide bolts. Remove bolts and slide guide to rear.
- Remove glass from guide. DO NOT drop glass inside door. Carefully pull glass out through window slot. Check guide pin (mounted at upper rear corner of glass) for damage or wear. Replace as necessary. To replace guide pin, scribe a line around guide pin to mark original location.
- Disconnect switch connector. Using marker pen, mark location around rear roller guide bolts. Remove 6 regulator bolts. Remove regulator assembly through center hole in door.
- Before removing power window motor, mark location of sector gear and regulator for reassembly. Remove power window motor from regulator.
- To install, reverse removal procedure. Grease power window motor gear and all sliding surfaces of regulator. Apply double-sided tape to channel guide cover when reinstalling.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
