Air Cleaner Replacement

  1. Disconnect the connector from the IAT sensor (A).

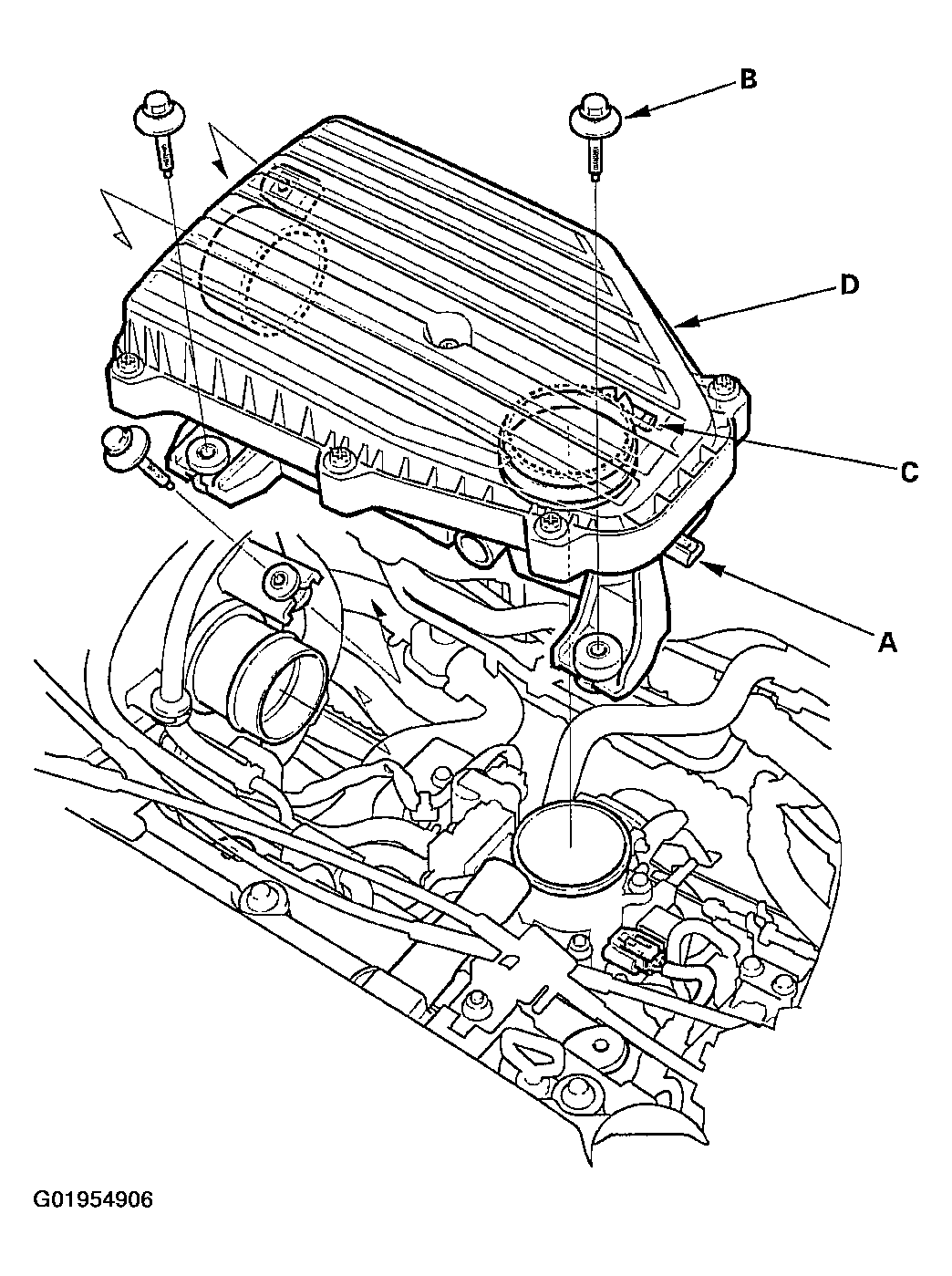

    Fig 1: Disconnecting Connector From IAT Sensor
    G01954906
  2. Remove the bolts (B).
  3. Loosen the screw (C).
  4. Remove the air cleaner (D).
  5. Install the parts in the reverse order of removal.
