Park Pin Switch Replacement

  1. Remove the center console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the screws (A), then remove the shift lever knob (B).

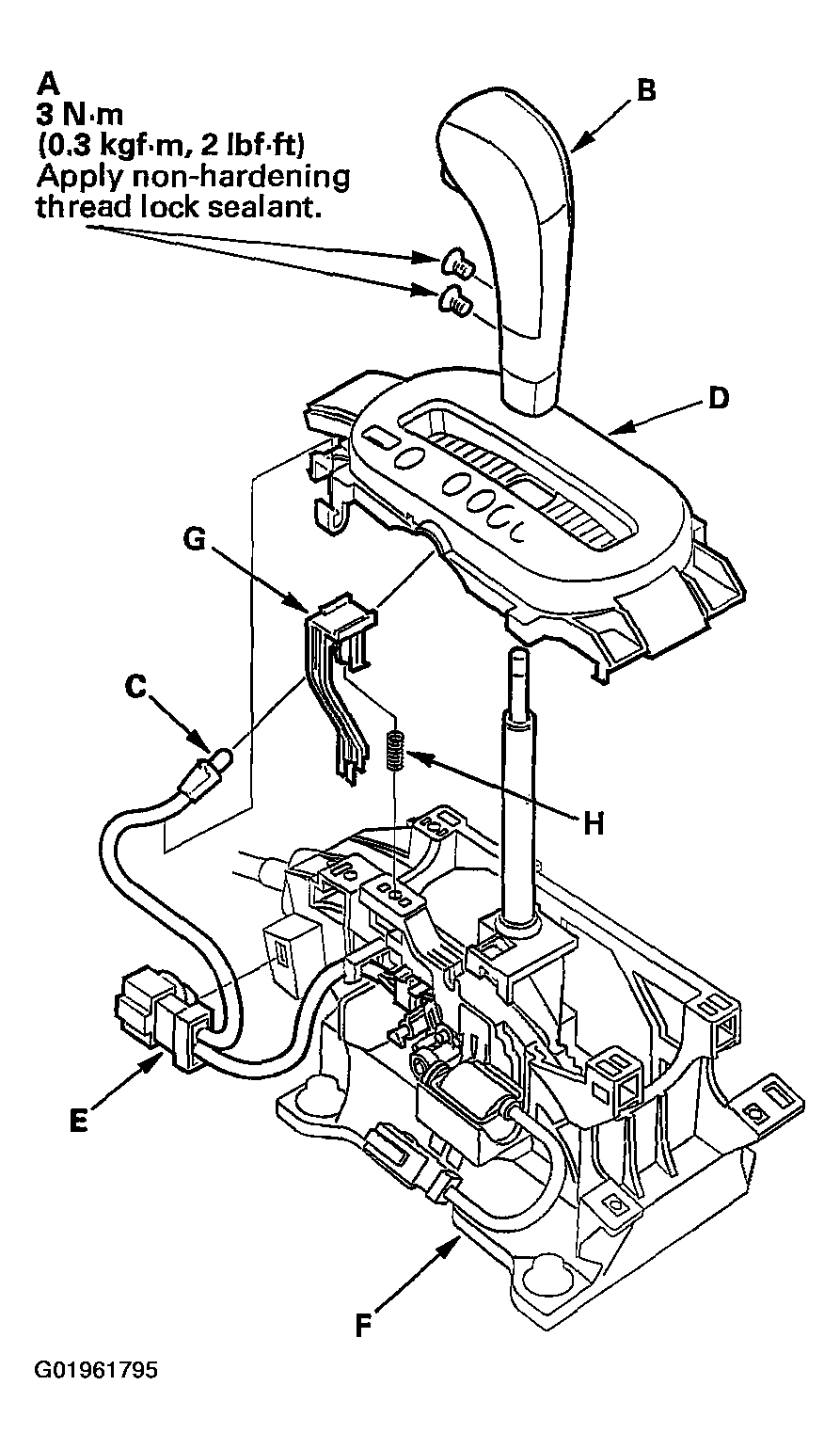

    Fig 1: Removing Shift Lever Knob
    G01961795
  3. Remove the A/T gear position indicator panel light (C) from the A/T gear position indicator panel.
  4. Remove the A/T gear position indicator panel and panel bracket as an assembly (D).
  5. Disconnect the park pin switch connector (4P) (E), and remove it from the shift lever bracket base (F).
  6. Remove the shift lock release (G) and spring (H).
  7. Open the lock tabs (A) on the shift lever bracket base, then remove the park pin switch (B).

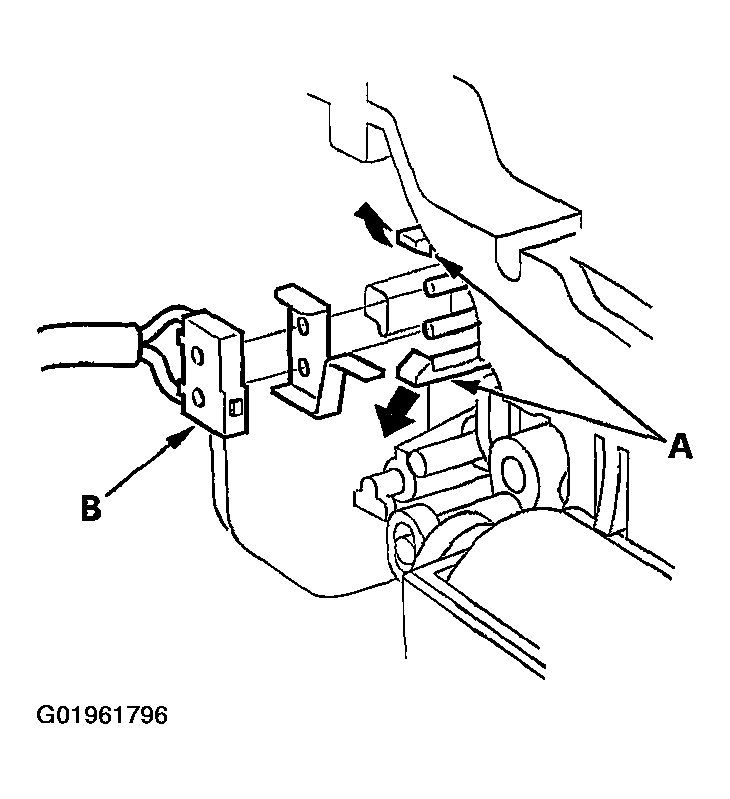

    Fig 2: Removing Park Pin Switch
    G01961796
  8. Install the new park pin switch.
  9. Install the removed parts in the reverse order of removal.
