Power Mirror Defogger

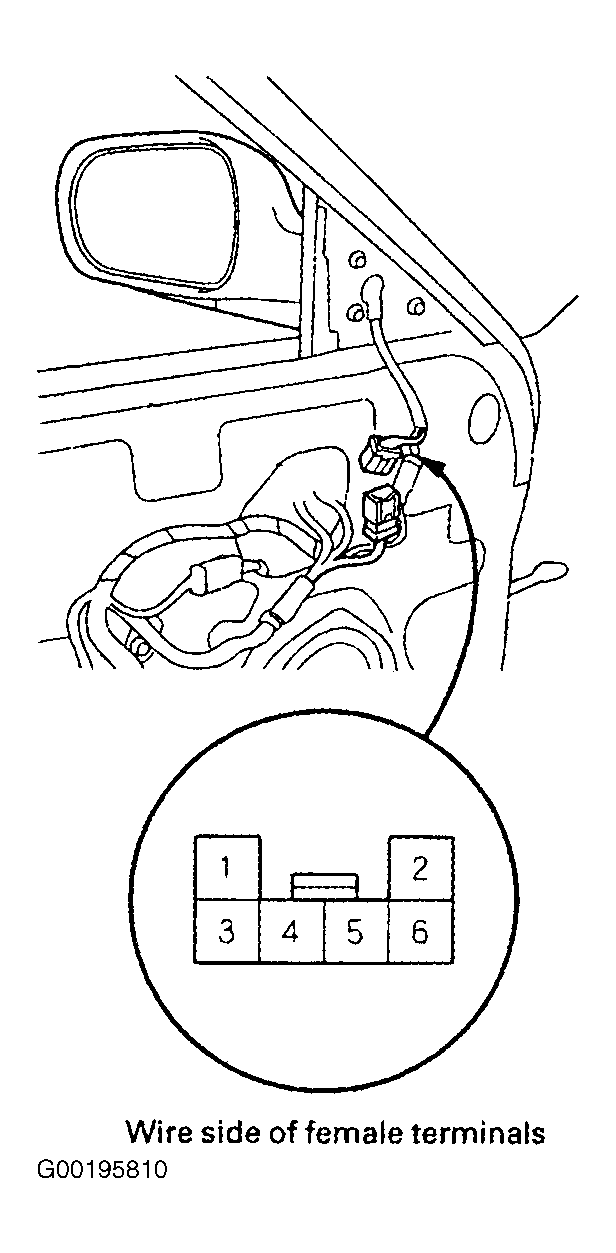

Remove appropriate door panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Disconnect power mirror harness connector. See Figure . Using DVOM, check for continuity between mirror connector terminals No. 1 and 2. If continuity does not exist, replace power mirror defogger.
