Component Locations

For component locations, see Fig 1 .

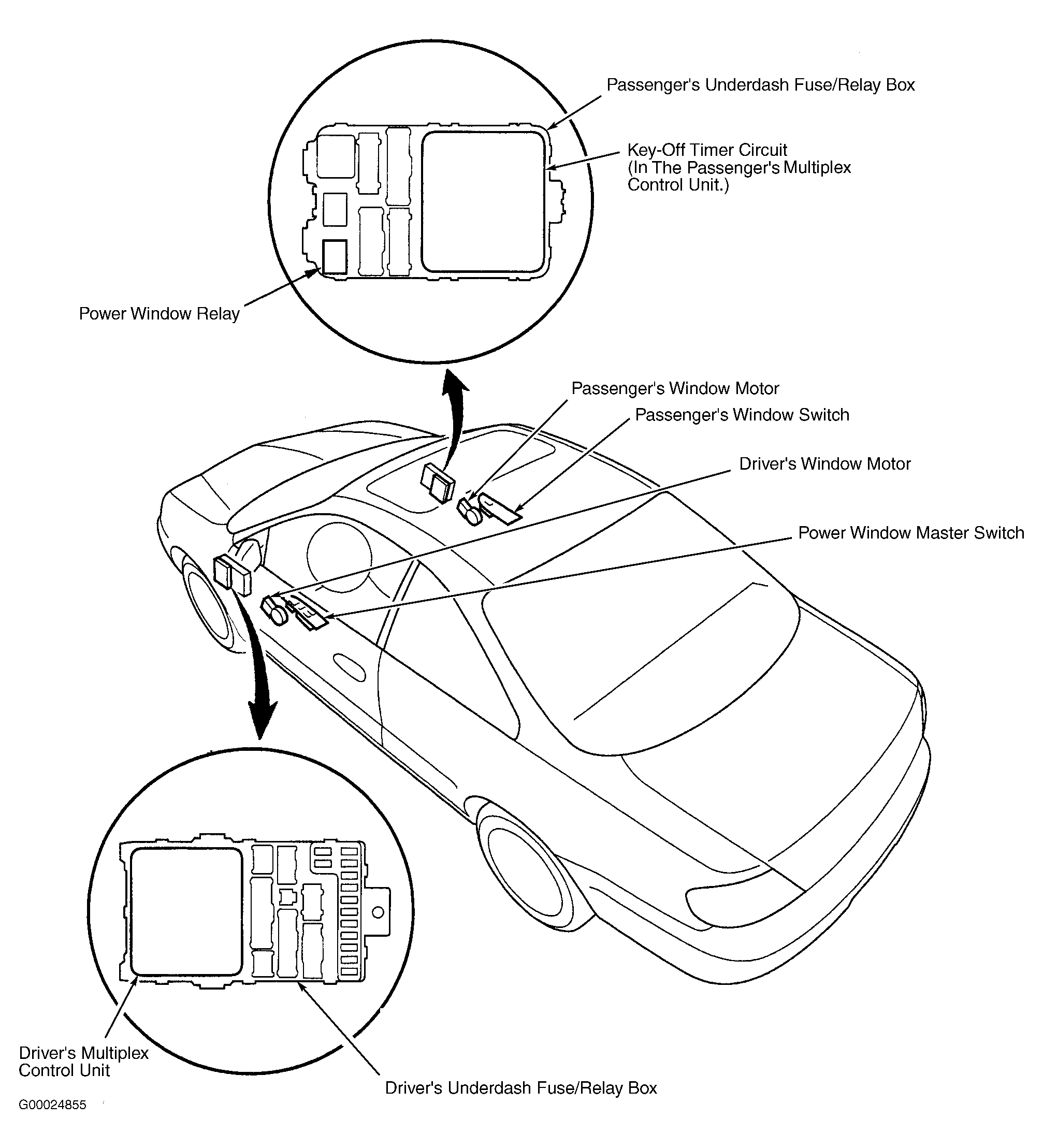

Fig 1: Locating Power Window System Components
G00024855Courtesy of AMERICAN HONDA MOTOR CO., INC.
