Passenger's Window Motor Test

Remove passenger's door panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Disconnect the 2-pin connector from the window motor. See Fig 1 . Test the motor by connecting battery power and ground. See Fig 2 . When the motor stops running, disconnect one lead immediately. If the motor does not run or fails to run smoothly, replace it.

Fig 1: Identifying Window Motor Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

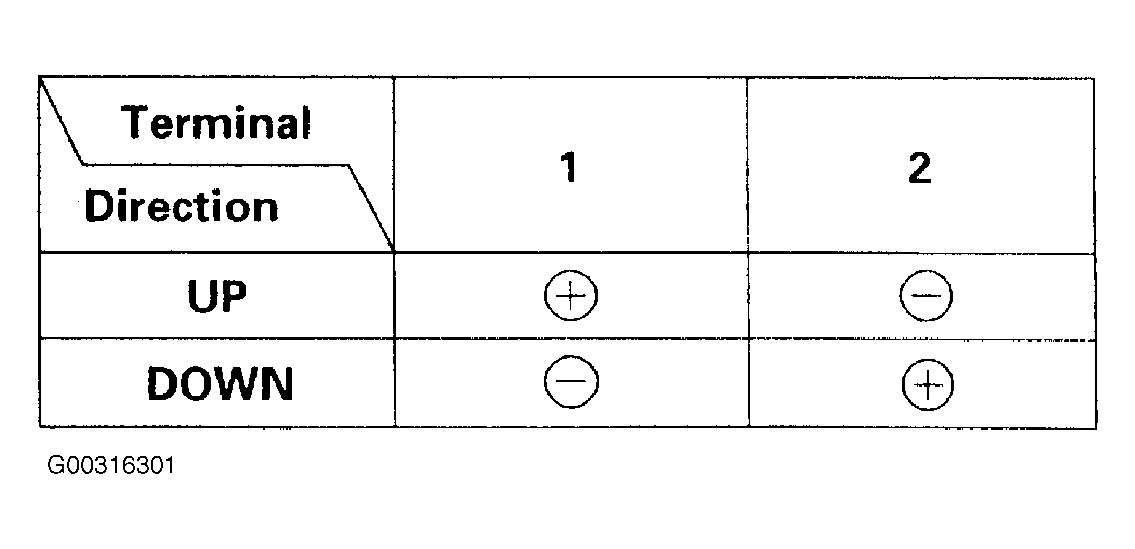

Fig 2: Identifying Passenger's Window Motor Directio

Courtesy of AMERICAN HONDA MOTOR CO., INC.
