Passenger's Window Switch Test

Remove passenger's door panel. See DOOR PANEL  under REMOVAL & INSTALLATION. Remove the screws and the passenger's switch assembly. See Fig 1 . Remove the five mounting screws. Remove the passenger's switch (A) from the panel (B). See Fig 2 . Check for continuity between the terminals in each switch position. See Fig 3 . See PASSENGER'S POWER WINDOW SWITCH  table.

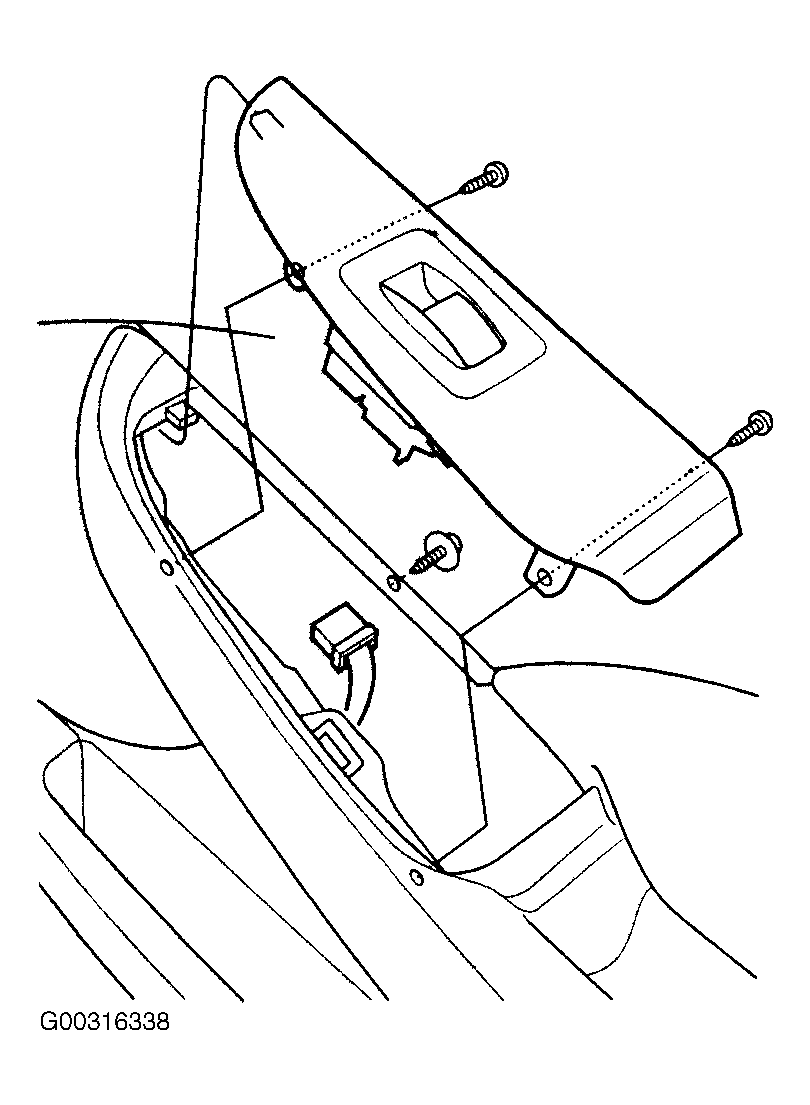

Fig 1: Removing Passenger's Switch Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

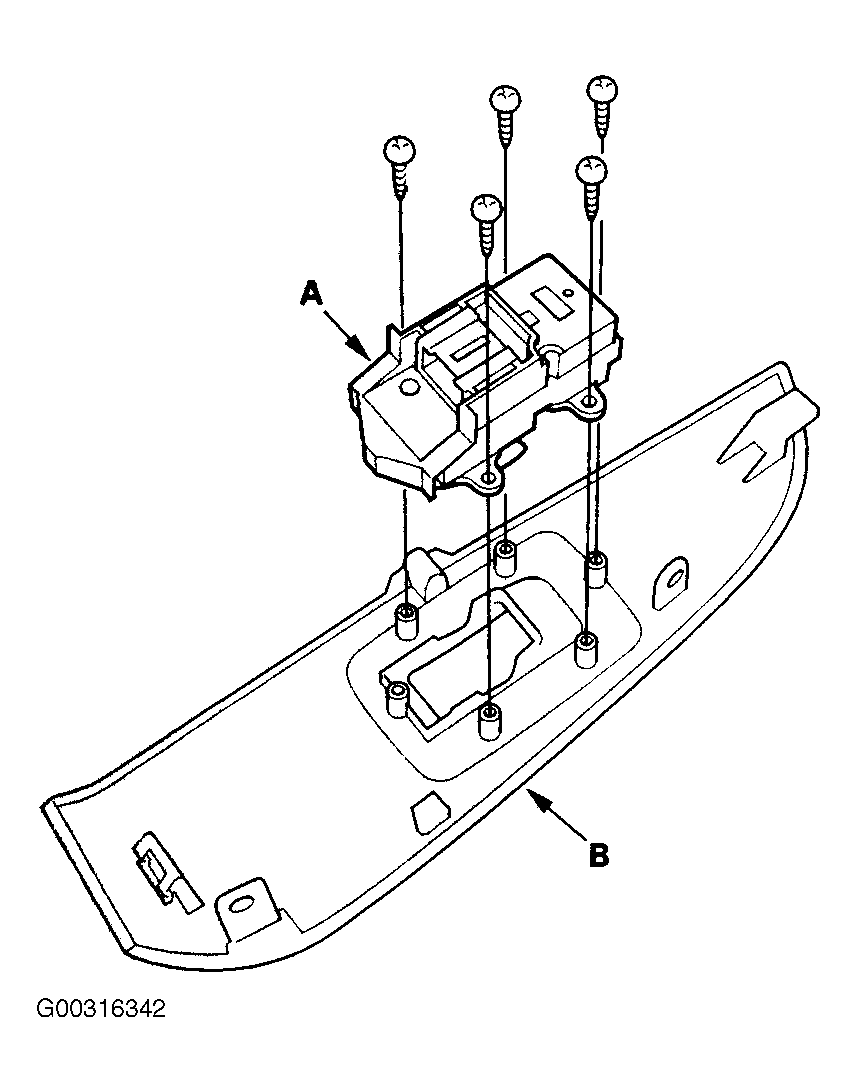

Fig 2: Removing Passenger's Switch From Panel

Courtesy of AMERICAN HONDA MOTOR CO., INC.

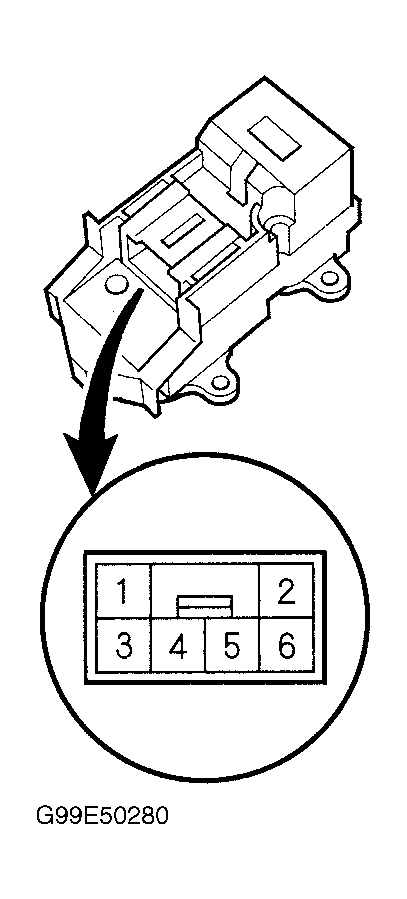

Fig 3: Identifying Passenger's Power Window Switch Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
