Diagnostic Tests (Abs): Notes

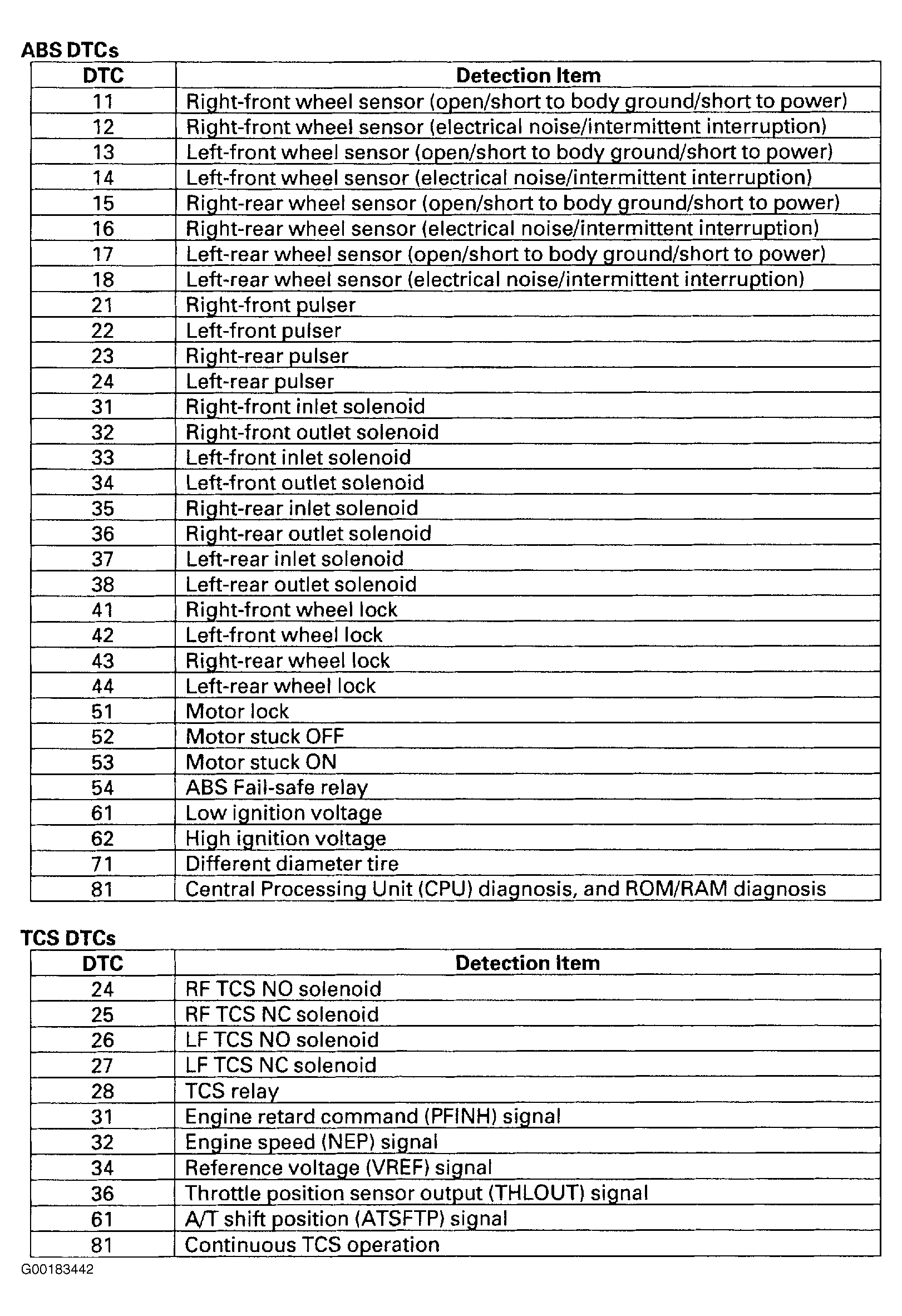

See Figure for DTC index.

DTC	Description
DTC 11, 13, 15 & 17	WHEEL SENSOR & OPEN/SHORT-TO-BODY GROUND/SHORT-TO-POWER
DTC 12, 14, 16 & 18	WHEEL SENSOR & WHEEL SENSOR PULSE SIGNAL
DTC 21, 22, 23 & 24	PULSER
DTC 31, 32, 33, 34, 35, 36, 37 & 38	SOLENOID
DTC 41, 42, 43 & 44	WHEEL LOCK
DTC 51	MOTOR LOCK
DTC 52	MOTOR STUCK OFF
DTC 53	MOTOR STUCK ON
DTC 54	ABS FAIL-SAFE RELAY
DTC 61 & 62	IGNITION VOLTAGE
DTC 71	DIFFERENT DIAMETER TIRE
DTC 81	CENTRAL PROCESSING UNIT (CPU)
DTC 24, 25, 26 & 27	TCS NORMALLY SOLENOID
DTC 28	TCS RELAY
DTC 31	ENGINE RETARD COMMAND
DTC 32	ENGINE SPEED (NEP) SIGNAL
DTC 34	REFERENCE VOLTAGE (VREF) SIGNAL
DTC 36	THROTTLE POSITION SENSOR OUTPUT (THLOUT) SIGNAL
DTC 61	A/T SHIFT POSITION (ATSFTP) SIGNAL
DTC 81	CONTINUOUS TCS OPERATION
