Horn Test/Replacement

Low Horn:

1. Remove the front bulkhead cover .
2. Disconnect the 1P connector (A) from the horn (B).

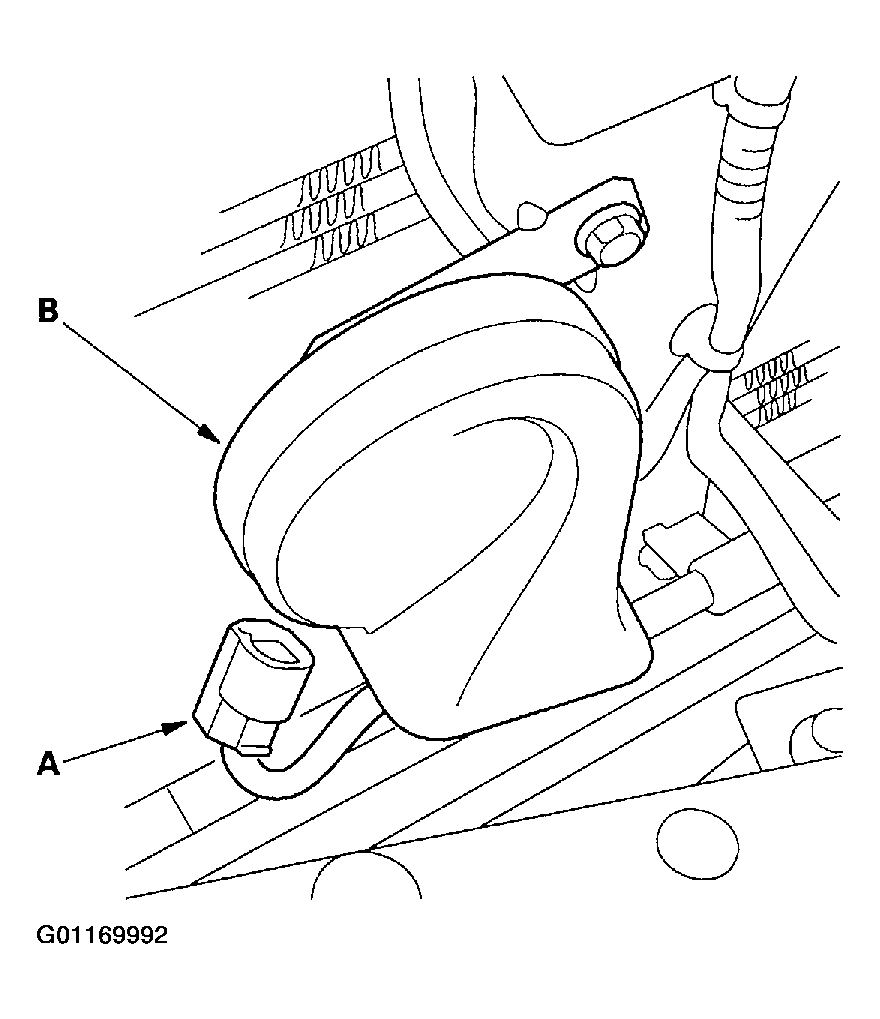

   Fig 1: Disconnecting The 1P Connector From The Horn

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the mounting bolt and the horn.
4. Test the horn by connecting battery power to the terminal (A) and grounding to the bracket (B). The horn should sound.

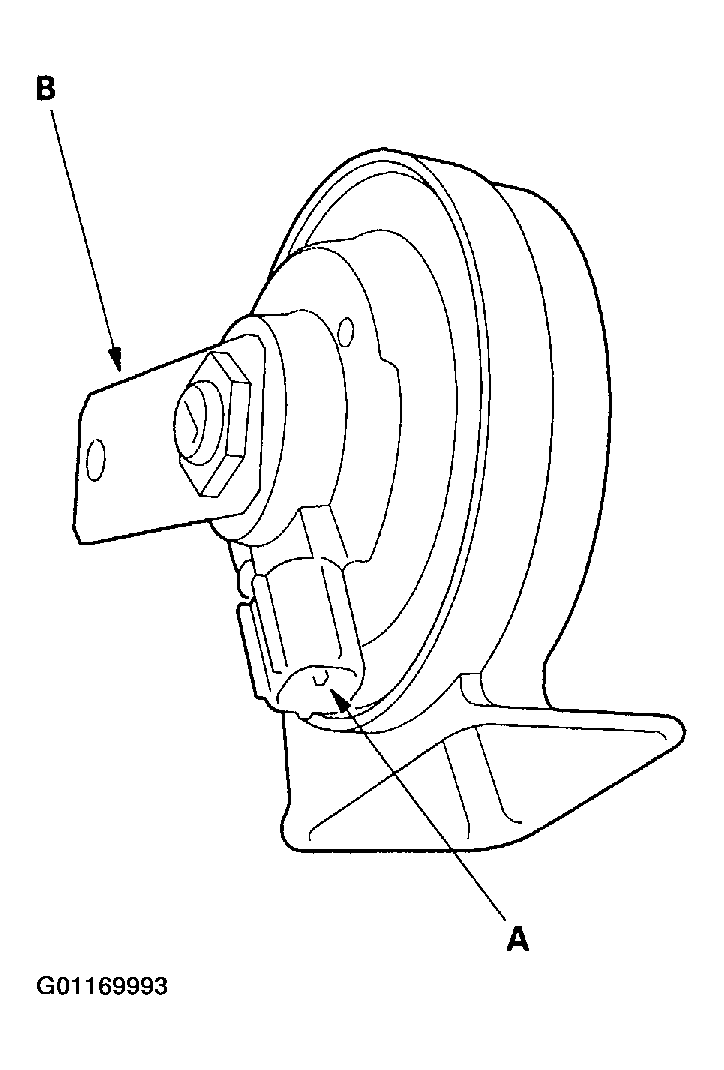

   Fig 2: Testing The Horn

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If it fails to sound, replace it.

High Horn:

1. Remove the front bumper .
2. Disconnect the 1P connector (A) from the horn (B).

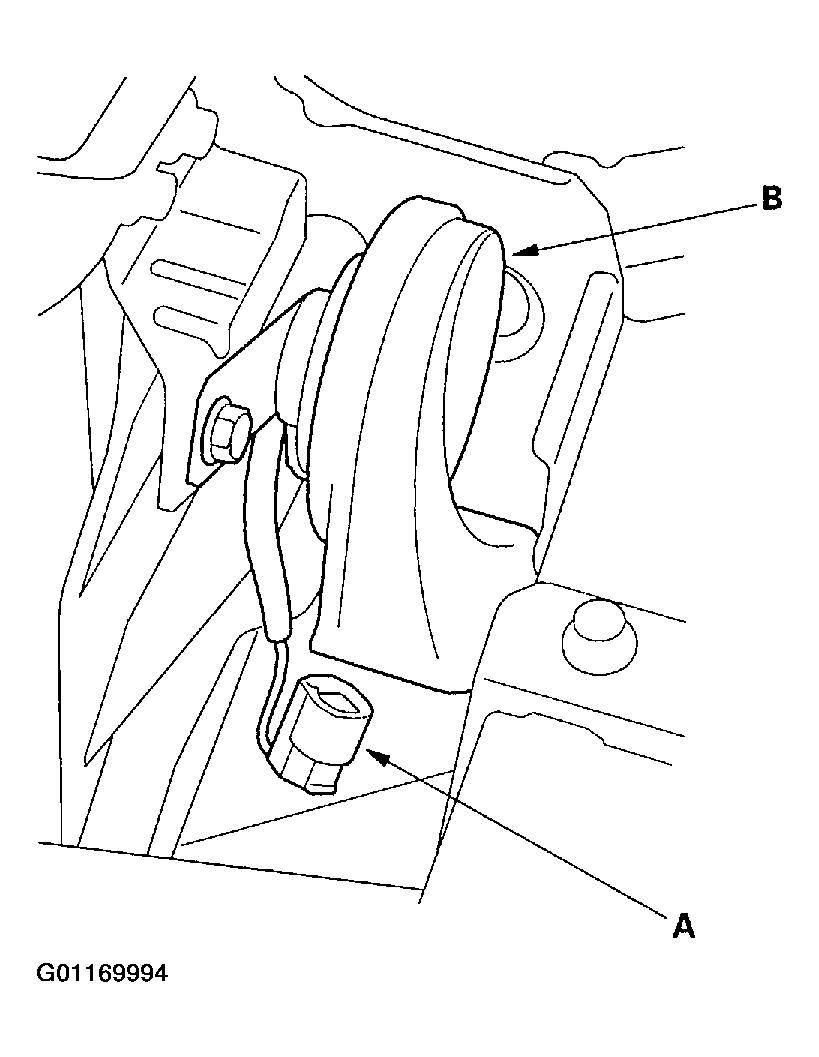

   Fig 3: Disconnecting The 1P Connector From The Horn

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the mounting bolt and the horn.
4. Test the horn by connecting battery power to the terminal (A) and grounding to the bracket (B). The horn should sound.

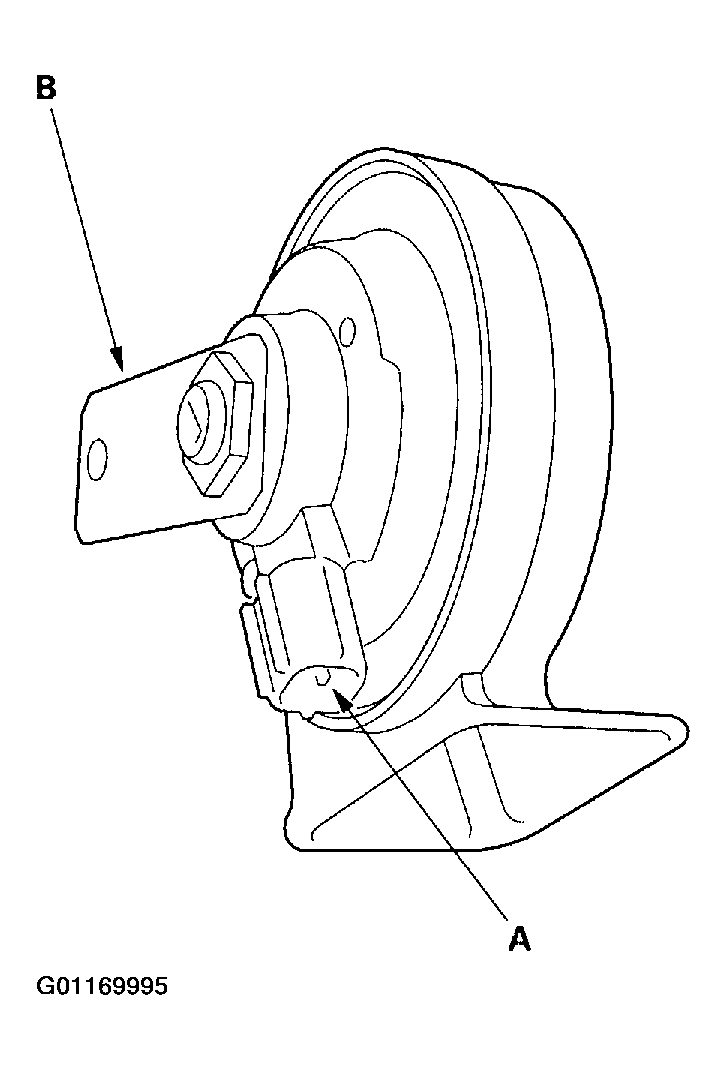

   Fig 4: Testing The Horn

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If it fails to sound, replace it.
